Lexicon IO82 USB 2.0 Audio Recording Interface

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

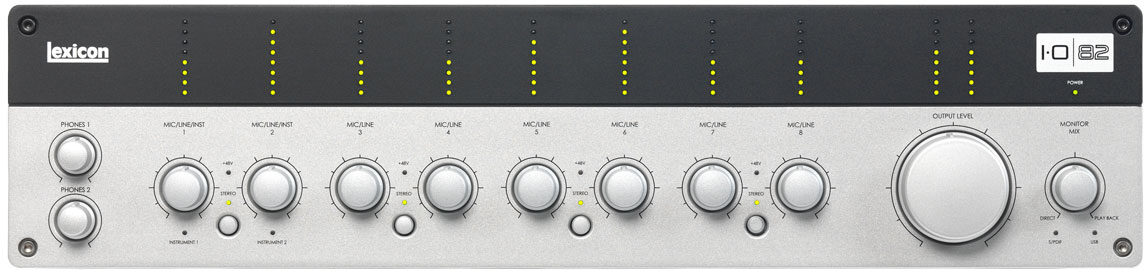

Lexicon IO82 USB 2.0 Audio Recording Interface, Main

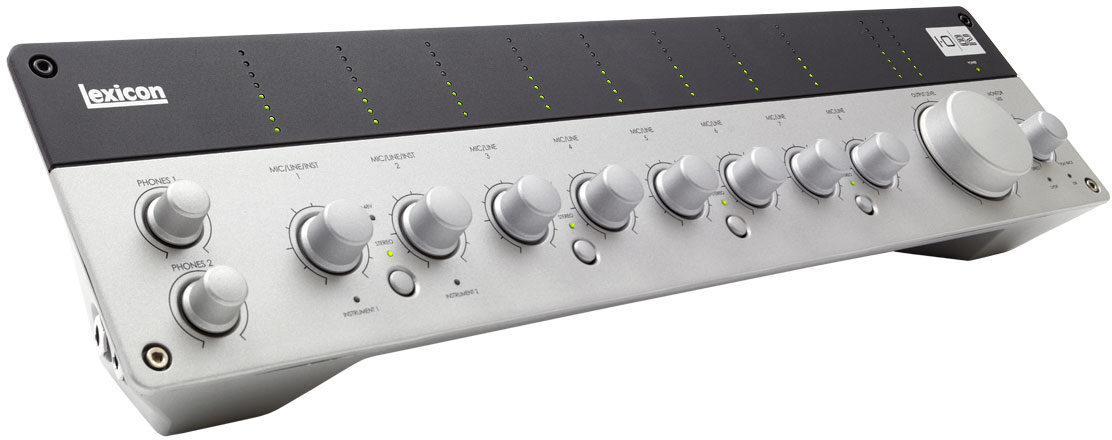

Lexicon IO82 USB 2.0 Audio Recording Interface, Angle

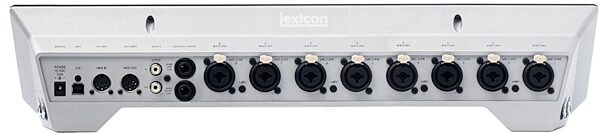

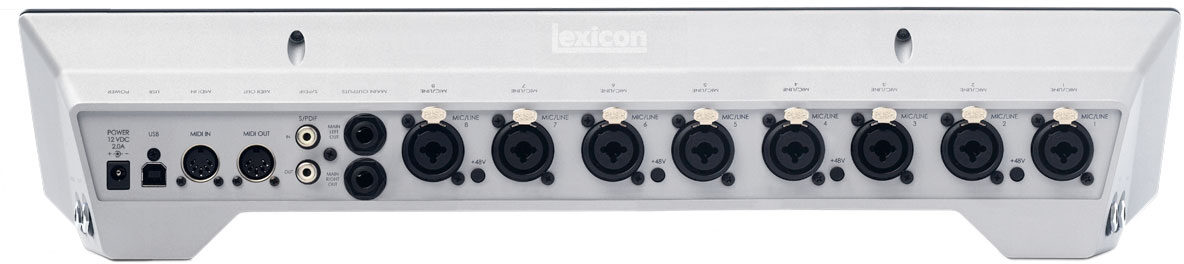

Lexicon IO82 USB 2.0 Audio Recording Interface, Rear
Lexicon IO82 USB 2.0 Audio Recording Interface, Main Lexicon IO82 USB 2.0 Audio Recording Interface, Angle Lexicon IO82 USB 2.0 Audio Recording Interface, Rear
Record through eight dbx microphone preamps and pristine 96 kHz/24-bit converters on the Lexicon IO82 USB audio interface, including MIDI and S/PDIF I/O.

Featuring newly designed dbx 60V high-voltage, ultra-low noise mic preamps on all 8 channels, the IO82 is more than equipped to provide professional recordings that keep your music sounding its best. The preamps run on a high-voltage supply to guarantee stability and provide you with a superior recording across a wide dynamic range. Performance driven A/DD/A converters ensure pristine 24-bit/96kHz audio to capture every subtle detail of your performance.

The IO82 can record eight tracks at once and includes 8 combi-jack mic/line inputs with +48V phantom power, 2 TRS balanced line outputs, 2 hi-Z instrument inputs, 2 high power 1/4-inch headphone outputs, S/PDIF and MIDI I/O. Dedicated knobs and meters offer easy access to input and output levels and locking combi-jacks make sure that a connection is not lost in the middle of a performance.

No artist likes to be told what to do - what tools to use and what tools you cant use. Lexicon understands your passion and it inspires innovation. Brilliantly designed, the IO Desktop Recording Series is compatible with most any DAW, including Pro Tools (version 9 or later). Now this innovative hardware design meets the software capability of any creative passion.

Features

- USB 2.0 Desktop Recording Studio
- 44.1kHz to 96kHz sample rates, 24-bit resolution
- Pantheon II VST/AU reverb plug-in with 6 legendary Lexicon reverbs
- dbx high-voltage, ultra-low noise microphone preamps
- 2 analog combi-jacks for mic/line inputs
- Zero-latency… read more monitoring
- Streamlined monitor form factor
- 1 side panel 1/4-inch instrument input
- 2 analog 1/4-inch TRS outputs
- Separate source gain control per channel
- 1 headphone output with dedicated volume adjustment
- MIDI in and out read less

- Combi-Jack Analog Inputs 8
- Simult. Recording Sources 10
- Microphone Preamps 8
- Hi-Z Instrument Inputs 2
- S/PDIF Yes
- MIDI Yes
- Headphone Connections 2
- 1/4" TRS Balanced Analog Outputs 2
- Microphone Inputs Female XLR Pin 2 Hot
- Input Impedance 3k Ohm balanced
- Phantom Power +48 Volts
- Maximum gain +55 dB
- E.I.N. (at max gain) -127 dB @ 55dB gain typical (150O source) -130 dB @ 55dB gain typical A-weighted (150O source)
- Maximum Input Level +8 dBu
- Frequency Response +/-1.5 dB, 20Hz - 20kHz
- THD+N <0.02%, 20Hz - 20kHz, <0.002%, 1kHz, -6 dBu
- Line In puts 1/4" TRS balanced or unbalanced
- Input Impedance 20k Ohm balanced, 13k Ohm unbalanced
- Maximum Input Level: +18 dBu
- Frequency Response: +/-1.5 dB, 20Hz - 20kHz
- THD+N: <0.02%, 20Hz - 20kHz, <0.002%, 1kHz, +18 dBu
- Instrument Input 1/4" TS unbalanced
- Input Impedance: 1M Ohm
- Maximum Input Level +10 dBu
- Frequency Response +/-2.5 dB, 20Hz - 20kHz
- THD+N: <0.08%, 1kHz, +4 dBu
- Line Outputs 1/4" TRS balanced or unbalanced
- Level +18 dBu maximum
- Impedance 32 Ohm Balanced, 16 Ohm Unbalanced
- Headphone Output: 1/4" stereo jack 250mW per channel at 50O
- MIDI Interface: 5 pin DIN connectors for MIDI in and MIDI out
- Sample Rate: 44.1, 48, 88.2, or 96 kHz (determined by computer application)
- Dynamic Range: A/D (24 Bit) 108 dB typical, A-weighted, 20Hz - 20kHz
- Dynamic Range D/A (24 Bit) 110 dB typical, A-weighted, 20Hz - 20kHz
- Dynamic Range A/D/A (24 Bit) 106 dB typical, A-weighted, 20Hz - 20kHz
- Power Requirements Power adaptors available for 100 - 240 VAC, 50/60 Hz, 15 Watts

Computer System Recommendations

Windows
- Microsoft Windows(R) 7, Vista 32 and XP SP2
- 1.8 GHz CPU or faster
- 1 GB RAM
- Display resolution 1024x768 pixels
- DVD-ROM drive
- USB 2.0
- Internet access required for software license activation

Macintosh
- Mac(R) OS X 10.4.9 or higher
- Intel(R) Multicore system (Required)
- 1 GB RAM
- Display resolution 1024x768 pixels
- DVD-ROM drive
- USB 2.0
- Internet access required for software license activation

For support or warranty questions, please contact the manufacturer:
Phone: 801-568-7567
