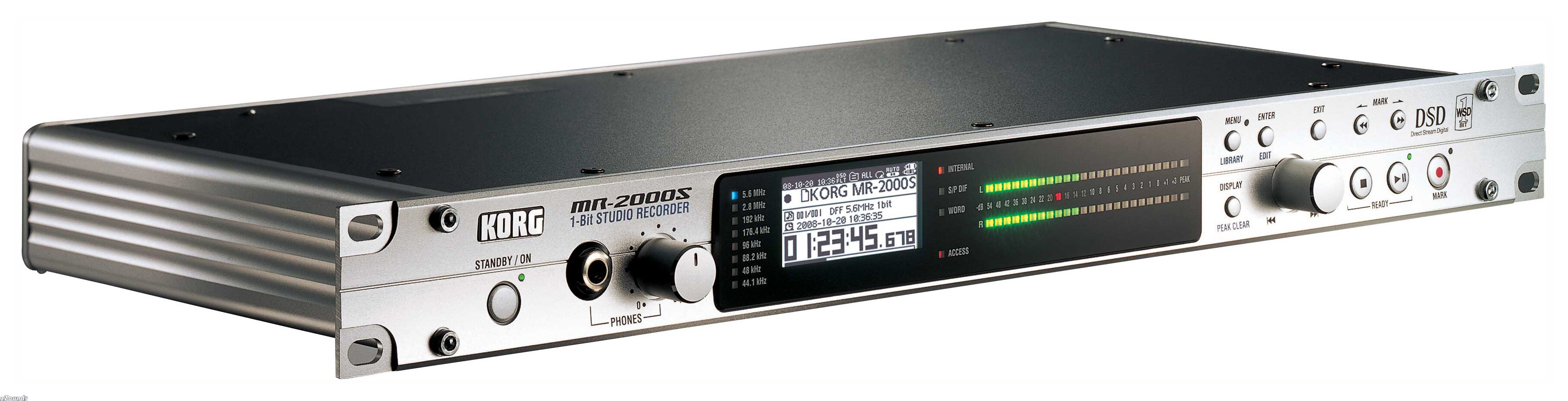

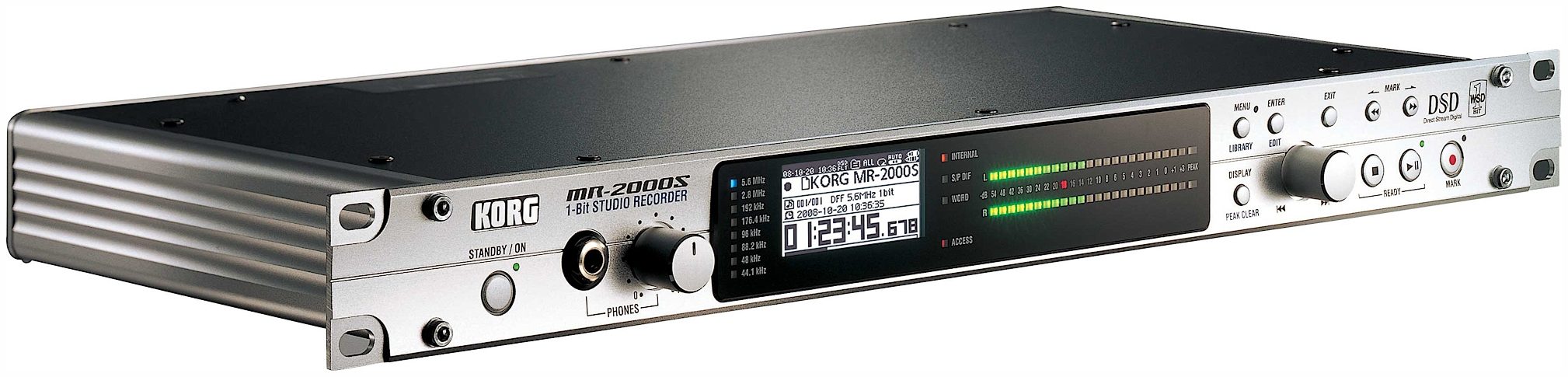

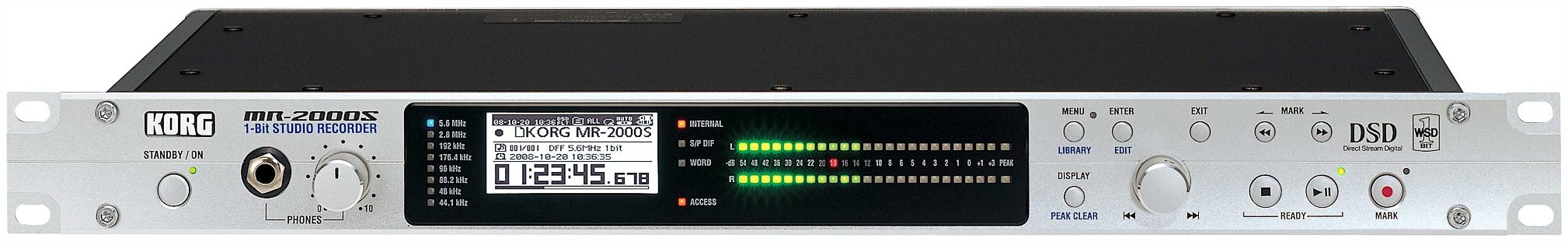

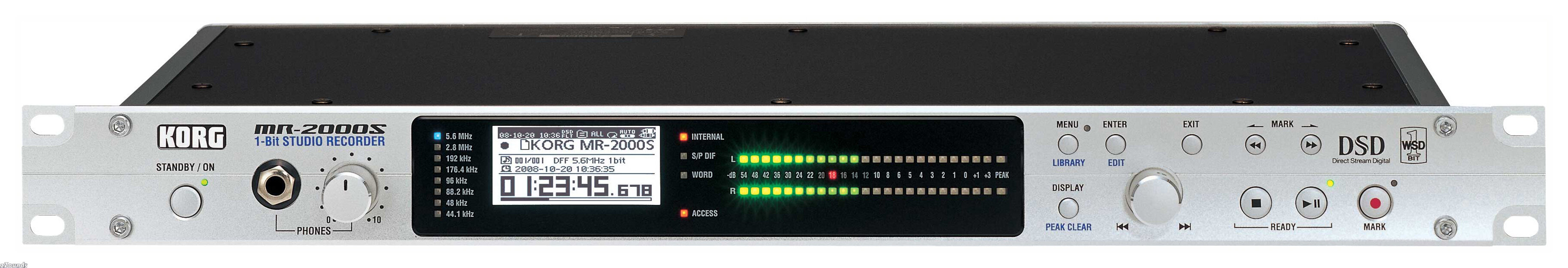

Korg MR2000S Rackmount Mobile RecorderUn-beatable Audio Performance Comes Home to Roost
Korg captured the world's attention with their MR series of DSD mobile recorders. After consulting with top recording and mastering professionals, Korg has now created the MR-2000S Studio Recorder; designed from the ground up to bring that same DSD sonic performance home for use in any studio environment.
Born to Run
In keeping with the MR Series' heritage of portability, the MR-2000S adds a number of new features to meet the requirements of the most demanding studio, yet retains a sleek, single rack-space profile. This compact format is also ideal for any live recording rig; or for grabbing that "off-the-board" live recording night after night - as well as shuttling your recordings from venue to studio and back again. So whether you want to capture that once-in-a-lifetime performance with impeccable detail, or need to transfer those priceless recordings from session to session, the MR-2000S is ready to roll.
All of Korg's MR Series recorders feature the 1-Bit/2.8224 MHz format used in creating the SACD (Super Audio Compact Disc). The MR-2000S goes above and beyond this industry standard to provide 1-Bit/5.6448 MHz recording. At such accelerated sampling rates, the entire sound stage is faithfully captured, even during the softest passages. The clarity, ambience and true dynamic range of the original sound source are preserved with unprecedented accuracy.
By mastering in this superior format, the recorded material can always be re-created natively in whatever format you require, providing a true future-proof archive. In supporting these recording requirements, the MR-2000S uses the highest-quality components available - the CS4398 Digital to Analog Converter from Cirrus Logic and the Burr-Brown PCM4202 Analog to Digital Converter from Texas Instruments Corporation - minimizing any possible degradation of the audio signal.
In addition to the aforementioned 2.8 MHz and 5.6 MHz 1-Bit formats (DSDIFF, WSD and DSF formats are supported), the MR2000S is ready to record in any of the current 16-Bit and 24-Bit formats (from 44.1 kHz up to 192 kHz) directly, in BWF (Broadcast WAV) format.
Easy on the Ears, Easy on the Eyes
Sure, the fidelity of the MR-2000S is a feast for the ears. But the multi-stage LED metering is a treat for the eyes as well. Accurate and responsive, each channel employs 24 bright, color-coded LEDs to provide detailed level information that is highly visible from nearly any vantage point, whether in the studio or in a remote live capture environment.
Got the Hook-up?
Versatility is the key when creating a recorder with a wide range of applications, and that's where the MR-2000S shines. The XLR analog inputs feature a selectable -12dB, -14dB -16 dB, -18dB or -20 dB reference level, insuring the proper level match with nearly any audio source. XLR analog outputs are also provided. In addition, the MR-2000S is equipped with analog RCA style inputs and outputs for maximum flexibility.
On the digital side, coaxial S/P DIF digital I/O provides smooth integration into any 16-Bit or 24-Bit digital studio environment - from the music workshop to the broadcast studio. The MR-2000S also provides word clock I/O for reliable digital synchronization between various digital audio equipment or even between two MR-2000S Studio Recorders.
Save it for Later
The MR-2000S delivers up a whopping stereo record time of nearly 120 hours (16-Bit/44.1 kHz). Even at the highest resolution (1-Bit/5.6 MHz), the 80 GB internal hard drive provides a generous 14 hours of stereo recording time. In fact, the entire file structure of the MR-2000S has been designed to provide ample versatility and ease of use.
When you begin recording, the MR-2000S creates a date folder for that day (just as digital cameras can date each picture). Up to 400 "Date" folders can be created on the hard drive, and each can contain up to 400 "Projects". Each MR-2000S recording creates two types of files: one containing the audio data and a second containing any marker data or protect settings. Collectively, these two files are called a "Project", and the MR-2000S handles them as a single audio file.
To keep the internal drive ready and available, a convenient hi-speed USB 2.0 port allows files to be quickly saved and stored via PC. In fact the MR2000S' internal hard drive can be used as a FAT32 USB external drive to carry source material and other files when needed.
Journey thru the AudioGate
AudioGate is Korg's exclusive file format conversion software, and is indispensible for working with your MR Series recordings. By saving your MR-2000S 1-Bit recordings as the high resolution archival master, you can then use the AudioGate software to transform the data into multiple format masters. For example - the same source material can be used to create a CD master (16-bit/44.1 kHz); as the soundtrack in a DVD (DVD Audio = 24-bit/96 kHz), or imported into the latest DAW Session (at 24-bit/192 kHz).
AudioGate Version 2.0 enhancements include:
* Support for reading and creating DSD Discs
* Support for reading and creating audio CDs
* A new "Normalize" function and advanced dithering options
* Support for FLAC, WMA, AAC and Apple Lossless formats
Going for the One
It has never been easier to add the benefits of 1-Bit recording and future-proof archiving to your musical or commercial recording world, thanks to the new MR-2000S Studio Recorder. But don't let that name fool you. The one-rackspace MR-2000S is also a welcome addition to any live sound/recording rig, for bringing home that rare performance in legendary 1-Bit clarity.
zZounds is an authorized dealer of Korg products.
Number of tracks: 2 tracks, 2 tracks simultaneous playback/2 tracks simultaneous recording
-PCM audio format: BWF (extension .wav) 44.1 kHz @ 16/24 bit, 48 kHz @ 16/24 bit, 88.2 kHz @ 24 bit, 96 kHz @ 24 bit,176.4 kHz @ 24 bit, 192 kHz @ 24 bit
-1-bit audio format: 2.8 MHz @ 1-bit, 5.6 MHz @ 1-bit,DSDIFF format (extension .dff), DSF (extension .dsf),WSD (extension .wsd)
-mp3 audio format(playback only): 44.1kHz/32kbps - 320kbps
Maximum approximately: 120 hours at 44.1 kHz/16 bit, 14.5 hours at 5.6 MHz/1- bit (for 80 Gbyte hard disk), Maximum continuous recording 6 hours
Number: Recognizes a maximum of projects four hundred projects of each format
Mark points: 100 points per project *No mark names
USB functionality: Connect to computer via USB 2.0, usable as FAT32 USB external drive
Project editing: Rename, Delete, Protect
Display: 160 x 104 pixel, LCD with backlight
Level meter: -54dBFS - 0dBFS (PC audio); -54dBSACD - +3dBSACD (1-Bit audio); L and R each provide 21/23-step LED + peak LED
Power supply: AC100 -240 V
Power consumption: 20 W
Dimensions/Weight (W x D x H): 18.9 x 8.6 x 1.7 in. : Including protrusions/6.17 lbs
Frequency response: 10 Hz ... 20 kHz +/- 1 dB@ Fs 44.1 kHz / 48 kHz, 10 Hz ... 40 kHz +/- 1 dB@ Fs 88.2 kHz/96 kHz/176.4 kHz/ 192 kHz, 10 Hz ... 100 kHz (1-bit)
S/N: 103 dB (typical) @ IHF-A
THD+N: 0.005% (typical), 20 Hz ... 20 kHz
A/D conversion: 2.8224 MHz/5.6448 MHz(1-bit), 24bit (PCM)
D/A conversion: 2.8224 MHz/5.6448 MHz(1-bit), 24bit (PCM)

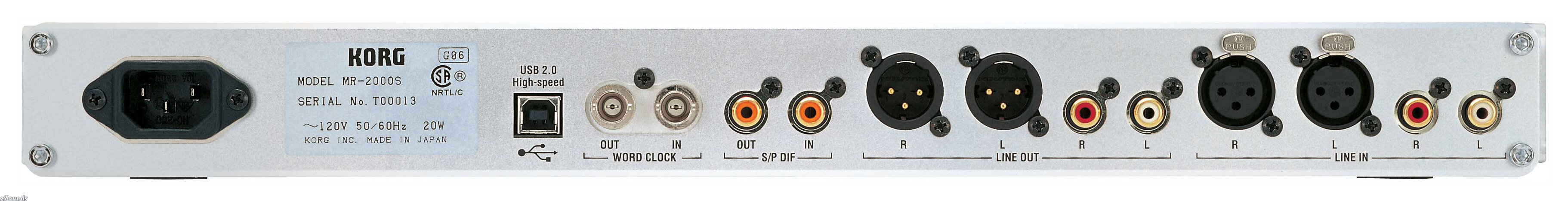

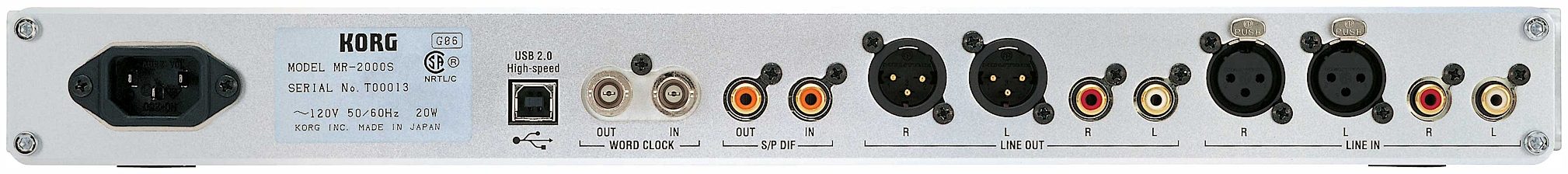

Line In L/R
-Connector: XLR-3-31 type (balanced)
-Input impedance: 22 k ohms
-Nominal level: + 4 dBu (REC LEVEL=0dB)
-Maximum level: + 24 dBu
-Connector: RCA (Unbalanced)
-Input impedance: 50k ohms
-Nominal level (- 12 dBFS - 12 dB-SACD):
-6 dBV (REC LEVEL = 0 dB)
-Maximum level: + 10 dBV
Line Out L/R
-Connector: XLR-3-32 type (balanced)
-Load impedance: 600 ohms or greater
-Nominal level: - 4dBu
-Maximum level (0dBFS 0dB-SACD):
- 16 dBu (Nominal level= -12dBFS),
- 18 dBu (Nominal level= -14dBFS),
- 20 dBu (Nominal level= -16dBFS),
- 22 dBu (Nominal level= -18dBFS),
- 24 dBu (Nominal level= -20dBFS)
-Connector: RCA (Unbalanced)
-Load impedance: 47 k ohms or greater/
-Nominal level (- 12 dBFS - 12 dB-SACD):
- 6 dBV (REC LEVEL=0dB)
-Maximum level (0 dBFS 0 dB-SACD): + 6dBV
-Connector: 1/4-inch stereo phone jack
-Load impedance: 16 Ohms or greater
-Maximum level: 170 mW + 170 mW @ 32 Ohms
S/P Dif In/Out (coaxial):
-Connector: RCA pin
Word Clock In/Out:
-Connector: BNC receptacle
-Connector: Type B
-Format: USB 2.0 compliant,
-USB mass storage class
-Supported operating systems: Windows 2000,or later Mac OS X 10.3.9 or later
AC power cable, Install CD ("AudioGate" audio file conversion application)
AudioGate ver,1.5 Operating Requirements
-Supported operating systems: Microsoft Windows XP Home Edition/Professional Edition Service Pack 1 or later, Microsoft Windows Vista
CPU: Intel Pentium III /1 GHz or better
RAM: 256 MB or more
A USB port that meets the operating requirements of Microsoft Windows XP/Vista
-Supported operating system: Mac OS X 10.3.9 or later
CPU: Apple G4/800 MHz or better, Intel Mac is supported
RAM: 256 MB or more
A USB port that meets the operating requirements of Mac OS X
*This product comes installed with the "ISC-MP3 BF532 d Korg" MP3 decoder which was developed by The Institute of Super Compression Technologies, Inc. (ISCT), Japan.
*"DSD" is a registered trademark.
*Logos, product names, and company names are their trademarks or registered trademarks.
Specifications subject to change without notice
If you have additional warranty questions, please contact the manufacturer at 631-390-6800
