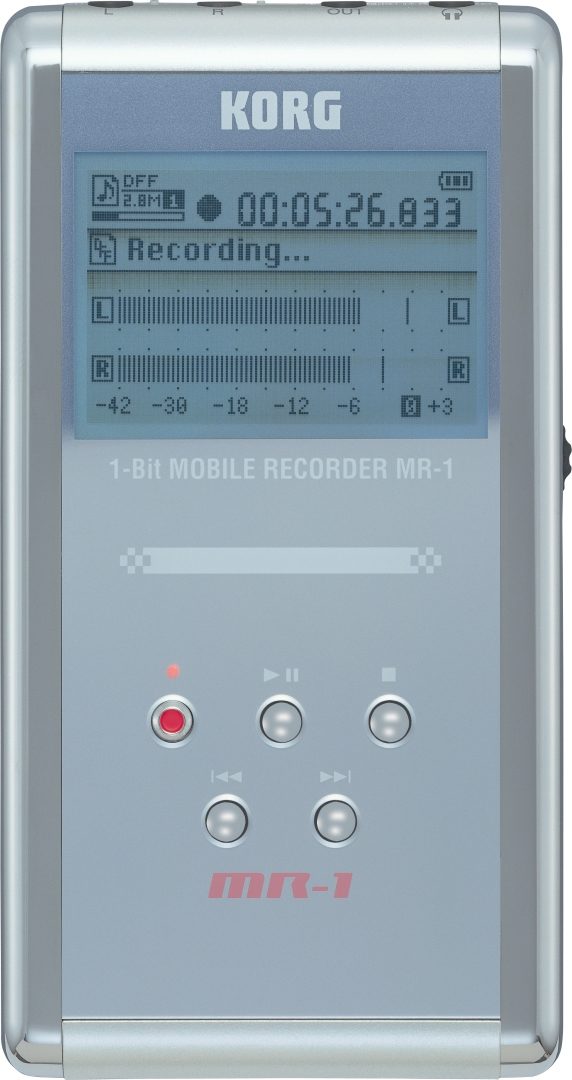

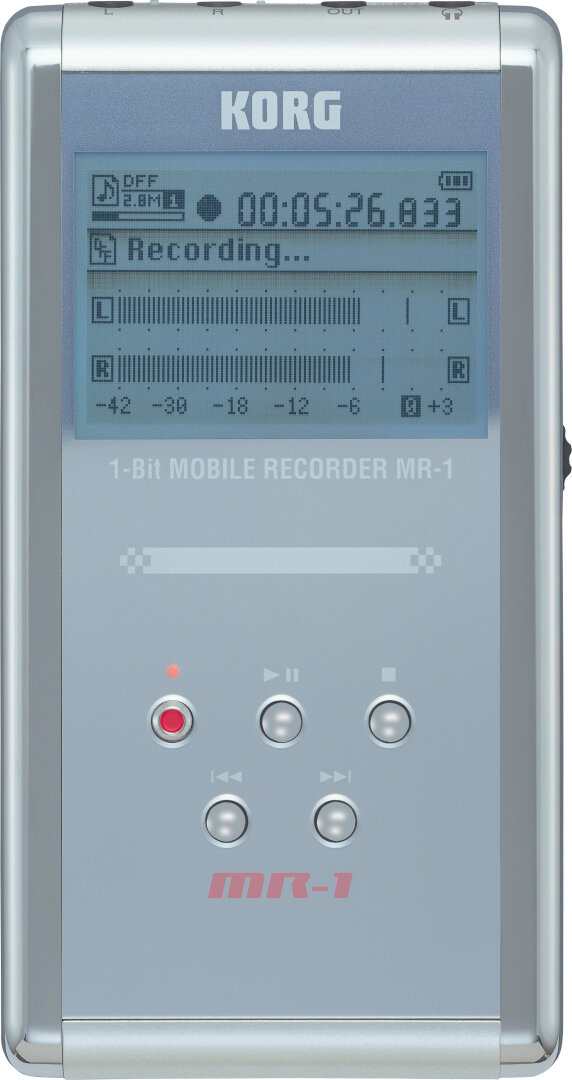

Korg MR1 1-Bit 2.6MHz Mobile Field Recorder

Manufacturer's Description for Korg MR1 1-Bit 2.6MHz Mobile Field Recorder

Uncompromising, future-proof fidelity at an unprecedented price
Korg’s new, super-portable MR Professional Mobile Recorders break new ground by providing high fidelity 1-bit recording technology at unheard of low prices.

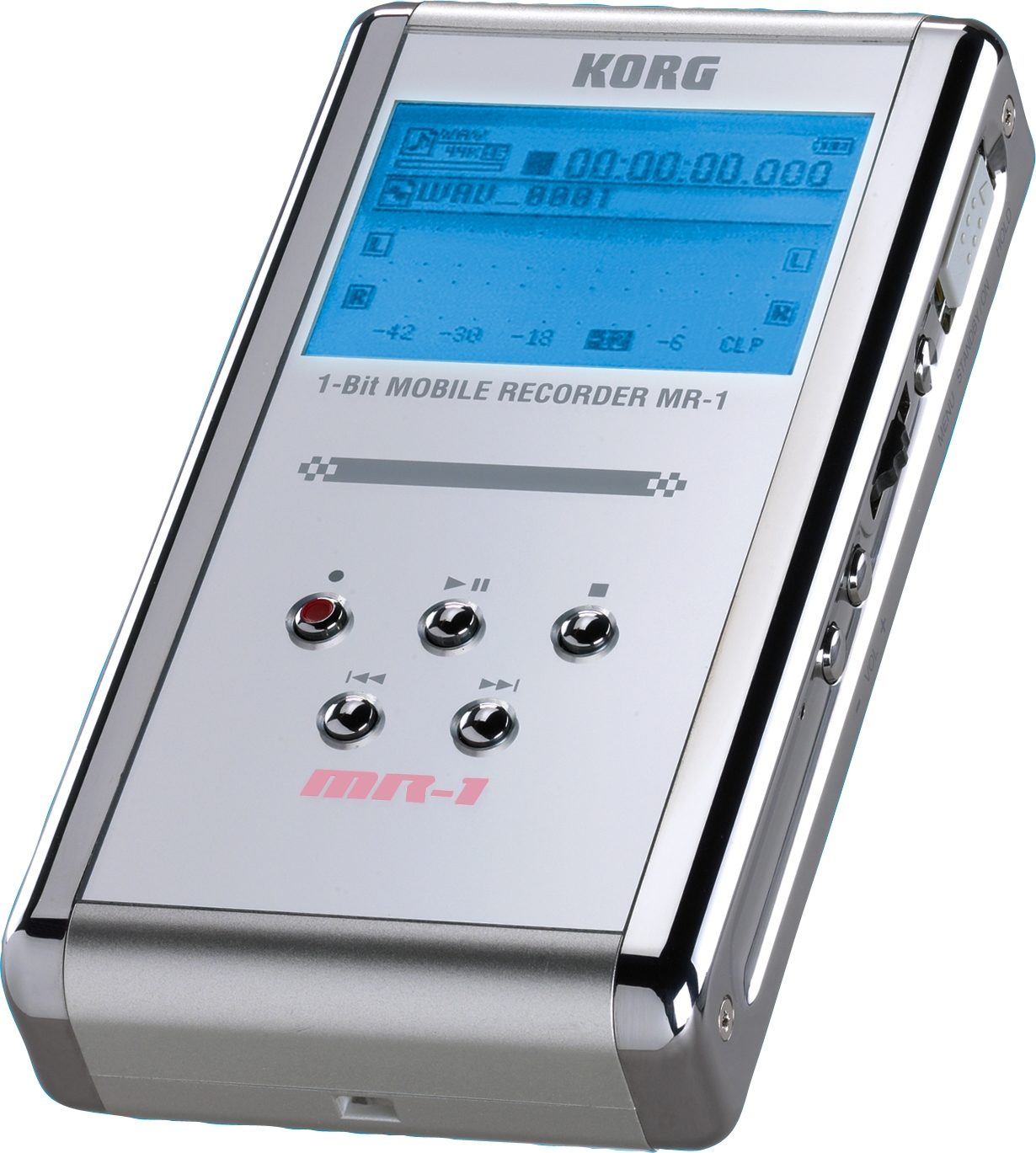

The hand-held MR-1 provides high quality 1-bit/2.8 MHz recording and playback in a shirt-pocket portable package that is perfect for location recording, broadcast journalism, podcasting, live music performances – even for rehearsals and song-writing sessions.

By recording in 1-bit/2.8 MHz format you are assured that your most important, once-in-a-lifetime moments are captured in stunning detail, and ready for whatever the future brings you. And back in the studio it also provides superb final mix and archiving benefits.

Powerful new software bundled with the MR-1 recorder enables the conversion of your 1-bit recordings and mixes into all of today’s audio formats without degradation. Best of all, by archiving your data in 1-bit format you’re ready for the future, as playback systems and standards change.

Features:
The MR-1 supports multiple recording formats including DSDIFF, DSF, and WSD 1-bit formats*, as well as multi-bit PCM format (BWF) with resolutions up to 24-bit/192 kHz.

It features a 20Gbyte internal hard drive, offering up to six hours of recording** at the highest audio quality (1-bit 2.8224 MHz stereo), or approximately twenty hours at CD quality (16-bit 44.1 kHz).

High-speed USB 2.0 connectivity provides for fast and easy transfer of files between the recorder and your computer. The MR-1 runs on AC or long-life rechargeable lithium polymer battery.

**The maximum continuous recording time is approximately six hours when using an AC adapter.

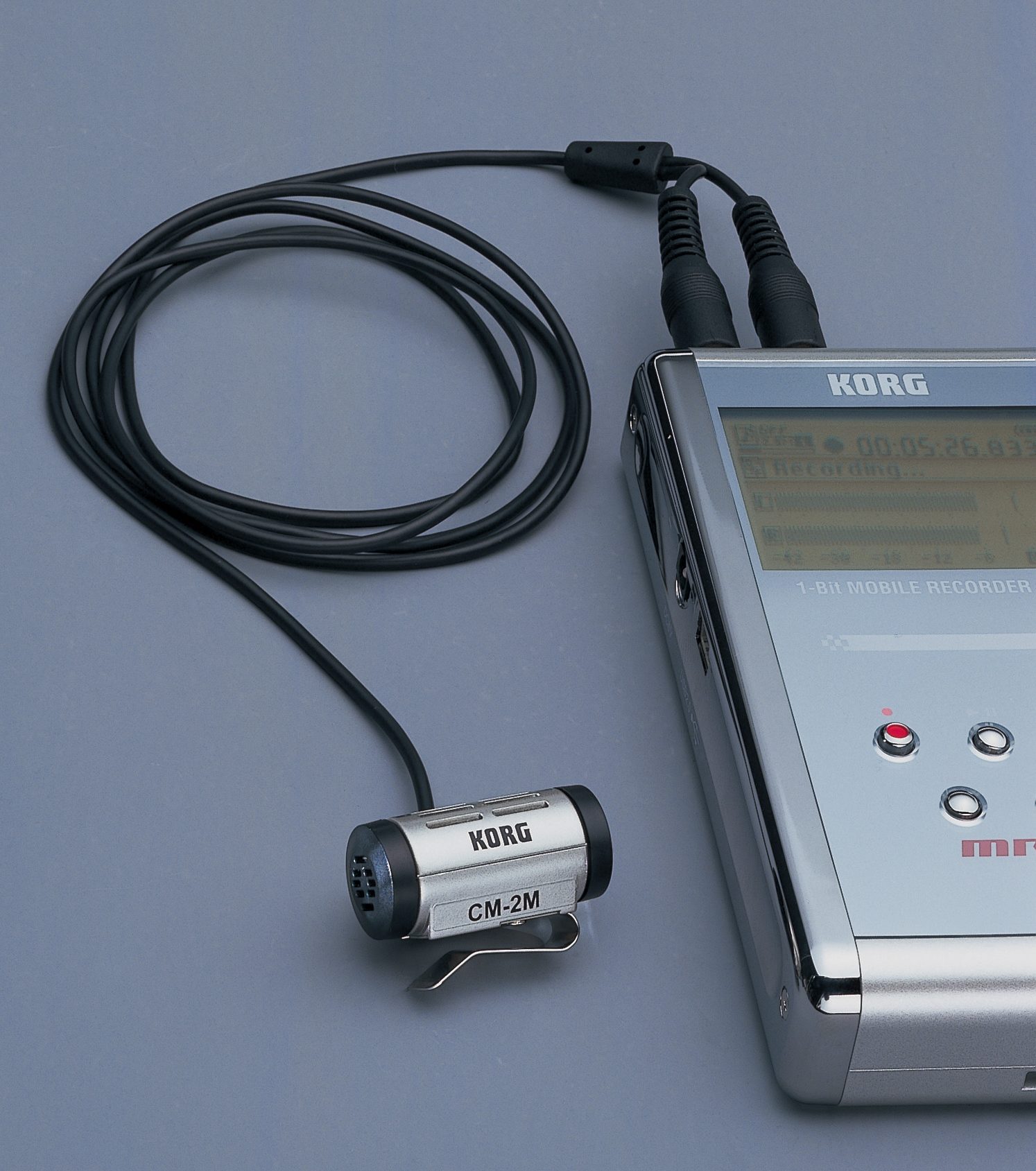

The ultra portable MR-1 includes dual balanced mini plug inputs and a stereo mini plug output. It includes a stereo electret condenser mic so the unit can be tucked away and the mic clipped or placed in a convenient location. It features an intuitive, menu-driven interface featuring a large backlit LCD for superb visibility.

A total of one thousand projects*** can be recorded in the MR-1, and file management functions such as Rename, Delete, and Protect can be easily applied to individual projects. Up to one hundred mark points can also be stored in each project.

***Recognizes a maximum of 200 projects for each format (WAV, DFF, DSF and WSD), max 1,000 projects

Free integrated software solution

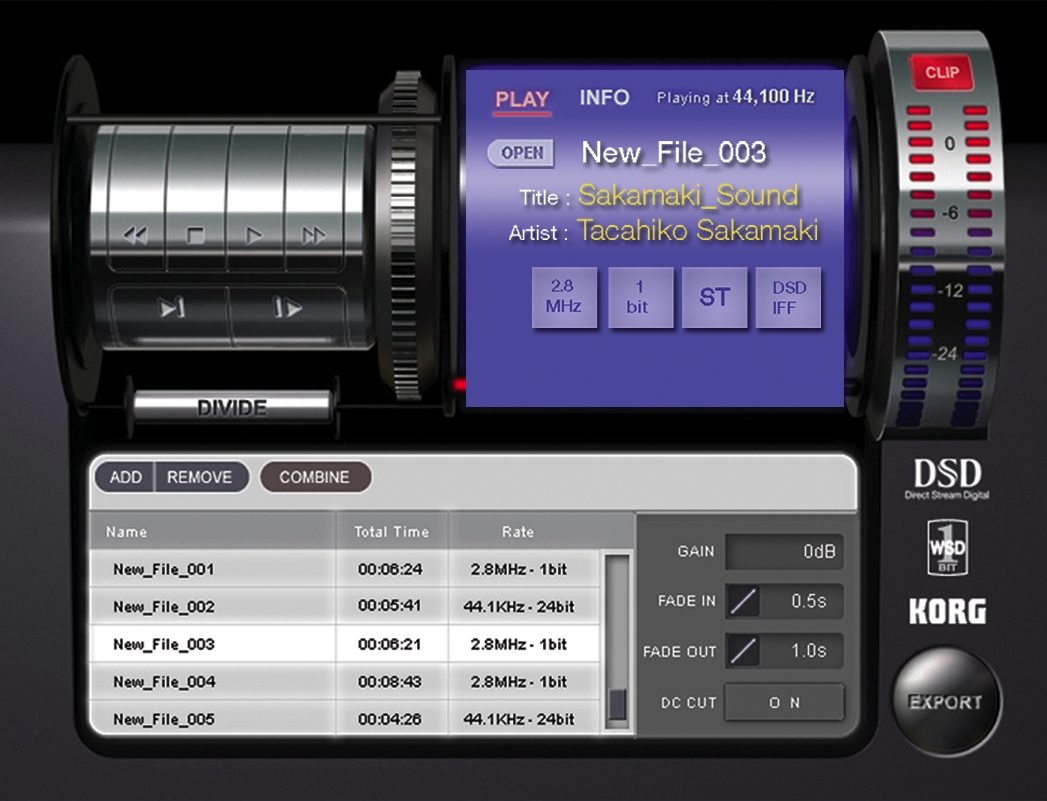

The MR-1 comes with Korg’s innovative and powerful AudioGate™ software for Mac® and PC. AudioGate can convert 1-bit recordings into WAV and AIFF formats at various bit-rates (and vice versa) and offers real-time conversion and playback of 1-bit files using your computer’s audio hardware.

It also does essential functions like DC offset removal, gain control, and fade in/out. The combination of the MR-1 and this exclusive software makes the perfect system for both capturing and preserving your critical projects and source recordings. This archiving capability that had only been the domain of the major record companies and top studios is now available for everyone!

1-bit technology equals pristine fidelity
1-bit recording is the latest advancement in audio, and has been adopted for use in the critically acclaimed SACD recording format. It offers a frequency response of DC to 100 kHz and dynamic range of 120 dB. This uncompromising fidelity, low noise floor, extended dynamic range, lifelike imaging and analog quality depth has been praised by top experts. But there are other important advantages to the format that are of benefit to all recording professionals, regardless of their tracking platform.

Future proof flexibility
Today’s state-of-the-art 24-bit converters use high-speed 1-bit conversion to capture audio, using real-time decimation and other processes to present the data in the desired bit depth/sample rate format. The beauty of the MR’s bitstream format is that it uses the original 1-bit data, without the need for the other processes. What comes in comes out, with no manipulation needed.

As files are converted and reconverted between various bit depths and sampling rates, there are possibly degrading effects, depending on the sample rate conversion algorithms. The critical issue is that files mixed and mastered in today’s state of the art resolution may be insufficient for tomorrow’s formats. Archiving your final mixes and masters in a 1-bit system allows you to bypass these issues, and preserve your music with both the highest fidelity and in a more "universal" format. That data then can more easily be converted at a later date to the bit depth/sample rate format of your choice without compromising the integrity or fidelity of the data. You can even convert to newer formats that will be adopted in the future, be they multi-bit or a further migration to the 1-bit format. zZounds is an authorized dealer of Korg products.

Recorder Section:
Number of Tracks:
2 tracks, 2-track recording/playback simultaneously

Recording Formats:
1-bit audio formats - DSDIFF, DSF, WSD: 2.8224 MHz @ 1-bit

PCM audio formats - WAV, BWF: 44.1 kHz @ 16/24-bit, 48 kHz @ 16/24-bit, 88.2 kHz @ 24-bit, 96 kHz @ 24-bit, 176.4 kHz @ 24-bit, 192 kHz @ 24-bit

MP3 format - 44.1kHz/192kbps - playback 44.1kHz/32kbps-320kbps (MP3 format support will be added in an upcoming free update. This system updater is expected be available in the middle of 2007 via KORG distributor’s websites)

Internal Hard Disk Drive:
20 GB

Recording Time:
Max Approx. 31 Hours (44.1 kHz @ 16-bit, 2-track)

Number of Projects:
Recognizes a maximum of 200 for each format, max 1,000 projects

Mark Points:
100 points per a song (no mark name)

USB Functions:
USB 2.0 supported, ability to use as FAT32 external USB drive

Song Editing:
Rename, Delete, Protect

General:
Display:
160 x 104 dots LCD with backlight

Dimensions:
64 (W) x 120 (D) x 24 (H) mm / 2.52" (W) x 4.72" (D) x 0.94" (H)

Weight:
200 g (including battery)

Power Supply:
AC adapter, or internal rechargeable battery (lithium ion polymer)

Current Consumption:
2.15 W

Accessories:
AC adapter (also operates as charger), carrying pouch, stereo mic (CM-2M), CD-ROM ("AudioGate" audio file conversion software)

Principal Specifications:
Frequency Response:
10Hz ~ 20kHz ±1dB @ Fs44.1/48kHz, 10Hz ~ 40kHz ±1dB @ Fs88.2kHz/96kHz/176.4kHz/192kHz, 10Hz ~ 100kHz (1 bit)

S/N:
90 dB (typical) @ IHF-A INPUT-OUTPUT

THD+N:
0.0018% (typical) 20Hz ~ 20kHz

A/D Conversion:
2.8224MHz (1 bit), 24 bit (PCM)

D/A Conversion:
2.8224 MHz (1 bit), 24 bit (PCM)

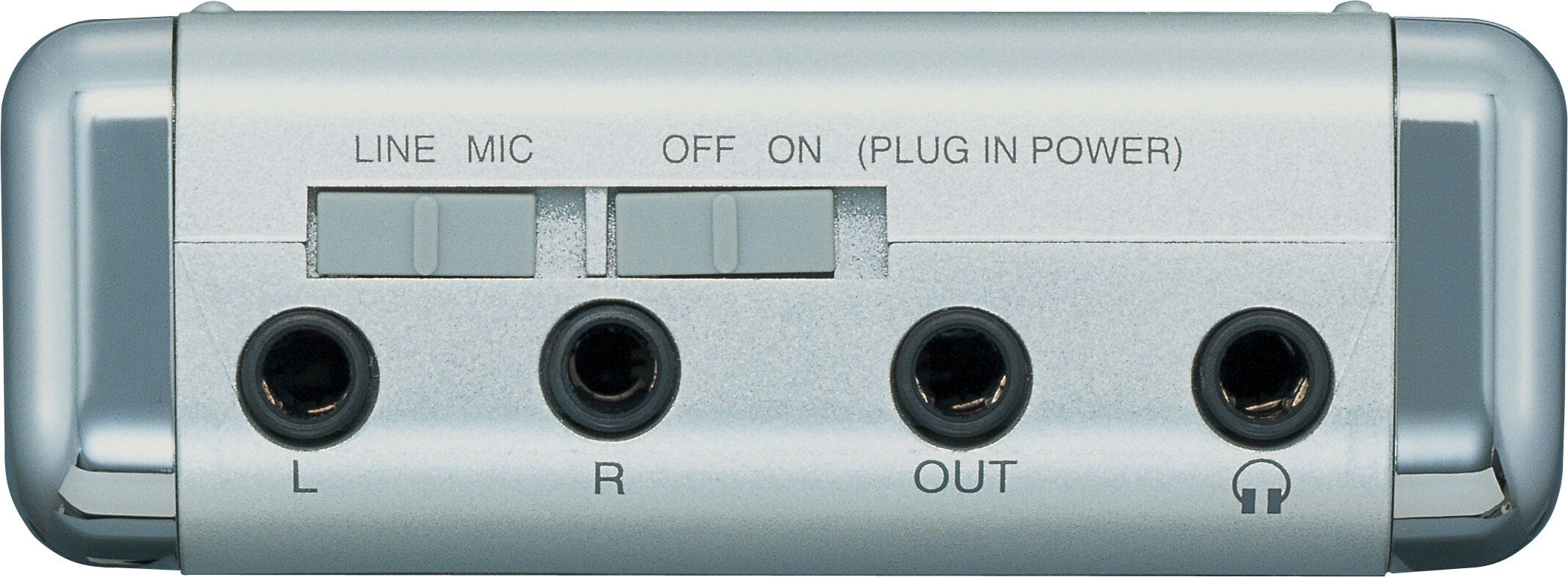

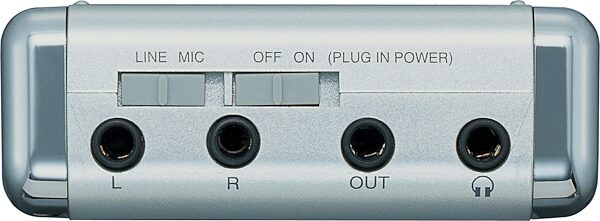

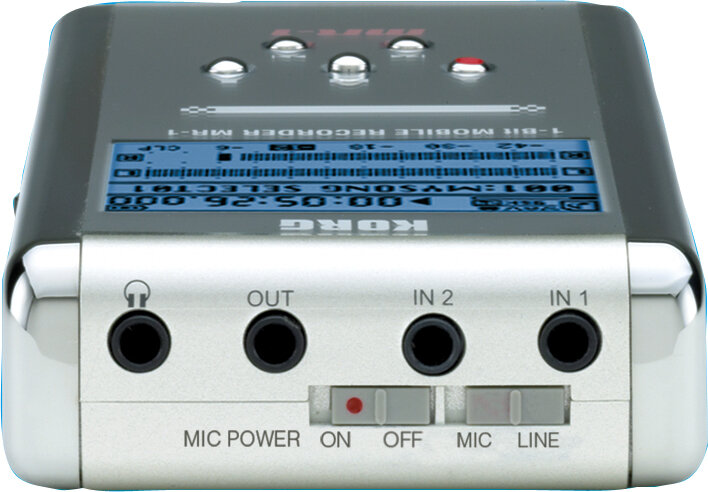

INPUT 1-2:
Connectors:
Mini Phone Jack (balanced)

Input Impedance:
10 K Ohm

Nominal Level:
LINE -6dBV, MIC -39dBV

Maximum Level:
LINE +6dBV, MIC -27dBV

OUT (analog):
Connector:
Stereo Mini Phone Jack

Nominal Level:
-6 dBV

Maximum Level:
+6 dBV

Load Impedance:
10 K Ohm or greater

PHONES:
Connector:
Stereo Mini Phone Jack

Output Impedance:
16 Ohm or greater

Maximum Level:
40 mW + 40 mW @ 16 Ohm

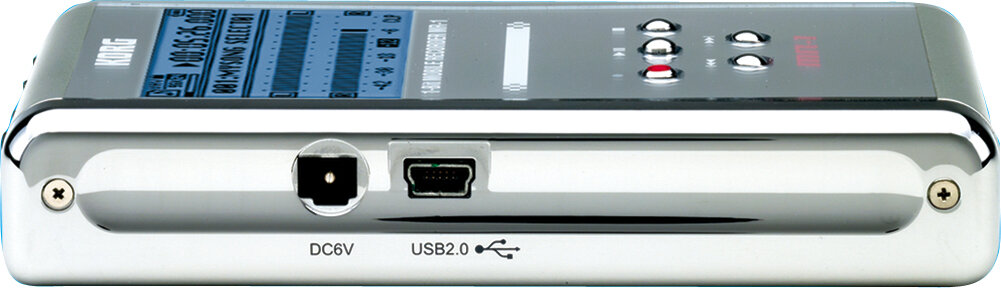

USB:
Connector:
Type B (mini)

Format:
USB 2.0 High-Speed device, USB mass storage class

Included Items:
AC adaptor (also operates as charger), Owner's Manual, protective case, stereo mic (CM-2M), clip stand, CD-ROM ("AudioGate" audio file conversion application)

System Requirements to Connect to PC:
AudioGate:
Supported OS: Windows XP Home Edition/Professional Edition Service Pack 1 or later, Mac OS X 10.3.9 or later (Intel-based Mac supported)

Supported Computers: [Windows] Intel Pentium III 1 GHz or faster [Macintosh] Apple G4 800 MHz or faster (Intel-based Mac supported)

Memory: 256 MB or larger (512 MB or larger recommended)

Specifications subject to change without notice
