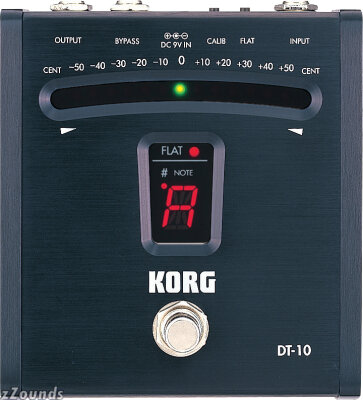

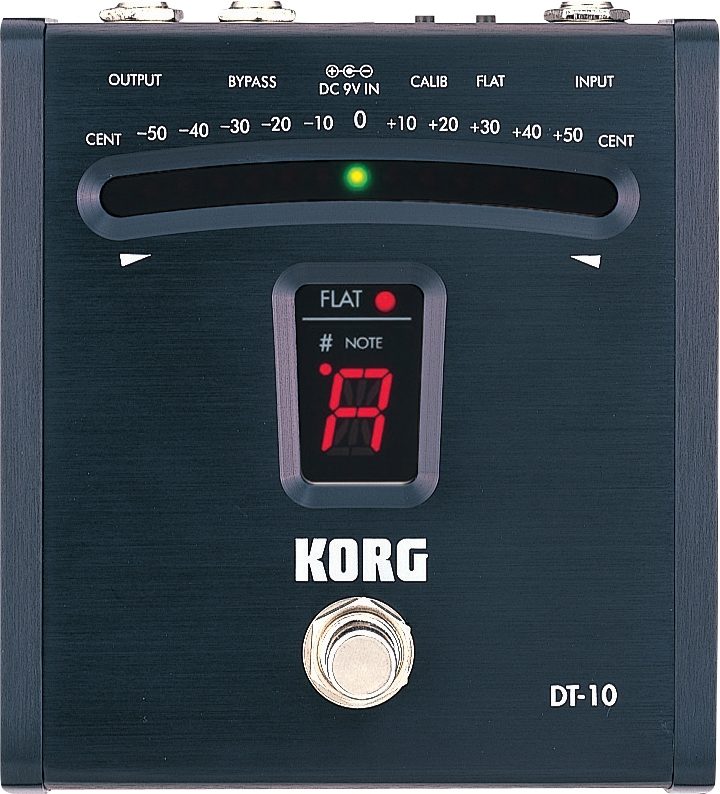

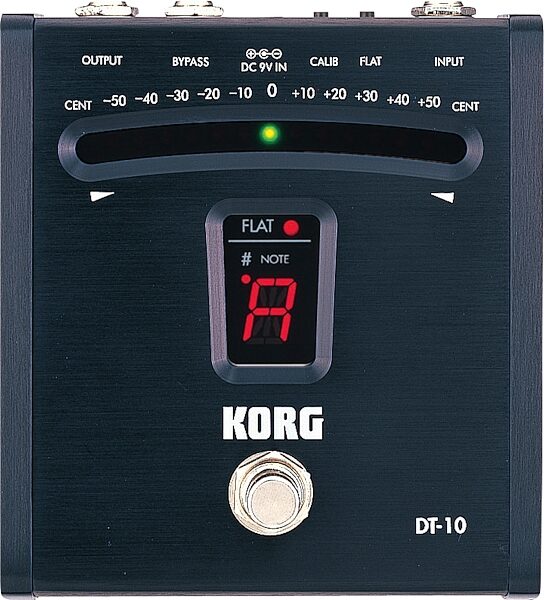

Korg DT10BR Guitar Pedal Tuner
Floor-type chromatic tuner optimized for guitar and bass players.
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
About This Product!
Description
News
It's a Tuner in a Foot Pedal!
The DT-10BK Digital Foot Pedal Tuner joins Korg's wide range of digital tuners, known for their accuracy and versatility. It features an LED-type meter for rapid response and accurate detection, guaranteeing stable tuning. The 16-segment note display provides excellent visibility even on a dark stage, and the rugged body is designed for years of tough use.
Features
Floor-type chromatic tuner optimized for guitar and bass players
Simple and stable design with a rugged body
Easy to read 13 point LED display and note name display
16-segment note display for excellent visibility even on dark stages
Flat-tuning up to seven semi-tones. Tune down to A!
Detection range of E0 (20.60 Hz)--C8 (4186 Hz)
438 - 445 Hz calibration adjustment
Two Selectable Outputs (Bypass and Tuner out)
Included cascade cable for powering up to two 9 volt pedals
Rapid response and accurate operation for smooth tuning
The LED-type meter indicates the difference between the reference pitch and the input signal, and delivers rapid response and accurate operation for stress-free tuning.
Tough body designed for on-stage use
The tough and solid-feeling body ensures stability even during intense live performances, and the cool black chassis will inspire you to play your best.
Excellent visibility even on a dark stage
Note names, flat settings, and calibration values are shown by a 16-segment display and high-brightness LED-type meter for excellent visibility even on a dark stage.
Support for seven-semitone flatted tunings
The DT-10BK provides a flat tuning mode that supports dropped tunings in a range from one to seven semitones. Low-pitch performance techniques are also supported.
Adjustable calibration setting
Calibration can be adjusted to accommodate different reference pitches, allowing you to precisely match any song or key.
Dual outputs for a variety of applications
The DT-10BK provides two output jacks; a bypass jack that always outputs the input signal, and a separate output jack that can be muted while tuning between songs. This gives you flexibility to meet the needs of a variety of situations.
Meters: Cent indicator
Detection Range: E0 (20.60Hz) - C8 (4186Hz)
Calibration Function: 438 - 445Hz (1Hz steps)
Detection Accuracy: +/- 1 cent
Input Impedance: 1M Ohm
Connectors: Input (1/4 in. mono), Output (1/4 in. mono), Bypass (1/4 in. mono), DC9V IN
Power Supply: One 9V battery (Included), or AC Adapter (sold separately)
Battery Life: Approximately 3 hours continuous use with tuner on (A4 input continuously), approximately 50 hours continuous use with tuner off (A4 input continuously).
Current Consumption: Maximum 43 mA
Dimensions: 4.09 in. (W) x 4.69 in. (D) x 2.01 in. (H); 104 (W) x 119 (D) x 51 (H) mm
Weight: 0.90 lbs. / 410 g
The DT-10BK Digital Foot Pedal Tuner joins Korg's wide range of digital tuners, known for their accuracy and versatility. It features an LED-type meter for rapid response and accurate detection, guaranteeing stable tuning. The 16-segment note display provides excellent visibility even on a dark stage, and the rugged body is designed for years of tough use.
Features
Floor-type chromatic tuner optimized for guitar and bass players
Simple and stable design with a rugged body
Easy to read 13 point LED display and note name display
16-segment note display for excellent visibility even on dark stages
Flat-tuning up to seven semi-tones. Tune down to A!
Detection range of E0 (20.60 Hz)--C8 (4186 Hz)
438 - 445 Hz calibration adjustment
Two Selectable Outputs (Bypass and Tuner out)
Included cascade cable for powering up to two 9 volt pedals
Rapid response and accurate operation for smooth tuning
The LED-type meter indicates the difference between the reference pitch and the input signal, and delivers rapid response and accurate operation for stress-free tuning.
Tough body designed for on-stage use
The tough and solid-feeling body ensures stability even during intense live performances, and the cool black chassis will inspire you to play your best.
Excellent visibility even on a dark stage
Note names, flat settings, and calibration values are shown by a 16-segment display and high-brightness LED-type meter for excellent visibility even on a dark stage.
Support for seven-semitone flatted tunings
The DT-10BK provides a flat tuning mode that supports dropped tunings in a range from one to seven semitones. Low-pitch performance techniques are also supported.
Adjustable calibration setting
Calibration can be adjusted to accommodate different reference pitches, allowing you to precisely match any song or key.
Dual outputs for a variety of applications
The DT-10BK provides two output jacks; a bypass jack that always outputs the input signal, and a separate output jack that can be muted while tuning between songs. This gives you flexibility to meet the needs of a variety of situations.
Technical Info
Scale: 12 equal-temperedMeters: Cent indicator
Detection Range: E0 (20.60Hz) - C8 (4186Hz)
Calibration Function: 438 - 445Hz (1Hz steps)
Detection Accuracy: +/- 1 cent
Input Impedance: 1M Ohm
Connectors: Input (1/4 in. mono), Output (1/4 in. mono), Bypass (1/4 in. mono), DC9V IN
Power Supply: One 9V battery (Included), or AC Adapter (sold separately)
Battery Life: Approximately 3 hours continuous use with tuner on (A4 input continuously), approximately 50 hours continuous use with tuner off (A4 input continuously).
Current Consumption: Maximum 43 mA
Dimensions: 4.09 in. (W) x 4.69 in. (D) x 2.01 in. (H); 104 (W) x 119 (D) x 51 (H) mm
Weight: 0.90 lbs. / 410 g
11/12
New stock arrives at zZounds, Warehouse Resealed, available for immediate delivery.
What Our Customers Say About zZounds
"Super fast shipping. My son is thrilled!" - customer on November 5, 2009
Call
866.ZZOUNDS (996.8637)
and mention priority code: 79N5CCM
Item: KORDT10BR
related accessories
from $9.95
from $4.45
from $4.15
from $13.95
from $5.95
Korg DT10BR Guitar Pedal Tuner Reviews
10 out of 10
"Great Tracking, Awesome Value"
Feature:
I didn't realize it came with a daisy chain until i received it in the mail, that was quite a perk because i only run about two other pedals so it was ideal for my set up.
Quality:
Very strong metal casing. had it for a couple months now, played some shows. Its got a smooth push button so i can just tap and it will turn on, tune, quick tap again and its good to go.
Value:
yeah, definitely. You could probably find it for cheaper. I forgot where I got mine online but it was the lowest I could find it for.
Desirability:
As soon as I started looking for a tuner I started with Korg and I knew I just wanted a Stomp box style Tuner. Sure enough they met my standards. Great product all around
Sound:
Awesome tunning pedal. Great signal tracking even when using the Bypass signal. Bright LEDs. Calibrator to adjust A 438-445 Hz. Completely cuts off signal. I really took my time looking for a good tuner because being perfectly in tune is my biggest pet peeve and this one really won me over. Also with a very strong & sturdy metal casing!
Ease of Use:
Plug In. LEDs blink once or twice and your ready to tune. just press the Calibration button once and it should automatically set to A440 Hz, keep pressing to cycle through the rest, the last number indicates which A you've chosen (8=438, 0=440, 2=442, etc...) Never had to use the semitone detuning feature. I play bass and just stay in standard the whole time so no problems with it, i imagine its relatively simple to understand.
Support:
Haven't had to use it. Don't think I'll need to, its essentially 'plug and play'
Overall:
I think I'll be keeping this for a while. I tend to take care of my equipment pretty well. My only uncertainty is if its a True Mechanical Hardwire Bypass. I bought the power supply because I hate having to rely on batteries but it is such a sturdy well made pedal I wouldn't be surprised if it has a TMHB.
I didn't realize it came with a daisy chain until i received it in the mail, that was quite a perk because i only run about two other pedals so it was ideal for my set up.
Quality:
Very strong metal casing. had it for a couple months now, played some shows. Its got a smooth push button so i can just tap and it will turn on, tune, quick tap again and its good to go.
Value:
yeah, definitely. You could probably find it for cheaper. I forgot where I got mine online but it was the lowest I could find it for.
Desirability:
As soon as I started looking for a tuner I started with Korg and I knew I just wanted a Stomp box style Tuner. Sure enough they met my standards. Great product all around
Sound:
Awesome tunning pedal. Great signal tracking even when using the Bypass signal. Bright LEDs. Calibrator to adjust A 438-445 Hz. Completely cuts off signal. I really took my time looking for a good tuner because being perfectly in tune is my biggest pet peeve and this one really won me over. Also with a very strong & sturdy metal casing!
Ease of Use:
Plug In. LEDs blink once or twice and your ready to tune. just press the Calibration button once and it should automatically set to A440 Hz, keep pressing to cycle through the rest, the last number indicates which A you've chosen (8=438, 0=440, 2=442, etc...) Never had to use the semitone detuning feature. I play bass and just stay in standard the whole time so no problems with it, i imagine its relatively simple to understand.
Support:
Haven't had to use it. Don't think I'll need to, its essentially 'plug and play'
Overall:
I think I'll be keeping this for a while. I tend to take care of my equipment pretty well. My only uncertainty is if its a True Mechanical Hardwire Bypass. I bought the power supply because I hate having to rely on batteries but it is such a sturdy well made pedal I wouldn't be surprised if it has a TMHB.
Submitted: 05/07/2008
Style of Music: Jam Band, Funk, Jazz
8 out of 10
"Good tuner intermeddiate and under."
Feature:
It's a well lit tuner that seems to be pretty accurate
Quality:
Have had it for over a year and I constantly tune. No problems yet.
Value:
Cheaper than a rack mount and works well for the most part.
Desirability:
If it broke I'd buy a different one but I still use it.
Sound:
There is a dicernable background noise when you silence this to tune. I have a very quiet rig, and some may not notice it at all but I do.
Ease of Use:
It's a tuner... plug it in and tune. Not real tough.
Support:
Haven't used the support. Wanted to give the benefit of the doubt.
Overall:
Nice tuner for those who aren't obsessive about their quiet tuning.
It's a well lit tuner that seems to be pretty accurate
Quality:
Have had it for over a year and I constantly tune. No problems yet.
Value:
Cheaper than a rack mount and works well for the most part.
Desirability:
If it broke I'd buy a different one but I still use it.
Sound:
There is a dicernable background noise when you silence this to tune. I have a very quiet rig, and some may not notice it at all but I do.
Ease of Use:
It's a tuner... plug it in and tune. Not real tough.
Support:
Haven't used the support. Wanted to give the benefit of the doubt.
Overall:
Nice tuner for those who aren't obsessive about their quiet tuning.
Submitted: 03/18/2008
Style of Music: Rock
