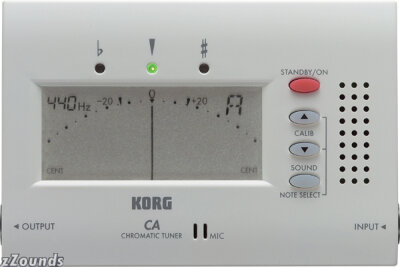

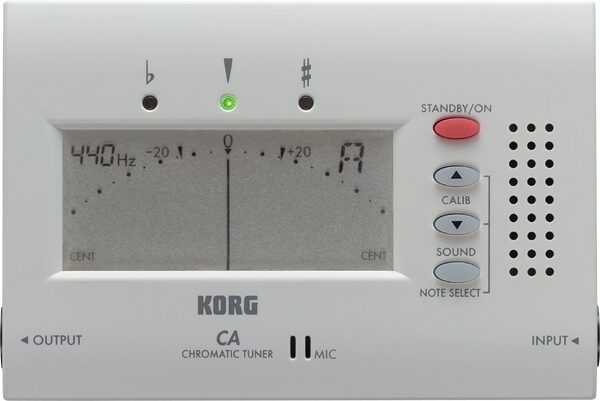

Korg CA40 Chromatic Tuner

With superior features like a large, easy-to-see, LCD needle-style display, the CA-40 Chromatic Tuner is a great value!

Features:
A compact chromatic tuner, ideal for use with brass band or orchestra

Larger and more easily readable high-precision LCD needle-style meter

Wide detection range from A0 - C8

Calibration function that accommodates a variety of concert pitches

Sound Out function that lets you produce a reference tone from the internal speaker. The tuner will remember the pitch you select

Bypass function

Auto Power Off function saves the battery even if you forget to turn off the tuner

Memory Backup function

Approximately 85 hours of continuous use

A Detection Range That's Wider Than Ever
With a wide range that covers A0 (27.50 Hz) - C8 (4186.01Hz), you can tune a variety of instruments with the CA-40, including wind, string, and keyboard instruments. The pitch and range are detected quickly and accurately. You can use the built-in high-sensitivity microphone to detect the pitch of an acoustic instrument without requiring any other equipment. Alternatively, you can use the separately sold CM-100 contact microphone to send the vibration of the instrument directly to the tuner, so that you can tune accurately without worrying about other sounds in the environment. An output jack (bypass) has been added, making it easy to check the tuning even while you perform.

Conveniently Thin and Compact
The pocket-sized CA-40 features a refined design with a stand on the back that lets you place the tuner on any surface.

Large High-Precision LCD Meter
The CA-40's display has been enlarged for even better visibility. In addition to providing both the accuracy of an LCD and the easy viewing of a needle-style meter, red and green LEDs are also provided to indicate pitch deviations, making tuning smooth and easy.

Sound Out Function Produces a Reference Tone from the Internal Speaker
In addition to letting you tune visually using the meter, the CA-40 provides a Sound Out function that plays a reference tone through the internal speaker, letting you tune by ear. You can adjust the reference tone in semitone steps over a range of C4 through C5 (one octave) to accommodate a variety of instruments. Since the reference tone you specify is remembered, it's easy to sound it again whenever you need to.

Calibration Function
The Calibration function lets you adjust the pitch in 1 Hz steps over a range of 410 - 480 Hz in order to accommodate a variety of concert pitches, giving you the flexibility to tune accurately to any song or key. There's also a memory backup function that preserves the Calibration setting and Sound Out settings even when you turn off the power.

Auto Power Off Function
The Auto Power Off function automatically turns the power off after the unit has been left on for twenty minutes, preventing the batteries from running down needlessly.

Approximately 85 Hours of Continuous Use
The CA-40 is designed for long battery life, and allows approximately 85 hours of continuous use (continuous A4 input, Meter mode, zinc-carbon batteries).

* Even if a sound is within the detectable pitch range, detection may be unsuccessful for instrumental sounds that contain a large number of overtones or that decay rapidly.

** The calibration setting and the Sound Out reference pitch are remembered even when you turn off the power. However when you replace the batteries, these settings will be initialized to the default values; the calibration will return to 440 Hz, and the Sound Out reference pitch will return to A.

Specifications subject to change without notice

Technical Info

Scale: 12-note equal temperament

Detection Range: A0 (27.50 Hz) -- C8 (4186.01 Hz): for a sine wave

Reference Tone: C4 (261.63 Hz) -- C5 (523.25 Hz): 1 octave

Tuning Modes: Meter mode (Auto), Sound Out mode (Manual)

Calibration Range: A4=410 Hz - 480 Hz (1 Hz steps)

Accuracy:
Detection: +/- 1 cents or better
Tone: +/- 1.5 cents or better

Connectors: INPUT jack (1/4 in. monaural phone jack)

Speaker: Dynamic speaker (28 mm diameter)

Power Supply: Two AAA batteries (3V)

Battery Life: Approximately 85 hours (Meter mode, continuous A4 input, zinc-carbon batteries)

Dimensions: 3.94 in. (W) x 2.64 in. (D) x 0.67 in. (H)/100 (W) x 67 (D) x 17 (H) mm

Weight: 0.19 lbs. (88 g) (Including batteries)

Included Items: 2 AAA batteries for verifying operation

Specifications subject to change without notice
