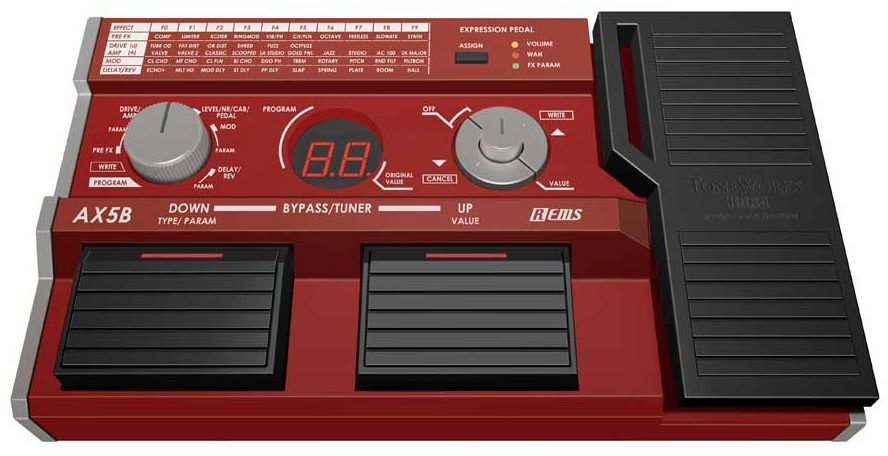

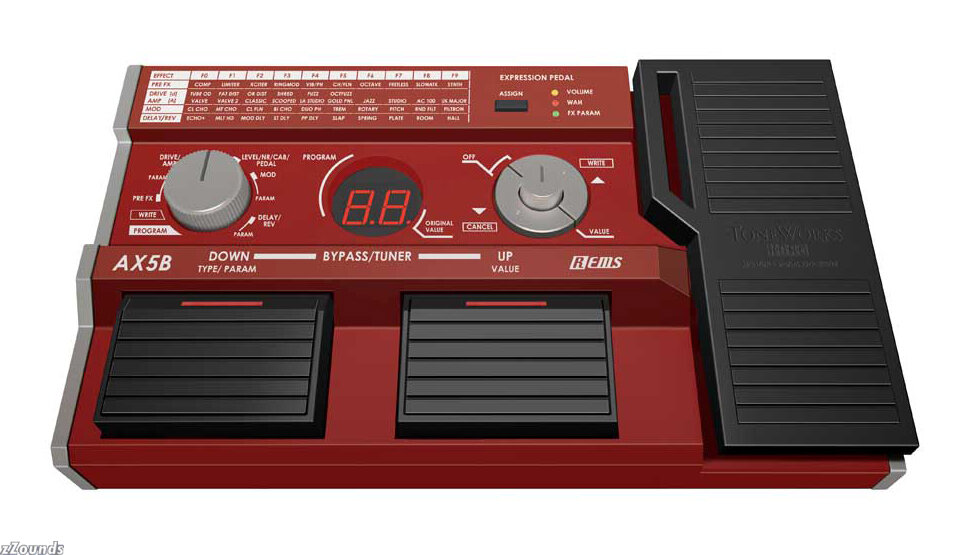

Korg AX5B Bass Modeling Multi-Effects Processor

Designed for the Electric Bass, the AX5B processor provides some of the most superbly crafted amp, cabinet and effects modeling using Korg's own coveted REMS technology. Don't waste your time with other bass effects when this pedal has it all featuring 16 drive/amp models, 10 cabinet models, 11 Comp, Wah, Fretless and Synth effects, 10 Modulation, Filter and Pitch effects, 10 Delay/Reverb effects and a professional noise reduction effect to provide you with the cleanest bass tone around. Use up to 6 effects at the same time!

Features
- 16 of the most coveted Drive/Amp models, mix and match with 10 killer cabinets

- Expression pedal controls volume, wah or other effect parameters in real time

- Quick Assign provides one touch parameter assigning to the expression pedal

- 31 effects including Modulation, Filter and Delay/Reverb effects

- 80 Programs: 40 presets and 40 user

- 58 total effect types, 6 FX can be used simultaneously

- Intuitive interface for quick and easy operation

- Function and Value knobs allow easy access to effect parameters and other features

- Program select foot switches with large LED indicators for visibility

- Battery or AC-powered

- Auto-chromatic tuner with mute function

- Output jack also powers headphones

Technical Info

Specifications
Number of effects:
- Pre-effect types: 11 (Pre-effect 10 + Pedal-wah 1)
- Drive/Amp Model types: 16
- Cabinet Model types: 10
- Modulation Effect types: 10
- Delay Effect types: 5
- Reverb Effect types: 5
- Noise Reduction: 1

Number of programs: 80 (40 user/40 preset)

Audio input: 1/4 inch (mono)

Audio output: 1/4 inch (stereo TRS)

Signal processing: A/D conversion: 24 bit

D/A conversion: 24-bit

Sampling frequency: 31.25 kHz

Tuner:
- Detection range: A0-E6
- Calibration: A=438-445 Hz

Power supply:
- Four alkaline AA batteries (continuous use of eight hours)
- DC9V AC adapter (sold separately)

Dimensions (WxDxH): 9.8 x 5.6 x 1.7 in. (249 x 143 x 44 mm)

Weight: 22.9 oz (650 g)

Included items: Owner’s manual
