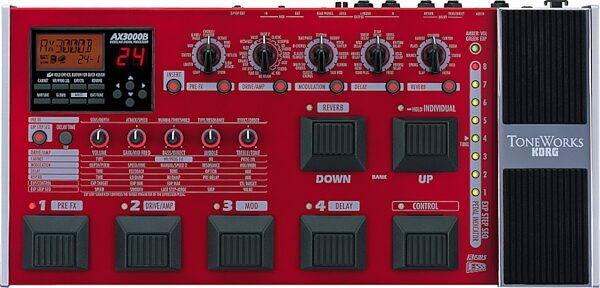

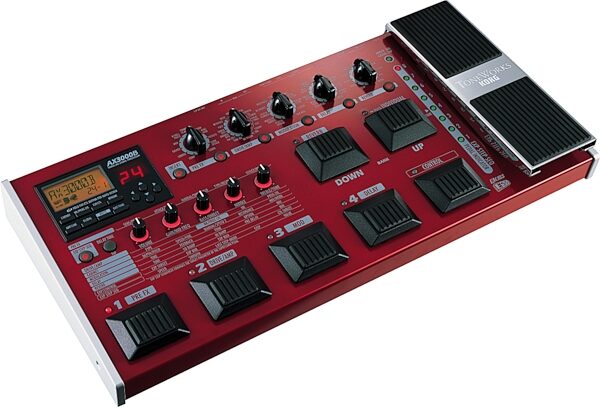

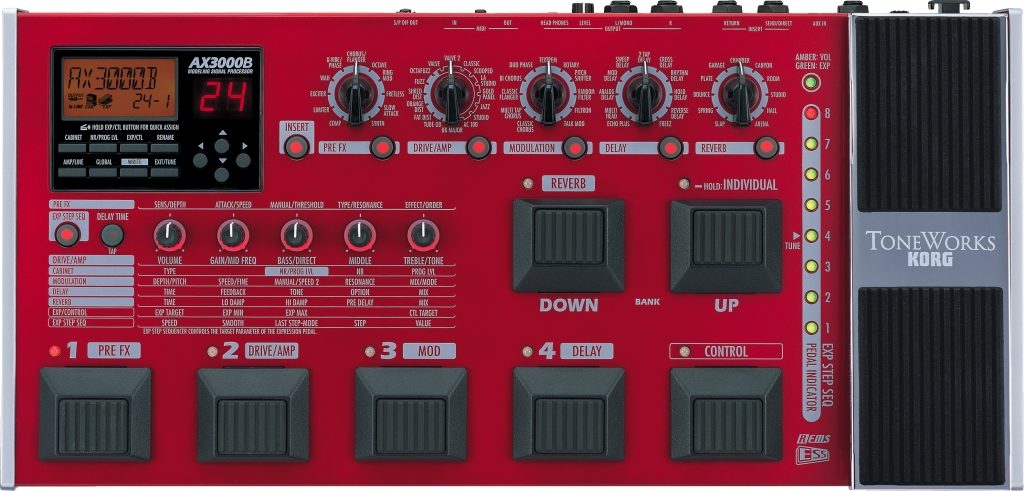

Manufacturer's Description for Korg ToneWorks AX3000B Digital Multi-Effects Bass Guitar Processor
The next great bass frontier has been reached! Introducing the new AX3000B, a multi-effects processor created solely for bass that includes heavyweight features like REMS modeling technology and a unique Expression Step Sequencer.
Features
72 different bass effects using KORG's proprietary "REMS" modeling technology.
16 types of drive/amp effects model a range of sought after vintage and hi-end amps and effects.
A wide range of pre-effects, cabinets, modulation, delay, and reverb (eleven types of each).
Built-in effects ranging from standards such as compressor and wah through unique effects such as "Fretless" and "Bass Synth."
Create and store 96 programs with your favorite combination of "REMS" effects. 32 preset programs are also provided.
Up to seven different effects can be used simultaneously.
Use the expression pedal to control wah, volume, or many other effect parameters.
Assign a wide range of functions to the Control Switch for even greater flexibility.
The "ESS (Expression Step Sequencer)" provides a step sequencer that lets you store effect parameter movements and play them back to create dramatic changes in the sound.
ESS can also be used to create subtle foot controlled stepped modulation effects as well as dramatic controlled pitch effects.
Choose from seven ESS modes and control the ESS play back speed in real time by tapping a control switch or by using the expression pedal to smoothly change the speed.
A variety of playback methods are provided; you can use a control switch to start ESS playback or use the expression pedal to recall the desired step.
Individual mode lets you turn effects on/off individually.
Send/return jacks allow you to connect your own external effect processor.
AUX IN jack lets you connect an external sound source and play along with it.
The heavy-duty metal body stands up to the demands of live stage performance.
The built-in Auto Tuner lets you tune your instrument while muted.
Backlit LCD provides superb visibility.
"AX3000B Sound Editor" editor/librarian software lets you edit and manage AX3000B programs on your PC.
The AX3000G gave guitarists the power to rule like never before. Now bassists can take total control as well with the AX3000B, a dedicated processor for bass with the astounding sound quality only delivered by Korg's unique REMS modeling technology. Packed not only with new capabilities like the very cool ESS (Expression Step Sequencer) function, but also with numerous effects specifically optimized for bass, the AX3000B provides a full complement of the controls you need for real-time performance. From vintage through hi-end amps sought-after by bassists, from standard effects through a bass synthesizer model, "REMS" technology delivers a staggering range of realistic and versatile effects, with full control using the expression pedal or the control switch. The amazing ESS function lets you use a step sequencer to control effect parameters from a step sequencer so you can take your performance to a level beyond anything you've ever imagined.
72 different bass effects using KORG's proprietary "REMS" modeling technology -- KORG's proprietary "REMS" modeling technology precisely and realistically models a wide variety of sounds covering hard-to-find vintage or high-end amps, cabinets, and effects. The AX3000B's total of 72 effects includes original and standard effect varieties. The sixteen drive/amp models include fat-sounding tube sounds, ultra-low bottom-end, clean sounds, and many more. Pre-effects, cabinets, modulation effects, delay effects, and reverb effects (eleven types each!) cover not only standard effects such as compressor, limiter, wah, flanger, and chorus, but also unique and distinctive effects such as a pitch shifter with a range of two octaves up or down, a fretless effect that simulates the sound of a fretless bass, and even a synth effect that produces the sound of an analog bass synth.
Create and store 96 different programs of your own -- The AX3000B comes with 32 preset programs, covering a wide range of sounds. You can also edit these programs to create and store your own creations in a total of 96 writable program locations. Since there's an Individual mode that lets you switch each effect on/off using the foot switches, it's easy to edit the preset programs.
An expression pedal and other controllers for real-time operation -- The AX3000B provides a full range of controllers that let you modify the amazing "REMS" sounds with ease. The expression pedal can be used to control not only wah and volume, but also effect parameters, giving you the freedom to create new sounds that have never been heard before. You can assign foot controllers to switch effect parameters such as the on/off setting of each effect block, the tap tempo, and the rotary speed, or to control the Expression Step Sequencer (ESS), giving you amazingly powerful possibilities for live performance.
The "ESS" function breaks new ground in bass sound -- The fresh new sounds generated by the AX3000G's Expression Step Sequencer (ESS) were a revelation to guitarists around the world, and ESS is an equally important presence on the AX3000B. ESS gives you a step sequencer of up to eight steps that you can assign to an effect parameter, and then choose one of seven playback methods (Forward, Alternate 1/2, Random, Forward (one-shot), or Alternate 1/2 (one-shot)) to control the value of that effect parameter in complex ways that were never imagined until now. There's also a Smooth function that lets you smooth the movement between steps. You can use the ESS expression pedal or a control switch to vary the ESS speed in real time. The pedal display located at the left of the expression pedal uses large LEDs to indicate the total number of steps in the entire sequence and the position of the currently-playing step, giving you visual confirmation of the step position and the overall state of the sequencer.
Analog-feeling ease of operation -- Because the AX3000B is so easy to use, you can select, edit and use all of its features effortlessly. Select an effect model simply by turning the effect select knobs provided for each effect block. Then edit each individual effect simply by turning the knobs of the familiar, analog-style user interface. Effect parameters are shown on the panel as a clear, understandable matrix.
Support for expansion, plus a Tuner function -- The AX3000B provides a full complement of input/output jacks - including send/return jacks for connecting an external processor as an insert effect, and a digital output (S/P DIF optical) for direct connection to a digital audio system - so that it integrates smoothly with your other equipment. You can choose bass amp or line output to ensure that your sound will always be perfect even if the acoustic conditions change. The AX3000B also provides convenient features such as an auto-tuner with a Mute function, and a Key Lock function that prevents accidental operation of switches or knobs.
Use the editor/librarian software to edit and store programs on your PC -- The "AX3000B Sound Editor" software lets you edit the AX3000B's effects and parameters on your computer. The effect type and parameters are all shown in the screen for editing, so it's easy to quickly create the sounds you want.
Effect Types:
16 drive/amp models: tube OD, fat dist, Orange dist, shred dist, fuzz, Octafuzz, valve, valve2, classic, scooped, LA studio, gold panel, jazz, studio, AC100, UK major
11 cabinet models: classic 8x10, modern 4x10, LA 4x10, metal 4x10, UK 4x12, studio 1x15, jazz 1x15, AC 2x15, UK 4x15, LA 1x18, combi
11 pre effects: comp, limiter, exciter, wah, U-vibe/phase, chorus/flanger, octave, ring mod, fretless, slow attack, synth
11 modulation effects: classic chorus, multi tap chorus, classic flanger, bi chorus, duo phase, textrem, rotary, pitch shifter, random step filter, Filtron, talk mod
11 delay effects: echo plus, multi head, analog delay, mod delay, sweep delay, 2tap delay, cross delay, rhythm delay, hold delay, reverse delay, Freez
11 reverb effects:slap, spring, bounce, plate, garage, chamber, canyon, room, studio, hall, arena, noise reduction
zZounds is an authorized dealer of
Korg products.
Number of amp types: 11
Number of cabinet types: 16
Number of effects:
Pedal types: 11,
Modulation types: 11,
Delay types: 11,
Reverb types: 11,
Noise reduction: 1
Number of programs: 96 (24 banks x 4 channels)

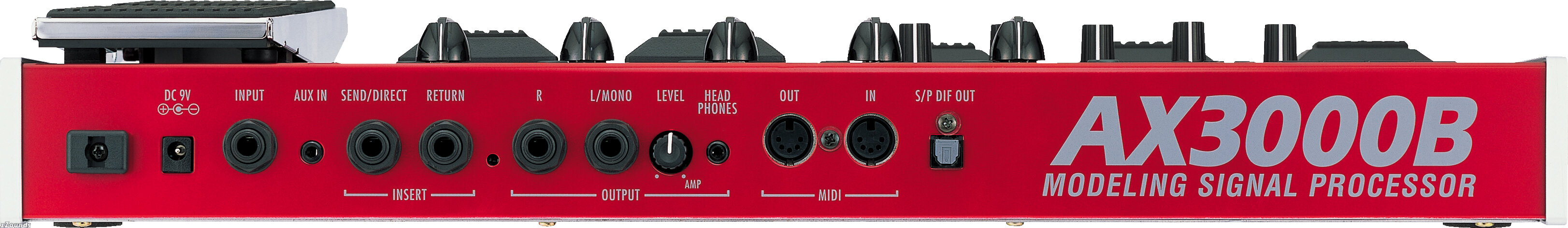

Audio inputs: input (1/4 in. phone jack), insert return (1/4 in. phone jack), aux in (stereo mini-jack)
Audio outputs and controls: output x 2 (1/4 in. phone jacks), insert send (1/4 in. phone jack), phones (stereo mini-jack), level knob (adjusts output and phone), S/P DIF out [16-bit, 44.1kHz optical connector (IEC60958, EIAJ CP-1201)]
Signal processing: A/D conversion: 20-bit, D/A conversion: 20-bit
Sampling frequency: 44.1kHz
Tuner tuning range: A0 - C7 (27.5Hz - 2093Hz)
Tuner calibration: A = 438Hz - 445Hz
MIDI: in, out
Power supply: DC9V (AC adapter included)
Dimensions: 19.69 in. (W) x 9.49 in. (D) x 2.83 in. (H), 500mm (W) x 241mm (D) x 72mm (H)
Weight: 7.94 lbs / 3.6kg
Included accessories: AC adapter
Specifications subject to change without notice
