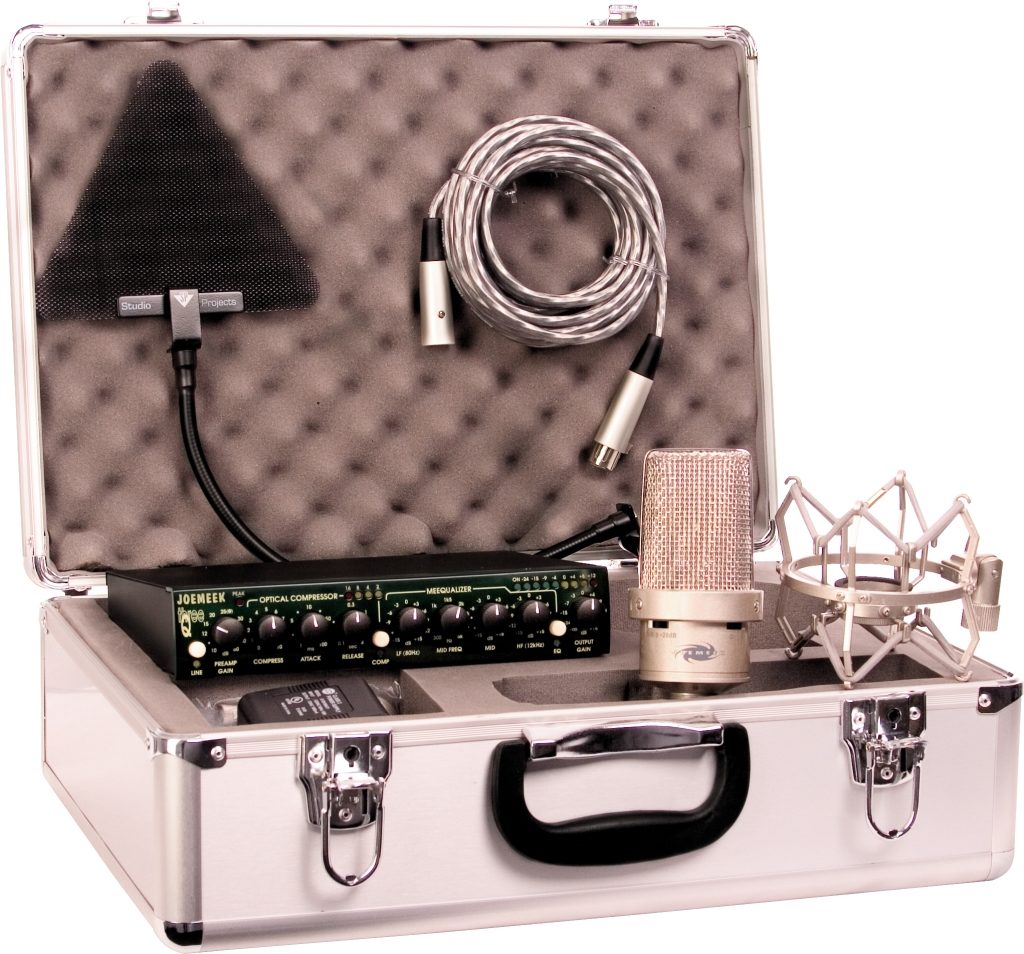

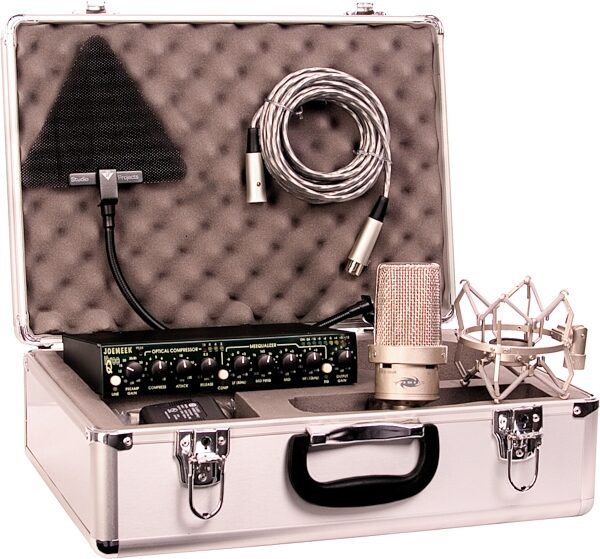

So many mics out there. So many pre-amps to plug them into. How do you find the best match (and stay within your budget)? Get the Joe Meek Track Pack and your problems are solved.
JM37-DP

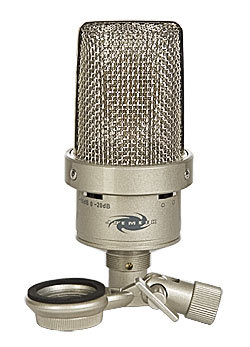

The JM37-DP is a microphone in the tradition of classic studio microphones. It is a large diaphragm true capacitor microphone featuring Omni and Cardioid polar patterns. This feeds the FET type pre amplifier for low noise. The output balancing is handled by a solid state FET output.
The capacitor element is manufactured to the classic 'con-centric electrode' design, which provides smooth extended frequency response. Quality is further enhanced by utilizing dynamic feedback at the capacitor element. This original tech-nique eliminates distortion, which can occur when using this type of microphone at high volume levels.
The capacitor membrane is micro fine Mylar with gold sputtering, voltage polarized by phantom power. The microphone body is made of machined brass; Connection is via screened balanced audio cable with 3 pin XLR connectors.
threeQ

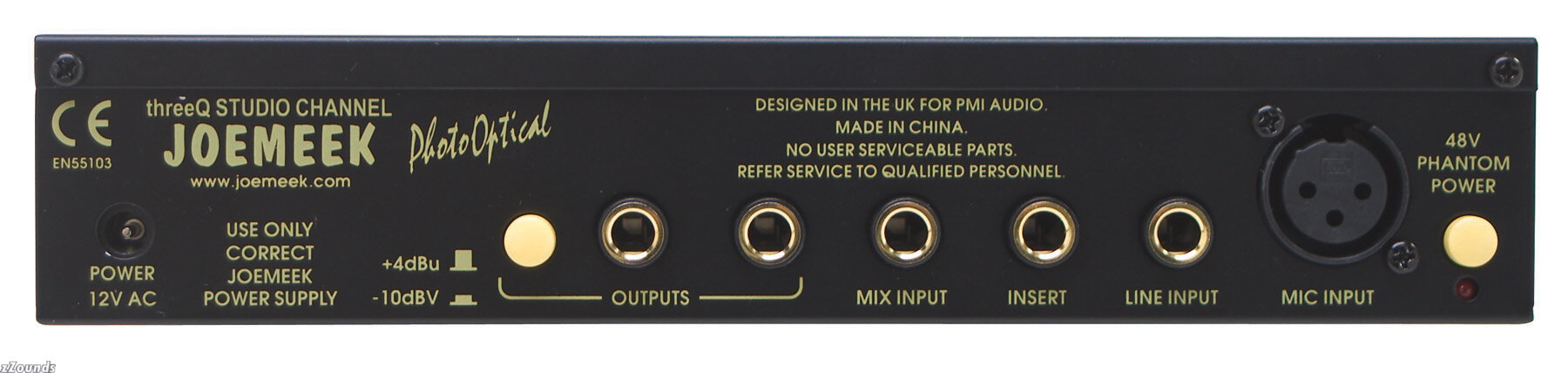

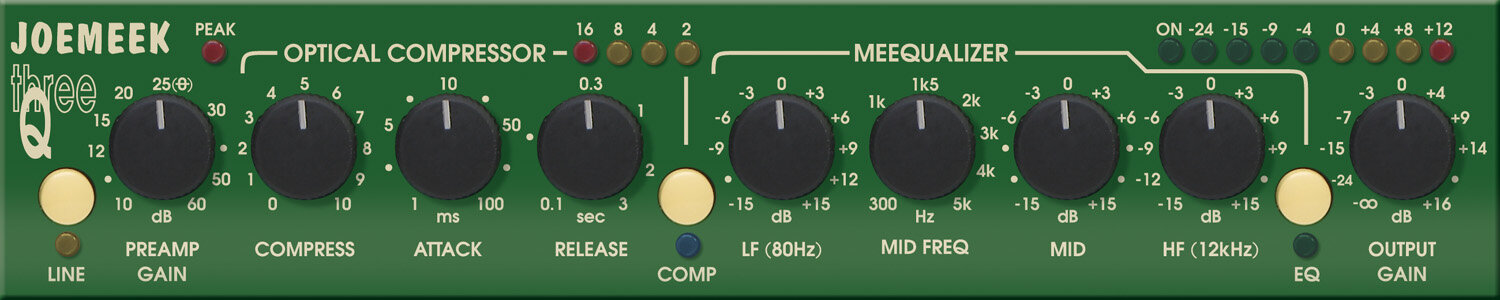

The Joemeek threeQ is like having one channel of a professional recording studio in a small box. It takes a microphone or instrument, amplifies it, compresses and equalizes it ready to be recorded. Simple to use yet extremely powerful, the threeQ will bring out the best in any microphone or instrument and give the gloss of a professional studio production to all your performances. As well as recording it will also be found useful for live work.
Technical Info
JM37-DP Specifications
Noise Level: 19dB (A weighted)
Frequency response: substantially flat 25Hz to 20KHz
Sensitivity: 16mV/PA-40+/-2dB (0dB= 1V/Pa 1000Hz)
Recommended load impedance: 200 ohm
Max SPL: 128dB
Power Requirement : 48V
threeQ Specifications
Mic input impedance: 1.2kohm
Line input impedance: 20kohm
Pre-amp overall gain: 0dB to 60dB
Common mode rejection: 70dB
Equivalent input noise: -128.5dBu (unweighted)
Distortion: 0.001% (below compressor threshold)
Frequency response: 10Hz to 70kHz (-3dB)
Mic maximum input before clipping: +19.5dBu
Line maximum input before clipping : +44.5dBu
Headroom before clipping: +19.5dBu
Compressor threshold: -6dBu to +20dBu (variable)
Compressor ratio: 5:1 (typical)
Compressor attack time: 1 msec to 100 msec (adaptive)
Compressor release time: 0.1 sec to 3 sec (adaptive)
Nominal output levels: +4dBu/-10dBv
Output impedance: 75ohm
Output level switch: 12dB attenuation
Noise floor: -85dBu (typical, with ~40dB mic gain)
VU meter: 8 segment bar graph
Power supply: 12V ac mains adapter
Power consumption: 12W
Mechanical: 8.66 x 1.73 x 7.08 in., 220W x 44H x 180D (overall)
Weight: 2.2 lbs., 1 kilo
EQ boost and cut: +/-15dB (zero phase-shift bell response)
LF frequency : 80Hz fixed
Mid frequency : 300Hz to 5kHz variable
HF frequency : 12kHz fixed
