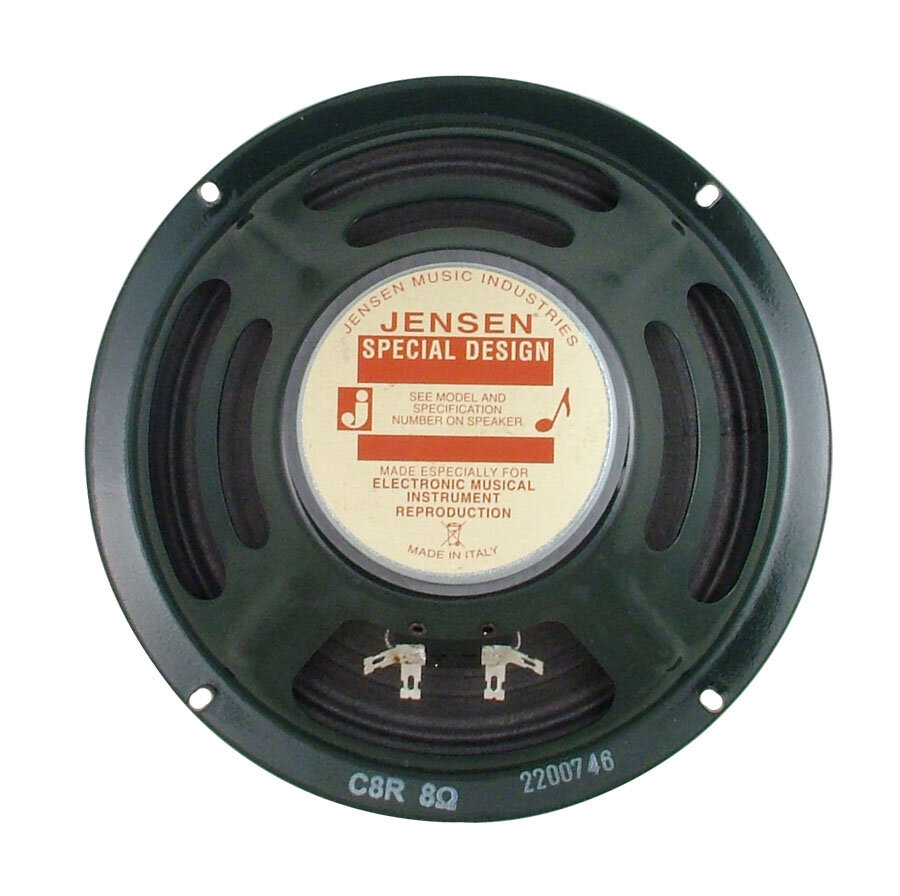

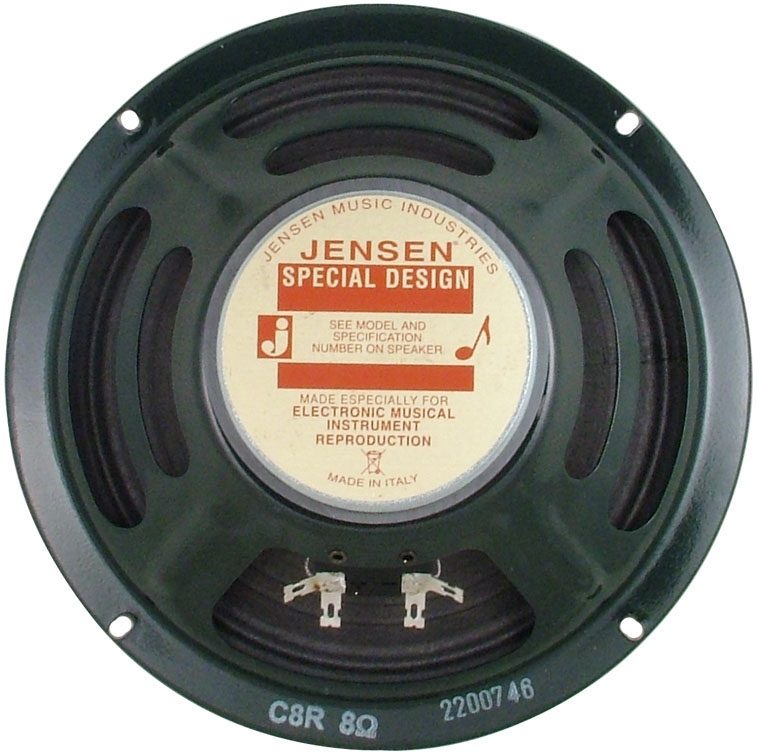

Jensen C8R Vintage Ceramic Guitar Speaker (25 Watts, 8 in.)
Crystal clear tone with brightly shining highs. It responds to overdrive distortion with a bright fuzz lead voice.
Additional Images:
Loading...
This item must be exchanged directly through the manufacturer if it is found to be defective, and can only be returned to us if it is unopened. details
Description
Docs, Multimedia
News
The C8R has a crystal clear tone with brightly shining highs. It responds to overdrive distortion with a bright fuzz lead voice.

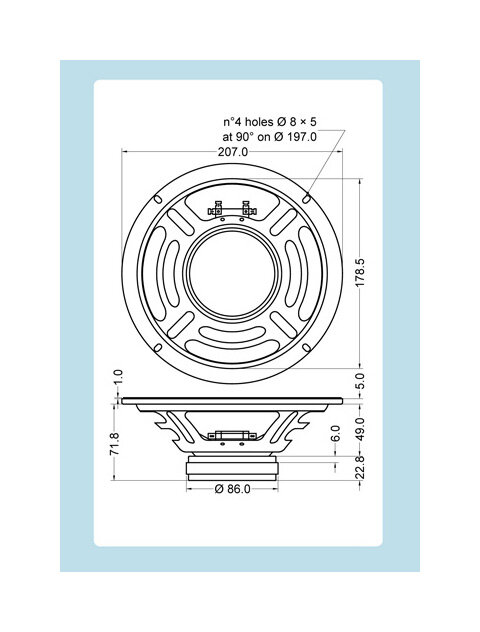

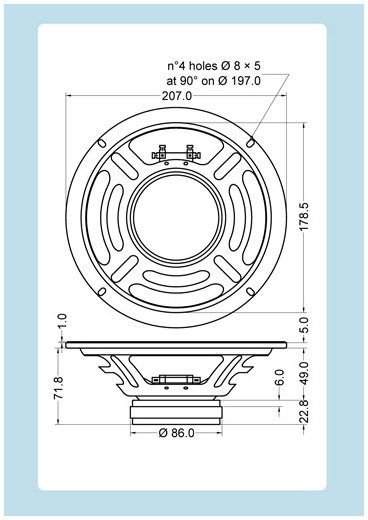

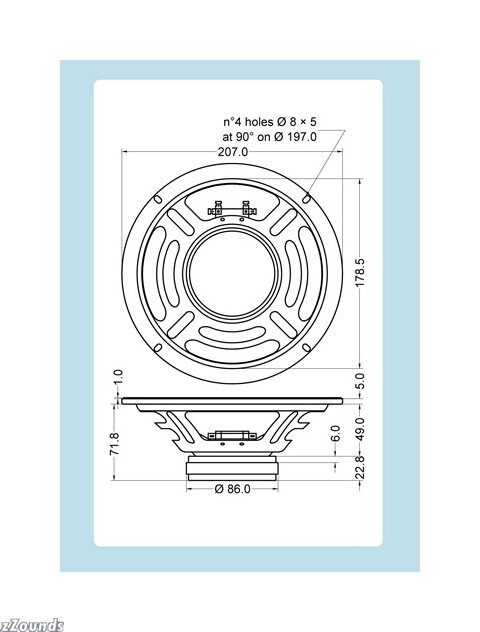

Nominal Overall Diameter: 207 mm 8 in
Nominal Voice Coil Diameter: 25 mm 1 in
Magnet Weight: 280 g 10 oz
Overall Weight: 2.20 lbs
Flux Density: 1.0 T
Thiele-Small Parameters
Voice Coil DC Resistance RE: 7.0 Ohm
Resonance Frequency fS: 125.0 Hz
Mechanical Q Factor QMS: 11.61
Electrical Q Factor QES: 2.21
Total Q Factor QTS: 1.86
Mechanical Moving Mass MMS: 8.7 g
Mechanical Compliance CMS: 182 um/N
Force Factor BxL: 4.69 Wb/m
Equivalent Acoustic Volume VAS: 11.7 lt.
Maximum Linear Displacement XMAX: 1.0 mm
Reference Efficiency nO: 1.03 %
Diaphragm Area SD: 213.8 cm2
Losses Electrical Resistance RES: 37 Ohm
Voice Coil Inductance @ 1kHz LE: 0.43 mH
Constructive Characteristics
Magnet: Ferrite
Voice Coil: Winding Copper
Voice Coil: Former Kapton
Cone: Paper
Surround: Integrated Paper
Dust Dome: Treated Cloth
Basket: Pressed Sheet Steel
Electrical Characteristics
Nominal Impedance: 8 Ohm
Rated Power: 25 W
Musical Power: 50 W
Sensitivity@1W,1m: 92.7 dB
Technical Info
General CharacteristicsNominal Overall Diameter: 207 mm 8 in
Nominal Voice Coil Diameter: 25 mm 1 in
Magnet Weight: 280 g 10 oz
Overall Weight: 2.20 lbs
Flux Density: 1.0 T
Thiele-Small Parameters
Voice Coil DC Resistance RE: 7.0 Ohm
Resonance Frequency fS: 125.0 Hz
Mechanical Q Factor QMS: 11.61
Electrical Q Factor QES: 2.21
Total Q Factor QTS: 1.86
Mechanical Moving Mass MMS: 8.7 g
Mechanical Compliance CMS: 182 um/N
Force Factor BxL: 4.69 Wb/m
Equivalent Acoustic Volume VAS: 11.7 lt.
Maximum Linear Displacement XMAX: 1.0 mm
Reference Efficiency nO: 1.03 %
Diaphragm Area SD: 213.8 cm2
Losses Electrical Resistance RES: 37 Ohm
Voice Coil Inductance @ 1kHz LE: 0.43 mH
Constructive Characteristics
Magnet: Ferrite
Voice Coil: Winding Copper
Voice Coil: Former Kapton
Cone: Paper
Surround: Integrated Paper
Dust Dome: Treated Cloth
Basket: Pressed Sheet Steel
Electrical Characteristics
Nominal Impedance: 8 Ohm
Rated Power: 25 W
Musical Power: 50 W
Sensitivity@1W,1m: 92.7 dB
09/04
Price lowered, New, 8 Inch, 8 Ohms, save $6.00, now only $30.95.
06/05
First time in stock, New, 8 Inch, 8 Ohms, be the first on your block to order!
