Based on the JBL PRX725, the JBL PRX735 powered loudspeaker adds a dedicated mid-range woofer, creating a true 3-way, tri-amplified design. With highs, mids and lows each pushing their own speaker cone, this super-efficient loudspeaker creates more room for low-end power -- and is perfect for moving air on the dance floor!
Efficient 3-Way Speaker Design
The PRX735 pushes its 1500 watts through 2 x JBL 15-inch Differential Drive woofers dedicated to bass and mid-frequencies, and a JBL 1-inch annular polymer diaphragm neodymium compression driver for the highs. These speakers employ JBL's patented Differential Drive transducers with ferrite magnets, to maximize power amp efficiency for greater heat dissipation and increased power handling. To your ears, this means a system with maximum headroom and rich, deep bass response at any level.

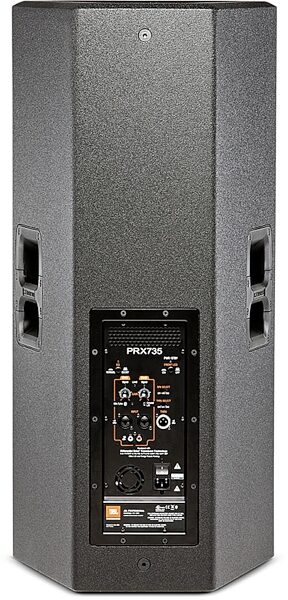

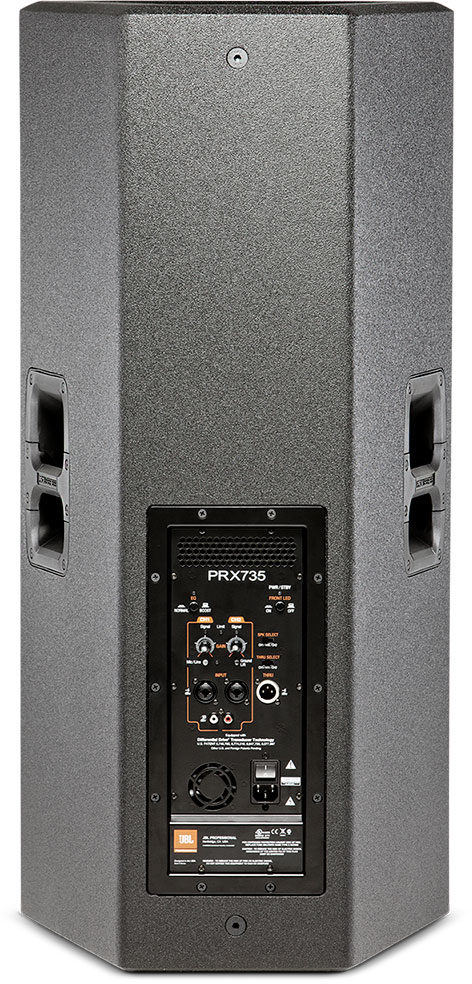

The I/O section on the PRX735 gives you an XLR-1/4" combo input jack and balanced XLR output. A Mic/Line switch allows the system to work with whatever you're running into it. A single Level knob here puts the gain where you need it. Signal Present and Overload lights help you monitor system status.
JBL's Proprietary DSP Onboard
A proprietary DSP chip in each PRX speaker gives you selectable System EQ presets for Normal and Boost modes. Dynamic limiting and surge protection are built-in for a lifetime of worry-free performance.

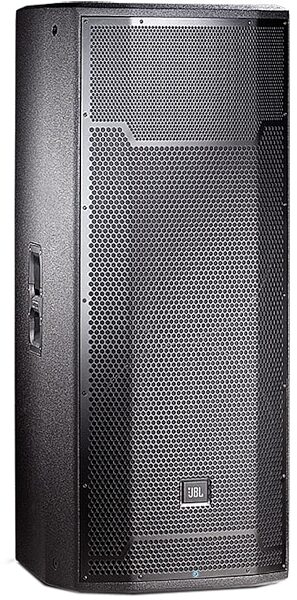

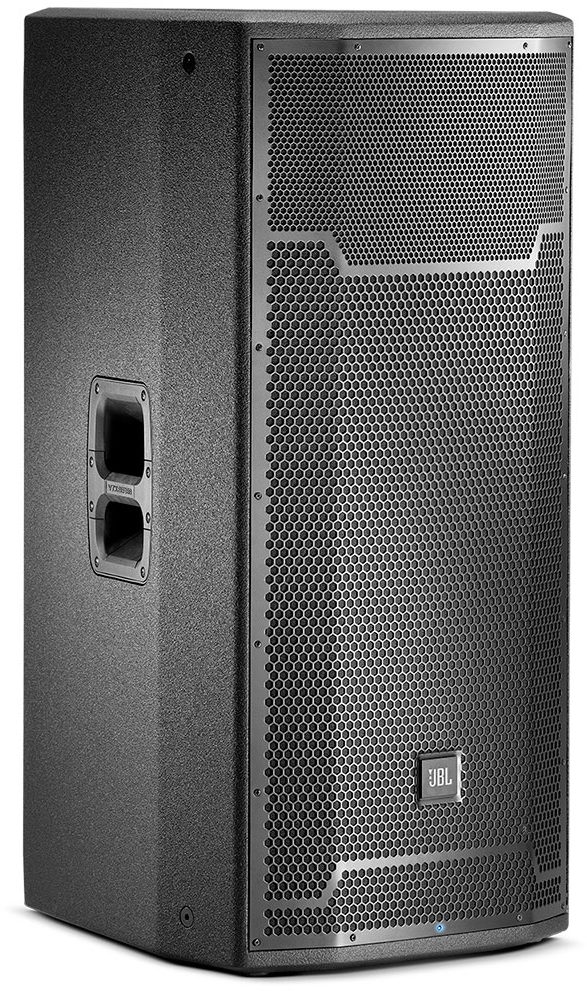

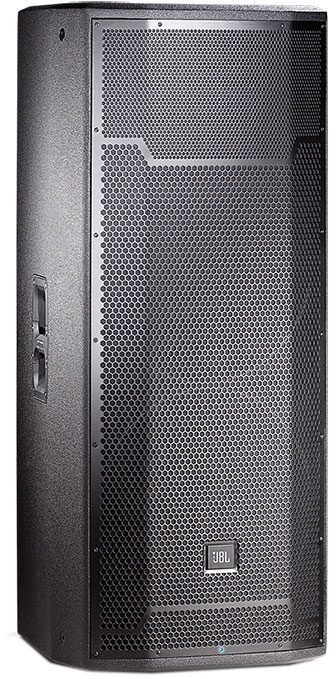

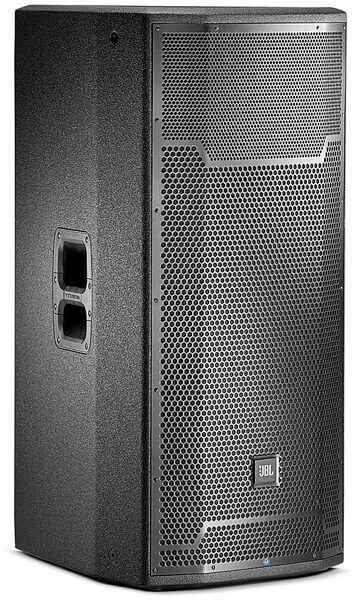

The enclosure is constructed of reinforced plywood and coated with a rugged DuraFlex finish. The steel grille wraps around the sides of the enclosure so there are no protruding lips on the front of the box to create acoustical interference. The PRX735s remain compact and lightweight for their power rating, yet they're built to withstand all the rigors and hazards of the road.
- 2 x JBL 15-inch Differential Drive woofers
- 1 x JBL 1-inch annular polymer diaphragm neodymium compression driver
- Class D Amplifier Design
- 1 x XLR / 1/4-inch combo jack
- 1 x balanced XLR output
- Signal Present and Overload LEDs
- System EQ
- Surge Protection
- Input Sensitivity Selection
- Crossover Variance
- Dynamic Limiting
- Discrete Component Optimization
zZounds is an authorized dealer of
- System Type: Self powered 15", three-way, bass-reflex
- Max SPL Output: 136 dB
- Freq. Range (-10 dB): 35 Hz - 20 kHz
- Freq. Response (+/-3 dB): 42 Hz - 20 kHz
- Coverage Pattern: 90 x 50 degrees nominal
- Amplifier Design: Class D
- Power Rating: 1500 W (3 x 500)
- Dimensions: (H x W x D) 952.5 x 445 x 538mm (37.5 x 17.52 x 21.18?)
- Net Weight: 34.9 kg (77 lb)
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 87 lbs
The JBL PRX735 is the next step in the highly successful PRX Series and introduces the first use of JBL's patented Differential Drive Technology with ferrite drivers. Differential Drive technology incorporates lower mass in the ferrite magnet for reduced weight while maximizing power amp efficiency for greater heat dissipation and increased power handling. Powering the PRX735 is a 1500 Watt high performance, exceptionally low distortion tri-amplification system engineered to deliver clean power with maximum headroom to efficiently deliver smooth high frequencies and rich, deep bass response even at very high sound power levels. Compact, ultra-lightweight, the PRX735 uses JBL's tour tested technology throughout so you can trust it to deliver a lifetime of reliable performance.
