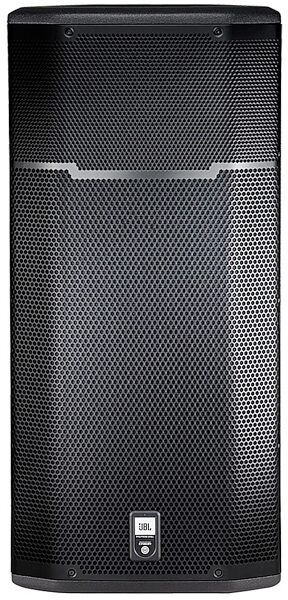

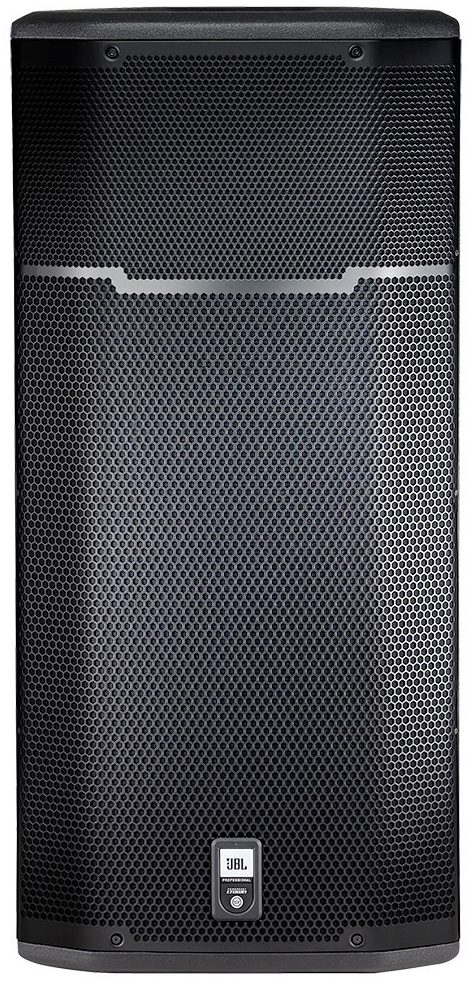

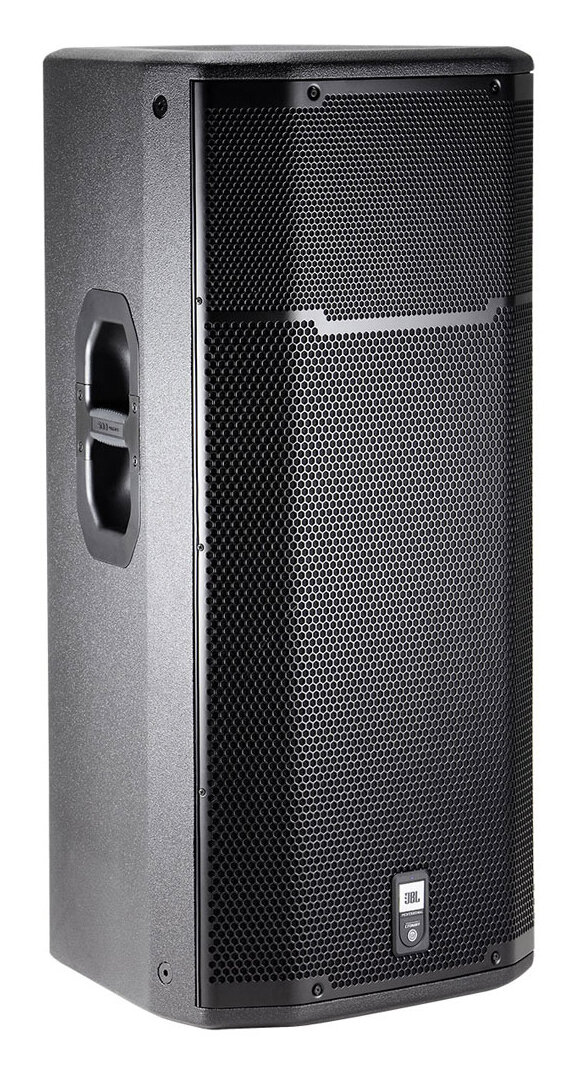

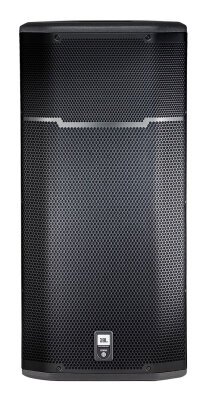

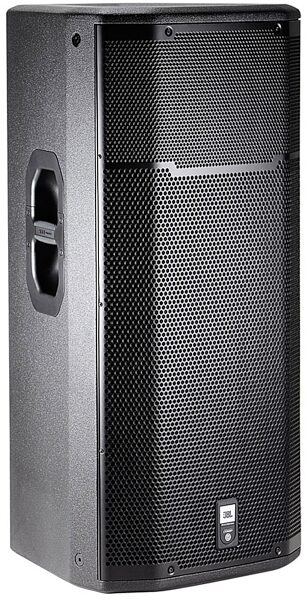

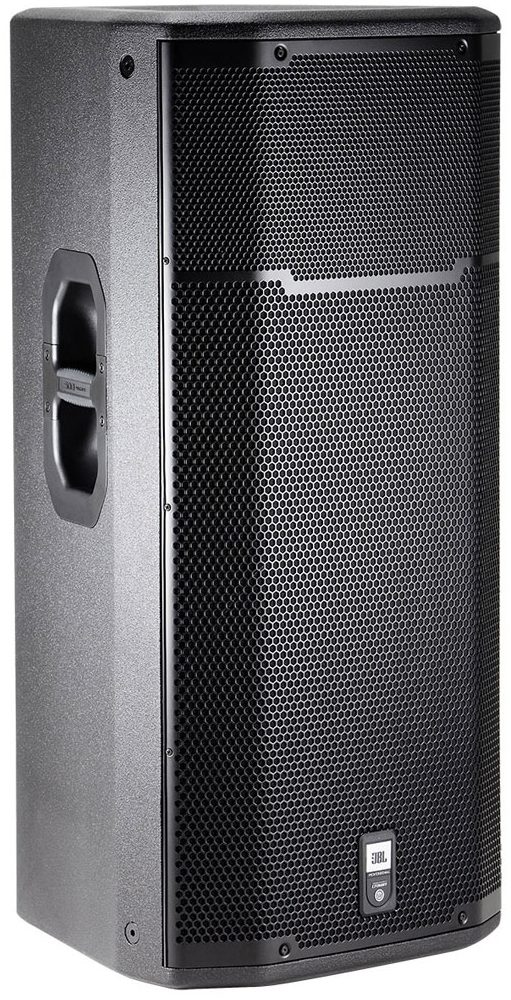

With its distinctive 3-way system and 1500 watts of power, the JBL PRX635 achieves maximum range and balance in a portable, self-powered cabinet. Three drivers deliver a full range experience with extreme balance and accuracy bringing out every nuance and texture in your music. Like the rest of the PRX600 series, the PRX635 uses JBL's most recent innovations in powered PA technology to provide unmatched durability and quality. By themselves, a pair of PRX635's make an outstanding and versatile PA for any genre of music.
A Truly Full Ranged Speaker
With its renowned line of self-powered speakers, JBL has earned a reputation for clarity and balance. Perhaps more than any of their other models, the PRX635 provides a robust full frequency range, filling that mid-range gap often left by traditional 2-way configurations. A 15" woofer rocks beneath a 6.5" horn-loaded transducer for mids and a 1" polymer compression driver for highs. Whether blasting bass heavy dance grooves or projecting high-end metal shrieks, the PRX635 has the range and balance to do it all. When you need your whole signal to burst through without any degradation or tonal loss, the PRX635 is a speaker you can trust to do it right.
The JBL PRX 600 Series
The JBL PRX 600 series represents the latest in JBL's constant innovation in the world of powered PA. Built to overcome common obstacles of sound reinforcement, the PRX600 series uses efficient Class D amplifier technology from Crown, limiter and crossover circuitry from DBX, and JBL's own signature drivers to create unparalleled sound quality and performance. All PRX 600 models are built and tested for durability with dense plywood construction and JBL's DuraFlex finish. With four speaker and two sub-woofer models to choose from, the JBL PRX600 series provides limitless options for outstanding powered PA configurations.
Features:
- 1500 watts (3 x 500 watt) from a Class-D Crown amplifier and 135 dB peak maximum SPL for astounding power and sound.
- DSP input selection and selectable system EQ for enhanced optimization in any setup.
- Duraflex-coated plywood construction for an enclosure to withstand the pressures of the road.
- Eight M10 suspension points and integrated pole mount socket for rigging and mounting.
- Expansive 40 Hz - 18 kHz frequency range providing a full-range system in a single enclosure.
- 60 lbs total weight with ergonomic hand grips, meaning real portability.
For maximum range and balance in a single cabinet, the JBL PRX635 is a hard speaker to beat. Utilizing a unique 3-way configuration with a myriad of helpful features, the PRX635 produces rich lows, full-bodied mids, and crisp highs for truly full ranged sound reinforcement. For venues, bars, clubs, DJs and bands, the PRX635 is a great all-purpose powered cabinet.
zZounds is an authorized dealer of
JBL products.
System- System Type: Self powered 15 inch, three-way, bass-reflex
- Maximum SPL Output: 135 dB peak
- Frequency Range (-10 dB) Flat: 41-19 kHz Boost: 40-19 kHz
- Frequency Response (+/-3 dB) Flat: 53-18 kHz Boost: 50-18 kHz
- Input Connectors: Balanced XLR-1/4 inch combo jack with XLR loop-through
- Input Impedance: 20K ohms (balanced), 10K ohms (unbalanced)
- Limit: Red LED indicates limiter active condition
- Signal: Green LED indicates signal present
- EQ: Presets for use in Main and Boost position
- Dynamic Control (Input): dbx Type IV limiter circuit
- Crossover Modes: DSP controlled.
- LF: 48 dB/Oct filter slope High & Low Pass
- HF: 36 dB/Oct High Pass
- Crossover Frequency: 1.8 kHz
Amplifier- Design: Crown Class D
- Power Rating: 1500 Watt (3 x 500)
- LF Power amp x 2: 1000 Watt
- HF Power amp: 500 Watt
Speaker- LF Driver: 1 x JBL 265F-1, 380 mm (15 inch) Differential Drive dual voicecoil and magnetic gap, neodymium woofer
- MF Driver: 1 x JBL 195H, 165 mm (6.5 inch) horn-loaded midrange transducer
- HF Driver: 1 x JBL 2414H 25.4 mm (1 inch) annular polymer diaphragm, neodymium compression driver
- Coverage Pattern: 90* x 50* nominal
- Directivity Index (DI): 9.6 dB
- Directivity Factor (Q): 9.1
- Enclosure: Trapezoidal, 18 mm, plywood
- Suspension/Mounting: 36 mm pole socket, 8 x M10 Suspension Points and 1 x M10 Pull-Back Point
- Transport: Integrated handle with backing cup
- Finish: Obsidian DuraFlex finish
- Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustically transparent black cloth backing.
- Input Connectors: Balanced XLR-1/4 inch combo jack with XLR loop-through
- Dimensions (H x W x D): 36.29 x 16.9 x 16.27 inches (921 x 429 x 413 mm)
- Net Weight: 60 pounds (27.2 kg)
- Gross Weight: 64.5 pounds (29.2 kg)
- Dimensions and Weight in Packaging
- Shipping Weight: 71 lbs
-
Shipping Dimensions:
22 x
21 x
38 in
JBL Warranty
If you have additional warranty questions,
please call the manufacturer at 800-852-5776
Product Description
The JBL PRX635 is a self-powered, lightweight three-way loudspeaker system capable of delivering a very high level of performance over a broad bandwidth.
The PRX635 is comprised of one 15 inch 265F Differential Drive woofer, a 6.5 inch 195H horn-loaded 90* by 50* mid-range and a 1 inch annular polymer diaphragm, neodymium compression driver mounted to a 90* by 50* horn, all driven by a 1500 watt (3 x 500) Audio Class-D power amplifier. A propriety DSP chip is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
Features
- Maximum SPL 135 db peak
- 15 inch Differential Drive dual voice-coil and magnetic gap, neodymium woofer
- 6.5 inch horn loaded midrange transducer
- 1 inch polymer diaphragm compression driver
- 1500 Watt (3 x 500 watt) Class-D, Crown digital amplifier
- DSP input section with dbx Type IV limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ
- Professional XLR line and 1/4 inch Mic/Instrument inputs, with loop through
- Obsidian DuraFlex coated plywood construction
- Large die-cast aluminum handle bar with a fine tuned ergonomic rubber grip for maximum comfort
- 8 M10 Suspension points and 1 pullback point
- Integrated 36mm pole mount socket
This speaker is ideally suited to applications where the program material exhibits subtlety and nuance. These cabinets can be stand-mounted but do require a large footprint tri-pod type stand. When pole mounting the PRX635 on a subwoofer JBL highly recommend a pole no longer than 24 inch to ensure stability and safety. As with all the full-range PRX600 Series systems two EQ selections can be used to optimize the system for the program material and/or environment. The input section also accommodates either Line or Mic/Instrument level inputs.

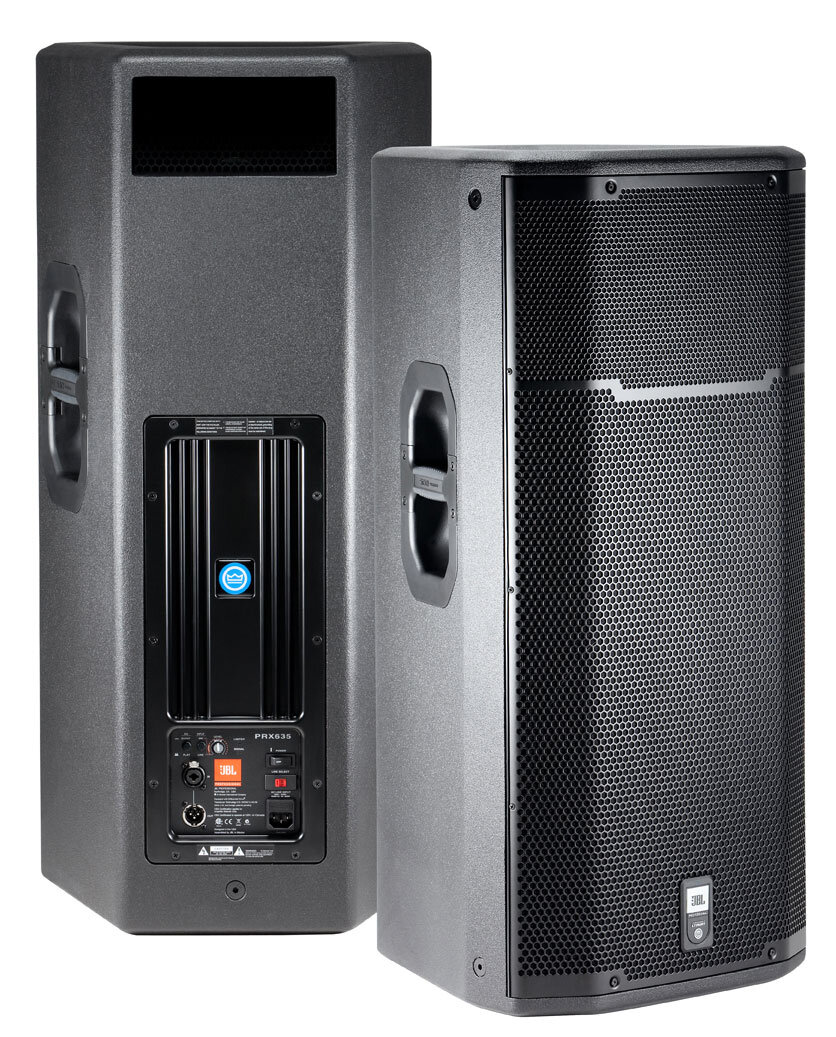

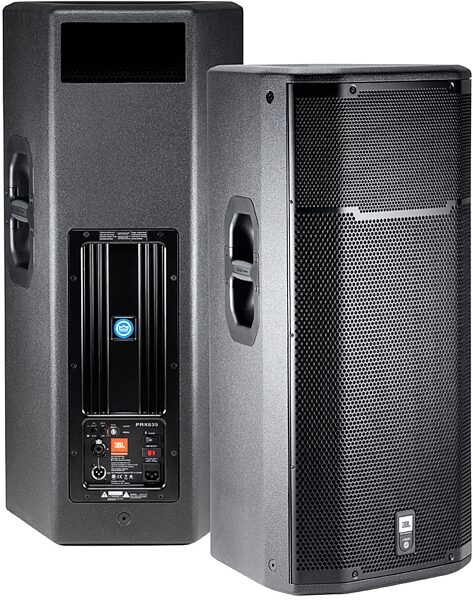

The amplifier input panel offers XLR or 1/4 inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level, via the level control knob.
All PRX600 cabinets are built from a combination of 25 mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX600 Series cabinets are protected by JBL's tour proven DuraFlex finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability.
