Representing the next generation of its groundbreaking and industry-standard EON(R) series portable loudspeakers, today JBL is introducing the EON500 series. The unveiling of the EON500 series self-powered and lightweight speakers immediately raises the bar in the category of molded powered loudspeakers in all aspects, from industrial design to sonic performance, integrated utility and portability.

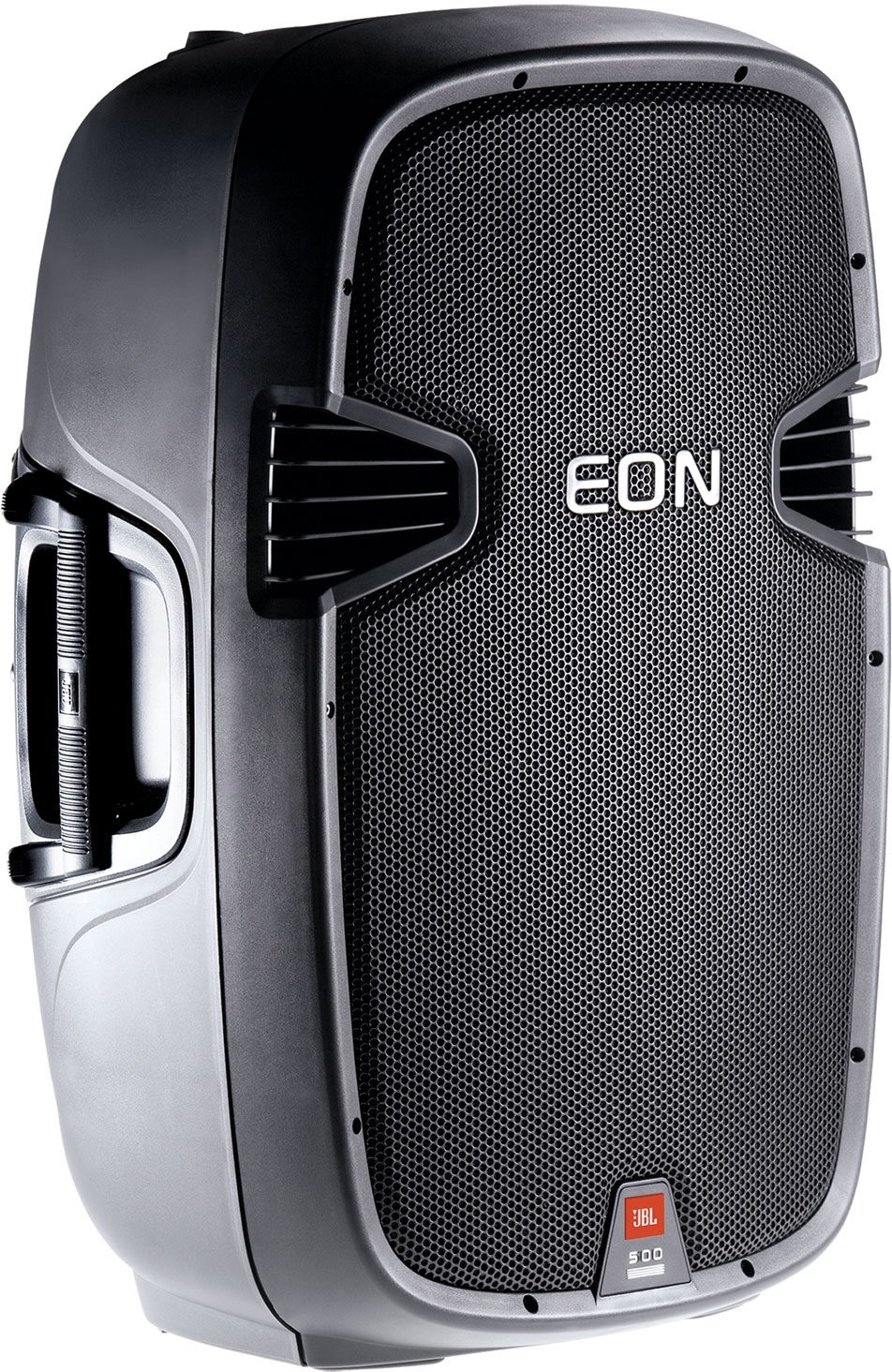

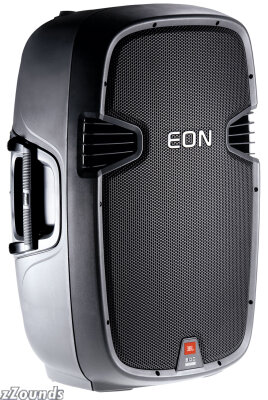

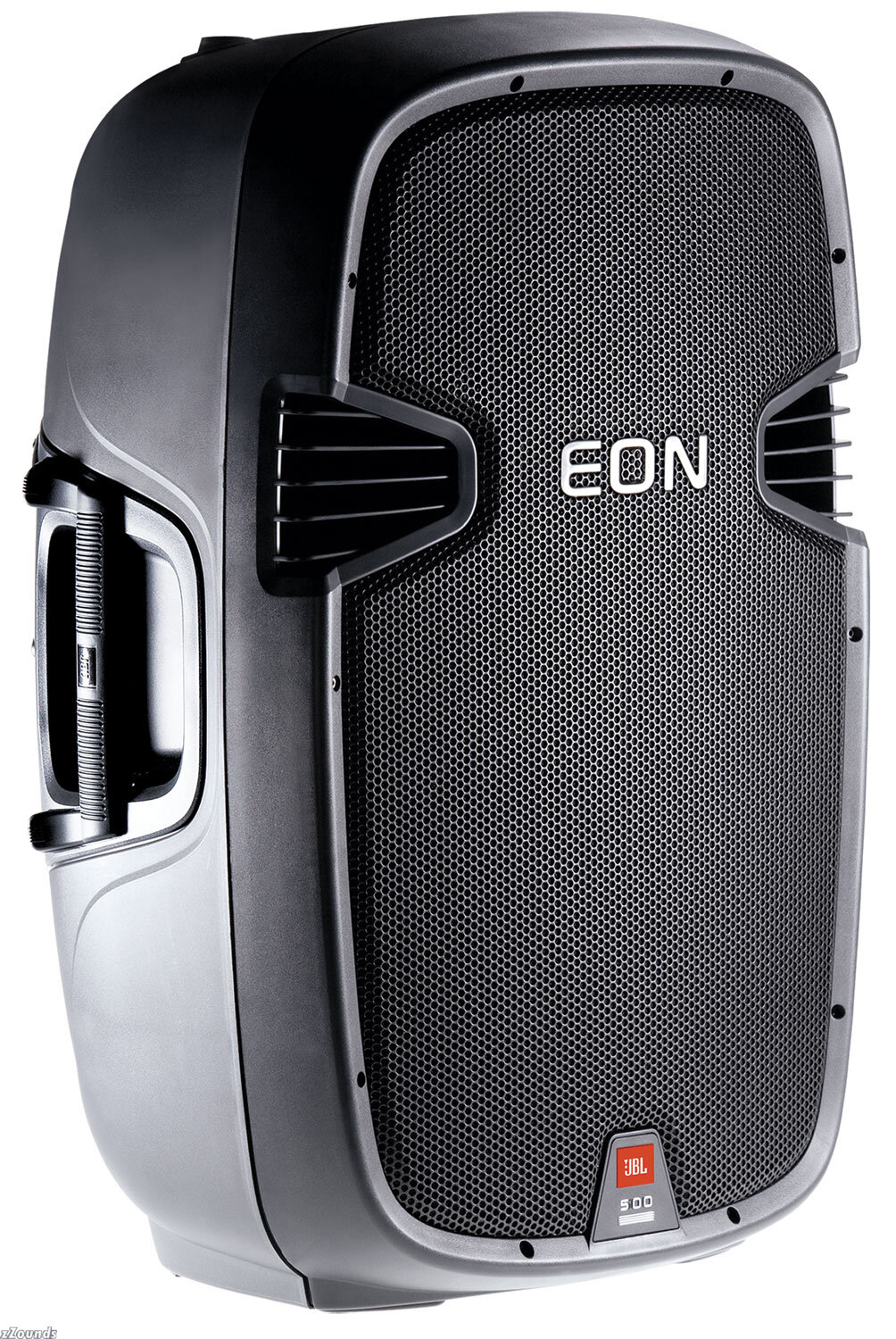

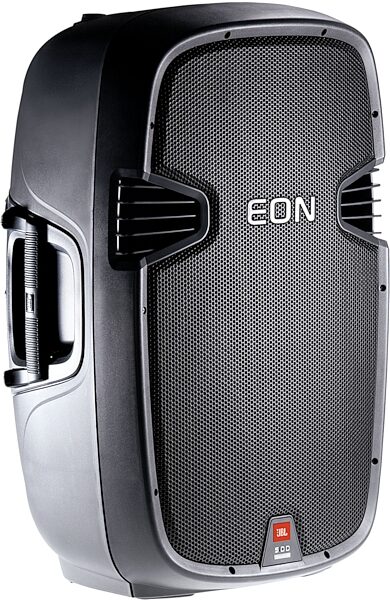

In addition to acoustic performance the EON515 features three full size deep-well handles, light weight, and balanced ergonomics. The new generation of EON products offers true portability and ease of handling. Five standard M10 rigging points and integrated pole mount socket increase the system's utility. The extremely rugged copolymer enclosure has been designed for main and 45 degree monitor orientation in the left and right hand configuration. A full screen-backed steel grille offers additional protection for both the woofer and compression driver components.
Features
450 watt High-Performance Powered Speaker System
True portability weighing only 14.8 kg (32.5 lb)
Multiple handles with comfort rubber grips for easy transport
15 in. Differential Drive(R) low-frequency driver with neodymium magnet for low-distortion and light weight
1 in. throat diameter next generation JBL neodymium compression driver
Efficient Crown(R) Class-D amplifier technology
Built-in 3 Channel Mixer
100 H x 60 V degree asymmetrical wave guide for uniform audience coverage
Line level and direct microphone input capability
Selectable Pre-engineered EQ settings
Unique Mix/Loop signal flow function for extended system application
Easy "daisy-chain" connections for extending the system
Integrated M10 suspension points for easy rigging
Multi angle enclosure for main or monitor applications
Integrated 36 mm pole mount socket with stabilizing securing screw
Highly designed composite enclosures for durability, lightweight, and acoustic performance
Technical Info
System Power Rating: 450 W continuous, 900 W peak
Frequency Range (-10 dB): 39 Hz -20 kHz
(EQ in 'Flat' position)
Dimensions (H x W x D): 685 x 438 x 366 mm, (27.0 x 17.3 x 14.4 in)
Frequency Response (+/-3 dB): 42 Hz - 18 kHz (EQ in 'Flat' position)
Coverage Pattern: 100 H x 60 V degree nominal
Maximum SPL: 129 dB
Net Weight: 14.8 kg (32.5 lb)
