Representing the next generation of its groundbreaking and industry-standard EON(R) series portable loudspeakers, today JBL is introducing the EON500 series. The unveiling of the EON500 series self-powered and lightweight speakers immediately raises the bar in the category of molded powered loudspeakers in all aspects, from industrial design to sonic performance, integrated utility and portability.

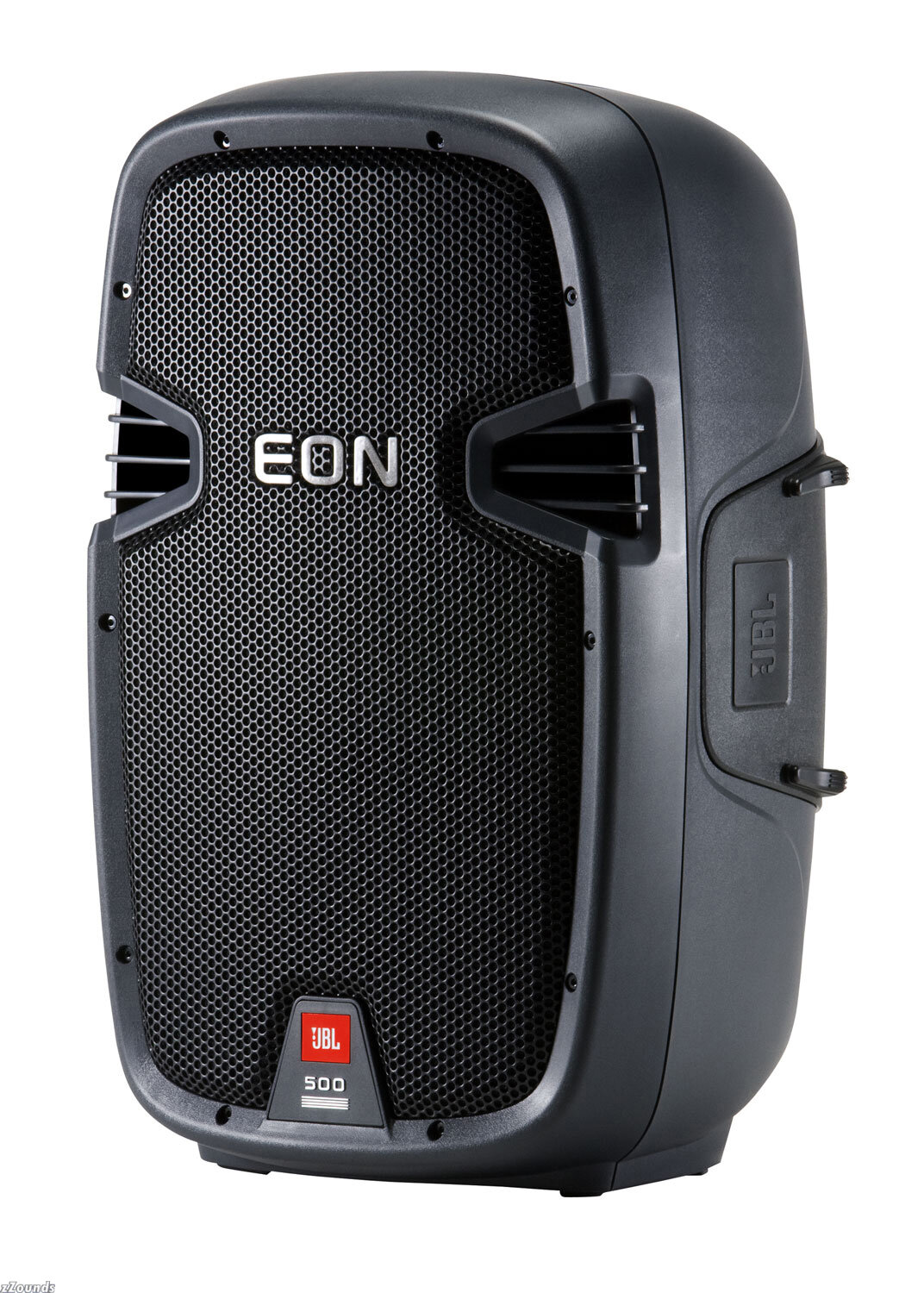

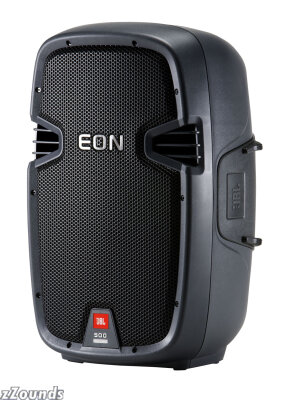

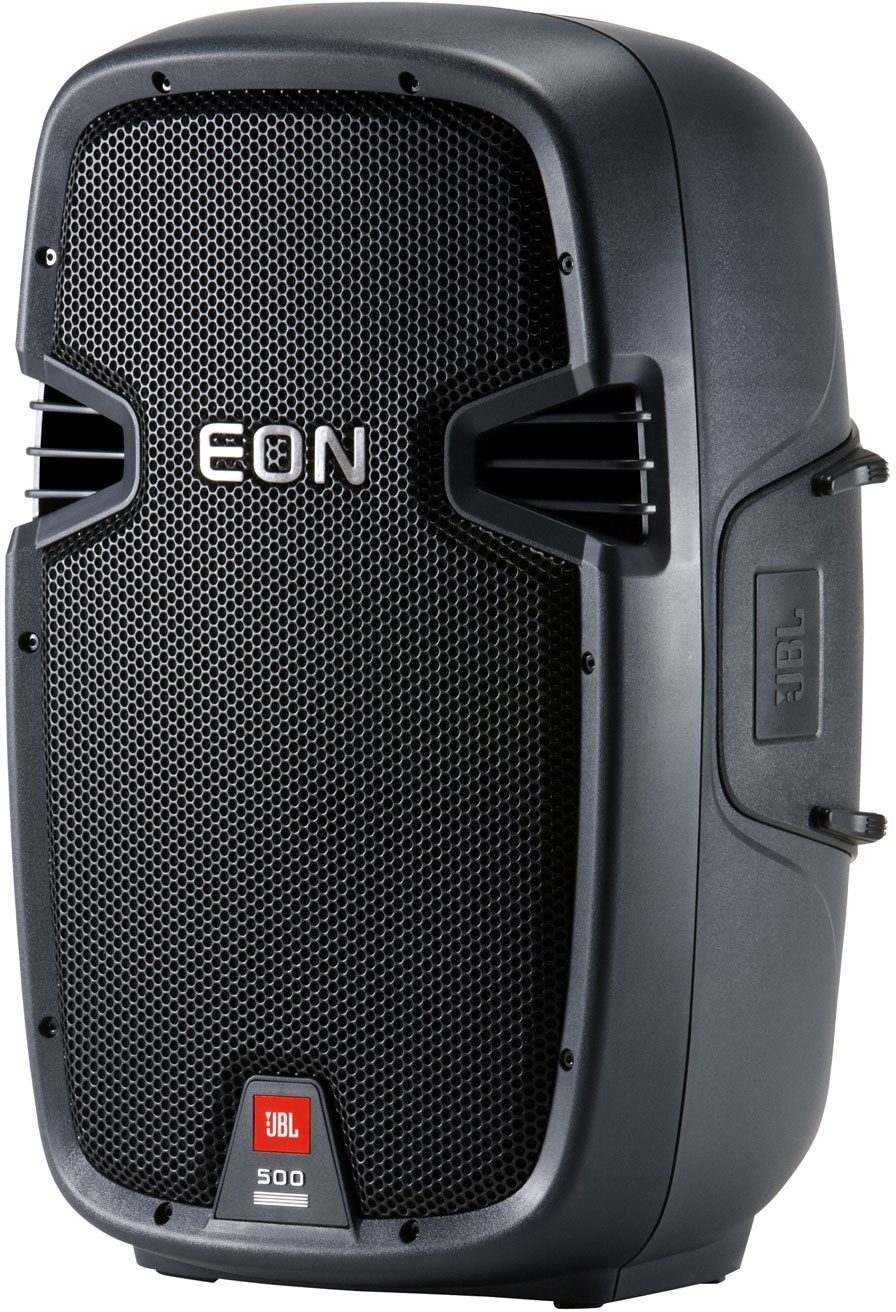

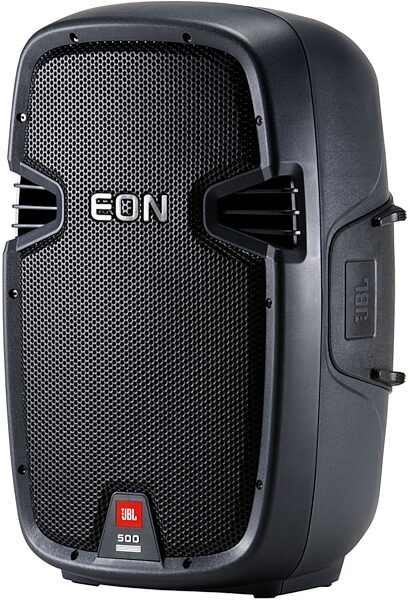

The EON510 is a 10-inch, two-way, powered, portable speaker system. Capable of reproducing full bandwidth sound at high levels it offers the additional utility of a 3 channel built-in mixer. The EON510 is comprised of a 254 mm (10 in) Differential Drive(R) woofer, a 25.4 mm (1 in) neodymium high frequency compression driver coupled to a 100 H by 60 V degree waveguide. Both components are driven by the discrete channels of a 280 watt Class-D integrated power amplifier. The input section contains all cross-over functions, protection, and mixer functionality.
Features
280 watt High-Performance Powered Speaker System
Ultra Light Weight and Extremely Compact
Soft touch top grip for easy handling.
10 in. Differential Drive(R) low-frequency driver with neodymium magnet for low-distortion and light weight
1 in. throat diameter next generation JBL neodymium compression driver
Efficient Class-D digital amplifier technology
Built-in 3 Channel Mixer
100 H x 60 V degree asymmetrical waveguide for uniform audience coverage
Line level and direct microphone input capability
Selectable Pre-engineered EQ settings
Unique Mix/Loop signal flow function for extended system application
Easy "daisy-chain" connections for extending the system
Integrated M10 suspension points for easy rigging
Multi angle enclosure for main or monitor applications
Integrated 36 mm pole mount socket with stabilizing securing screw
Highly designed composite enclosures for durability, lightweight, and acoustic performance
Technical Info
System Power Rating: 280 W continuous, 560 W peak
Frequency Range (-10 dB): 58 Hz - 18.5 kHz (EQ in 'Flat' position)
Dimensions (H x W x D): 490 x 313 x 262 mm (19.3 x 12.3 x 10.3 in)
Frequency Response (+/-3 dB): 70 Hz - 17 kHz (EQ in 'Flat' position)
Coverage Pattern: 100* H x 60* V nominal
Maximum SPL: 121 dB
Net Weight: 7.7 kg (17 lb)
