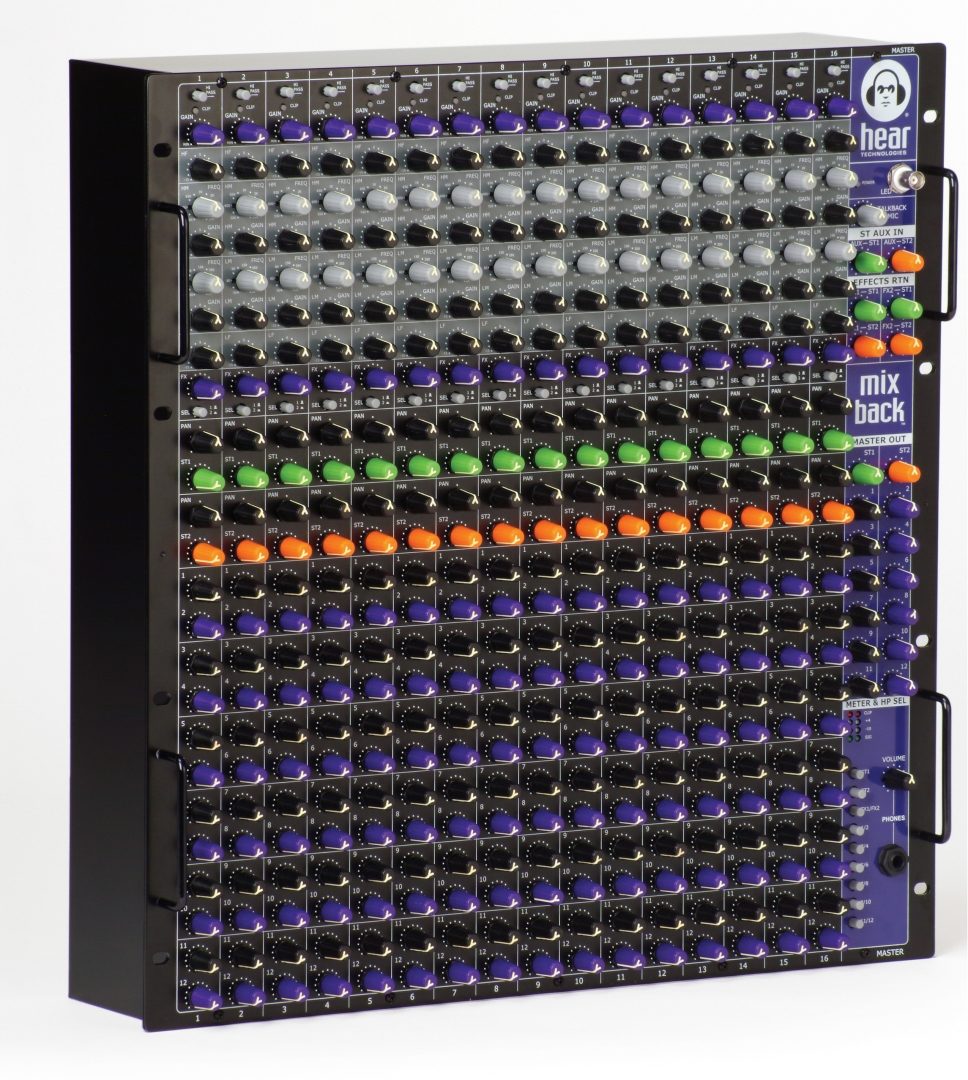

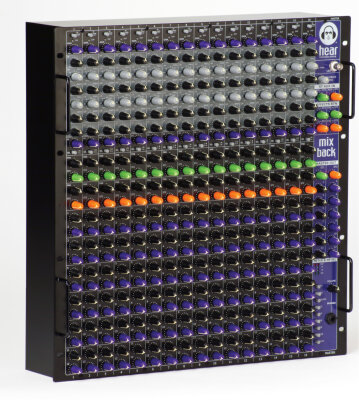

The Mix Back is a flexible and affordable 16 x 12 x 2 x 2 monitor mixer that features two stereo outputs and twelve mono outputs. There are sixteen high quality Mic/Line inputs with passive split. It also features two HearBus outputs and two ADAT optical outputs. A perfect companion to our Hear Back personal monitor system. A talkback mic preamp permits talking to any mono output, master outputs and the intercom output.
Included is a UV LED gooseneck lamp that makes the knob pointers and silkscreen on the front of Mix Back glow-in-the-dark!

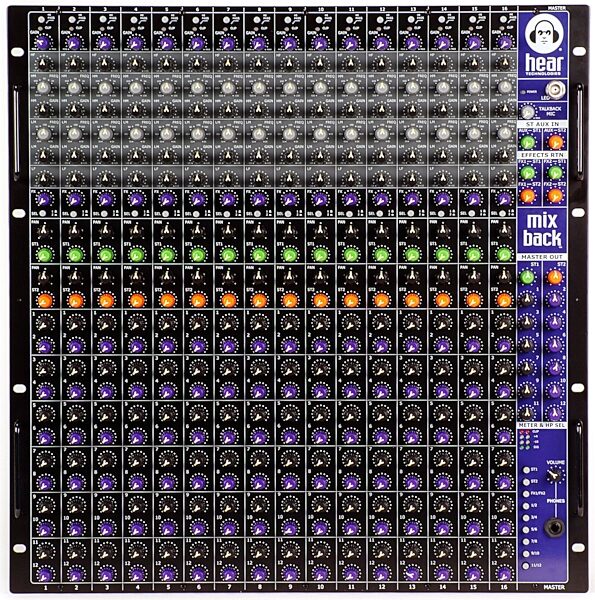

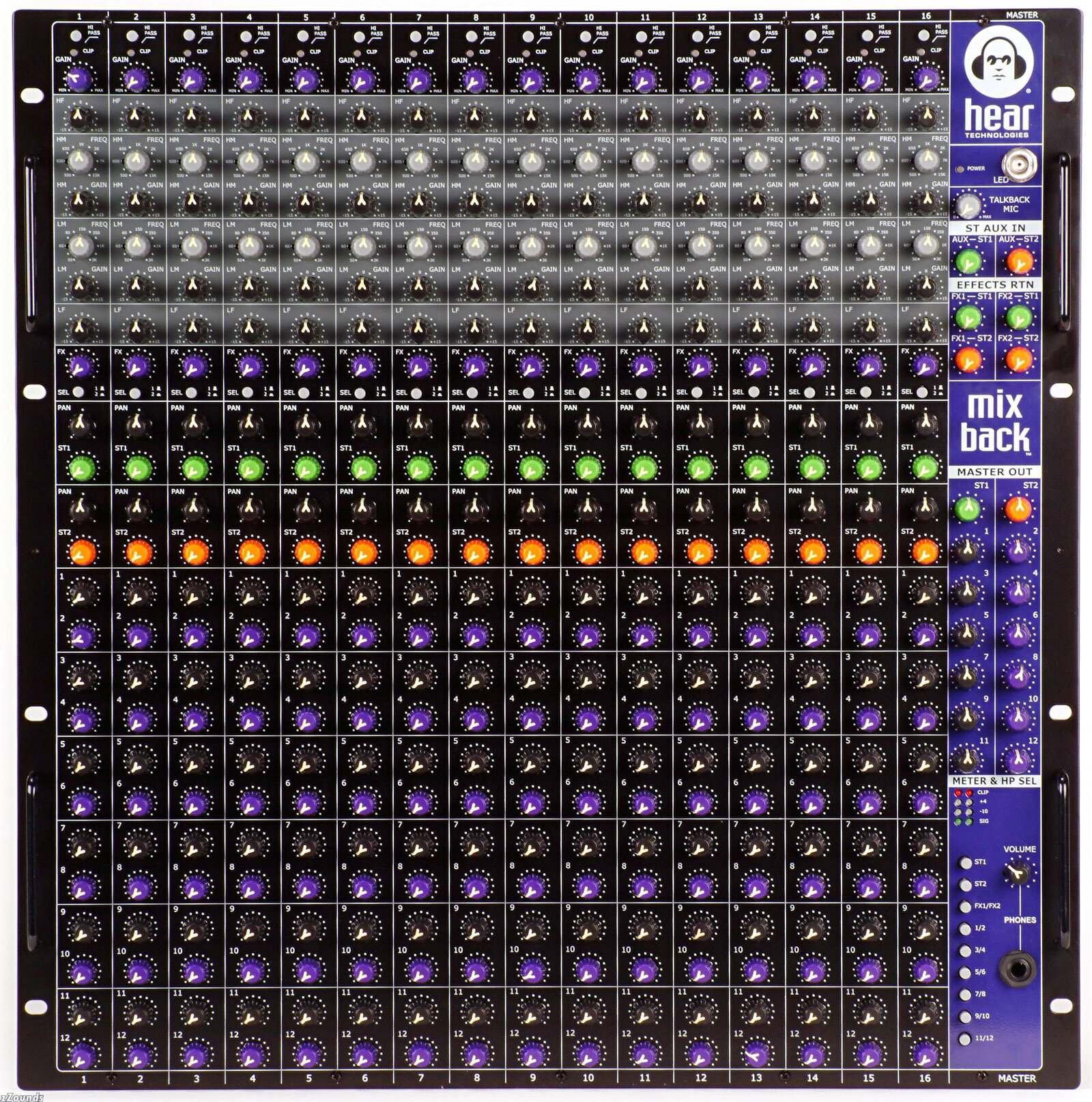

Input Channel Features:
16 quality Mic/Line inputs with passive XLR split
Pin 1 lift and Mic phantom power switches
Channel inserts
Signal/Clip LED indicator
100 Hz high-pass filter
Gain control
4 band EQ with separate controls for sweep and cut/boost on mid bands
Two stereo level and pan controls (ST1 and ST2)
Twelve mono level controls (1-12)
Switch selectable effects 1-2 sends

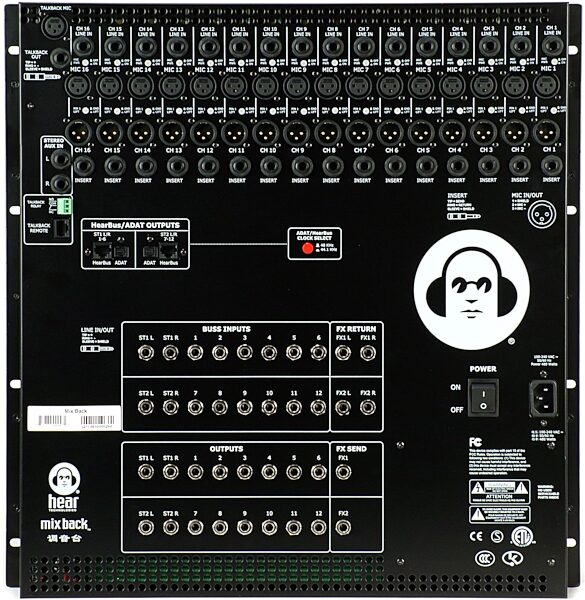

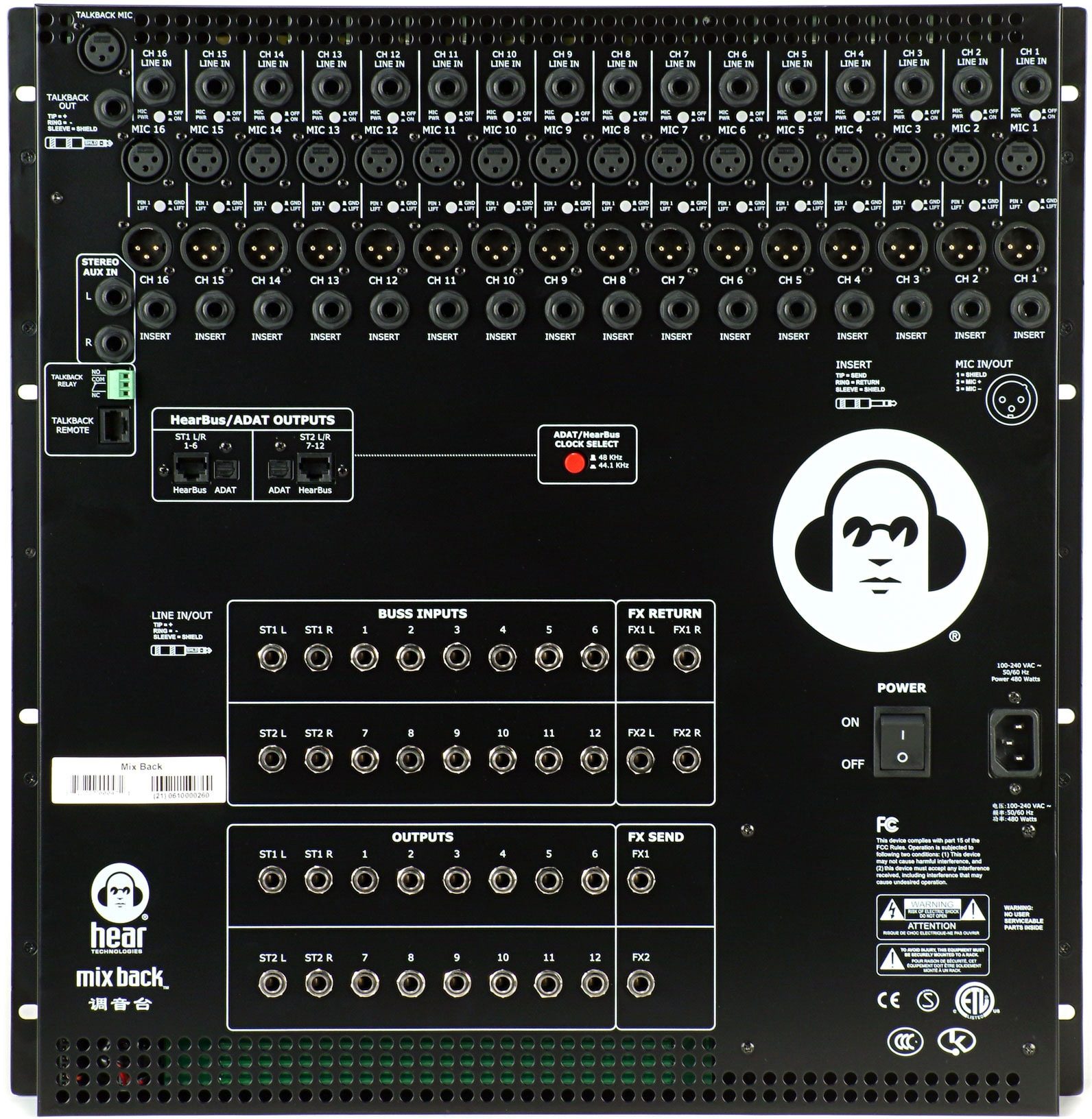

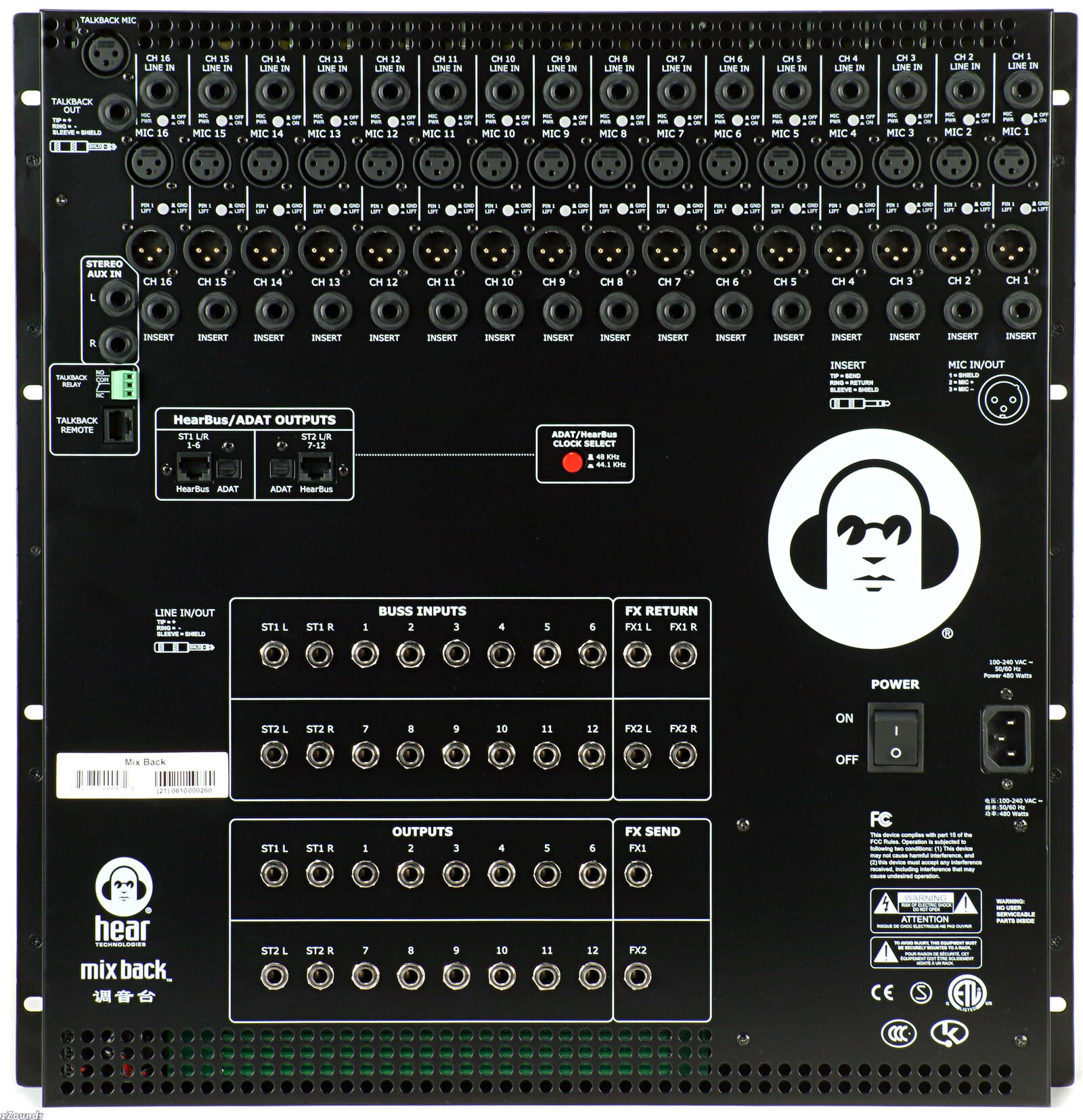

Master Features:
2 stereo and 12 mono TRS outputs
Switch selectable meter/headphone monitoring
2 stereo TRS balanced effect returns
Switch assignable FX1/FX2 returns to the 12 mono masters
Stereo Aux return with level controls to both stereo busses – great for FOH mix or the studio “two mix”
Buss inputs permit stacking of multiple mixers
Talk back mic preamp assignable to stereo masters 1 and 2, mono outputs 1-12, and the balanced Intercom/slate output
Relay contact when the talk back intercom switch is pressed
16 button talkback remote connects using standard CAT5e cable
16 channels of ADAT and HearBus output
Other Features:
Universal internationally approved internal power supply
11 RU chassis
All analog inputs and outputs are balanced
Technical Info
Output Channels
Stereo 1: L/R
Stereo 2: L/R
Mono: 1-12
FX 1: Send
FX 2: Send
Talkback output
Talkback Relay
ADAT - 16 Channels
HearBus - 16 Channels
Input Channels
Stereo 1: L/R
Stereo 2: L/R
Mono: 1-12
FX1 L/R
FX2 L/R
Stereo Aux inputs
Talkback Mic
Talkback remote Control
