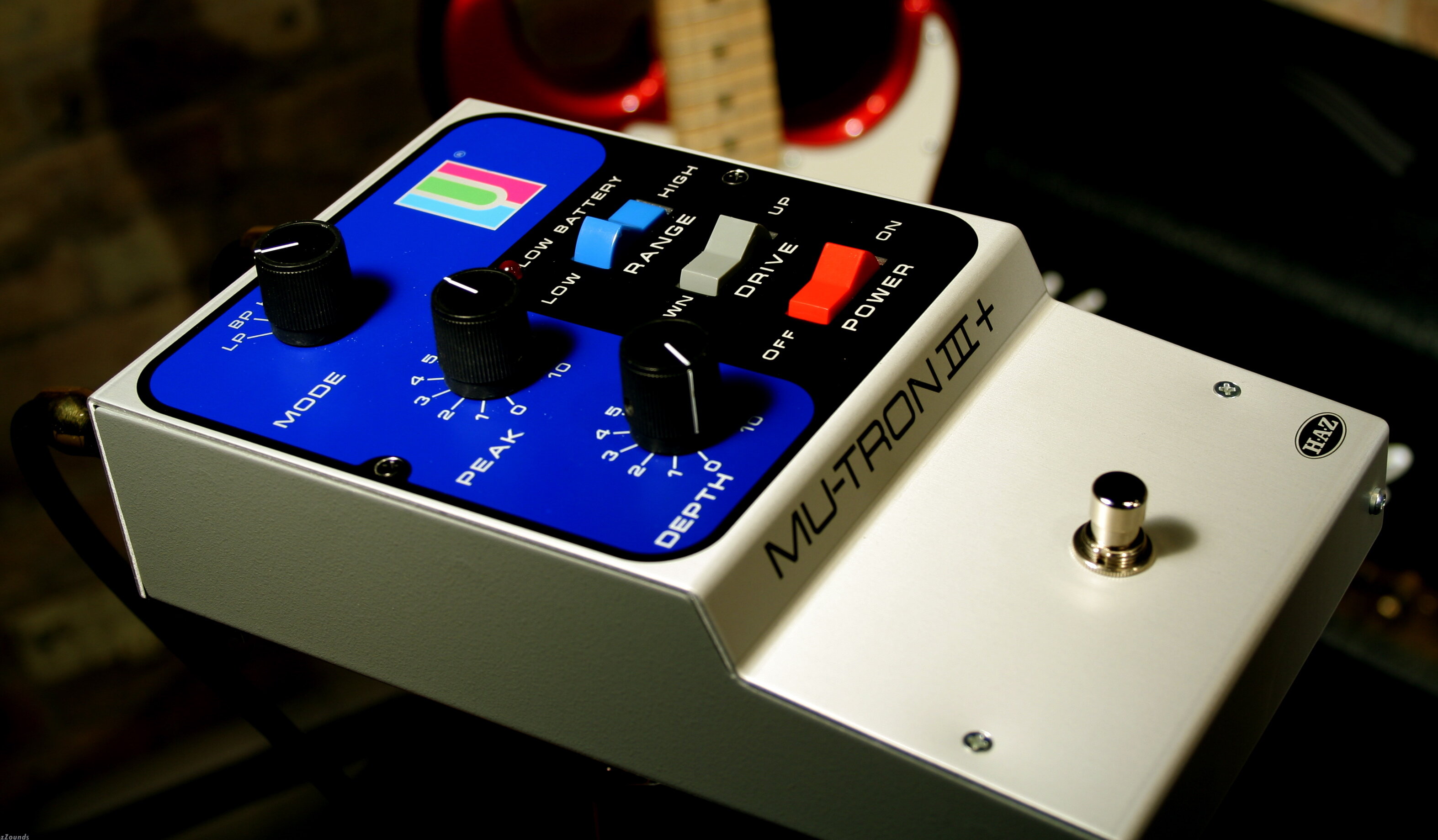

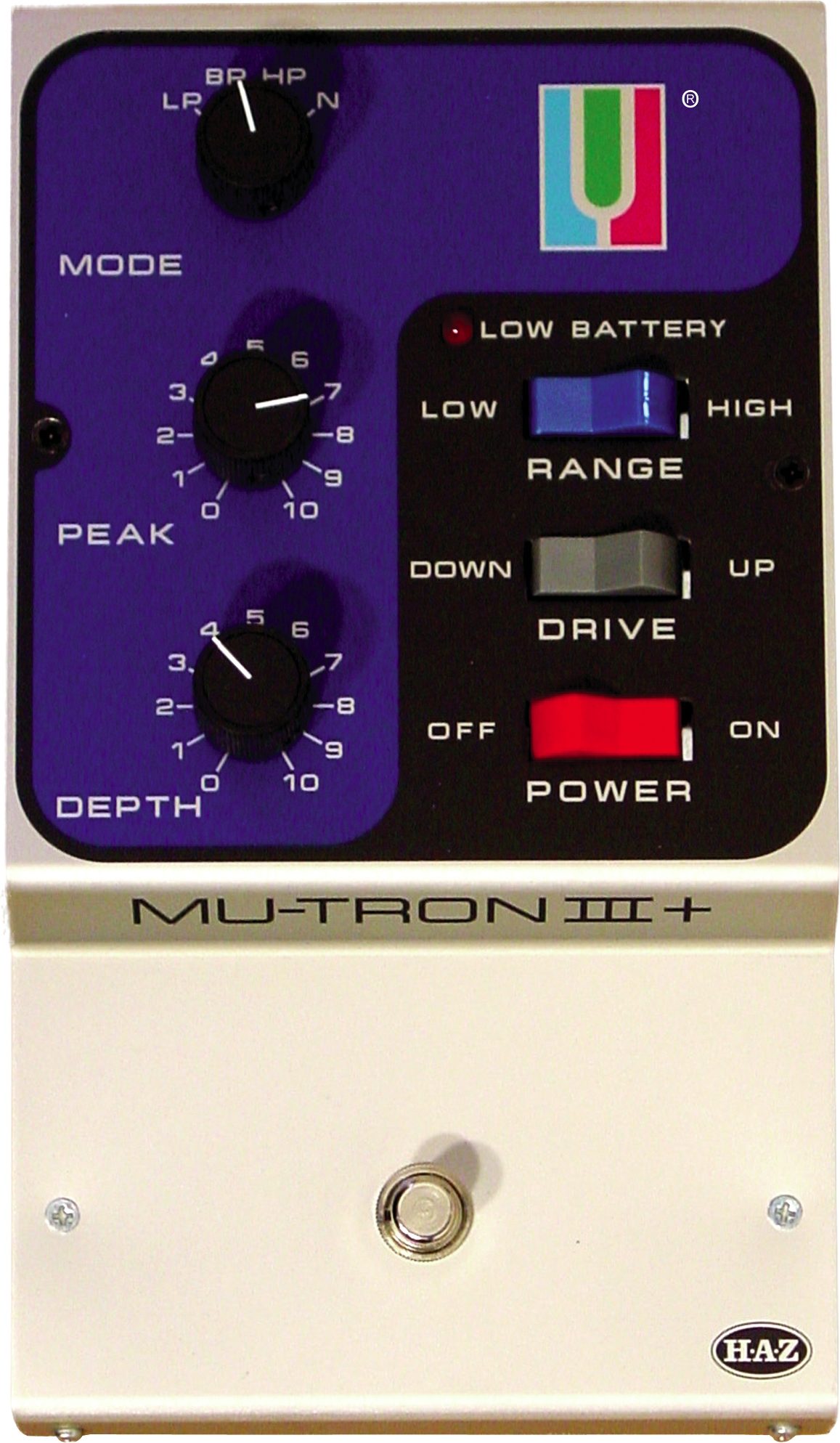

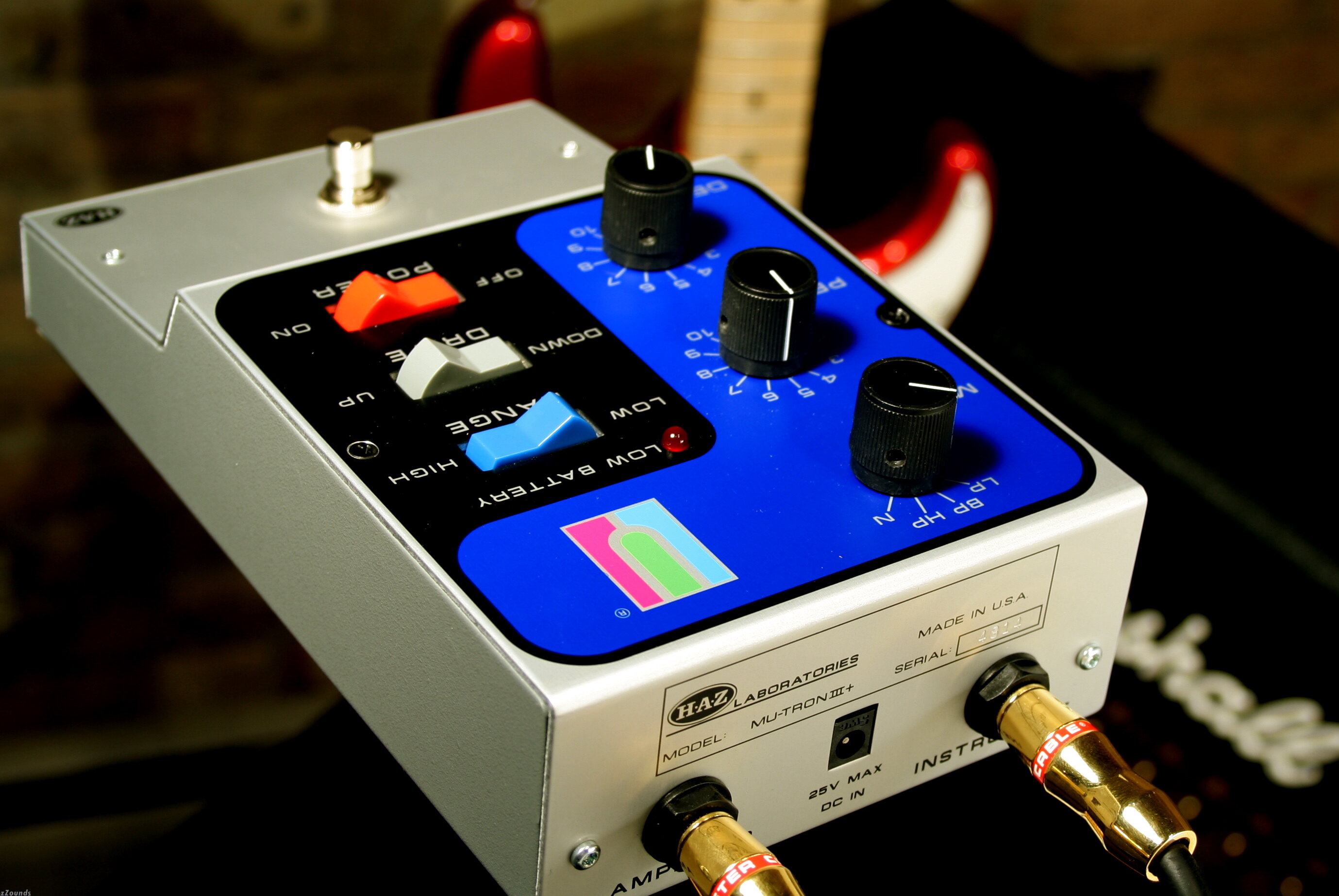

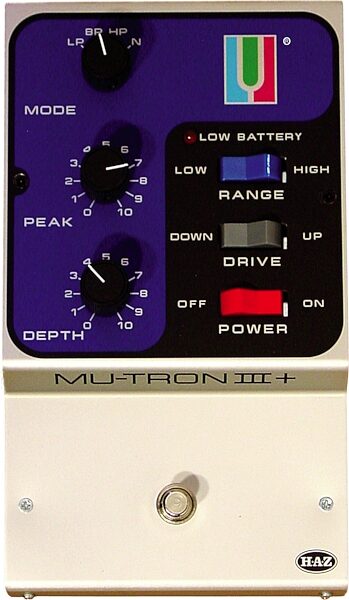

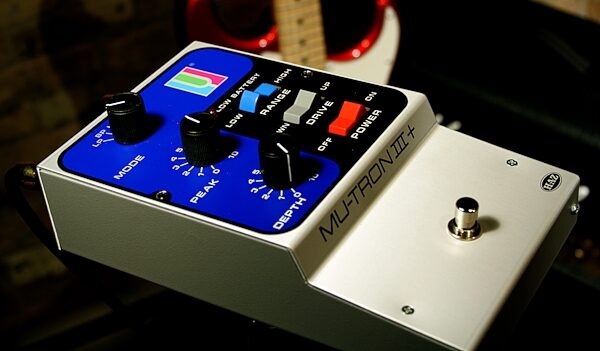

HAZ Laboratories Mu-Tron III+ Envelope Filter Pedal
Uses 2 9-volt batteries or optional power supply.
Additional Images:
Loading...
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
Description
Docs
From Our Catalog
MU-TRON III+TM translates the envelope or "volume profile" of every musical passage, ...automatically... into an easily-controlled, vowel-like sound, as you play. Use the MU-TRON III+TM to create a variety of synthesizer sounds with most electrified instruments: guitar, bass, keyboards, drums, flute, saxophone, brasses, ...even microphone. The sharper your attack and the more percussive your instrument, the wilder your sound will be. Besides providing that inverted "snap" (perfect for funky bass), MU-TRON III+TM also functions as an automatic "wah" pedal. Full instructions are included, but you decide how far you want to go.
Features:
Power: On-off switch.
Low Battery/Sweep Limit Indicator: Monitors the batteries' condition and aids in setting the depth control.
Range Switch: Emphasizes high or low frequencies.
Drive Switch: Shifts the filter up or down for two totally different effects.
Mode Switch: High-pass, band-pass, low-pass or notch filter characteristics, for accentuating different regions of audio band, allowing four distinct tonal images.
Depth Control: A sensitivity control for optimum operation from any musical source.
Peak Control: For varying filter "sharpness" from a subtle accentuation through a distinct vowel sound to high resolution filtering that "plays" individual overtones.
Bypass Footswitch: A true, passive bypass switch for routing the audio signal around the effect.
DIP-Switches (internal): Permit you to customize your MU-TRON III+TM to highlight your instrument and playing style. Two switches tailor the high and low frequency ranges. Three switches control the way the MU-TRON III+TM follows the dynamics of your instrument. The last switch allows the Low battery L.E.D. to double as a sweep limit indicator.
Output: 1/4 in. gold-plated phone jack.
DC Power: Jack for H'A'Z Model PS-1 power supply
Input Impedance: Greater than 60K ohms (20 - 20 kHz)
Output Impedance : Less than 2.6K ohms (20 - 20 kHz)
Maximum Undistorted Output Signal: 10V peak-to-peak
Power Supply: 2 9-Volt batteries (not included) and/or optional power supply (H'A'Z Model PS-1, for operation from 120 VAC 60 Hz)
Weight: 3.25 lbs. without batteries
Dimensions: 9 in. long X 5 in. wide X 3.125 in. high
Components: Gold-plated stereo 1/4 in. jacks, 1% metal-film resistors, state of the art surface mount technology for highest reliability
Construction: Heavy-gage steel bottom with baked-on industrial enamel finish. Heavy-gage aluminum front panel
Quality Control: Each unit is calibrated, 100% tested, and played
MADE IN U.S.A.
Options: H'A'Z Model PS-1 Power Supply (120 VAC 60 Hz input)
Specifications subject to change without notice.
Features:
Power: On-off switch.
Low Battery/Sweep Limit Indicator: Monitors the batteries' condition and aids in setting the depth control.
Range Switch: Emphasizes high or low frequencies.
Drive Switch: Shifts the filter up or down for two totally different effects.
Mode Switch: High-pass, band-pass, low-pass or notch filter characteristics, for accentuating different regions of audio band, allowing four distinct tonal images.
Depth Control: A sensitivity control for optimum operation from any musical source.
Peak Control: For varying filter "sharpness" from a subtle accentuation through a distinct vowel sound to high resolution filtering that "plays" individual overtones.
Bypass Footswitch: A true, passive bypass switch for routing the audio signal around the effect.
DIP-Switches (internal): Permit you to customize your MU-TRON III+TM to highlight your instrument and playing style. Two switches tailor the high and low frequency ranges. Three switches control the way the MU-TRON III+TM follows the dynamics of your instrument. The last switch allows the Low battery L.E.D. to double as a sweep limit indicator.
Technical Info
Input: 1/4 in. gold-plated phone jack.Output: 1/4 in. gold-plated phone jack.
DC Power: Jack for H'A'Z Model PS-1 power supply
Input Impedance: Greater than 60K ohms (20 - 20 kHz)
Output Impedance : Less than 2.6K ohms (20 - 20 kHz)
Maximum Undistorted Output Signal: 10V peak-to-peak
Power Supply: 2 9-Volt batteries (not included) and/or optional power supply (H'A'Z Model PS-1, for operation from 120 VAC 60 Hz)
Weight: 3.25 lbs. without batteries
Dimensions: 9 in. long X 5 in. wide X 3.125 in. high
Components: Gold-plated stereo 1/4 in. jacks, 1% metal-film resistors, state of the art surface mount technology for highest reliability
Construction: Heavy-gage steel bottom with baked-on industrial enamel finish. Heavy-gage aluminum front panel
Quality Control: Each unit is calibrated, 100% tested, and played
MADE IN U.S.A.
Options: H'A'Z Model PS-1 Power Supply (120 VAC 60 Hz input)
Specifications subject to change without notice.
From the long, strange trip to the mothership, the Mu-Tron III+ is the pro's choice for subtle or funky envelope filtering.
What Our Customers Say About zZounds
"zZounds is one of the best businesses I've dealt with so far. Excellent prices." - customer on November 16, 2009
Call
800.ZZOUNDS (996.8637)
and mention priority code: 7W6851Q
Item: HAZMUTRONIIIPLUS
related accessories
from $9.95
from $12.95
HAZ Laboratories Mu-Tron III+ Envelope Filter Pedal Reviews
10 out of 10
"All hail the 'Boot-tron'. Funkify yo' vibe. Funk is it's own reward."
Feature:
It would be cool for other users (Bootsy) to include their settings, for the effect, in the product literature.
Quality:
It's sturdy. It's made of heavy sheet metal. What more do you need?
Value:
The price is certainly competitive compared to similar products. You get what you pay for.
Desirability:
I have used many effects over the years. I have done away with all of them, with the exception of the Mutron III, Big Muff Pi, and Bass Micro-synth.
Sound:
The best for that Bootzilla, underwater, ultra-wet, funk tone. I always refer to it as the 'Boot-tron'. It is just super smooth and quiet.
Support:
N/A
Overall:
I have owned it for years. I doubt I will be getting rid of it any time soon.
It would be cool for other users (Bootsy) to include their settings, for the effect, in the product literature.
Quality:
It's sturdy. It's made of heavy sheet metal. What more do you need?
Value:
The price is certainly competitive compared to similar products. You get what you pay for.
Desirability:
I have used many effects over the years. I have done away with all of them, with the exception of the Mutron III, Big Muff Pi, and Bass Micro-synth.
Sound:
The best for that Bootzilla, underwater, ultra-wet, funk tone. I always refer to it as the 'Boot-tron'. It is just super smooth and quiet.
Support:
N/A
Overall:
I have owned it for years. I doubt I will be getting rid of it any time soon.
Submitted: 01/22/2006
10 out of 10
"Mutron III+"
Feature:
Instruction Manual Easy to use
Quality:
Very well built, this machine is bullet proof.
Value:
Well is not cheap, but is really a good buy.
Desirability:
I had to wait 7 years to buy one, cause in Europe is kind of hard to find one, I Bought mine in London, and it looks amazing in my pedal board, I think I'm the only one who as one in a 100 Km raid, Eh! Eh! Eh!
Sound:
Out of this world
Support:
So far so good
Overall:
I will never sell it, I bought just for my self (the guys in my band don't let me use it as much as I wanted to), I like a lot, bands like Parliament, Funkadelic, P-Funk and all the late 60's and 70's Funk, so I'll never replace it.
Instruction Manual Easy to use
Quality:
Very well built, this machine is bullet proof.
Value:
Well is not cheap, but is really a good buy.
Desirability:
I had to wait 7 years to buy one, cause in Europe is kind of hard to find one, I Bought mine in London, and it looks amazing in my pedal board, I think I'm the only one who as one in a 100 Km raid, Eh! Eh! Eh!
Sound:
Out of this world
Support:
So far so good
Overall:
I will never sell it, I bought just for my self (the guys in my band don't let me use it as much as I wanted to), I like a lot, bands like Parliament, Funkadelic, P-Funk and all the late 60's and 70's Funk, so I'll never replace it.
Submitted: 09/03/2004
Style of Music: Alternative Rock, Funk
