This product is no longer available at zZounds.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

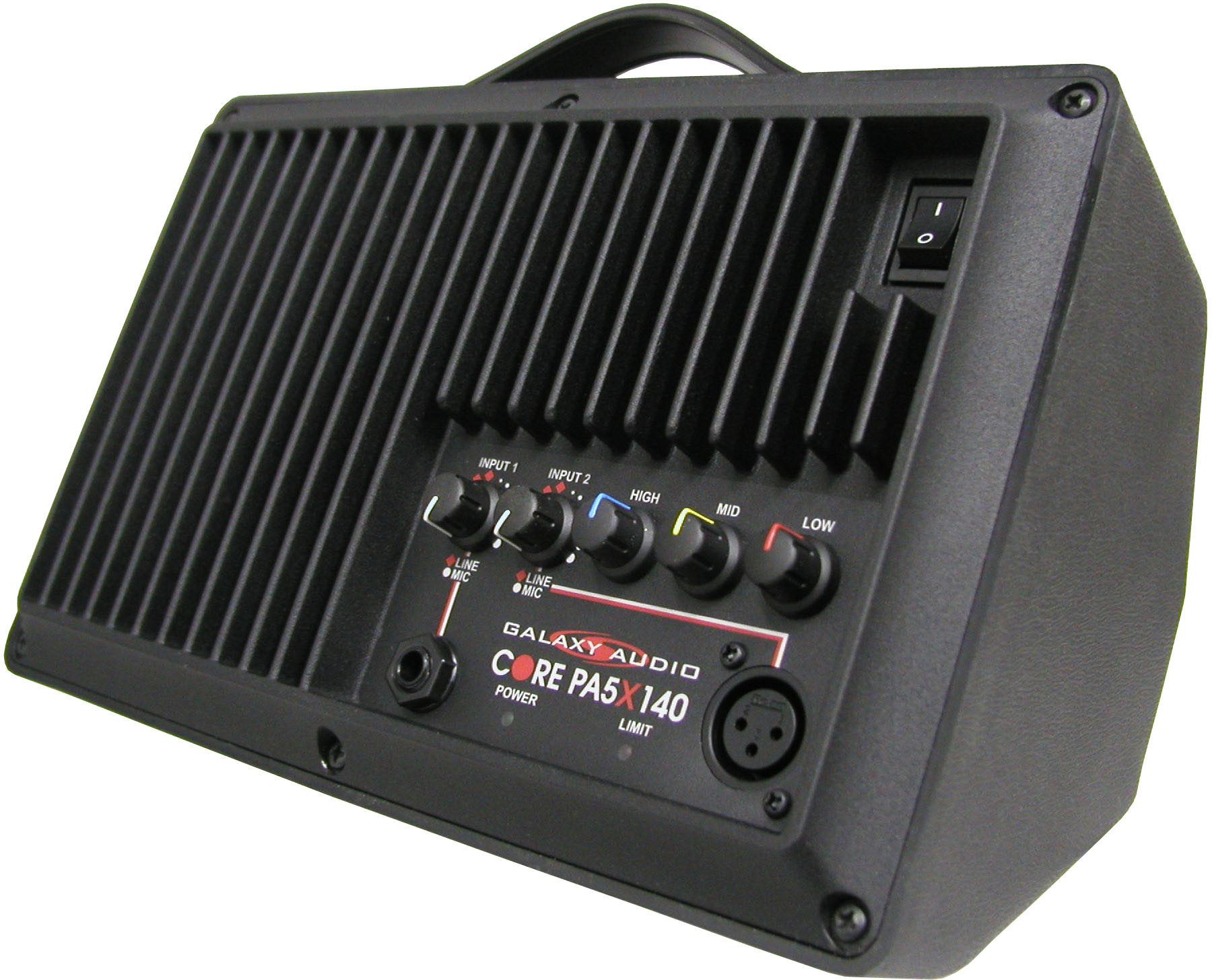

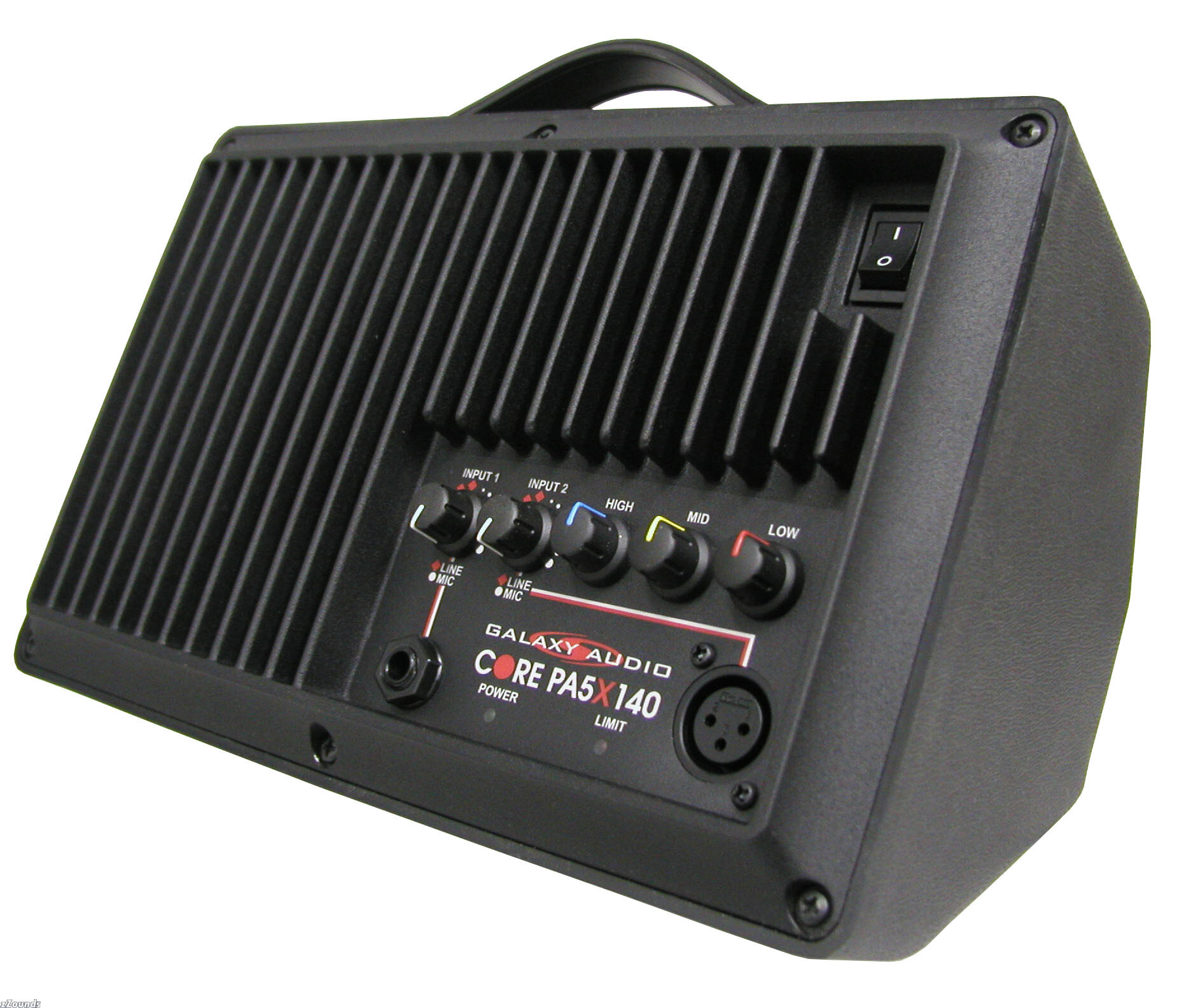

Galaxy Audio PA5X140 Powered Hot Spot Monitor
Ultra high power one-piece PA system/powered monitor.
Additional Images:
Loading...
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
Description
Docs
From Our Catalog
As either a standalone powered personal vocal monitor or the main unit for a multiple monitor system, nothing can match the compact and powerful Galaxy Hot Spot PA5X140. The on-board power amp of the PA5X140 produces an unbelievable 140 watts RMS (4 ohms), enough to power its internal speaker and up to 2 additional Galaxy Hot Spot VC Personal Monitors (or any other 8-ohm speaker). Its 114 dB maximum sound pressure level is louder than most systems many times its size and with a frequency response of 200Hz to 18kHz (sensitivity 98 dB (1 watt/1 meter), the PA5X140 delivers unsurpassed intelligibility, superior gain before feedback, and can cut through the most extreme stage volume levels. The PA5X140 features both 1/4 in. and XLR inputs (24-volt phantom power), a 3-band equalizer, and Galaxy's custom designed ferro fluid cooled 5 in. driver with a very beefy 40-ounce magnet structure. The PA5X140's very tough ABS molded cabinet features a rugged black cast aluminum faceplate/grille for added protection and the tilt-back design of the PA5X140 allows for either floor or mic stand placement in close proximity to the performer (the closer to the performer the lower the stage volume needed and the less likely it is to cause feedback or interfere with the house mix).

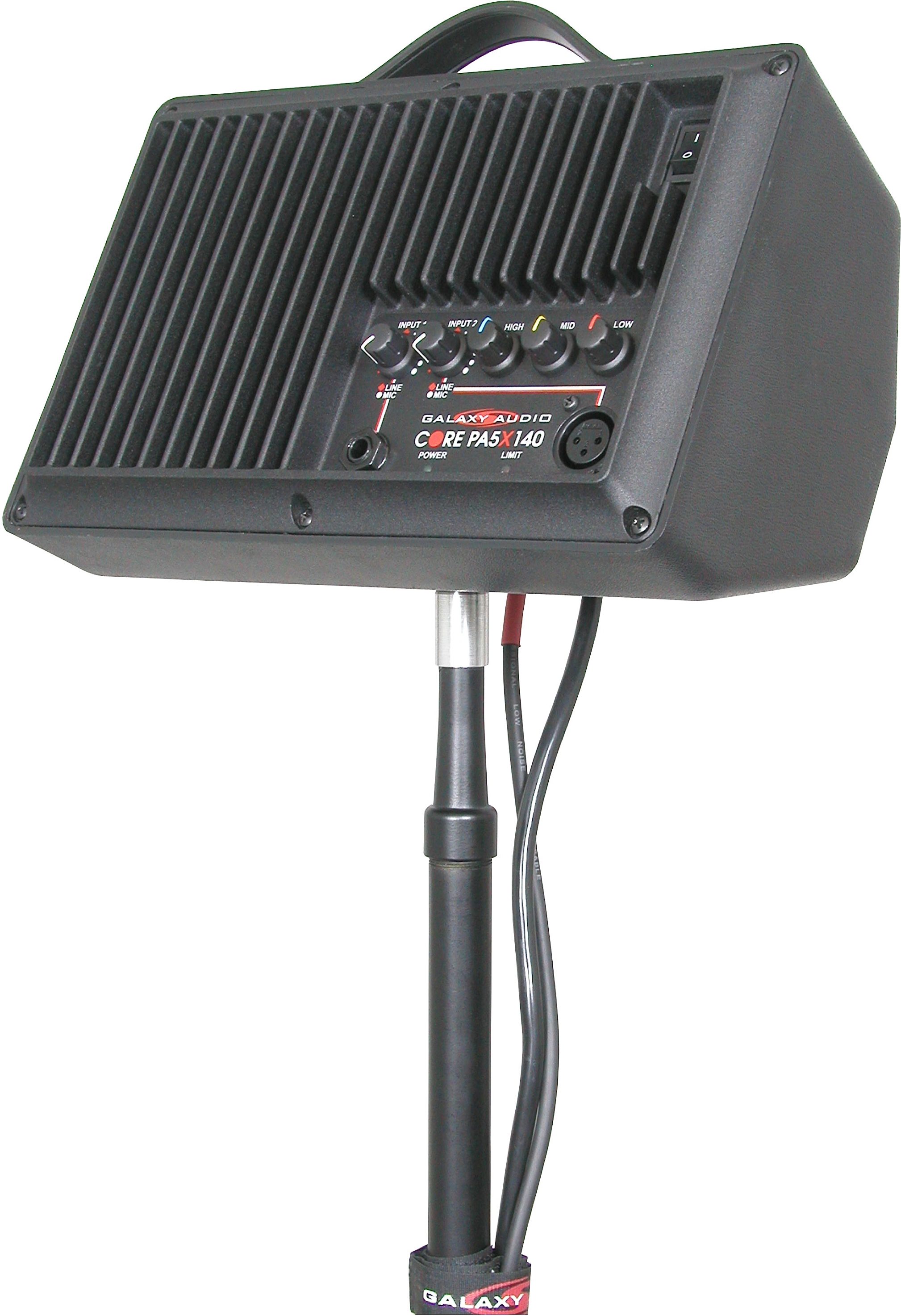

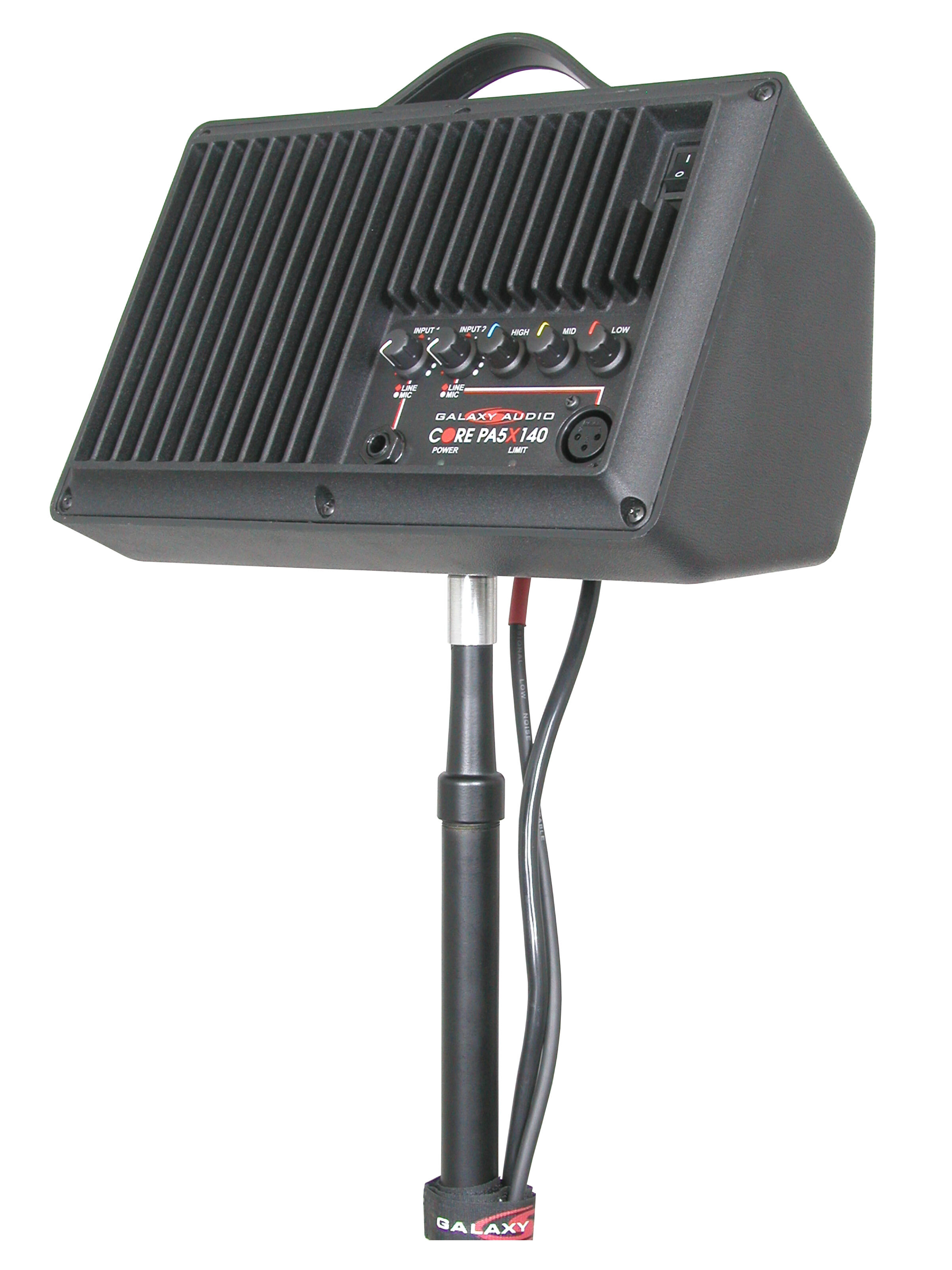

All Hot Spots, both powered and unpowered, have a built-in microphone stand mount; just slide the microphone stand into the receptacle on the bottom of the Hot Spot. Some microphone stands may require an adaptor (SA-1 microphone stand adaptor sold separately).
SmartALIC gain management
100 watts @ 8 ohms (typically 146 watts @ 4 ohms)
Frequency response: 200 Hz-20 kHz
Total Harmonic Distortion: < 0.06 @ 8 ohms, < 0.1 @ 4 ohms
EQ: 3-band, center-detent controls
Input connections (with individual volume controls):
One balanced 1/4 in.
One balanced XLR (with +24 VDC phantom power)
Output connections:
One 1/4 in. speaker level
One (post-EQ, post-level) RCA line out
Indicator LEDs: Power, Compressor-Limiter
One 5 in. driver with 40 oz. magnet structure
Sensitivity: 98 dB @ 1 watt/1 meter
SPLOWT: 9.12
Fire retardant styrene with cast aluminum grille
Built-in mic stand mount
UL listed
Size: 6.75 in. x 10.94 in. x 6 in. (171 mm x 278 mm x 152 mm)
Weight: 12.5 lbs. (5.7 kg).
All Hot Spots, both powered and unpowered, have a built-in microphone stand mount; just slide the microphone stand into the receptacle on the bottom of the Hot Spot. Some microphone stands may require an adaptor (SA-1 microphone stand adaptor sold separately).
Technical Info
Class H amplifierSmartALIC gain management
100 watts @ 8 ohms (typically 146 watts @ 4 ohms)
Frequency response: 200 Hz-20 kHz
Total Harmonic Distortion: < 0.06 @ 8 ohms, < 0.1 @ 4 ohms
EQ: 3-band, center-detent controls
Input connections (with individual volume controls):
One balanced 1/4 in.
One balanced XLR (with +24 VDC phantom power)
Output connections:
One 1/4 in. speaker level
One (post-EQ, post-level) RCA line out
Indicator LEDs: Power, Compressor-Limiter
One 5 in. driver with 40 oz. magnet structure
Sensitivity: 98 dB @ 1 watt/1 meter
SPLOWT: 9.12
Fire retardant styrene with cast aluminum grille
Built-in mic stand mount
UL listed
Size: 6.75 in. x 10.94 in. x 6 in. (171 mm x 278 mm x 152 mm)
Weight: 12.5 lbs. (5.7 kg).
XLR and 1/4" inputs, phantom power, and a 3-band EQ.
What Our Customers Say About zZounds
"I just couldn't ask for any better service. Will I buy from zZ again? You bet!" - customer on November 7, 2009
Galaxy Audio PA5X140 Powered Hot Spot Monitor Reviews
9 out of 10
"We've conerted to these near-field monitors, and will never switch back."
Feature:
XLR and 1/4" inputs with separate gain, 3 band EQ, easy mounting on a mic stand. You can use it as a micro PA for intimate venues too -- this unit for power, driving up to 2 passive near field Galaxy monitors. We've tried this once off a 4-channel passive mixer, and it worked like a charm. You can drive more of these powered units as satellites, with them driving their own passive satellites.
Quality:
Heavy, solid, thermoplastic body that takes dings well. We torture these things. I've dropped it twice, it's HEAVY. No problems. The satellites are light, but this thing needs a sturdy mic stand.
Value:
Kinda pricey. But not many options out there. We'll never switch back to floor monitors, and they are pricey too.
Desirability:
If you've never tried near field monitors, you should. Rent or borrow some. It's a very different experience on stage. For our small acoustic band, it's perfect. For a loud rock n roll band, your mileage may vary. Our band split buyning our PA. One guy buoght the amp head, the other bought the Mains, I bought the monitors. We have to set up our own part of the system for every show. Now I carry my part in a suitcase, and get it set up in 10 minutes!
Sound:
Our band almost didn't buy this system because of the reviews -- sounds crappy, etc. We were realistic in our expectations, and did not expect it to really pump out the kick drum or bass with this tiny speaker. It sounds GREAT to us, a 3-piece acoustic rock-n-roll folk band (Dog Mountain Band). Nice highs and mids, weak bass (of course, its not a 15 inch driver!) We drive 2 of the passive Galaxy monitors with it. When special guests join us, they rave about how good the sound on stage is. Near field monitors are a great new idea, and our entire monitor system fits in a suitcase...that was a big part of the decision to spend $600 on this system. We were tired hauling around 3 big floor monitors for our little band, and we are absolutely sold on near field monitors now. I'm guessing that the folks who think this monitor sounds crappy are rock n rollers who have already blown out their ears with floor monitors and have to turn it up too loud. ;~) We're acoustic, and think it sounds great.
Ease of Use:
Our ONLY complaint is that this unit is much louder than the 2 passive satllite monitors from Galaxy, even when the passive ones are turned up full. We wish there was a way to get more volume from the satellite ones, to match this one, or lower the volume on this one. So 2 of us share this one, our drummer gets a satellite monitor, and any guests get the 3rd one.
Support:
Had a couple questions while putting the system together, and emails were answered same day.
Overall:
We love the entire system.
XLR and 1/4" inputs with separate gain, 3 band EQ, easy mounting on a mic stand. You can use it as a micro PA for intimate venues too -- this unit for power, driving up to 2 passive near field Galaxy monitors. We've tried this once off a 4-channel passive mixer, and it worked like a charm. You can drive more of these powered units as satellites, with them driving their own passive satellites.
Quality:
Heavy, solid, thermoplastic body that takes dings well. We torture these things. I've dropped it twice, it's HEAVY. No problems. The satellites are light, but this thing needs a sturdy mic stand.
Value:
Kinda pricey. But not many options out there. We'll never switch back to floor monitors, and they are pricey too.
Desirability:
If you've never tried near field monitors, you should. Rent or borrow some. It's a very different experience on stage. For our small acoustic band, it's perfect. For a loud rock n roll band, your mileage may vary. Our band split buyning our PA. One guy buoght the amp head, the other bought the Mains, I bought the monitors. We have to set up our own part of the system for every show. Now I carry my part in a suitcase, and get it set up in 10 minutes!
Sound:
Our band almost didn't buy this system because of the reviews -- sounds crappy, etc. We were realistic in our expectations, and did not expect it to really pump out the kick drum or bass with this tiny speaker. It sounds GREAT to us, a 3-piece acoustic rock-n-roll folk band (Dog Mountain Band). Nice highs and mids, weak bass (of course, its not a 15 inch driver!) We drive 2 of the passive Galaxy monitors with it. When special guests join us, they rave about how good the sound on stage is. Near field monitors are a great new idea, and our entire monitor system fits in a suitcase...that was a big part of the decision to spend $600 on this system. We were tired hauling around 3 big floor monitors for our little band, and we are absolutely sold on near field monitors now. I'm guessing that the folks who think this monitor sounds crappy are rock n rollers who have already blown out their ears with floor monitors and have to turn it up too loud. ;~) We're acoustic, and think it sounds great.
Ease of Use:
Our ONLY complaint is that this unit is much louder than the 2 passive satllite monitors from Galaxy, even when the passive ones are turned up full. We wish there was a way to get more volume from the satellite ones, to match this one, or lower the volume on this one. So 2 of us share this one, our drummer gets a satellite monitor, and any guests get the 3rd one.
Support:
Had a couple questions while putting the system together, and emails were answered same day.
Overall:
We love the entire system.
Submitted: 07/30/2006
Style of Music: Home-skooled vintage crab grass
1 out of 10
zZounds has verified that this customer bought this product from us.
"mine broke!!"
Quality:
mine stopped working it just makes a buzz.ill have to have it repaired
Sound:
sound is not that good at all.my audio technica monitor blows it away but its not powered
Overall:
mine is broken and hardly used. one years worth of gigs and im looking for a replacement all ready
mine stopped working it just makes a buzz.ill have to have it repaired
Sound:
sound is not that good at all.my audio technica monitor blows it away but its not powered
Overall:
mine is broken and hardly used. one years worth of gigs and im looking for a replacement all ready
Submitted: 11/12/2005
Style of Music: all types
