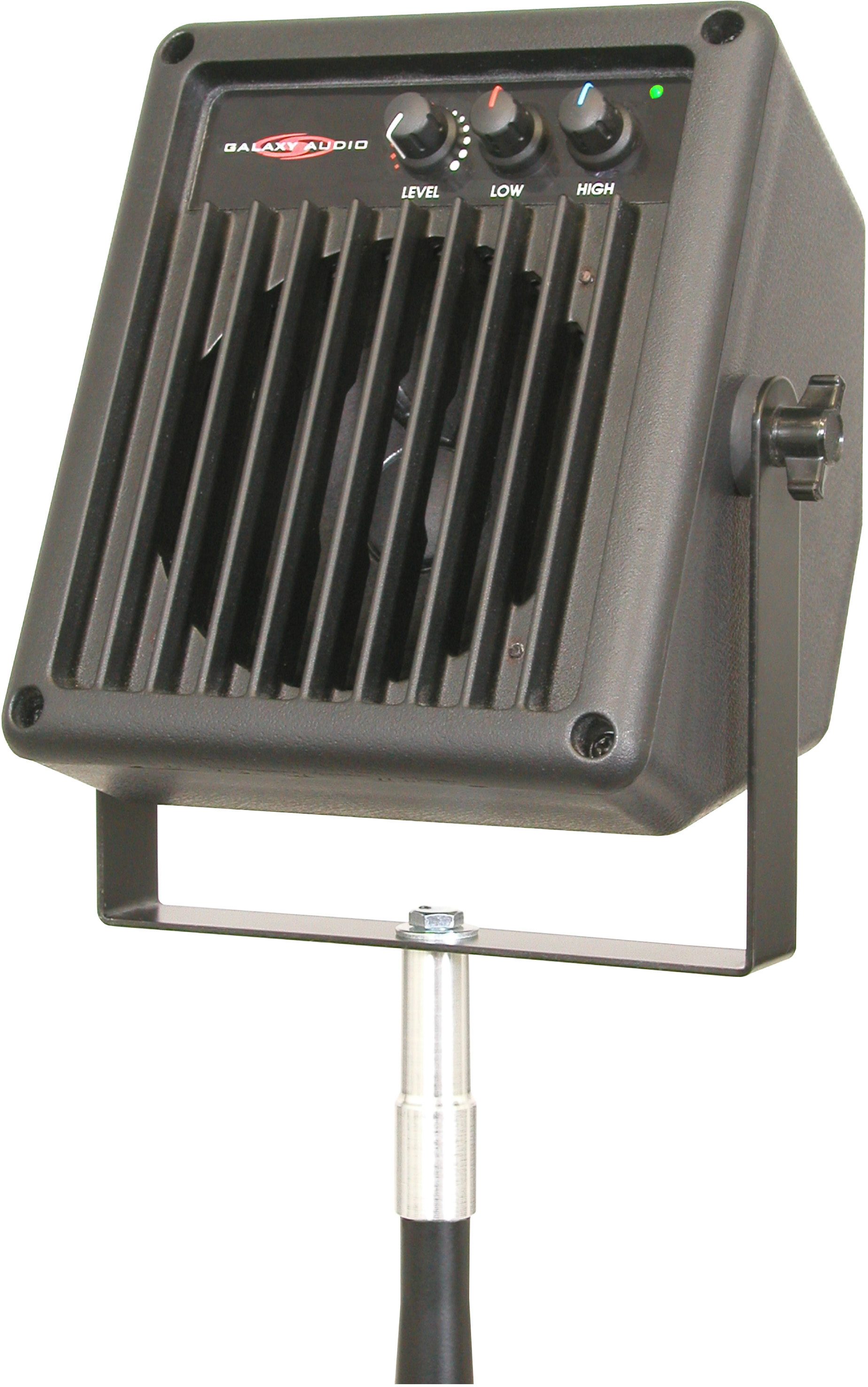

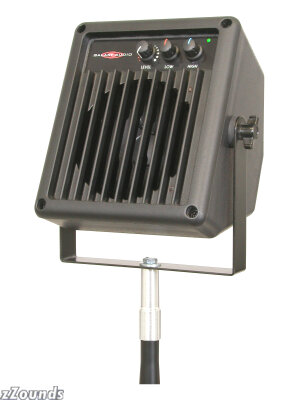

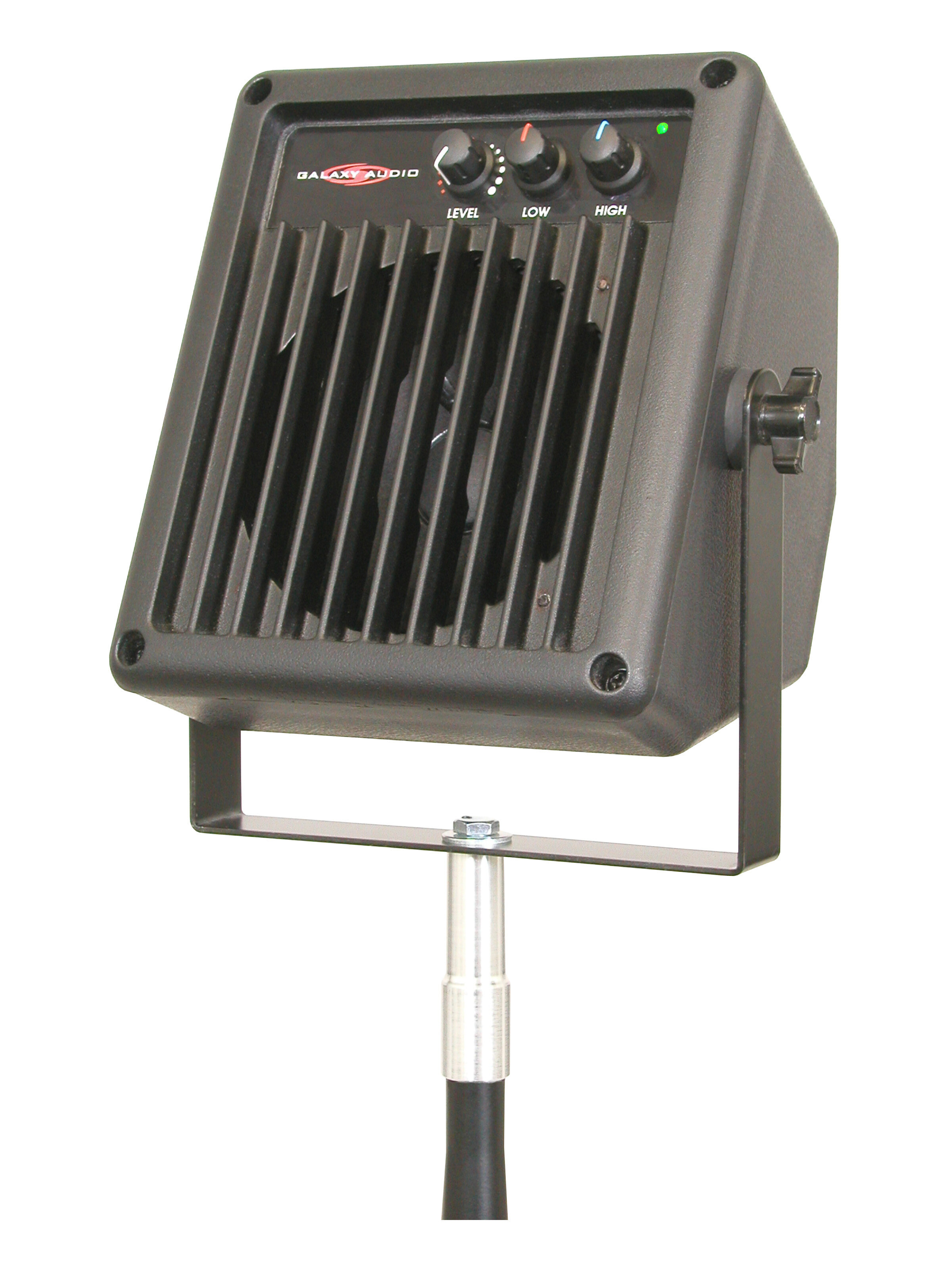

The Powered Micro Spot, like the original Powered Hot Spot, delivers high power, but in a more compact package that's smaller than a football. Designed to be used anywhere sound reinforcement is needed, the Powered Micro Spot's universal power supply will accept AC sources ranging from 90 volts to 250 volts, 50 or 60 Hz. Where AC is not available, the Powered Micro Spot can be powered by 12 volts DC through its DC input port. Weighing only 4.82 pounds, the Powered Micro Spot delivers a clean 30 watts of power to its internal 4.5 in. speaker and can reach SPL levels of 99 dB. XLR and 1/4 in. inputs respectively accept microphone and line level signals. The Powered Micro Spot also features a 2-band equalizer and built-in compressor/limiter circuitry that controls the amplifier's gain, acting like a compressor on transient signals and a "brick wall" limiter on signals that continuously exceed a predetermined limit. This results in an apparent 6 dB increase in SPL without distortion. That's twice the sound pressure! With the included mounting hardware, the Powered Micro Spot can be permanently mounted to a wall or ceiling, or conveniently mounted atop a microphone stand for portable use. The Powered Micro Spot works great in many applications. The powered Micro Spot is diverse enough for live sound, church, fixed installation, etc. It's compact and lightweight enough to take anywhere.
Technical Info
Amplifier Section
Rated power: 30 watts
Equalization: two band center detent
Lo: +/- 12 dB shelving at 200 Hz
Hi: +/- 12 dB shelving at 10 kHz
Frequency response: 65 Hz15 kHz
Total harmonic distortion: <0.5% @ 4 ohms

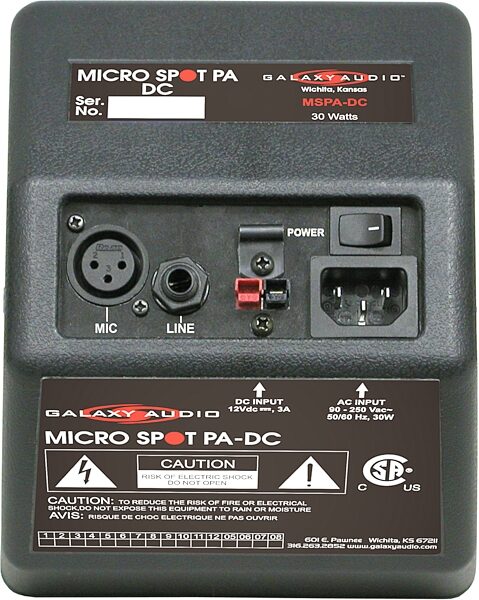

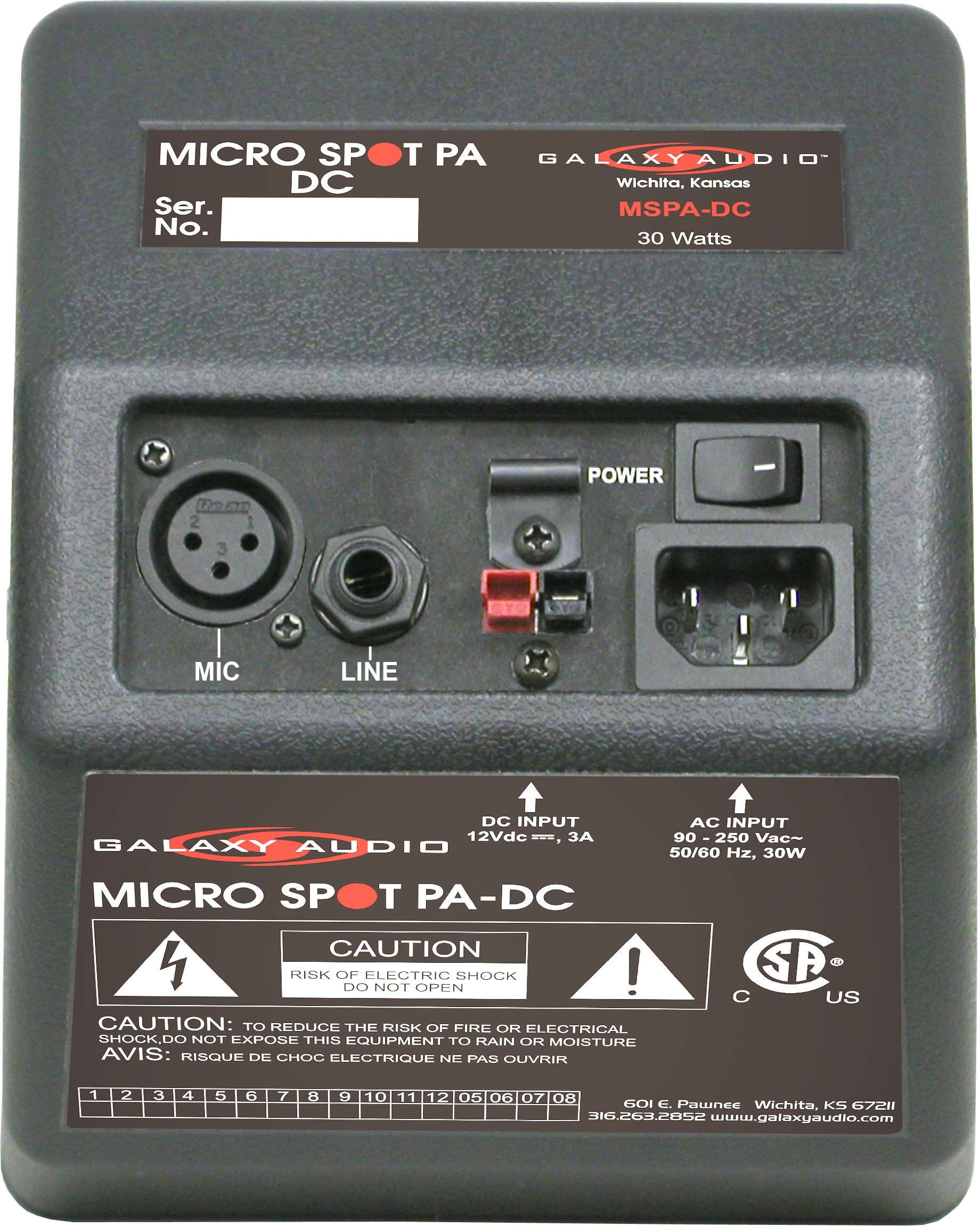

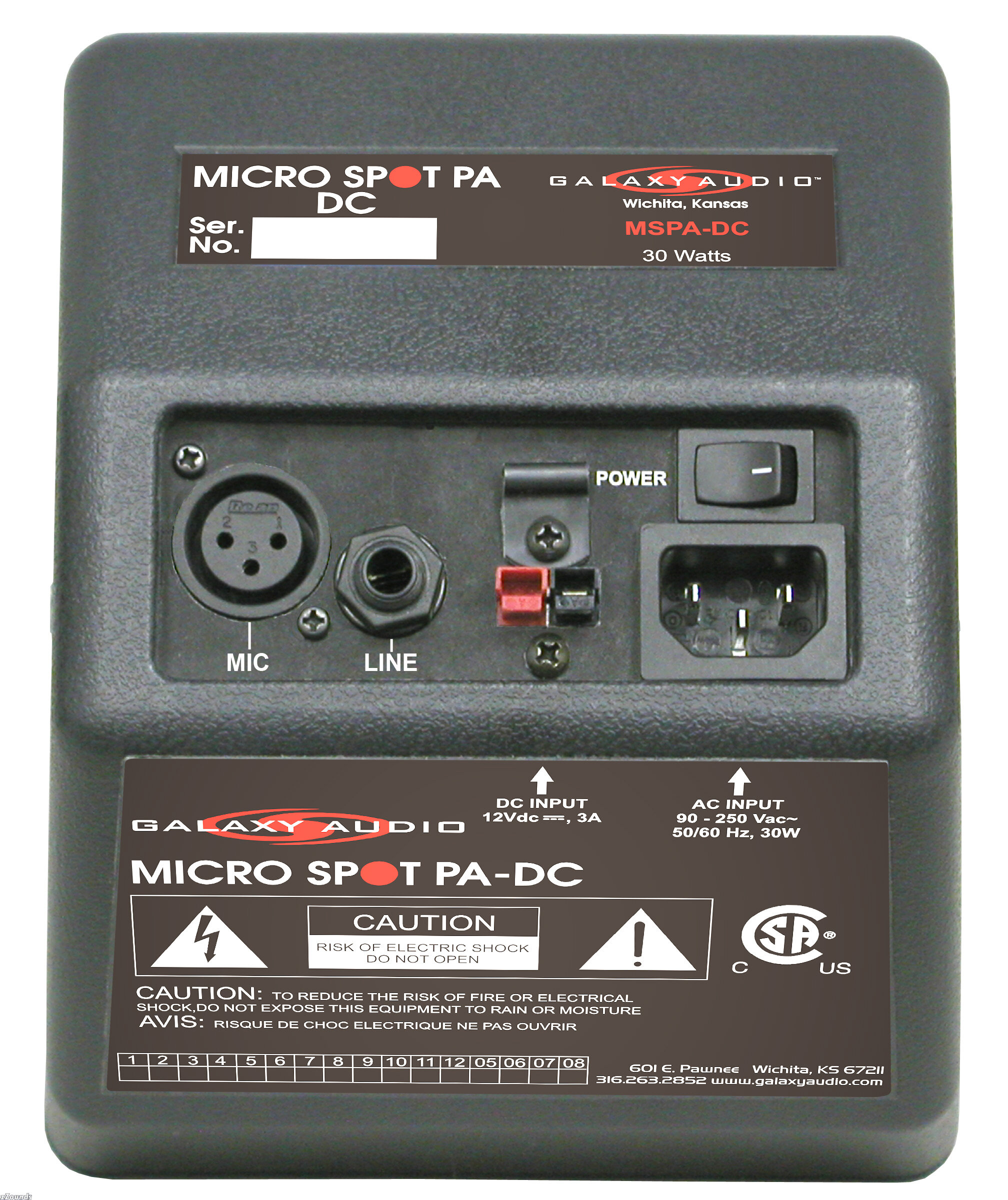

Input connection: balanced XLR and 1/4 in. parallel inputs with +15 VDC phantom power
Indicator LED: power
Power requirements: 90-250 VAC~, 50/60 Hz, 30W, 12VDC, 3A
Safeguards: short circuit current limiting, short circuit foldback limiting, thermal short circuit protection, and dynamic load line cooling
Turn on/turn off transient suppression
Speaker Section
Speaker: one 4.5 in.
Power handling capacity: 30 watts
Sensitivity (1 Watt @ 1 meter): 84 dB (1 kHz octave band)
Frequency response: 150 Hz15 kHz
Maximum SPL @ clip (1 Watt @ 1 meter): 99 dB
*SPLOWT: 21
Enclosure materials: fire retardant styrene with black cast aluminum grille
Color: black
Dimensions: 7 in. x 6 in. x 5 in. (178 mm x 152 mm x 127 mm)
Net weight: 4.82 lbs. (2.19 kg)
Shipping weight: 7.48 lbs. (3.4 kg)
