Furman PLPLUSD Power Conditioner with Digital Readout

Power line disturbances are real, and they are inevitable. According to Consumer Reports (November, 1994), "One significant surge a day is the norm. High-exposure areas may experience perhaps a hundred smallish spikes a day." Proper protection is essential for costly equipment, even more so if it is frequently moved from location to location.

The PL-Plus series is an enhanced version of the PL-8, offering improved noise filtering and an AC voltmeter. The digital readout reads from 90 to 128 volts. The normal range voltages are indicated in green, with moderately and extremely high or low voltages in yellow and red respectively. The voltmeter's accuracy is ±2 volts. It can easily be recalibrated if necessary. The PL-PLUS also features a longer, 10 ft.heavy-duty 14 gauge power cable. In addition, it offers a sophisticated RFI filter network with a greatly improved capacity for stopping line noise. This filter incorporates two toroidal inductors and three high-voltage capacitors to achieve a common-mode noise attenuation of over 50 dB at 10 MHz (see graph overleaf).

Features:

2 slide-out, swiveling light fixtures for rack illumination

Dimmer control for lamp brightness

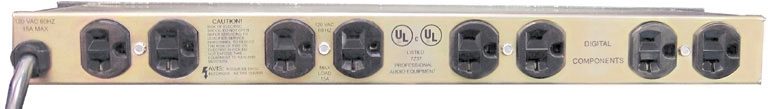

8 accessory outlets in rear controlled by front switch

Triple-mode varistor spike and surge protection

RFI filtering

15-amp rating, with circuit breaker

Separate switch for lamps

Digital Readout reads 90 to 128 volts

Improved RFI filtering with multi-stage filter

10 ft. heavy-duty AC cord

The… read more Power Conditioner/Light Module is the perfect accessory to any equipment rack, providing the basic power protection essential to every audio or video system. Install a one in the top slot of your rack, and the eight switched AC outlets on the rear panel will power up all your equipment while its two slide-out light fixtures provide discreet, illumination of their controls on stages, in studios, or in any dark place. A dimmer control lets you adjust the lamp brightness to just the right level.

It protects your delicate electronic equipment by combining a high voltage surge and transient suppressor with an RFI/EMI interference filter. The fast-acting suppression circuit responds in nanoseconds, clamping spikes and surges to safe levels. The filter works to prevent noise from fluorescent lights, electric motors, radio transmitters, and similar sources of "electronic pollution" from leaking from the AC line into sensitive analog or digital circuits.

The lamps come supplied with 7-watt night-light bulbs. Replacements are readily available in 4 watt or 7 watt sizes at most supermarkets and hardware stores. Colored Christmas tree bulbs may also be used. Bulbs are easily replaced without removing the unit from the rack by unscrewing the cap on the end of each light tube.

A master switch for the rear outlets that glows red when the power is on. There is also a separate switch for the lamps, allowing you to check your equipment settings before applying power to it. The front-panel circuit breaker can be easily and quickly reset should the PL-8 be overloaded. read less
