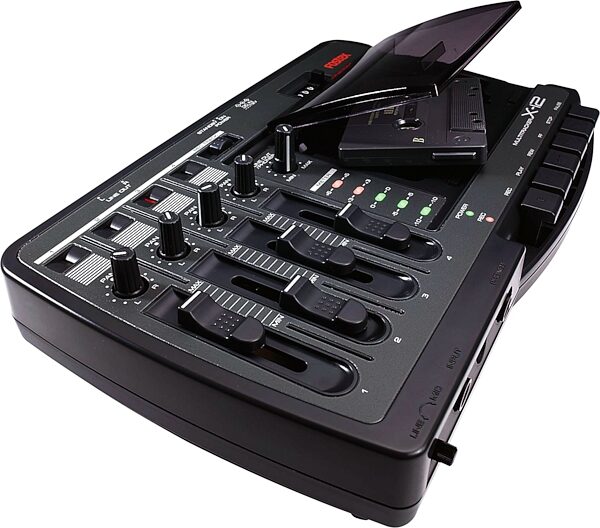

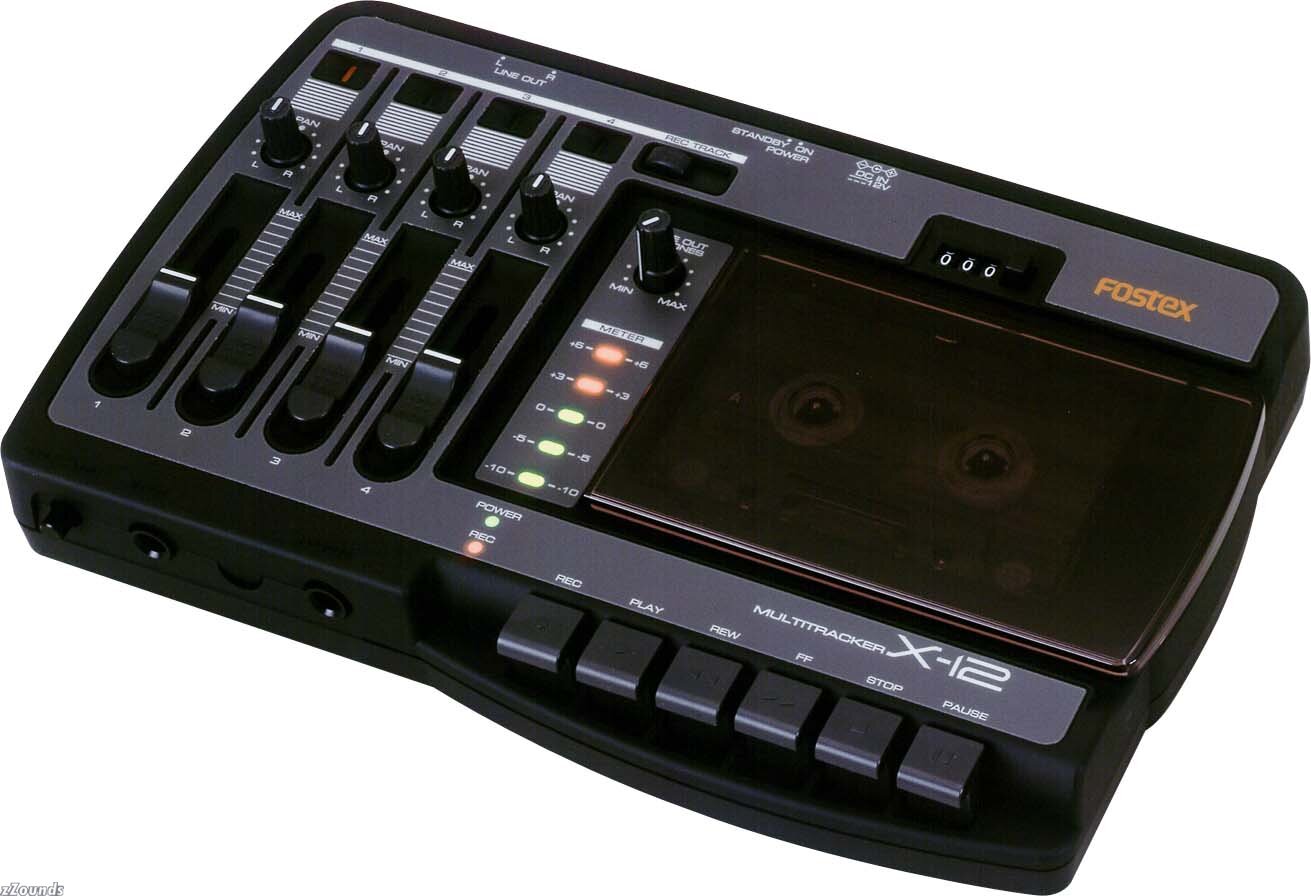

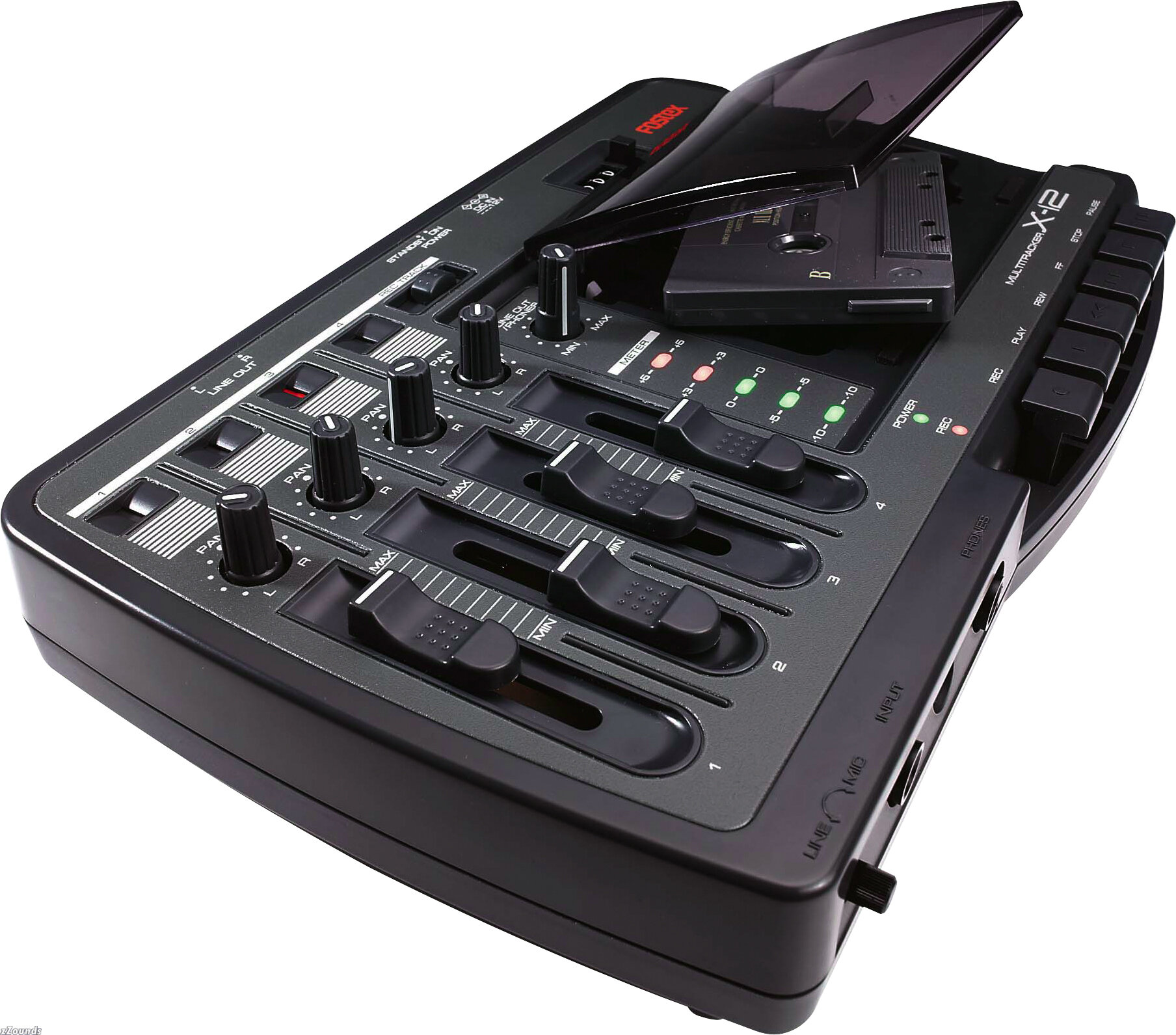

Fostex X12 4-Track Cassette Multi-Track Recorder

Easy Operation
Once recorded, your tracks can be mixed using the 4 level faders, placed on the stereo stage using the independent pan controls, and monitored on headphones or via the RCA pin line output. Separate L/R line outs means the X-12 can be connected to a Hi-Fi, powered speakers, or standard 2-track cassette deck for final stereo mastering of your composition. Great care and attention has been paid to the design and usability of this compact unit to ensure easy and simple operation straight out of the box. Just plug in the power cord, pop in a C90, connect your instrument or mic, select a track, press record, and start making music.

Hiss-Free Recordings
And, being Fostex, you have the tools to ensure great sounding music, too. Hiss-free recording is all about getting the most out of the available headroom on the tape. In short, you need to maximize the input gain of your instrument or mic without overloading. Too little gain and you get an excess of hiss, too higher gain, and the signal will distort. To achieve the best balance, the X-12 features a low-noise mic/instrument input with the addition of a rotary gain control and an illuminated level meter. By adjusting the gain whilst watching the meter you can achieve the best signal to noise ratio. Aiding quality still further is the new tape transport which has been re-engineered from previous models and includes a larger flywheel which enhances reliability, ensuring consistent recording quality.

Musical Sketch Pad
Highly portable and robust the new, low-cost Fostex X-12 Multitracker is a blast to use, has the tools you need and looks pretty cool too. For grabbing inspiration when it comes nothing beats it.

Features
Easy operation
Rec Track Select button makes it easy to select the desired recording track
Ultra clear illuminated input level meter
Professional-feel cosmetic design

Technical Info

Mixer Section
Input:
Connector (x1): 6mm PHONE jack
Input Impedance: 20k ohm or higher
Reference Input Level: -50dBV to -10dBV
(adjustable with the GAIN knob)
Line out (L, R)
Connector (x2): RCA pin jack
Output Load Impedance: 10k ohm or higher
Reference Output Level: -10dBV

Phones:
Connector (x1): 6mm stereo phone jack
Output Load Impedance: 16 ohm or higher
Maximum Output: 10mW (at 32 ohm)

Recorder Section
Recording Tape Less than C-90
(TYPE II/HIGH position)
Record Tracks: 4 tracks, one direction
Tape Speed: 4.76cm/s
Heads:
Rec/Play: 4-track, 4-channel recording/playback
Erase: 4-track, 4-channel erase
Frequency Response
Mixer section: 20Hz - 20kHz
Recorder section: 40Hz - 10kHz

Physical
Power Supply: Fostex AC Adapter, AD-12A
DC12V (12 - 16V), 8W
Weight: 1.1 kg (excluding AC adapter), approximately
Dimensions (H x W x D): 65 x 275 x 177 mm
Accessories Supplied: Owner's manual, AC adapter

When inspiration strikes, the X12 is ready! Just plug in a mic or instrument, pop in a tape, and press record. Headphone and RCA outs for monitoring and mixdown.
