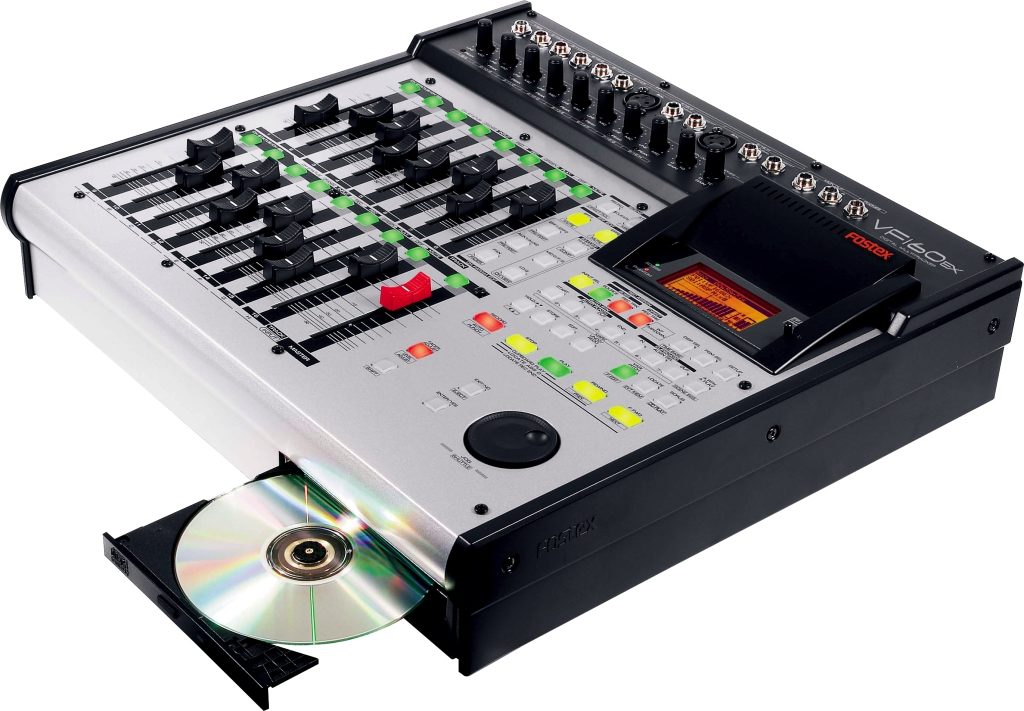

The VF160EXCDR is the next generation 16-track digital recording and mixing power tool all wrapped up in an easy-to-use package. It provides new cosmetics, improved high speed CD burning, software enhancements, and increased memory allocation. The recording engine features a total of 16 tracks plus 8 virtual tracks. The simultaneous 16-track recording (eight tracks via analog input/eight via ADAT) to a large capacity 40GB internal HD gives you hours of record time on all 16 tracks.
The VF160 also provides easy-to-operate non-destructive editing with a waveform display and newly added zoom feature for precise waveform editing. The VF160's superb digital mixer provides 60mm faders for all 16 channels, 3-band EQ with parametric mid and high on all 16 channels, master EQ, channel and master compressors, eight mic inputs (two with XLR, insert and phantom power), ADAT optical I/O, two effect sends and two aux sends per channel (switchable pre/post), and Scene Memory. Plus, the VF160 comes with two multi-effect DSPs. Affordably priced, easy to use, with hours of record time, the all-in-one complete digital recording solution just got a whole lot better.
Features
Internal CD-R/RW drive.
ADAT Mixer Mode - when using PC/Mac-based audio/midi software and an ADAT audio card, the VF160 can be used as a full function mixer with its high-quality mic amps, digital EQ and ffects processing available for inputs and simultaneous monitoring of the audio on the PC, each with their own fader.
Scrub Zoom allows zooming-in of the current waveform display by up to 16 times, meaning that editing points can now be more precisely selected.
Fader Pairing allows channels be paired or ganged in stereo sets i.e. Ch 1-2, 5-6, etc. and have the stereo level controlled by the odd numbered respective fader.
Channel Solo allows any number of channels to be placed into solo mode quickly and easily.
In additional to 'individual track' and '8 track' modes, Track Exchange is now enhanced to include 'stereo pair? exchange.
BPM Delay will automatically calculate the feedback time of the delay according to any change of tempo as designated in the tempo map.
Event Map Locate allows instant access to points displayed on the Event Map Screen.
Locate to Last Rec Point will instantly return to the point where the last recording began.
Technical Info
Recording media: Internal E-IDE 3.5 in. hard disk
Recording format: FDMS-3 (Fostex Disk Management System-3 ver. 1)
Sampling frequency: 44.1kHz
Quantization: 16bit linear (non compressed)
ADC: 20bit 64-time oversampling Delta/Sigma
DAC: 24bit 128-time oversampling Delta/Sigma
Recording time: Depends on the HD capacity
Number of tracks: 16 tracks + 8 additional tracks maximum 16 track play and simultaneous recording
Pitch control: +/- 6%
Crossfade: 10ms
Frequency response: 20Hz - 20kHz
Dynamic range: 88dB or more
T.H.D: 0.01% (typical)
Crosstalk: 60dB or more @1kHz
Equalizer:
- 400Hz +/- 18dB (Shelving)
- 500Hz - 20.2kHz +/-18dB (Parametric)
- 500Hz - 20.2kHz +/-18dB (Parametric, Shelving)
Inputs/Outputs
Inputs A - H:
- Connector: 1/4 in. TRS jack (unbalanced)
- Level: -50dBV (mic) - +2dBV (line), variable
- Impedance : 50k ohm or more
Inputs G, H
- Connector: XLR3-31 type (balanced)
- +48V phantom power & 1/4 in. TRS jack (balanced)
- Level: -50dBu (mic) - +2dBu (line), variable
- Impedance: 1k ohm or more (XLR) 50k ohm or more (phone)
Insert x 2:
- Connector: 1/4 in. TRS jack (TIP: output/RING: input)
- Load Impedance: 10k ohm or more
- Input/Output Level -10dBV
Monitor Out (L, R):
- Connector: 1/4 in. jack (unbalanced)
- Load Impedance: 10k ohm or more Level -10dBV
Headphone:
- Connector: 1/4 in. stereo jack
- Impedance: 8 ohm or more
- Max. output 20mW or more @ 32 ohms
AUX Send (1/2):
- Connector: 1/4 in. TRS jack (TIP: send 1/RING: send 2)
- Load Impedance: 10k ohm or more
- Level: -10dBV
Stereo Out (L, R)
- Connector: RCA pin jack
- Load Impedance: 10k ohm or more
- Output Level: -10dBV
Footswitch: 1/4 in. jack (Optional Model 8051)
Digital In/Out Connector: ADAT optical/SPDIF
MIDI: In/Out 2 x DIN 5 pin/MIDI Standard
