Fender '57 Amp Limited Edition Guitar Combo Amplifier

Hand-wired on eyelet board. Late 1950s 5E3 circuit. 5Y3 rectifier tube.

This product is no longer available at zZounds.

Shop our website for related products:

(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

Additional Images:

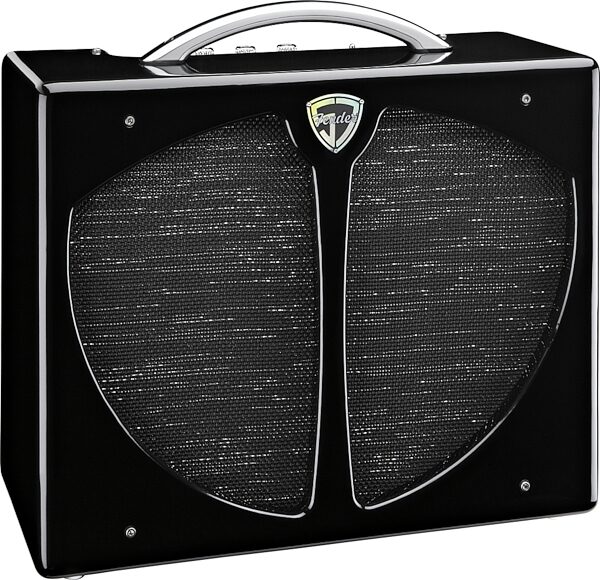

Main
Main

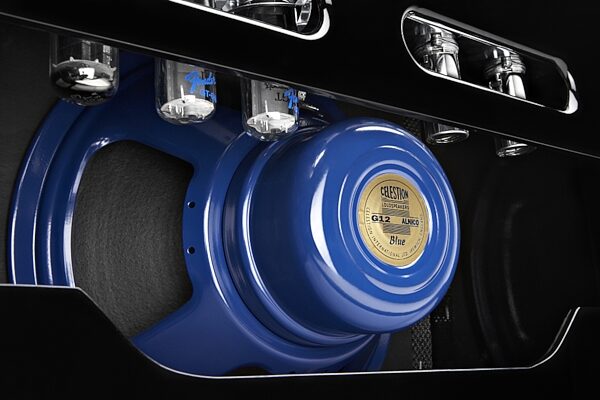

Celestion
Celestion

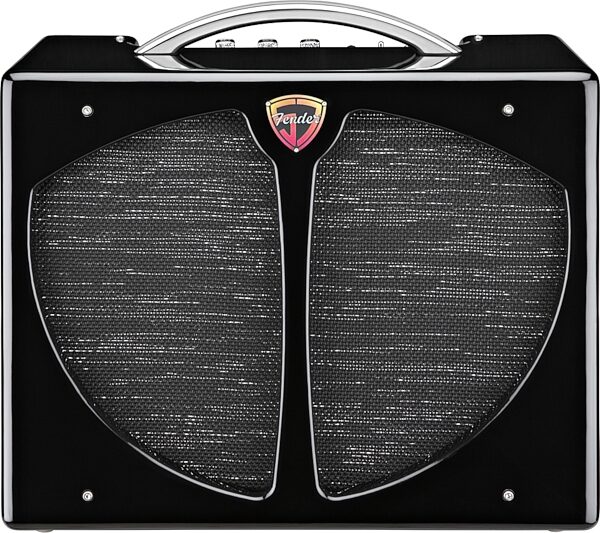

Front
Front

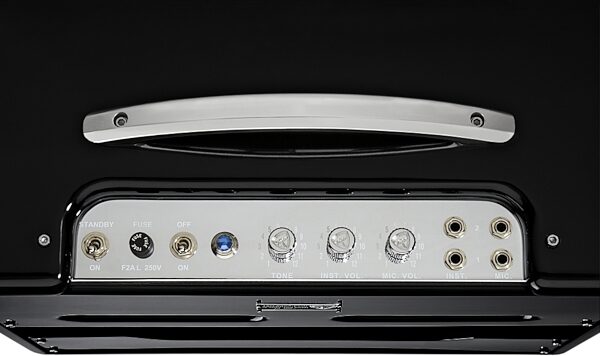

Control Panel
Control Panel

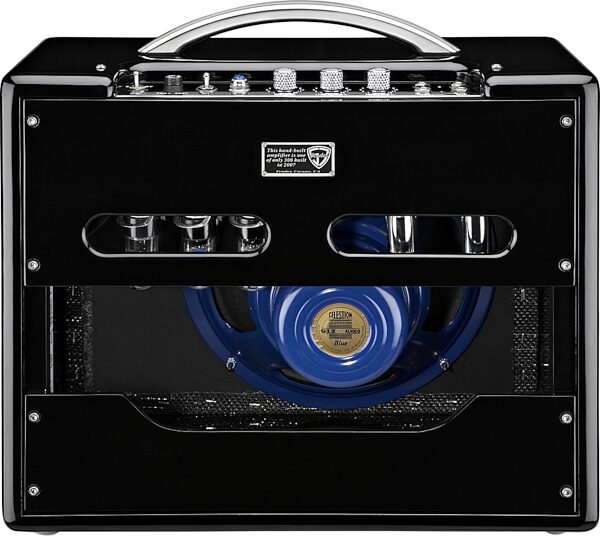

Rear
Rear

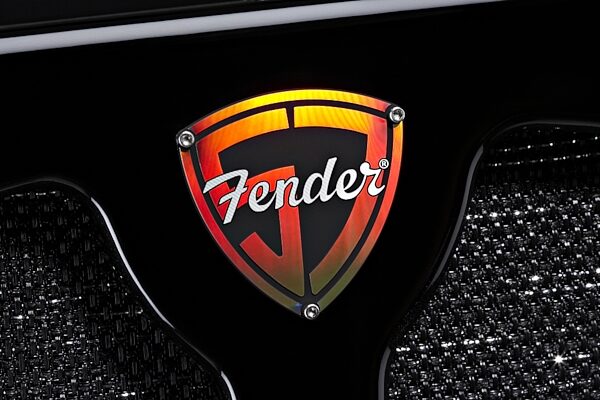

Badge
Badge

30-Day 100% Satisfaction Guarantee Applies On This Item - Buy it, and if it isn't just right for you, return it!

About This Product!
Description
The Fender '57 Amp is a limited-edition 300-piece run of this 12-watt, hand-wired tube amplifier with a 12 in. speaker housed in a smartly retro split-grille cabinet with a black "piano lacquer" finish.

Fender kicked the 5E3 Deluxe platform up a notch by using a Celestion® Alnico Blue speaker in a new custom-designed Maple cabinet with knurled '57 logo knobs, solid aluminum handle and custom hardware. The amp includes a leather collector's portfolio containing a certificate of authenticity, designer notes, factory photos and some other surprises. Custom-embroidered plush-lined cover included.

Features:
Hand-wired all-tube circuitry on eyelet board

Late 1950s 5E3 circuit produces about 12 watts

Matched pair of Groove Tubes™ GT6V6 output tubes

5Y3 rectifier tube contributes to compression and "sag" when amp is played hard

Two 12AX7 preamp tubes, one of which may be substituted with a 12AY7 for the original '50s lower-gain sound, if desired

Mic and instrument channels; each channel has individual volume controls and high and low inputs

12 in. Celestion® Alnico Blue speaker

Dovetail-joined solid maple cabinet

Black "Piano Lacquer" finish

Holographic diamond-cut "57" badge on front of amp; "One of only 300" badge on rear panel

Premium heavy-knurl "Roll-Easy" Telecaster knobs with engraved "57" logo

Solid aluminum speed boat handle; metal hex-head screws throughout

Blue jewel light

Meguiar's® Mist & Wipe Kit includes finish enhancer spray and cloth

Custom embroidered plush-padded cover included

Leather collectors' portfolio contains certificate of authenticity, designer's notes, factory photos and other assorted collectors items

Only 300 will be made for the world, throughout 2007

Technical Info

Model Name: '57 AMP

Model Number: 8150600000 120V USA

Series: CUSTOM

Type: Tube Amplifier

Output: 12 watts

Ohms: 8 ohms

Speakers: One 12 in. Celestion® Alnico Blue speaker

Channels: 2 (Instrument and Microphone)

Controls: Instrument Volume, Mic Volume, Master Tone

Covering: Gloss Black lacquer over solid Maple

Weight: 36 lbs. (16.3 kg)

Dimensions:
Height: 18.75 in. (48 cm)
Width: 20 in. (51 cm)
Depth: 9.5 in. (24 cm)

Power Handling: N/A

Tube Complement:
2-12AX7
2-GT6V6
1-5Y3

Cover: Plush-padded cover included

Accessories: Meguiar's® Mist & Wipe Kit includes finish enhancer spray and cloth. Leather collectors' portfolio contains certificate of authenticity, designer's notes, factory photos and other assorted collectors items

Footswitch: N/A

Introduced: 1/2007
