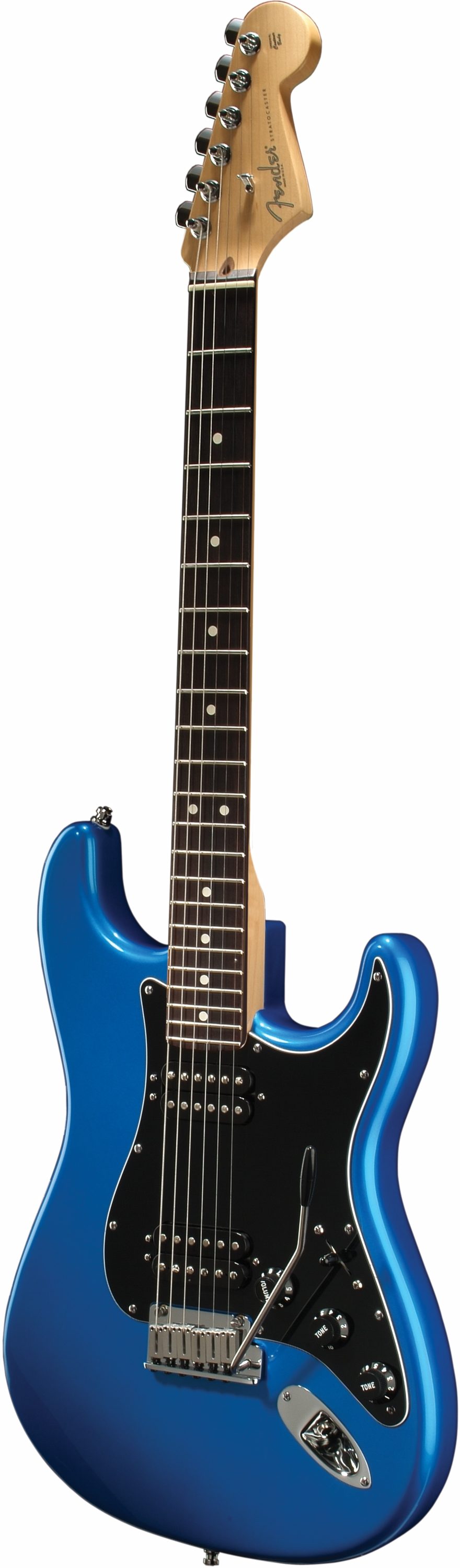

Fender American Series Stratocaster HH Electric Guitar (Rosewood, with Case)

1 Black Cobra humbucker. 1 Sidewinder humbucker. Rosewood fretboard. 161 People rated this product:

Rate and Review This Product

Roll Over to Enlarge

Main

overview specs docs

Product Description

zZounds is an
authorized Fender dealer

Why choose between hot humbuckers and vibrant single-coils? Play the best of both worlds when you own the most versatile guitars on the planet - the all-new American Series HSS or HH guitars and basses. All American Series HSS, HH, HH Hardtail Stratocaster, Precision Bass zZounds is an authorized dealer of Fender products.

Model Name: American Stratocaster HH

Model Number: 011-7100-(Color #)

Series: American Series

Colors:
(706) Black
(725) Chrome Red
(744) Shoreline Gold
(769) Charcoal Frost Metallic
(Polyurethane Finish)

Body: Alder

Neck: Maple, Modern 'C' Shape, (Satin Polyurethane Finish)

Fingerboard: Rosewood, 9.5 in. Radius (241mm)

No. of Frets: 22 Medium Jumbo Frets

Pickups:
1 Sidewinder Humbucking Pickup (Neck)
1 Black Cobra Humbucking Pickup (Bridge)

Controls:
Master Volume (with S-1 Switch)
Tone 1. (Neck Pickup)
Tone 2. No-Load Tone Control (Bridge Pickups)

Pickup Switching:
5-Position Blade and 2-Position Push/Push S-1:
S-1 Switch Up:
Position 1. Bridge Pickup with Both Coils in Series, Using Bridge Tone Control Only
Position 2. Inside Coils of Bridge and Neck Pickup in Parallel and in Series with Outer Bridge Coil, Using Bridge Tone Control Only
Position 3. Bridge and Neck Pickups with Each Coil Pair in Series, Using Bridge and Neck Tone Controls
Position 4. Inside Coils of Bridge and Neck Pickup in Parallel and in Series with Outer Neck Coil, Using Neck Tone Control Only
Position 5. Neck Pickup with Both Coils in Series, Using Neck Tone Control Only

S-1 Switch Down:
Position 1. Bridge Pickup with Both Coils in Parallel, Using Bridge Tone Control Only
Position 2. Outer Bridge Coil, Using Bridge Tone Control Only
Position 3. Outer Coils of Bridge and Neck Pickups, Using Bridge and Neck Tone Controls
Position 4. Outer Neck Coil, Using Neck Tone Control Only
Position 5. Neck Pickup with Both Coils in Parallel, Using Neck Tone Control Only
Bridge: American 2-Point Synchronized Tremolo with Stainless Steel Saddles

Machine Heads: Fender/Schaller Deluxe Staggered Cast/Sealed Tuning Machines

Hardware: Chrome

Pickguard:
3-Ply Parchment On:
(706) Black
(725) Chrome Red

3-Ply Black/White/Black:
(744) Shoreline Gold
(769) Charcoal Frost Metallic

Scale Length: 25.5 in. (648 mm)

Width at Nut: 1.6875 in. (43 mm)

Unique Features:

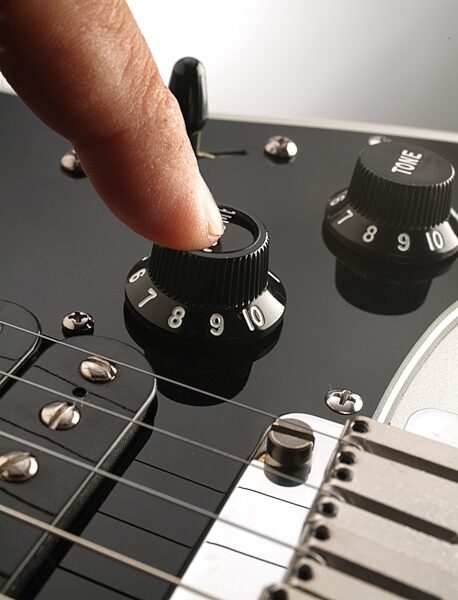

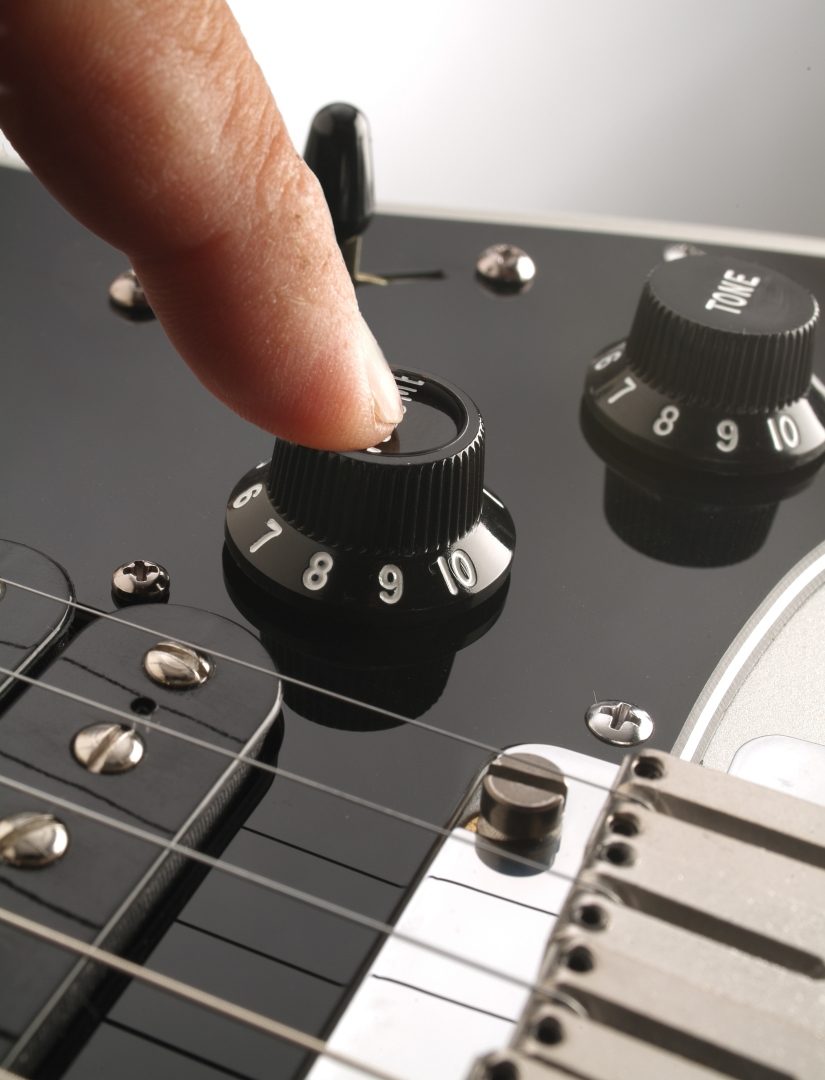

S-1 Switching
Black Knobs, Switch Tips and Pickup Covers on: (744) Shoreline Gold, (769) Charcoal Frost Metallic
Parchment Knobs, Switch Tips and Pickup Covers on: (706) Black, (725) Chrome Red
Original Headstock Shape
Original Body Shape with Original Contour Body Decal on Headstock
Rolled Fingerboard Edges
H/S/H Pickup Routing

Strings: Fender Super Bullets 3250L, Nickel Plated Steel, (.009 to .042)

Accessories: Standard Molded Case

Case: Standard Molded Case

Introduced: 7/2003

Notice: Product Prices, Features And Specifications Are Subject To Change Without Notice

Fender Warranty

Fender Warranty

If you have additional warranty questions, please call the manufacturer at 800-488-1818

zZounds is an
authorized Fender dealer

Our extended 30-Day 100% Satisfaction Guarantee applies on this product. Buy it, and if it isn't just right for you, return it!

Our Return Policy

Payment Options

Purchase Orders

What Our Customers Are Saying About zZounds "I could not believe how fast I got my microphones! I ordered them on a Thursday night and had them by Saturday...WOW! And I just paid for regular shipping. zZounds has wonderful service!" - customer on April 18th, 2012

Customer Reviews

5 out of 5 (161 ratings) Rate and Review This Product

Read all 6 Fender American Series Stratocaster HH Electric Guitar (Rosewood, with Case) Reviews

This review has been selected by our experts as particularly helpful. "A Classic in Training"

Sound: I have owned this wonderful guitar for 3 years now. I am very glad that I got my hands on one before they quit making this particular model, (05)because I would have missed out on what has become my flagship guitar on many gigs. I recieved this chrome blue and black beast as a christmas gift my sophmore year in high school from my mother of all people. 3 years later it still sounds amazing. This in my opinion is the guitar that does it all. Using the S-1 switch, I can go from searing blues you can only get from a Fender Stratocaster with single coils to that wicked southern rock sound that made the gibson les paul famous (at least to me.) The neck is more comfortable than that of the other 5 guitars I own by a long shot. When used with the proper equipment to truly do it justice, It becomes an amazing instrument that seems to bring out the true talent in me that suprises me afterward, especially if I listen to one of the recordings. Feature: This guitar came with a hardshell case, a crappy strap, 2 wammy bars, equipment to adjust all of its components, and a guitar cable. I have never used the strap, I don't really play much that require the use of the tremolo. No offense to fender but the american series tremolo has intonation issues. Always has. The cable has been a faithful and vital part of my practice and recording. It is to short for stage use, but where space is an issue, this cord has yet to give me a single issue. Ease of Use: This is the most playable guitar that I have ever owned. Compared to my PRS custom 22, I have to say that I prefer this guitar over that one because of its playability. This is the workhorse of my live sound because it can do almost anything at the flip of a switch. Fender would do well for itself to make these again, because there are a lot of people who would love this instrument providing the word got out. Quality: I have had some pretty close calls with this guitar, and to my amazement, it has come through being dropped on several occasions. I had one particular incident at a show in Ft. Worth in which it came loose from my strap locks, (user error) and fell about 7 feet. To my amazement, I picked it up and it still played like before with nothing but a scratch. It is extremely dependable. I don't have a backup, unfortuneately, so I take better care of it nowadays because it will be the only one I will probably ever have. The paint job is in remarkable shape for 3 years of slugging it out on the road. I love it. Value: I thought it was expensive 3 years ago, but now I realize that it was a steal, now that I have bought a couple of 2000 dollar guitars that are nowhere near the sound quality of this one. Manufacturer Support: I have never needed any support because this guitar is amazing. I have upgraded the neck pickup from the stock humbucker to a Duncan pearly gates neck pickup. The Wow Factor: I have had some very positive feedback from the crowd with this guitar from crowds across Texas. They kinda know its me when I pull it out of my stage stand and put it on. It has one upgrade to its looks: a white Nitrofish racing decal that is beside the 5-way swich on the pickguard. It has kinda become a trademark for me. My chrome blue and black Strat is as much a part of me as my hand, or my ****. Overall: I believe this instrument will last a lifetime because I take very good care of it. If I may make a suggestion with anyone else owning one, use it with an Ibanez TS-808 tubescreamer. This little green box from hell boosts the sound of this beast from ordinary to amazing. I also use it with a CRATE Flexwave full stack. It really is an amazing combination.

Style of Music: Southern Rock/Country/Blues

1 of 1 people (100%) found this review helpful. Did you?

Thanks for your opinion!

close [x]

Thank you. Your vote has been counted. Could you briefly tell us why the review was or was not helpful?

"Bring Back The HH Strat!"

Sound: I have had this guitar for well over 2 years now. I bought it because I did not have the money to buy a Strat and a Les Paul (S-1 Switch!) I was surpised at the sound and how solid it was. I have played through Marshall Plexi and a Vibroverb Custom and it sounds great! Feature: The best of both worlds, single coils and humbuckers too. The S-1 switch is really the reason I bought this guitar. Ease of Use: It's a Strat all the way! I don't know why Fender stopped making this and went with just the S-S-H. I have REALLY thick stings, ala SRV on it right now and have yet to break one! That is really saying something because my SRV Signature Strat has broke them often. Quality: I have had a lot of compliments on the neck. It is really dark rosewood and really looks great. I chose the black on black because I thought the other colors looked too metallic. This really hides and scratches. I would say this is REAL A M E R I C A N Q U A L I T Y ! Value: I think I paid about $989 for this which was a pretty good deal (Look at ANYTHING Gibson or PRS). Manufacturer Support: I have called Fender before, not on this particular item, but my Vibroverb Custom and they were the best! The sent out a footswitch overnite to me, no questions asked! Overall: I have played since 1975. When I was playing in bands back in the 1980's I was a stone Les Paul guy. I know play mainly blues and hard rock and this is really a great instrument. The neck is almost perfect. I wish that it was a D shaped neck, but other than that...

Style of Music: Rock, Blues

2 of 2 people (100%) found this review helpful. Did you?

Thanks for your opinion!

close [x]

Thank you. Your vote has been counted. Could you briefly tell us why the review was or was not helpful?

Read all 6 Fender American Series Stratocaster HH Electric Guitar (Rosewood, with Case) Reviews
