- Model Name: American Deluxe Jazz Bass(R)
- Model Number: 019-4580-(Color #) and 019-4582-(Color #)
- Series: American Deluxe Series

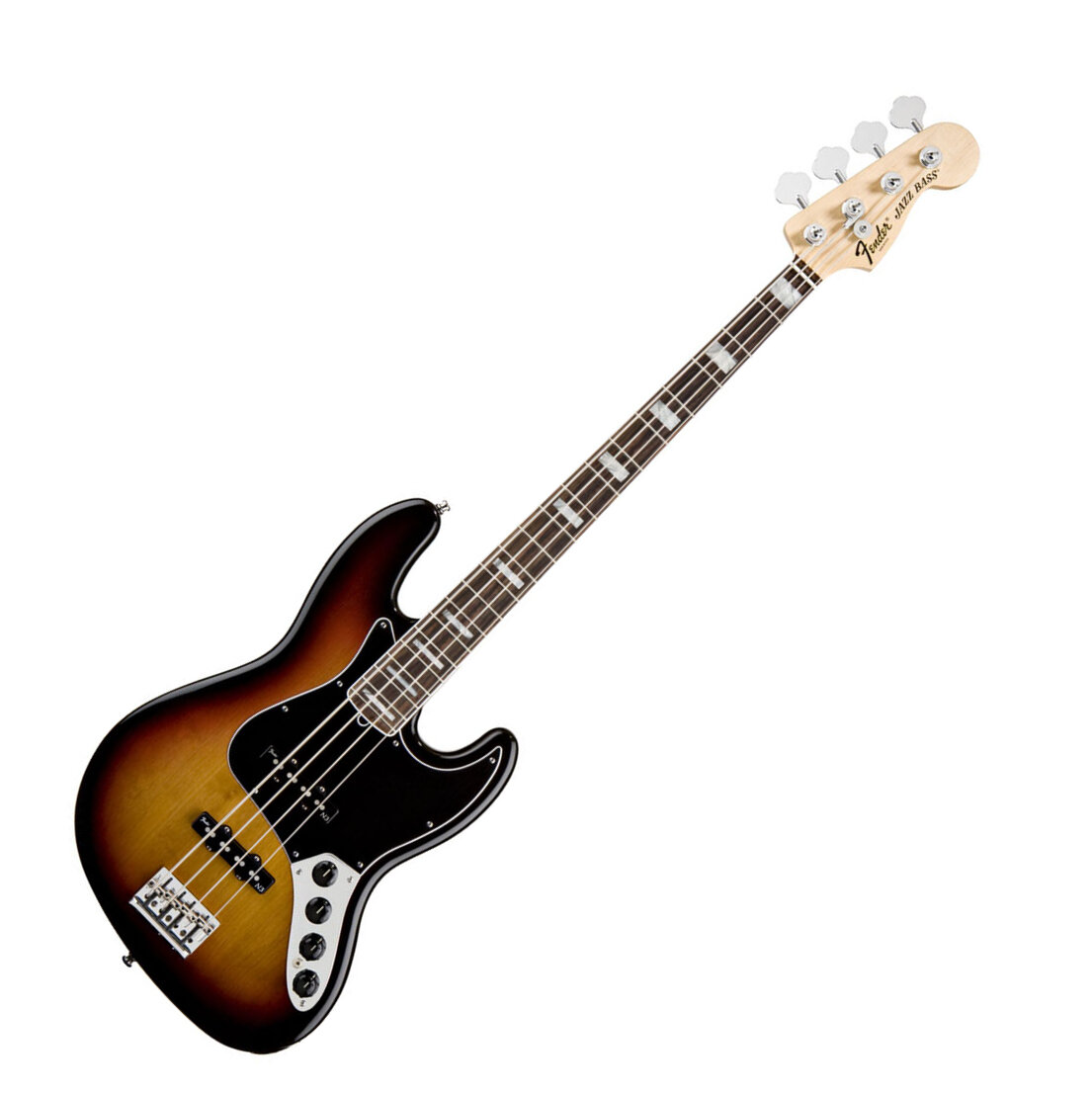

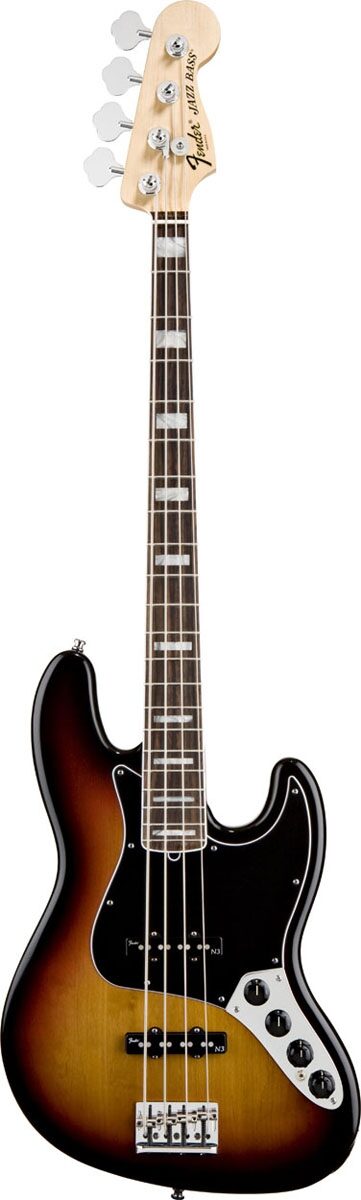

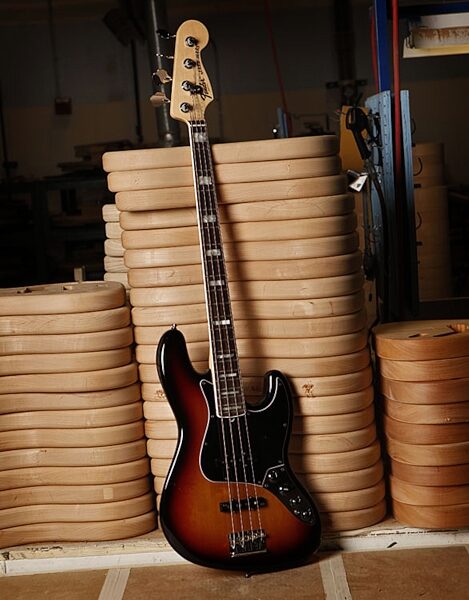

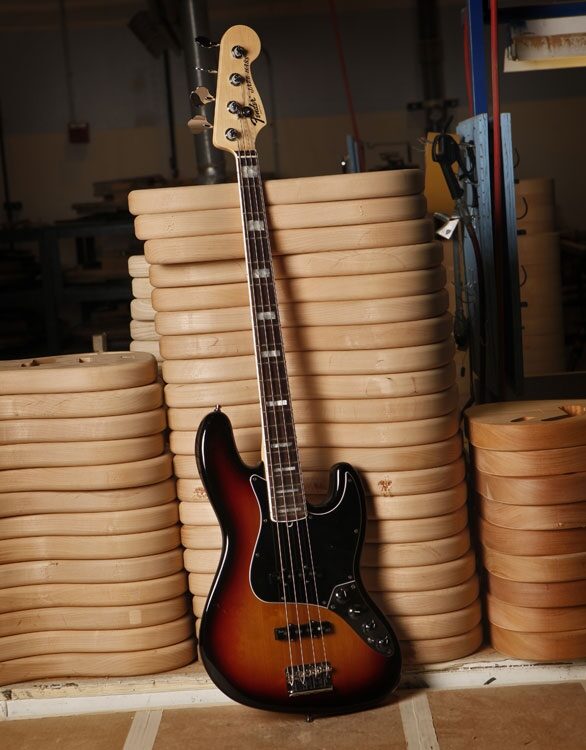

Colors: 019-4580-(700) 3-Color Sunburst,

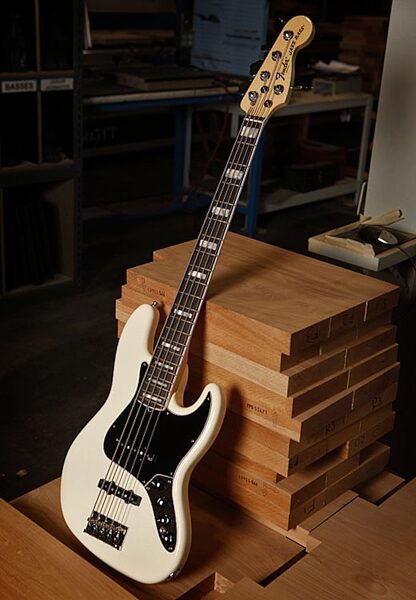

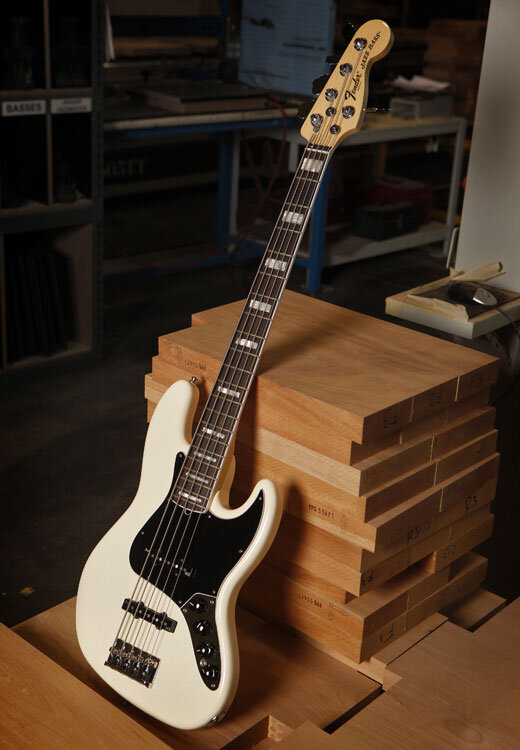

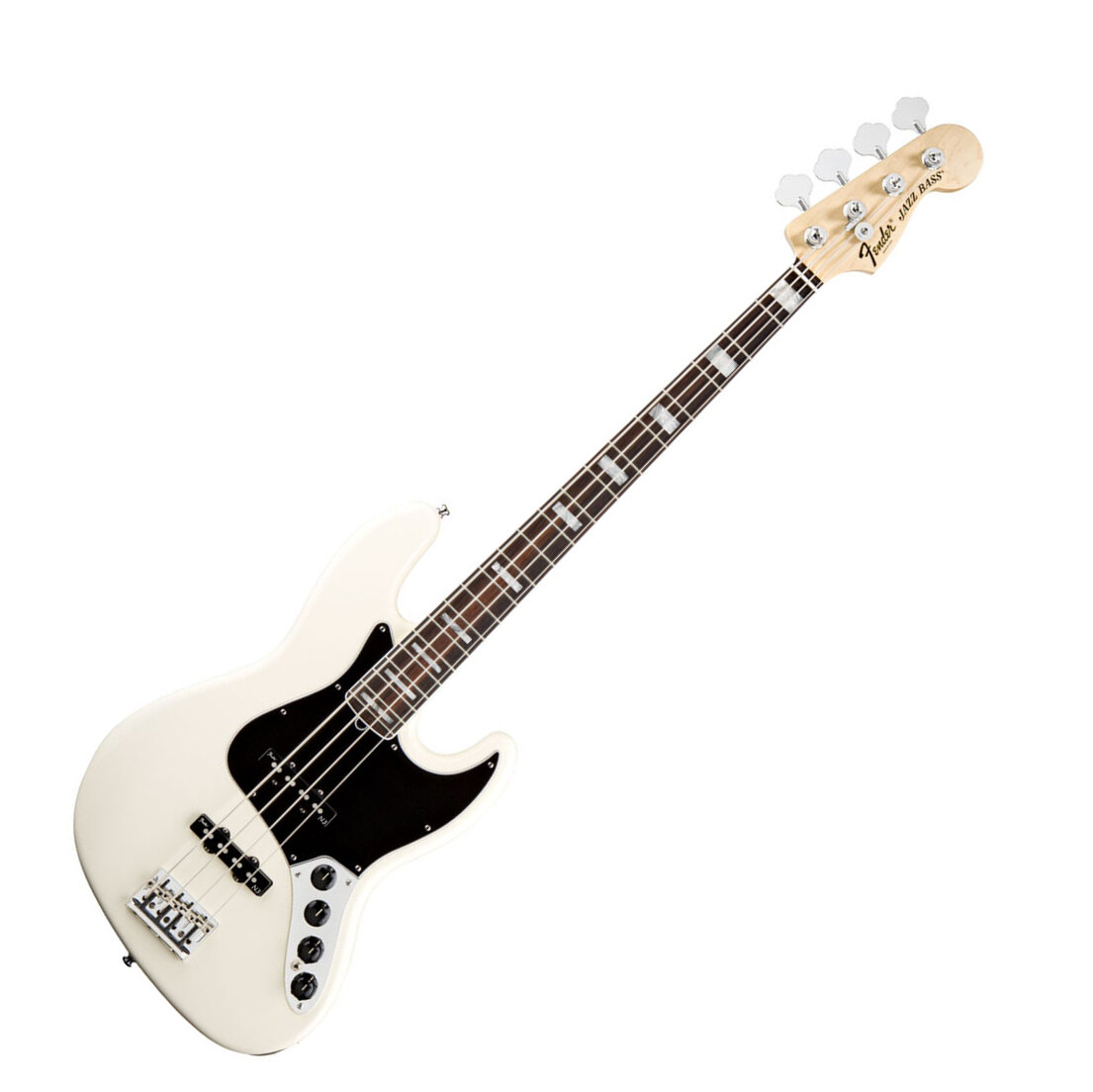

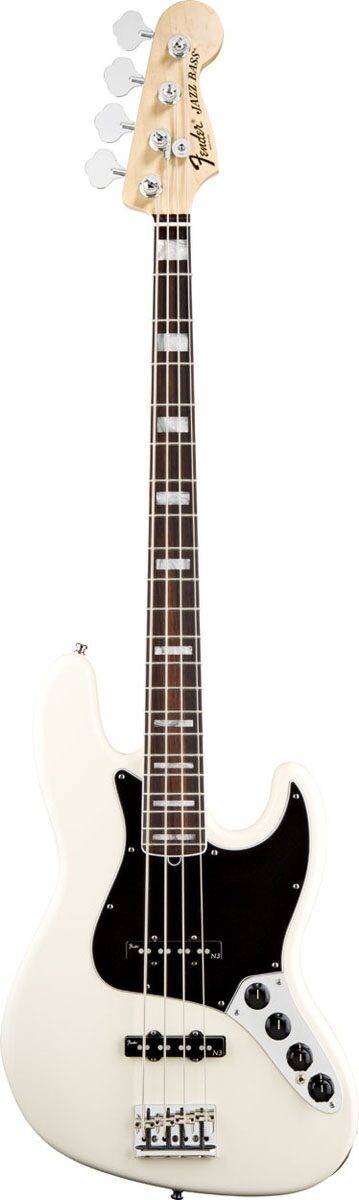

019-4580-(705) Olympic White,
019-4582-(721)* Natural, (Ash Body), *add $100.00 for Special Wood Requirements,

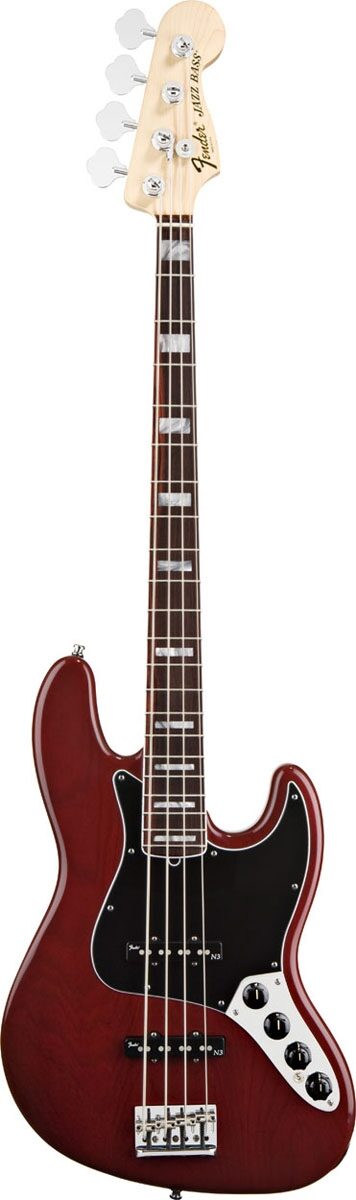

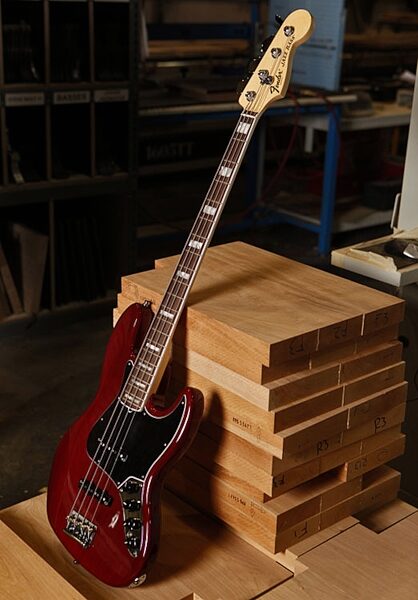

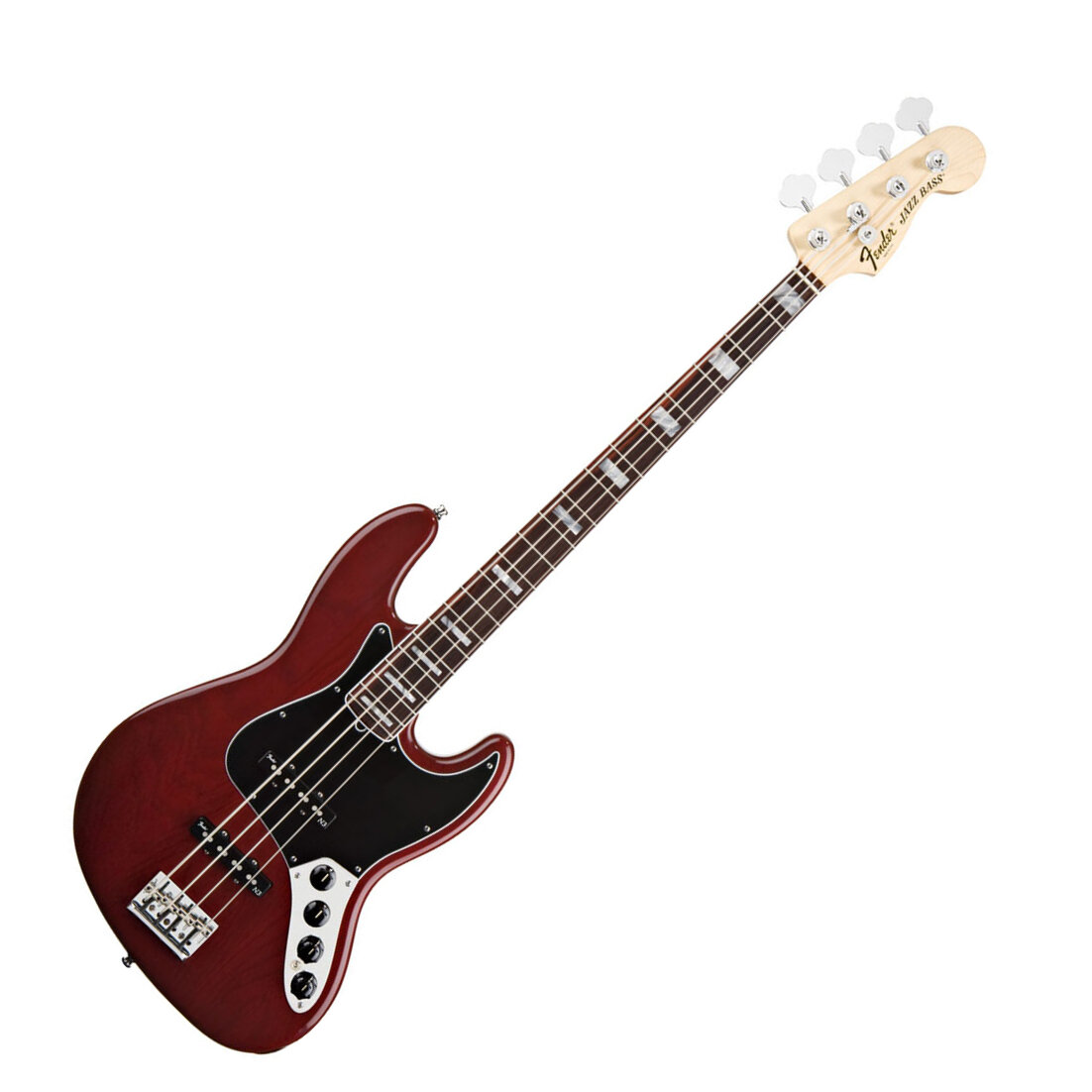

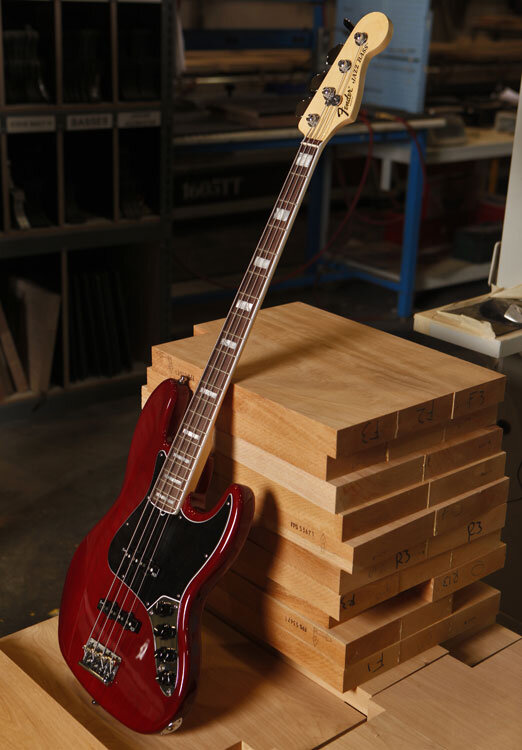

019-4582-(775)* Wine Transparent, (Ash Body), *add $100.00 for Special Wood Requirements,
- Body: Select Alder on (700), (705), (706); Premium Ash on (721), (775)
- Neck: Maple, Modern C Shape, (Tinted Gloss Urethane Finish)
- Fingerboard: Rosewood (P/N 019-4580) or Maple (P/N 019-4582), 9.5 Radius (241 mm)
- No. of Frets: 21 Medium Jumbo Frets
- Pickups: 2 N3 Noiseless(TM) Jazz Bass(R) Pickups
Controls: Master Volume, Pan Pot, 3-Band Active EQ with:
- Treble Boost/Cut: +/- 10 db @ 8kHz, a shift in the cut frequency, and about a 2dB slope per octave.
- Mid Boost/Cut: +10dB, -15dB @ 500Hz, and a wide band slope.
- Bass Boost/Cut: +/- 12 db @ 40 Hz, with a 4dB slope per octave.

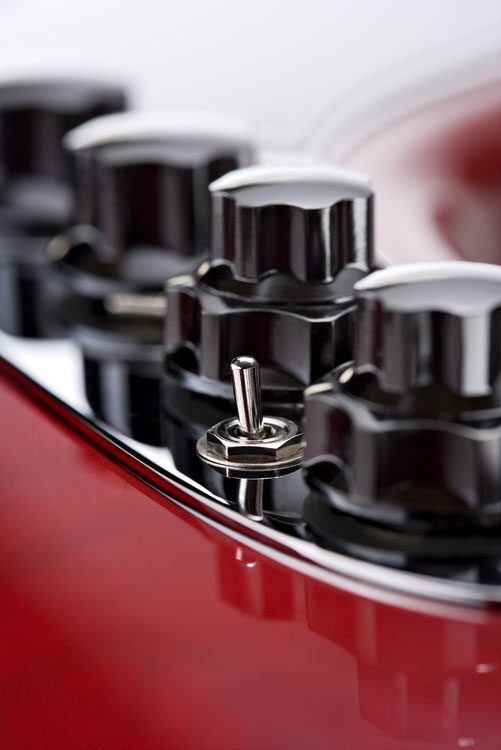

- Active/Passive Mini-Toggle Switch
- Pickup Switching: Pickup Pan Control
- Bridge: HMV, High Mass Vintage, (Strings-Thru-Body or Topload)

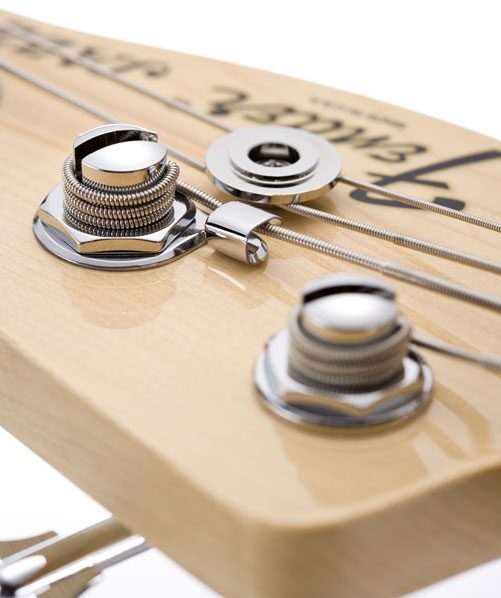

- Machine Heads: Fender(R) Light-Weight Vintage Style Tuners with Tapered Shafts
- Hardware: Chrome
- Pickguard: 3-Ply Black/White/Black
- Scale Length: 34 (863.6 mm)
- Width at Nut: 1.50 (38.1 mm)Unique Features:
- New N3 Noiseless Pickups,
Improved Electronics Resulting in Increased Headroom and Tighter Low-End Response,
- 18-Volt Power Supply,
- Active/Passive Mini-Toggle Switch,
- Passive Tone Control for Passive Mode

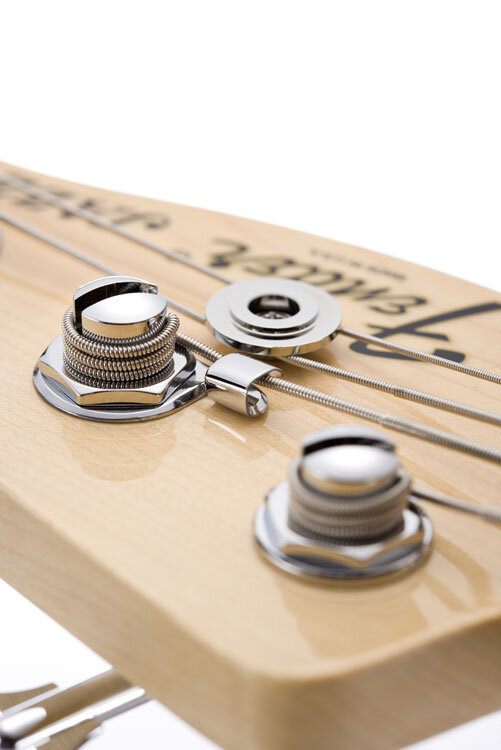

- Stealth A String Retainer,
- HMV Bridge,
- Tinted Neck.
- Posiflex(TM) Graphite Neck Support Rods,
- 5-Bolt Neck Plate,
- Contoured Heel for Easier Access to Upper Frets.
- Rolled Fingerboard Edges,
- Highly Detailed Nut and Fret Work,
- Genuine Bone Nut.
- Wide-Slot Flat Head Screws on Battery Compartment (for Easy Changes with a Coin or Pick).
- Black Pearloid (Maple Fingerboard) or White Pearloid (Rosewood Fingerboard) - Block Position Inlays,
- Neck Binding,
- 70s Style Logo
- Strings: Fender USA NPS,
- Gauges: .045, .065, .085, .105
- Accessories: Fender/SKB(R) Case, Cable, Strap, Polishing Cloth, Straplocks
- Case: High-Tech, Molded Rectangular SKB(R) Case
- Introduced: 3/2010
Notice: Product Prices, Features, Specifications and Availability Are Subject To Change Without Notice
- Dimensions and Weight in Packaging
- 3-Color Sunburst
- Shipping Weight: 25 lbs
- Olympic White
- Shipping Weight: 27 lbs
