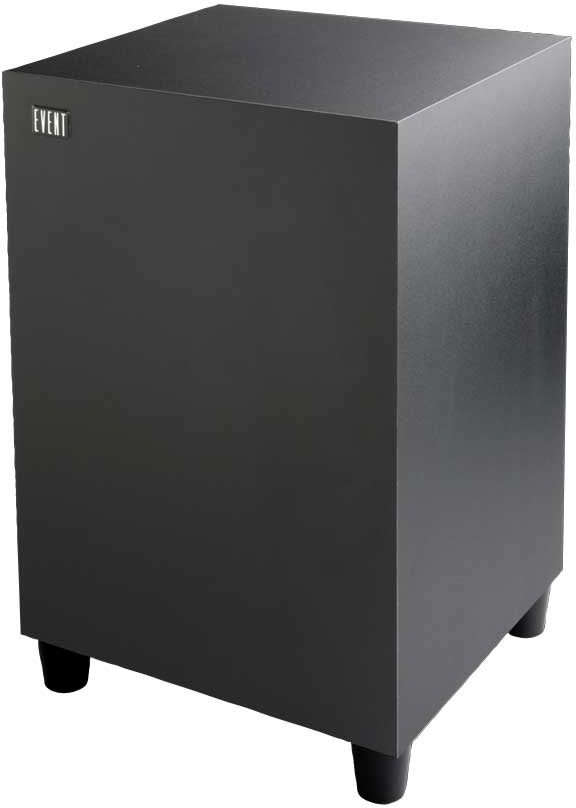

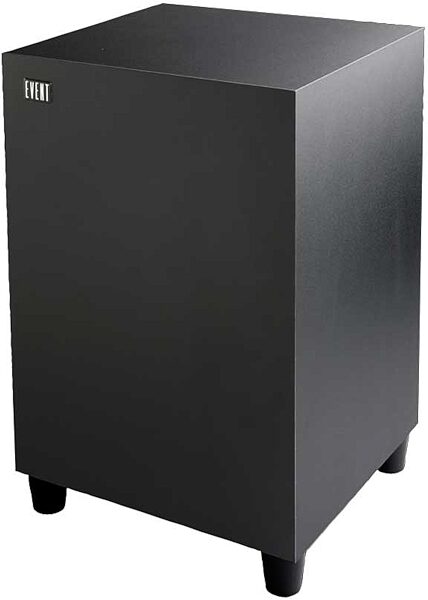

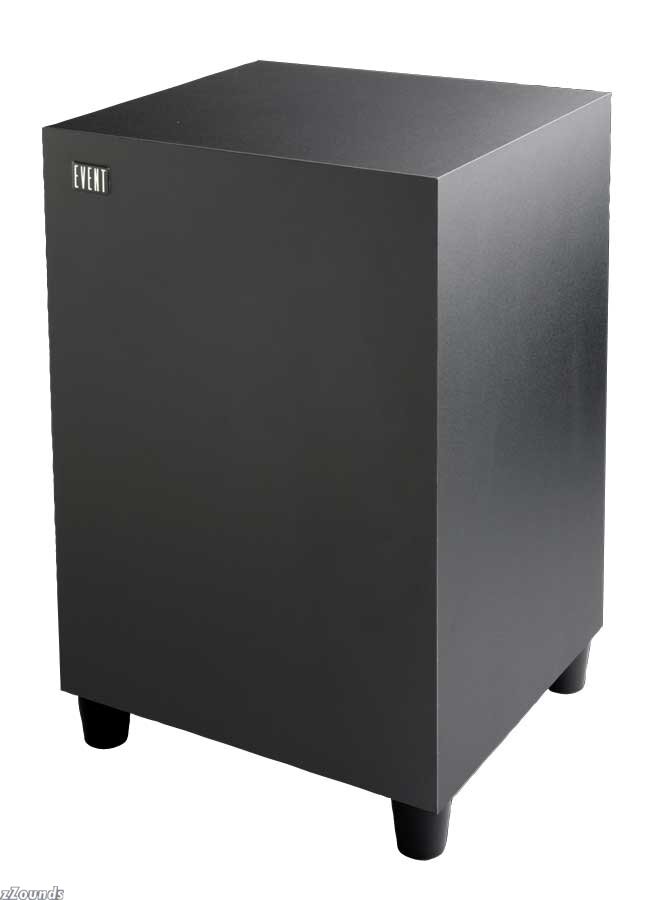

Active Low Frequency Monitor
The S100 is a small but mighty low frequency monitor system that can help transform your studio sound from meek into magnificent.
With 100 Watts of power dedicated entirely to low frequency reproduction, a cabinet that features a floor-coupled design to provide maximum volume output, and a time-proven 8 in. LF driver that delivers clean, clear, powerful low end, the S100 is the ideal way to bring full-range performance to your existing small-footprint monitor system.
Compatibility
The S100 works with virtually any active monitor, including, of course, Event's own ALP-5 Active Linear Phase Biamplified Monitor. Pass-through audio jacks on the S100 make hookup a snap -- simply set the S100 on the floor, connect the cables, and... let ‘er rip!
You won’t believe how big your sound will be! And just in case the neighbors make a little noise of their own, the system includes a handy footswitch that lets you mute the output with a tap of your toe.
Now go shake things up.
Technical Info
Low Frequency Driver: 8 in. polypropylene cone with damper rubber surround and hightemperature voice coil
Frequency Response: 35Hz - 120 Hz, -3dB
Amplifier Power: 100W, Linear
LFE Crossover: 120Hz, 2nd-order
Noise: >70dB below full output

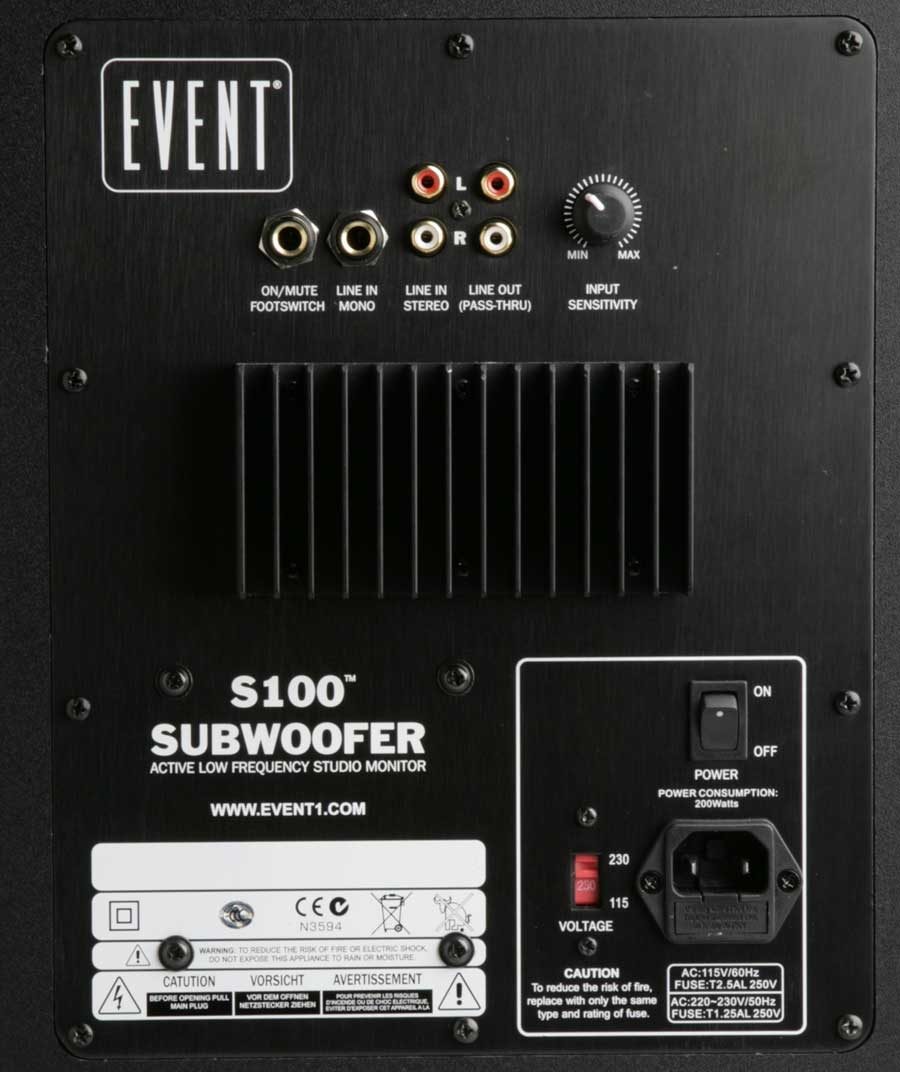

Inputs: Mono line input with 1/4 in. connector; Left and Right line inputs with RCA connectors; All unbalanced
Pass-Through Outputs: 2 RCA mains monitor channel pass-throughs
Controls: Input Sensitivity; mains power; operating voltage selection; on/off mute (footswitch-controlled)
Power Requirements: 200VA, User selectable 110V~60Hz or 220/240V~50-60Hz mains
Polarity: Positive signal at input produces outward cone displacement
Cabinet: 5/8 in. vinyl-laminated MDF, internally insulated
Dimensions: 12 in. W x 16-5/8 in. H x 10-3/4 in. D
Weight: 32 lbs.
