This product is no longer available at zZounds.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

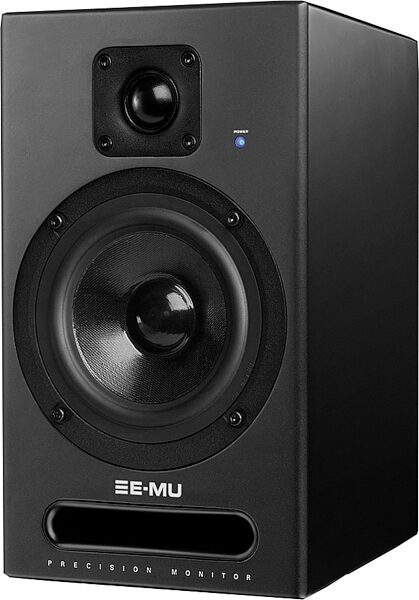

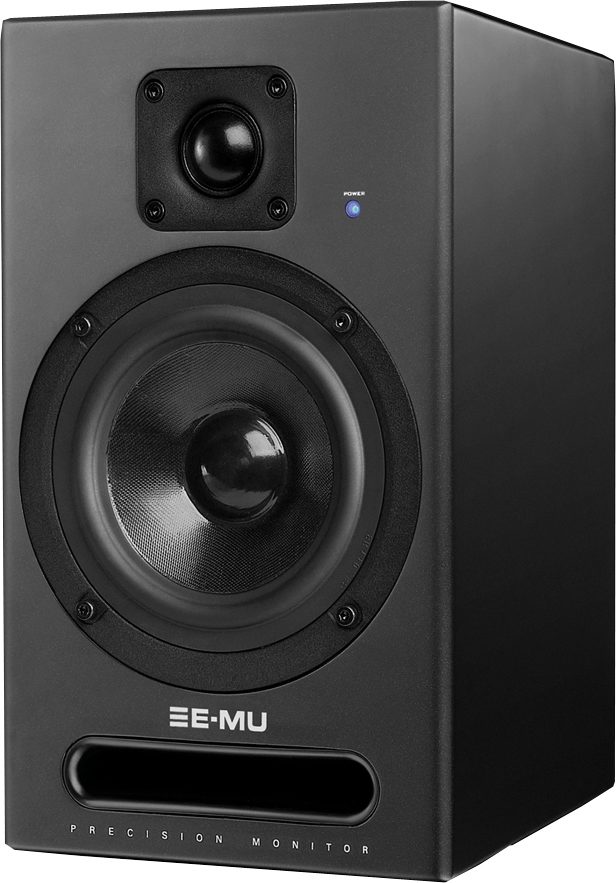

Emu PM5 Powered Personal Monitor (40 Watts, 1x5 in.)
2-way, bi-amplified. Class-A input/MOSFET output stages.
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
About This Product!
Description
From Our Catalog
E-MU's new PM5 Precision Monitor has been designed from the ground up to deliver hyper-accurate audio in a compact design. From its custom audiophile amplifiers (Class-A input and MOSFET output stages) to its world-class drivers and premium cabinet, the PM5 offers superior imaging and hi-end transient detail with linear frequency response rivaling compact nearfield monitors over twice the price. Professional features like overload protection, balanced/unbalanced inputs, and treble, bass and input sensitivity controls ensure that the PM5 will seamlessly integrate into any studio environment.
Features:
Radiused edges reduce cabinet edge diffraction to provide superior imaging
Premium neodymium soft dome high-frequency driver delivers unsurpassed high frequency performance
Dual-mode LED shows power status and indicates when overload protection circuitry engages to prevent damage to drivers
Premium glass fiber low-frequency driver delivers outstanding linear response
Solid cabinet design features 1 in. thick baffle to eliminate internal resonance
Flow-optimized port provides low distortion and articulate bass
Custom 40W/40W bi-amped power section (with discrete Class-A input stage, MOSFET output stages and active crossover) has been carefully tuned to minimize aural fatigue and maximize audio precision
Balanced Neutrik (XLR and 1/4 in.) and unbalanced RCA inputs provide connections to all of your studio equipment
Treble, Bass and input Sensitivity controls allow you to calibrate the PM5 to your specific acoustic environment and set input levels
Includes:
E-MU PM5 Precision Monitor
Power Cord
Owner's Manual
Type: 2-way, bi-amplified nearfield reference monitor
Frequency Response: 67Hz to 20kHz (+/-2.5dB)
Maximum Sound Pressure Level (short term)
- Single: =100dB SPL @ 1m
- Pair: =103dB SPL @ 1m
High-Frequency Driver
- Type: Neodymium Soft Dome
- Size: 25.4mm (1 in.)
Low-Frequency Driver
- Type: Glass Fiber Cone
- Size: 127mm (5 in.)
Dimensions
- Height: 290mm (11.5 in.)
- Width: 175mm (6.9 in.)
- Depth: 245mm (9.7 in.)
Weight: 6.5kg (14.3lbs)
Power: 120V, 60Hz (North America), 220V-240V, 50/60Hz (Europe)
Crossover Network
Type: Active 2nd- order Butterworth
Input sensitivity control range: -21dB - 0dB
Input impedance
- Balanced: 47K ohms
- Unbalanced: 47K ohms
Crossover frequency: 2.5kHz
Amplifiers
Type: Custom discrete with Class-A input/MOSFET output stages
High-Frequency Amplifier
- Power: 40W RMS into 4 ohms
- Signal-to-Noise Ratio, referred to full output: > 98dB
- Distortion: THD < 0.2%
Low-Frequency Amplifier
- Power: 40W RMS into 4 ohms
- Signal-to-Noise Ratio, referred to full output: > 98dB
- Distortion: THD < 0.2%
Features:
Radiused edges reduce cabinet edge diffraction to provide superior imaging
Premium neodymium soft dome high-frequency driver delivers unsurpassed high frequency performance
Dual-mode LED shows power status and indicates when overload protection circuitry engages to prevent damage to drivers
Premium glass fiber low-frequency driver delivers outstanding linear response
Solid cabinet design features 1 in. thick baffle to eliminate internal resonance
Flow-optimized port provides low distortion and articulate bass
Custom 40W/40W bi-amped power section (with discrete Class-A input stage, MOSFET output stages and active crossover) has been carefully tuned to minimize aural fatigue and maximize audio precision
Balanced Neutrik (XLR and 1/4 in.) and unbalanced RCA inputs provide connections to all of your studio equipment
Treble, Bass and input Sensitivity controls allow you to calibrate the PM5 to your specific acoustic environment and set input levels
Includes:
E-MU PM5 Precision Monitor
Power Cord
Owner's Manual
Technical Info
GeneralType: 2-way, bi-amplified nearfield reference monitor
Frequency Response: 67Hz to 20kHz (+/-2.5dB)
Maximum Sound Pressure Level (short term)
- Single: =100dB SPL @ 1m
- Pair: =103dB SPL @ 1m
High-Frequency Driver
- Type: Neodymium Soft Dome
- Size: 25.4mm (1 in.)
Low-Frequency Driver
- Type: Glass Fiber Cone
- Size: 127mm (5 in.)
Dimensions
- Height: 290mm (11.5 in.)
- Width: 175mm (6.9 in.)
- Depth: 245mm (9.7 in.)
Weight: 6.5kg (14.3lbs)
Power: 120V, 60Hz (North America), 220V-240V, 50/60Hz (Europe)
Crossover Network
Type: Active 2nd- order Butterworth
Input sensitivity control range: -21dB - 0dB
Input impedance
- Balanced: 47K ohms
- Unbalanced: 47K ohms
Crossover frequency: 2.5kHz
Amplifiers
Type: Custom discrete with Class-A input/MOSFET output stages
High-Frequency Amplifier
- Power: 40W RMS into 4 ohms
- Signal-to-Noise Ratio, referred to full output: > 98dB
- Distortion: THD < 0.2%
Low-Frequency Amplifier
- Power: 40W RMS into 4 ohms
- Signal-to-Noise Ratio, referred to full output: > 98dB
- Distortion: THD < 0.2%
Compact, extremely accurate monitors! Neodymium 1" soft dome tweeters, glass fiber 5" woofers. Biamplified with 40 watts each for highs and lows. XLR, RCA, and 1/4" inputs. Treble, bass, and input sensitivity controls.
What Our Customers Say About zZounds
"My item was here within 2 days of me ordering it. That was wonderful, and it was wonderfully packed!" - customer on October 31, 2009
Emu PM5 Powered Personal Monitor (40 Watts, 1x5 in.) Reviews
9 out of 10
"Crystal sound and decent bass in a tiny space"
Feature:
Small and compact and has pretty much every connection and bell and whistle. I'm running balanced, out of my MOTU and leave all my settings at defualt and run level at 12 o'clock(it's plenty loud). For something so small it has great bass and I hear from the magazines that a matching subwoofer is coming.
Quality:
It's built like a tank. Heavy and dense feeling. Very industrial looking and I like the blue light.
Value:
There are tons of cheaper ones nowdays like the Egosys I used to have but these are built way better, and have that dry sound that I wanted. It's definitely worth the money.
Sound:
The way i'd decribe it is Clear, Open and Dry. I heard these at a friends home studio so he sold me.
Support:
No problems so can't say. They had great support before when I called them about their old synth stuff.
Overall:
I've had and used tons of EMU gear and they always makes great stuff at good prices. Just wish they'd make all their new computer stuff for the Mac too. Come on EMU stop being so "Creative".
Small and compact and has pretty much every connection and bell and whistle. I'm running balanced, out of my MOTU and leave all my settings at defualt and run level at 12 o'clock(it's plenty loud). For something so small it has great bass and I hear from the magazines that a matching subwoofer is coming.
Quality:
It's built like a tank. Heavy and dense feeling. Very industrial looking and I like the blue light.
Value:
There are tons of cheaper ones nowdays like the Egosys I used to have but these are built way better, and have that dry sound that I wanted. It's definitely worth the money.
Sound:
The way i'd decribe it is Clear, Open and Dry. I heard these at a friends home studio so he sold me.
Support:
No problems so can't say. They had great support before when I called them about their old synth stuff.
Overall:
I've had and used tons of EMU gear and they always makes great stuff at good prices. Just wish they'd make all their new computer stuff for the Mac too. Come on EMU stop being so "Creative".
Submitted: 03/17/2006
Style of Music: Electronic Folk
10 out of 10
"Great speaker for home studio."
Feature:
Has all the connections you need.
Quality:
Built like a tank - really.
Value:
Well worth the $$$.
Desirability:
Cool blue lights and metal flake cabinets look good on my desk.
Sound:
Very revealing speaker. Flat as you want them to be. They don't fatigue your ears at reasonable levels. That said, these things can crank out distortion free sound at higher than safe levels. I bought these for my home studio and now prefer them to the $1000 plus ones we use at work. Hooked them up to a M-audio Fast Track Pro.
Ease of Use:
It's a monitor.
Support:
Have not had to use yet.
Overall:
If they keep on working then maybe forever.
Has all the connections you need.
Quality:
Built like a tank - really.
Value:
Well worth the $$$.
Desirability:
Cool blue lights and metal flake cabinets look good on my desk.
Sound:
Very revealing speaker. Flat as you want them to be. They don't fatigue your ears at reasonable levels. That said, these things can crank out distortion free sound at higher than safe levels. I bought these for my home studio and now prefer them to the $1000 plus ones we use at work. Hooked them up to a M-audio Fast Track Pro.
Ease of Use:
It's a monitor.
Support:
Have not had to use yet.
Overall:
If they keep on working then maybe forever.
Submitted: 07/06/2006
Style of Music: Rock, Jazz, Classical
