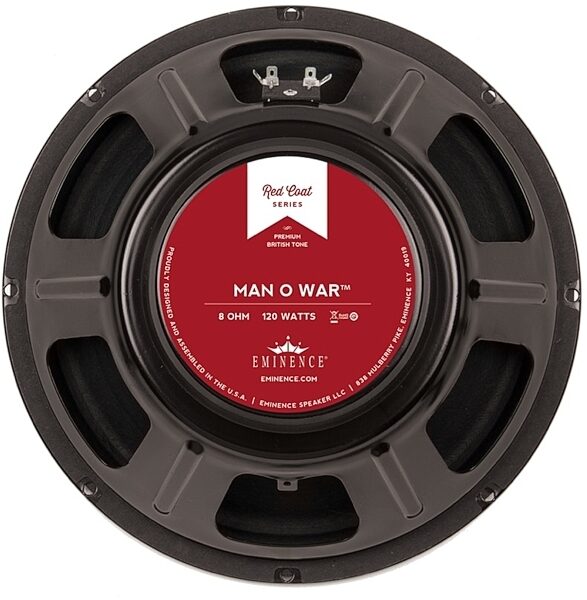

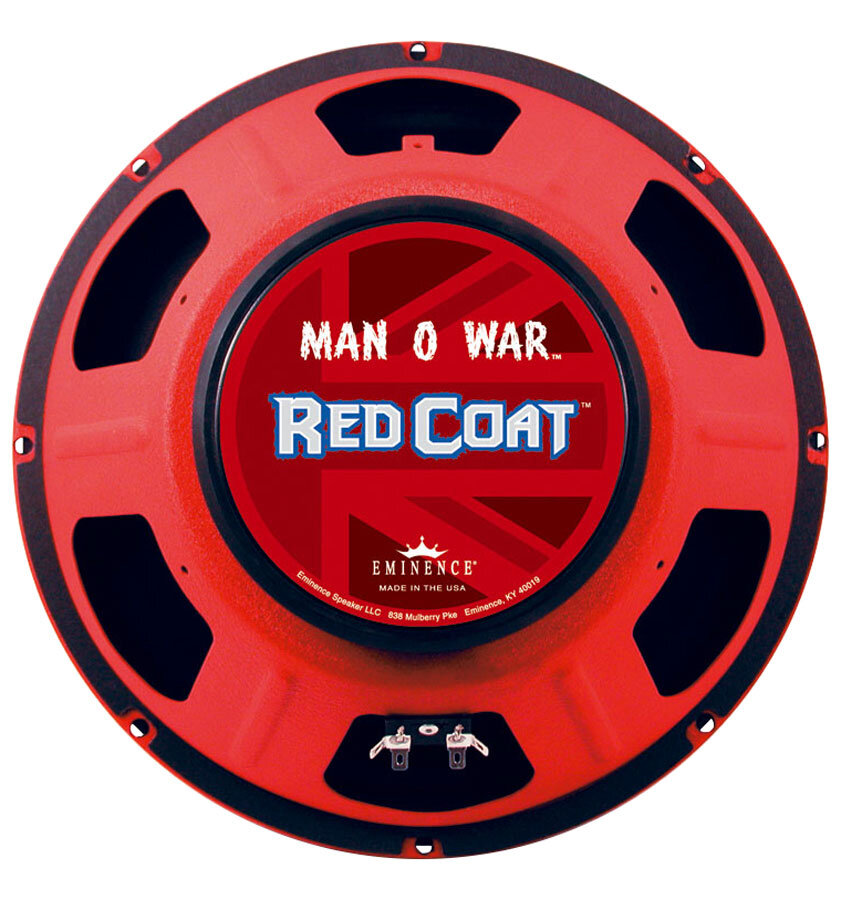

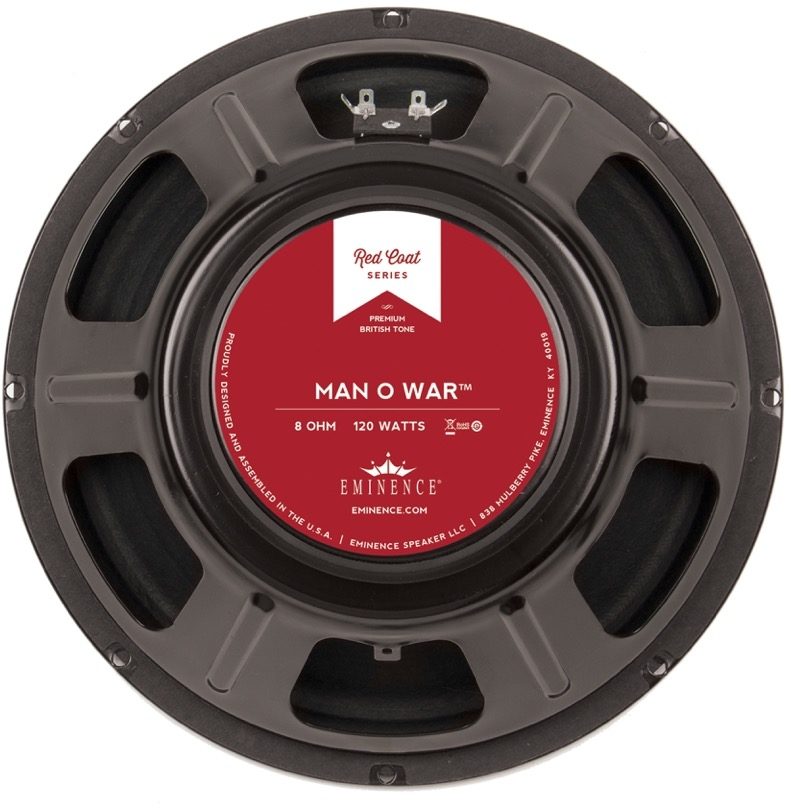

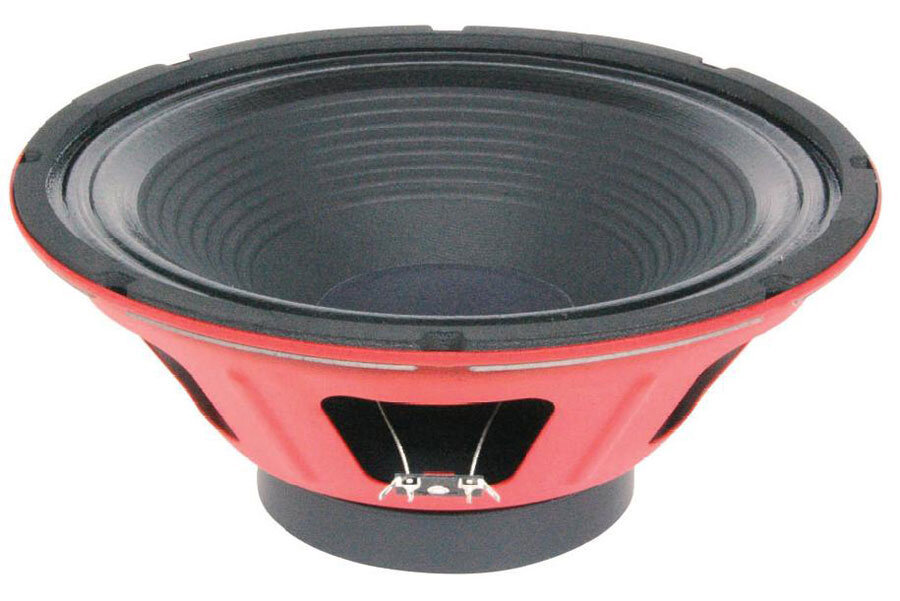

Eminence Man-O-War Guitar Speaker (120 Watts, 12")

Release some of your pent-up aggression with the Man-O-War Guitar speaker. It provides a mean, meaty tone that's perfect for all types of rock, especially metal. 1 Person rated this product:

Rate and Review This Product

Ships to:

Roll Over to Enlarge

Main

overview specs docs

Product Description

zZounds is an
authorized Eminence dealer

The Eminence Man-O-War Red Coat guitar amplifier speaker is the perfect match for open or closed back 1x12, 2x12 or 4x12 combos or cabinets. The Voice Coil measures 2 inches in diameter with a magnet weight of 38 oz. Rated at 120 watts, the Man-O-War provides a moderate tone with a chunky shape while the mid and high-end response is much more aggressive. This Loud Eminence replacement speaker offers articulate audio in every register with a sparkly top end perfect for rock, grunge and metal guitar tones.

Features
- 12 inch, 120 Watt, Guitar Replacement Speaker

- For open or closed back speaker enclosures

- 2 inch diameter voice coil with 38 oz Magnet

- Moderate and chunky low end

- Aggressive and crisp mids and highs

- Perfect for Classic or College Rock, Grunge and Metal Tones zZounds is an authorized dealer of Eminence products.

Specifications
Nominal Basket Diameter: 12-inch, 304.8mm

Nominal Impedance*: 8 ohms

Power Rating:
- Watts: 120W
- Music Program: N/A

Resonance: 91Hz

Usable Frequency Range: 70Hz-5.5kHz

Sensitivity***: 102

Magnet Weight: 38 oz.

Gap Height: 0.312", 7.92mm

Voice Coil Diameter: 1.75", 44.5mm

Thiele and Small Parameters
Resonant Frequency (fs): 91Hz

DC Resistance (Re): 6.2

Coil Inductance (Le): 0.43mH

Mechanical Q (Qms): 11.66

Electromagnetic Q (Qes): 0.72

Total Q (Qts): 0.68

Compliance Equivalent Volume (Vas): 38.0 liters / 1.3 cu.ft.

Mechanical Compliance of Suspension (Cms): 0.10mm/N

BL Product (BL): 12.3 T-M

Diaphram Mass inc. Airload (Mms): 31 grams

Efficiency Bandwidth Product (EBP): 127

Maximum Linear Excursion (Xmax): 0.8mm

Surface Area of Cone (Sd): 519.5 cm2

Maximum Mechanical Limit (Xlim): N/A

Mounting Information
Recommended Enclosure:
- Sealed: Acceptable
- Vented: Acceptable

Overall Diameter: 12.02", 305.3mm

Baffle Hole Diameter: 10.97", 278.6mm

Front Sealing Gasket: Fitted as standard

Rear Sealing Gasket: Fitted as standard

Mounting Holes Diameter: 0.25", 6.4mm

Mounting Holes B.C. D.: 11.63", 295.4mm

Depth: 5.2", 132mm

Net Weight: 8.1 lbs., 3.7 kg

Shipping Weight: 9.9 lbs., 4.5 kg

Materials of Construction
Coil Construction: Copper voice coil

Coil Former: Polyimide former

Magnet Composition: Ferrite magnet

Core Details: Non-vented core

Basket Materials: Pressed steel basket

Cone Composition: Paper Cone

Cone Edge Composition: Paper cone edge

Dustcap Composition: Zurette dust cap

Dimensions and Weight in Packaging
16 Ohms: Shipping Weight: 13 lbs; Shipping Dimensions: 14 x 14 x 6 in
8 Ohms: Shipping Weight: 13 lbs; Shipping Dimensions: 14 x 14 x 6 in

Specifications Sheet

Eminence Warranty

Eminence Warranty

If you have additional warranty questions, please call the manufacturer at 502-845-5622 Sound Samples

zZounds is an
authorized Eminence dealer

This item cannot be returned once opened due to the possibility that it has been used. details

Our Return Policy

Payment Options

Purchase Orders

What Our Customers Are Saying About zZounds "I purchase from zZounds regularly. I like the ease of the purchase and all of the fantastically helpful reviews." - customer on April 22nd, 2012

New, 16 Ohms

$89.95

Play as You Pay
on orders $249+ details

List: $94.99

Savings: $5.04 (5%)

Only 2 Left! Seen it for less?

Free Ground Shipping

2 Day Air $19.99Overnight $43.99

New, 8 Ohms

$89.95

Play as You Pay
on orders $249+ details

List: $94.99

Savings: $5.04 (5%)

In Stock

Will Ship May 29 Seen it for less?

Free Ground Shipping

2 Day Air $19.99Overnight $43.99

Related Accessories

CBI SC-14 Power Series 14-Gauge Speaker Cable from $10.95

On-Stage RS7000 Amp/Monitor Stand $39.95

Rivera RockCrusher Power Attenuator and Load Box $499.00

Customer Reviews

4.5 out of 5 (1 ratings) Rate and Review This Product

Read 1 Eminence Man-O-War Guitar Speaker (120 Watts, 12") Review

zZounds has verified that this customer bought this product from us. "Very aggressive speaker."

Sound: Very aggressive speaker! This beast makes my Spider valve hd100 growl. I paired this with an eminence swamp thang in a bugera 4X12 cab ( The cab is amazing, but the speakers are very brittle and thin). So i plugged these in with the swamp thang in an x pattern and played it in for 3 months. mid and low end punch in the gut. I dont like the swamp thang to much, so I will be replacing them with governors to make an uberkab setup. But this speaker is GREAT for metal and any good ol rock. Not so good if you rely on speaker break up for distortion. I docked 2 points because I have yet to get a good sound from micing it using an sm57. I just cant find the sweet spot, it always sounds completely different than what I hear live. Feature: Its a speaker. I gave it a nine because it doesn't have the new FDM control. Ease of Use: Well, it has a positive sign on the positive terminal, and a negative sign on the negative terminal. Anyone with basic wiring and soldering skills can do it. Quality: Its eminence. Value: Half the price of a celestion, with a tone i more prefer. Manufacturer Support: Their web site was all I needed to decide my tone. They have sound clips and a great tone chart. And if you dont know what you want, just shoot them and email and they will tell you what speakers would sound best. The Wow Factor: Sex appeal, its probably the best looking speaker around. Red metal basket red coat label. And heck, they even threw in some picks and a sticker! Overall: Overall its a great buy, especially for the price. I wish I could mic it, but i cant get it to sound good.

Style of Music: Metal, rock, and blues.
