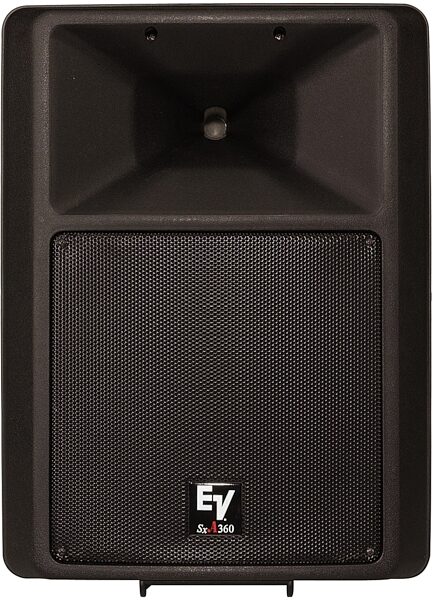

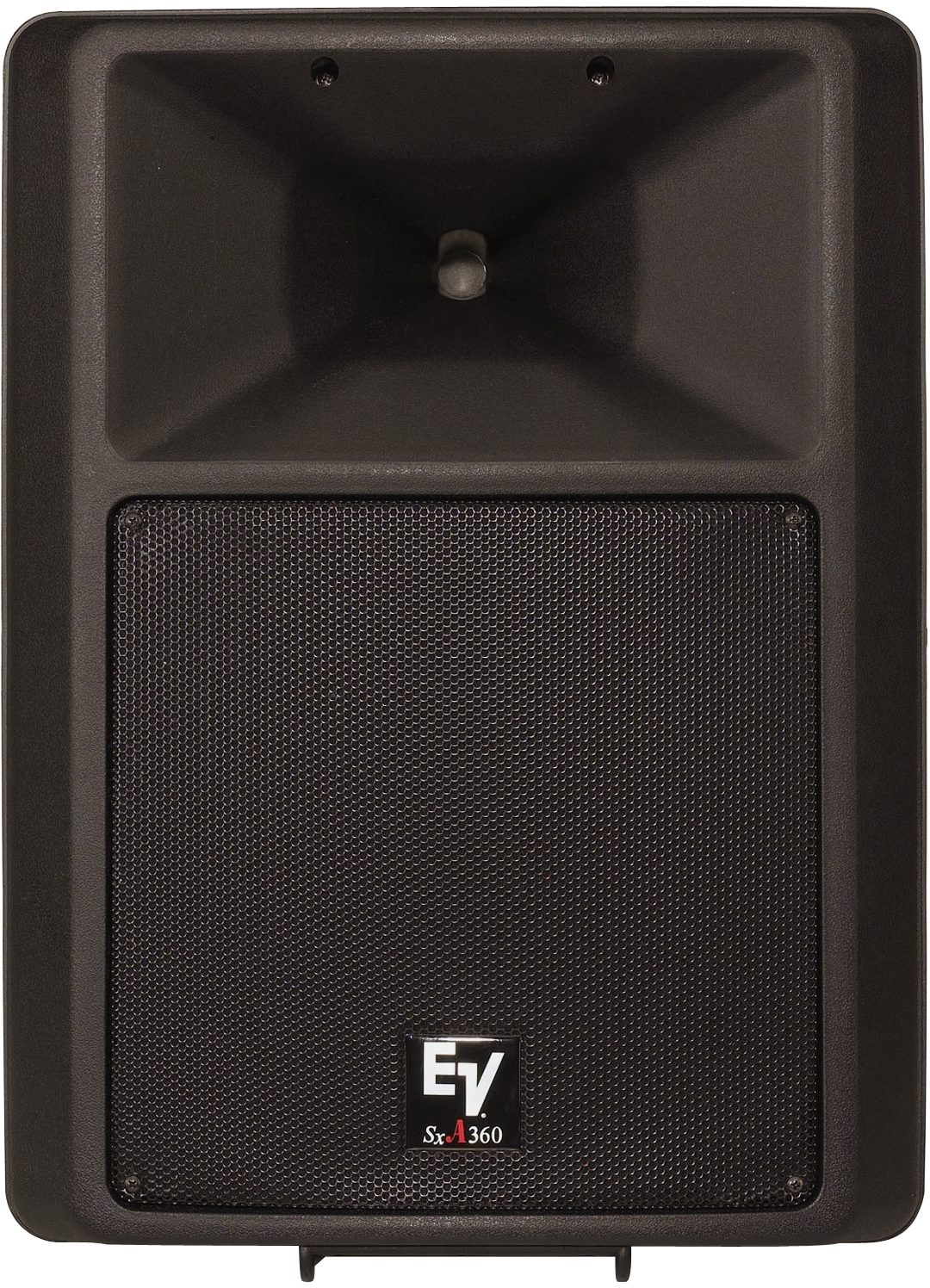

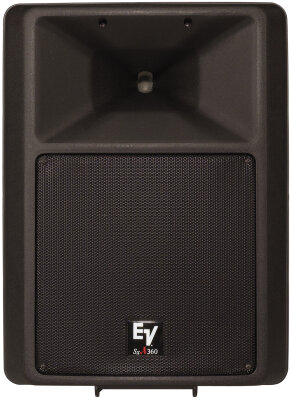

ElectroVoice SXA360 Powered PA Speaker

The Electro-Voice SxA360 high-powered loudspeaker is a fully integrated audio system with carefully matched electronics and transducers. This product makes it easy to set up a high-quality sound system quickly with a minimum of cables and external electronics. It retains typical EV ruggedness, reliability and impeccable sound quality.

The Electro-Voice SxA360 sets a new standard for powered speakers. Its design provides the user a simple-to-use system with plenty of power in very compact, lightweight, attractive package. This is a full range loudspeaker ideal for most applications requiring high-quality sound. The SxA360 offers a unique combination of high SPL, natural frequency response, and dynamic headroom in an extremely lightweight package. Its linear response provides excellent feedback-free sound without additional equalization. Built-in suspension points and pole mount make it easy to position for your application without expensive accessories. The high-frequency section of the SxA360 utilizes a molded-in, 65 x 65 degree constant-directivity horn. This unique pattern contributes to high intelligibility. Vocals sound natural yet cut through in reverberant, noisy rooms. Coverage pattern is uniform, sound quality off-axis is very well maintained, even at 45 degrees off axis (a 90 degree total coverage angle). The SxA360's high-frequency horn is driven by the DH2T, a one-inch- throat, wide-bandwidth, titanium-diaphragm driver using a unique, convex-drive TimePath phasing plug structure (U.S. Patent #4,525,604) for smooth and extended high-frequency response.

Features
Lightweight, compact, ergonomic size

Digital power amplifier

350W LF, 150W HF

Line output for additional powered speakers

65 x 65 degree constant coverage horn

High sensitivity, 129 dB maximum SPL

Dynamic filters provide overload protection and linear response

Molded-in pole mount, easily suspended

Linear response

Two built-in power amplifiers, one for low frequencies and one for high frequencies. The amplifiers also contain electronic crossover circuitry and CD horn compensation optimized for the speaker components, as well as a limiter circuit that prevents either amplifier from clipping while preserving sonic quality.

The low-frequency power amplifier delivers 350 watts continuous average power.

The high-frequency power amplifier delivers 150 watts continuous average power.

The line input utilizes Neutrik "combo" connectors, which will accept either 1/4-inch or 3-pin XLR-type connectors.

The separate line output is a 3-pin XLR-type balanced, low-impedance output that can be used with long cable runs.

The SxA360 two-way system is perfect for use as powered floor monitors.

Technical Info

Frequency response (-10 dB): 60 Hz -- 18 kHz

Maximum SPL: 126 dB

Horizontal coverage: 65 degrees

Vertical coverage: 65 degrees

LF amplifier power: 350W RMS

HF amplifier power: 150W RMS

Maximum SPL (calculated): 129 dB

LF transducer: 12 in. DL12BFH woofer

HF transducer: 1 in. exit DH2T compression driver

Connectors:

-- Line inputs: XLR and 1/4 in. phone combination

-- Balanced output: XLR

Power requirement: 110-130 VAC, 50-60 Hz, 600 Watts

Enclosure material: copolymer

Grille: powder coated steel

Dimensions (HxWxD): 23.1 in. x 16.9 in. x 12.3 in.

Net weight (each): 36 lbs

Shipping weight: 40 lbs

350 watts RMS into 12" woofer, 150 watts RMS into 1" compression driver. Onboard crossover, CD horn compensation, and limiter circuit.
