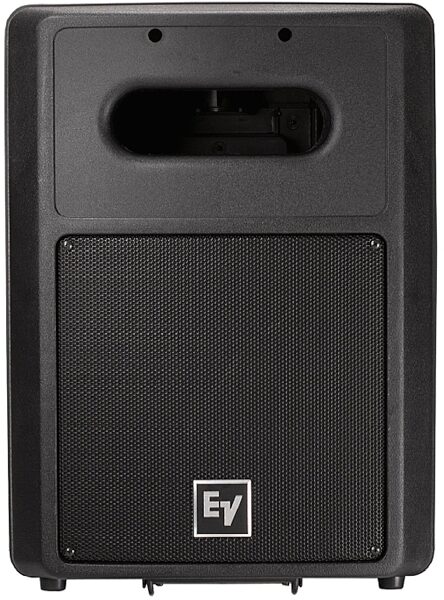

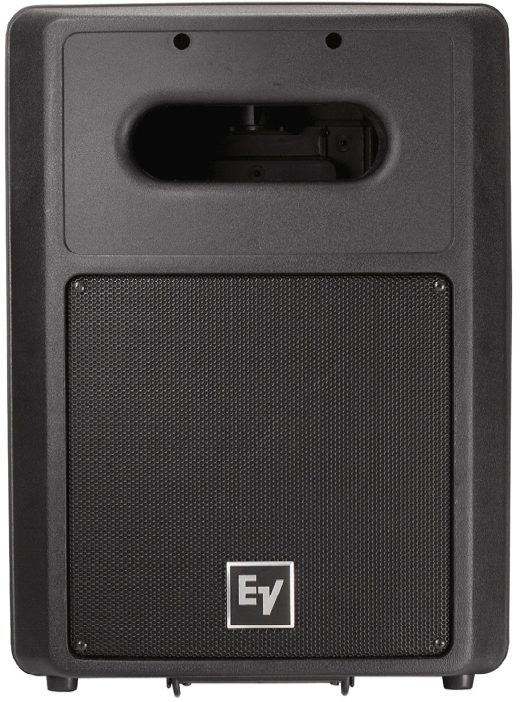

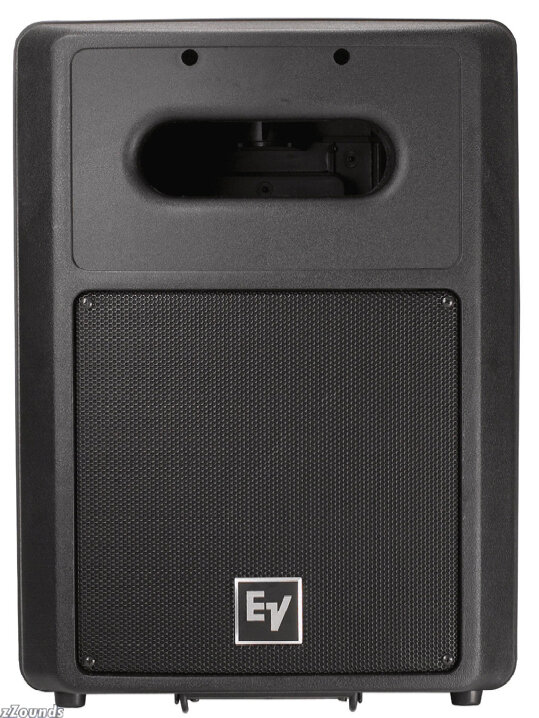

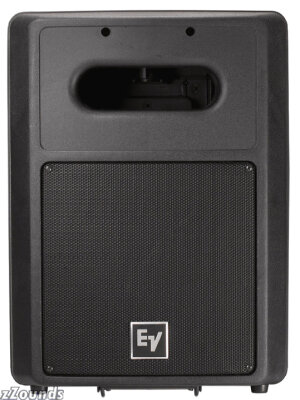

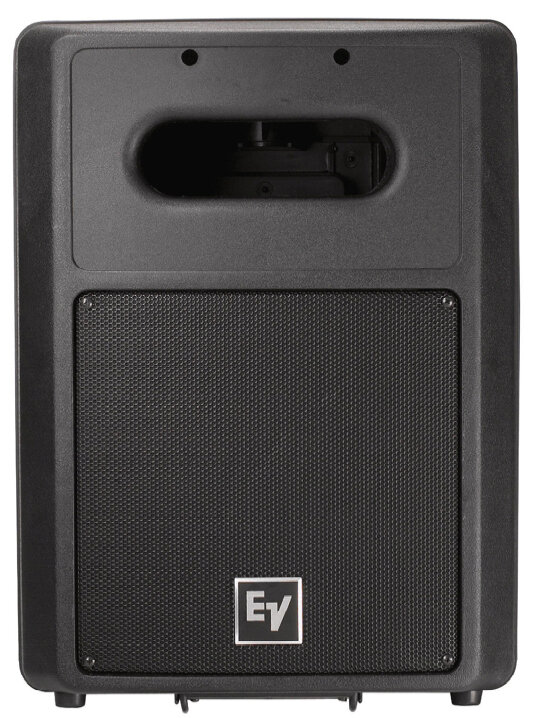

ElectroVoice SB2A Powered Subwoofer

The new ElectroVoice SB2A powered 12-inch subwoofer eliminates the need for external system processing and amplification, addressing the demand for lightweight high performance portable sound systems.

Featuring dual 350 watt amplifiers, the SB2A’s switch-able powered speaker output can drive either an external 8 ohm passive subwoofer or full range loudspeaker. This makes SB2A a supremely versatile and compact “sub system drive” solution, easily configured with a variety of loudspeakers for a multitude of sound reinforcement applications.

Typical SB2A-powered system setups include: with a ZX1-90, as a standalone PA that fits in the front seat of your car; in clusters with SX100/300; with a passive SB122, for portable lightweight sub extension to replace bulky 15-inch two-way systems (two 16kg packages vs. one 40kg package); with an additional powered top box (such as the SXA100+).

The SB2A shares the same durable injection-molded enclosure as EV’s popular passive SB122 subwoofer. Both utilize the EVS12S woofer, designed from the ground up for optimized performance within this small footprint enclosure.

Features

2 x 350W into 8 ohms

Switch-able powered output: top 60Hz hi-pass / sub 200Hz lo-pass

Weight: 35 lbs (16 kg)

Dimensions: 23.1 x 16.9 x 12.3 in. (586mm x 429mm x 312mm)

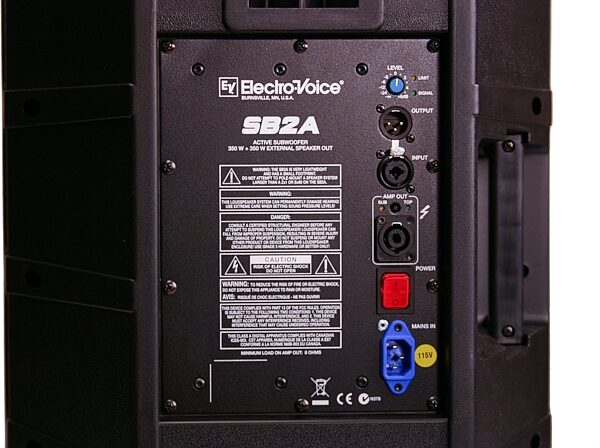

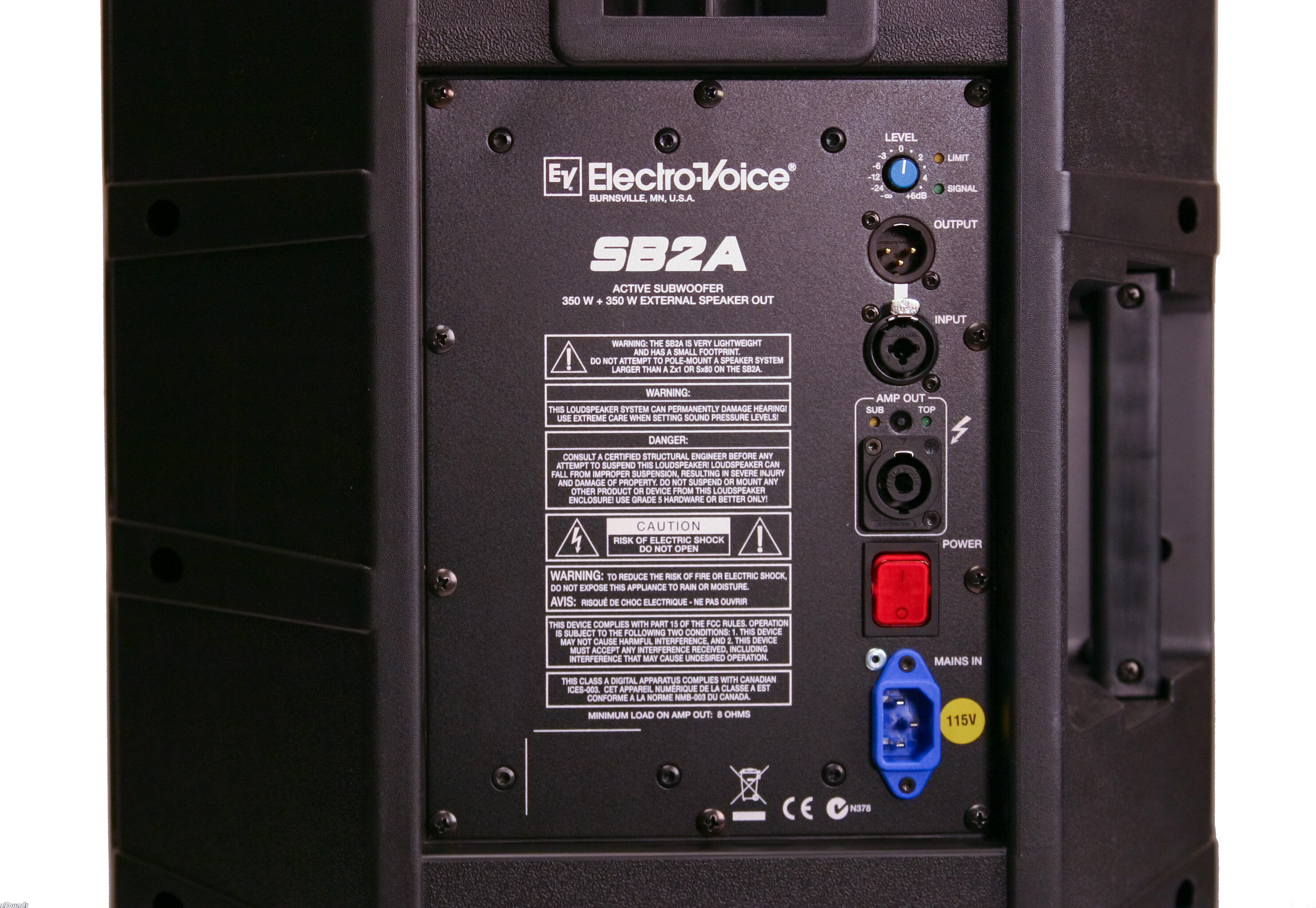

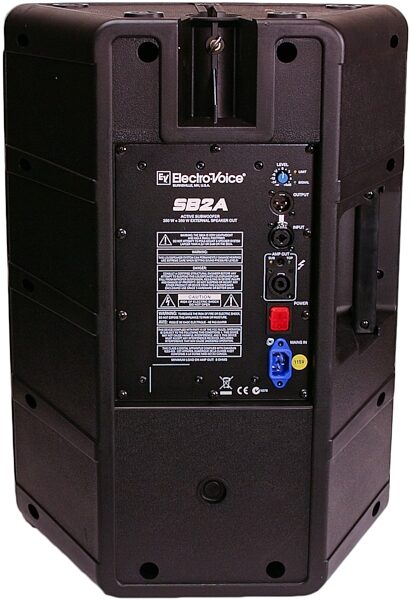

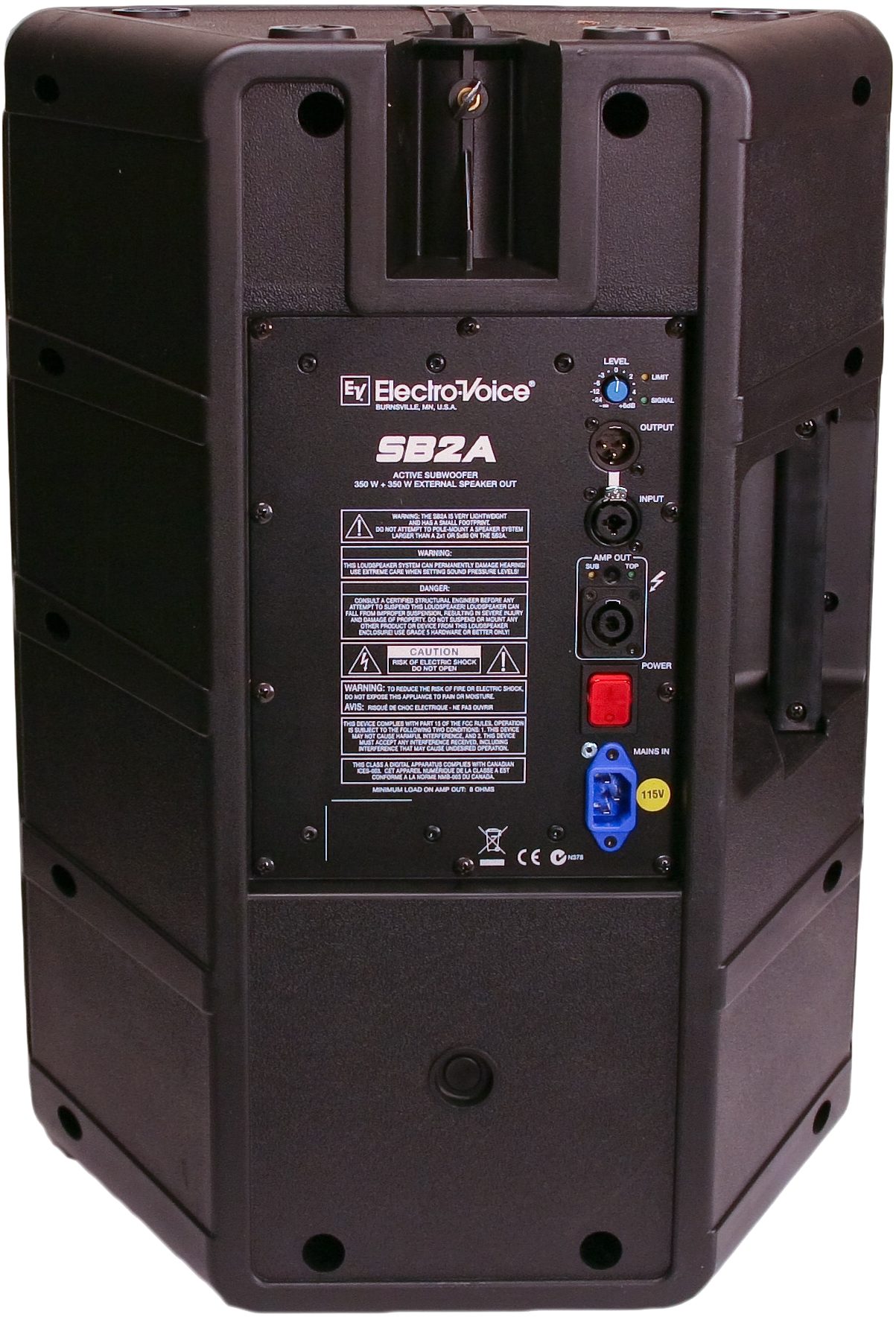

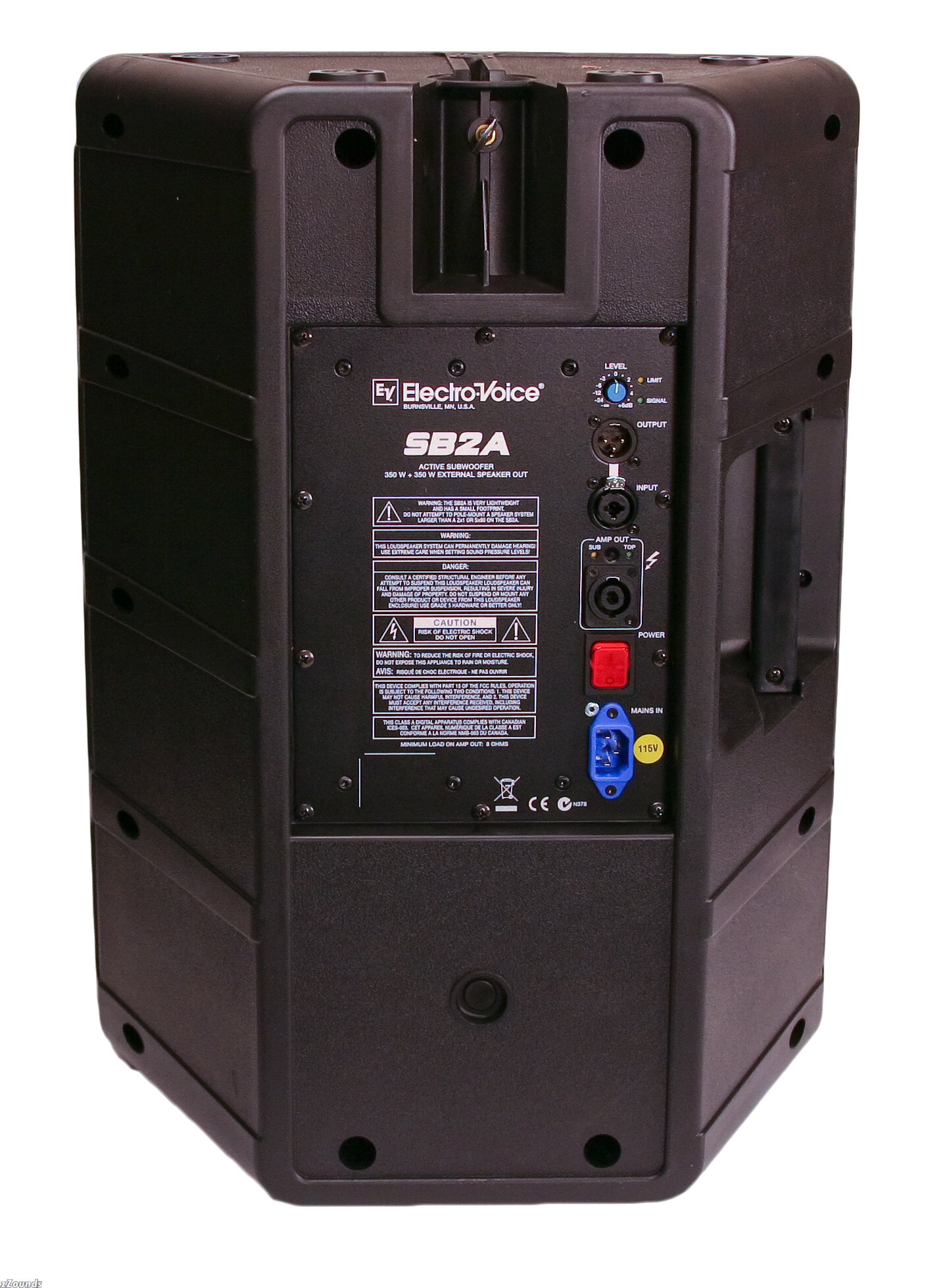

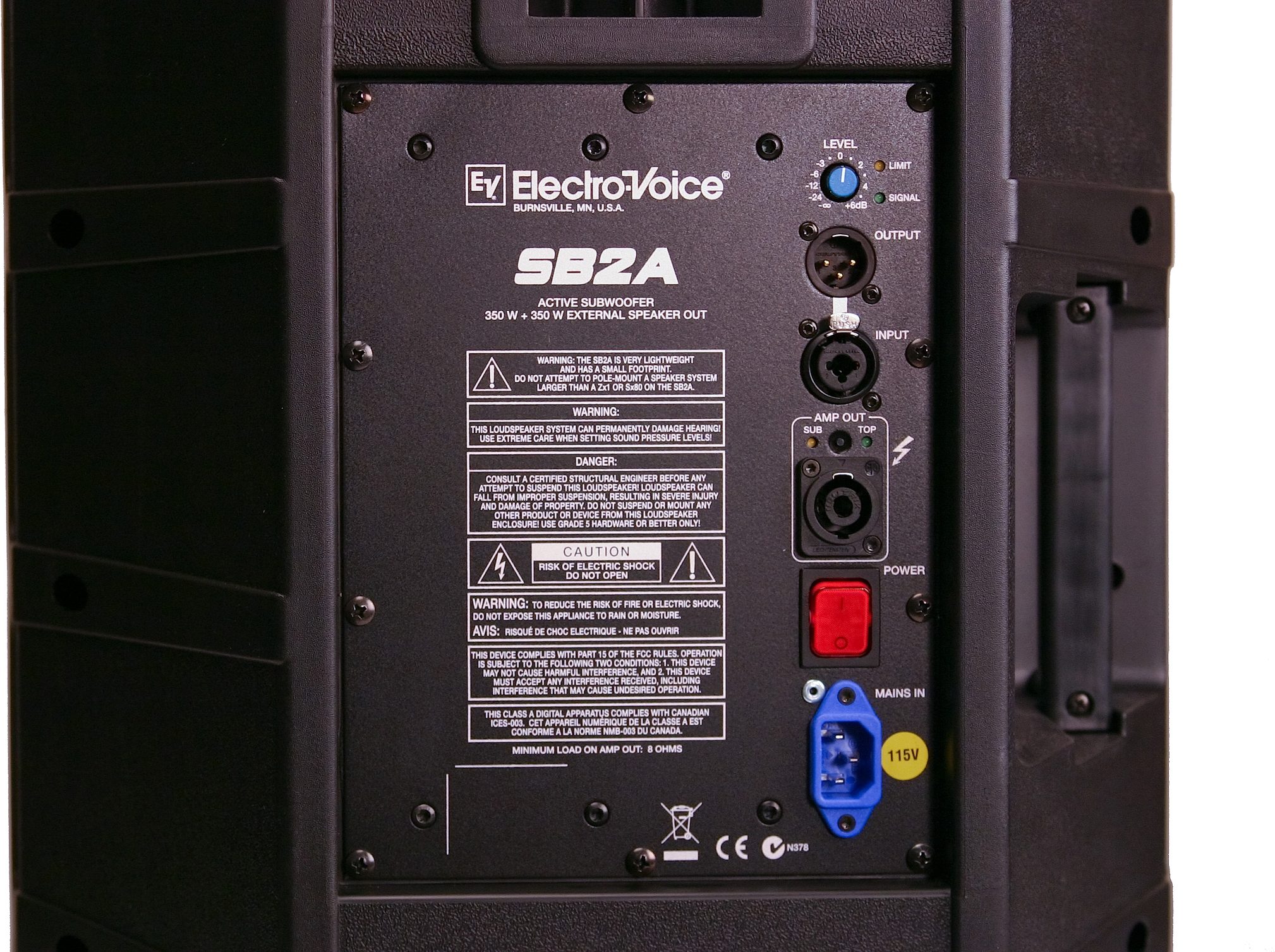

Neutrik XLR / 1/4 in. combo input

Parallel XLR output for additional powered speakers

Lightweight powered sub features 12" woofer and dual 350-watt amps (8 ohms) to drive passive sub or full-range speaker cabinet. Neutrik XLR/TRS combo input, plus parallel XLR out.
