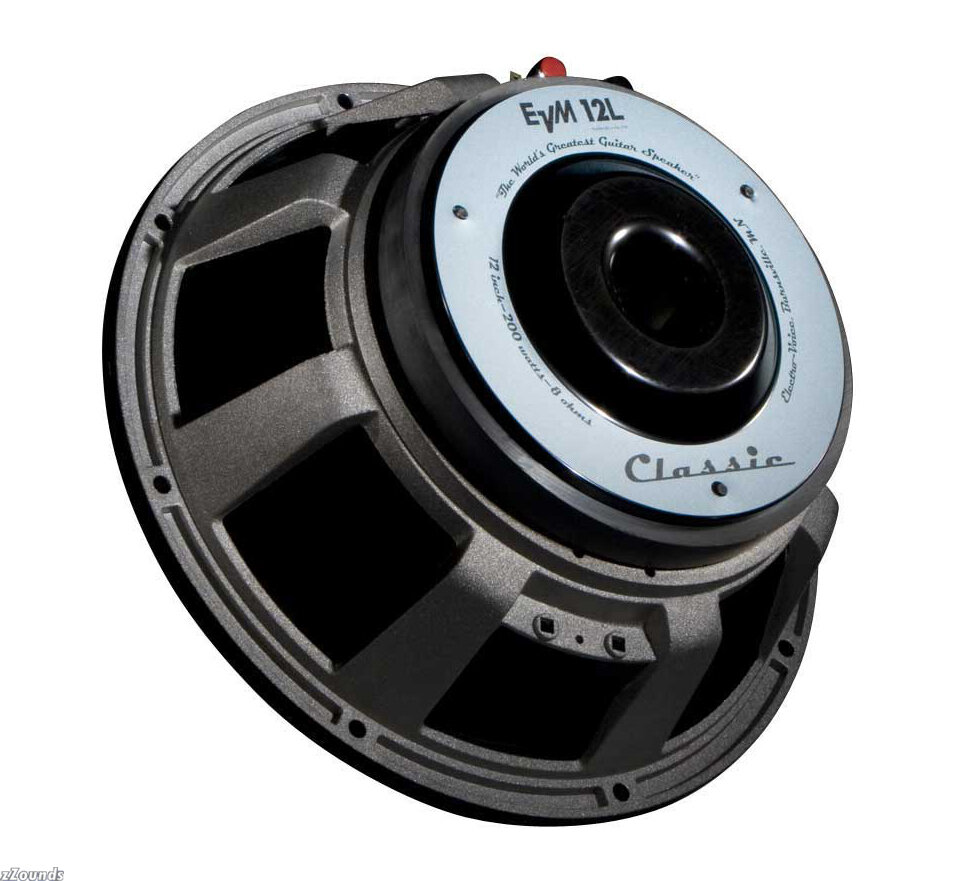

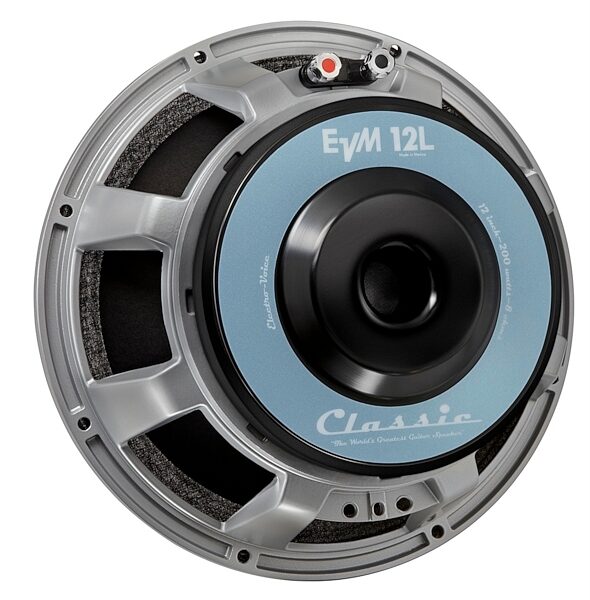

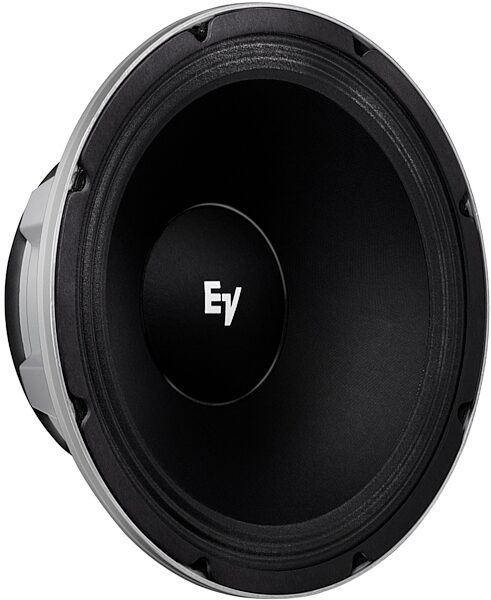

Electro-Voice EVM12L Classic Guitar Speaker (200 Watts, 12")

The EVM12L Classic is a 200-watt version of the EV speaker that's been going strong since 1983. Load this workhorse woofer in your cab for big low-end punch. (35) Read 10 reviews for this product | Rate and Review This Product
Ships to: Can ship to United States Can ship to APO/FPO
close [x]
zZounds.com 800-ZZOUNDS (800-996-8637)
Click to Enlarge Main
The Electro-Voice EVM12L Classic loudspeaker has been frequently referred to as "the world's greatest guitar speaker." Whether or not such a monumental question can ever be settled, there's no question that the EVM12L loudspeaker has been much beloved and extremely popular, ever since it was released in 1983. It's a 12-inch transducer with a 2-inch cone and a hefty 16 pound magnet. It runs with an 8 ohm nominal impedance, and is ready to move serious air with 200 watts of power handling.

Technically speaking, the EVM12Ls have a frequency response of 80 Hz to 7 kHz (-10 dB), and a maximum SPL of 125 dB. They handle 200 watts of continuous power and 1000 watts at peak.

Truly A Guitarist's Speaker

The EVM12L has long been favored by guitarists in particular. That's because it is a speaker capable of rendering not only the complex high transients and wide midrange of electric guitar tones, but the low mids and undertones as well, especially if you're applying crunch or distortion effects that create rumbling lows.

8 Ohm Impedance Fits Most Cabinets

The EVM12L is frequently used to replace stock cabinet speakers or to replace ones you "accidentally" blew out. Oops! Guess I gotta get myself a set of EVM12Ls! They boast superior power-to-heat efficiency than most other loudspeakers, and will sound excellent in virtually any sealed, vented, or open-backed enclosure.

Try Them In Different Cabs

In open-backed enclosures, the EVM12Ls shine, as their exceptional rich mid bass is accentuated. In sealed enclosures, the EVM12L delivers punchy and powerful performance, with rich low end along with great detail in the upper mids and highs.

Features:

- 12-inch replacement loudspeaker for guitar and bass cabinets
- Legendary low end and stability at extreme volumes
- 200-watt power handling
- Tough 8-spoke die-cast aluminum frame with heat-dispersing back cover zZounds is an authorized dealer of Electro-Voice products.
- Baffle cutout diameter: 281 mm (11.06")
- Coil Diameter: 63.5 mm (2.5")
- Cone Diameter: 305 mm (12.01")
- Efficiency: 5.9%
- Frame front diameter: 309.6 mm (12.19")
- Impedance: 8ohms
- Magnet diameter: 190.5 mm (7.5")
- Mounting bolt circle diameter 293.7 mm (11.56")
- Frequency Response (-10 dB) 80 - 7000 Hz
- Sensitivity: 1 W/1 m 100 dB
- Max. SPL/1m (calc): 125 dB
- System Power Handling (Continuous/Program/Peak): 200//1000 Watts
- Depth: 133.4 mm (5.25")
Dimensions and Weight in Packaging
Shipping Weight: 17 lbs
Shipping Dimensions: 15 x 15 x 9 in
Electro-Voice Warranty Electro Voice Warranty ´╗┐Electro-Voice offers the following warranties: 5 years on speakers; 3 years on electronics; and 2 years on microphones. If you have additional warranty questions, please contact the manufacturer at 800-392-3497

Product Description

The original EVM12L 12-inch loudspeaker was introduced in 1983. Known for its huge tone, gorgeous low-end and incredible stability at extreme volumes, it quickly achieved legendary status. Top guitarists and bassists loved it not only for its sound, but also for its reliability. Tour after tour, the EVM12L held up to the demands of the most punishing players.

The Electro-Voice EVM12L Classic is a 200-watt version of the original EVM12L Pro-Line. Designed for professional high-level, high-quality musical instrument and sound reinforcement systems. Used full range, the EVM12L Classic's frequency response is specially tailored to cut through the thickest mixes. The EVM12L Classic incorporates voice coil and suspension refinements for reliable operation. Power capacity is rated at 200 watts and features a rugged 8-spoke diecast aluminum frame with a heat radiating back cover.
This item must be exchanged directly through the manufacturer if it is found to be defective, and can only be returned to us if it is unopened. details
What Our Customers Are Saying About zZounds “I trust only zZounds for all of our band equipment. zZounds has always made sure that my orders were accurate and shipped on time. Thanks to zZounds for their quick service!" - customer on February 18, 2014
New, 8 Ohms
$265.00
or 4 payments
of $66.25
details
List: $309.00
Savings: $44.00 (14%)
In StockShips Today   Seen it for less?
Free Ground Shipping
Faster Shipping
Customer Reviews
4.5 out of 5 (35 ratings) Rate and Review This Product
zZounds has verified that this customer bought this product from us. "World's Hardest-Working Woofer"
Sound: I obtained an old Magtatone amp (push-pull 6BQ5 output tubes so about 18 watts RMS). The 10" peashooter Jensen 10 oz. magnet speaker that came stock with it was blown so I did some jigsawing on the baffle board and managed to make enough room to put an EVM 12L and a bullet tweeter with an almost equally massive magnet structure in there. My aim wasn't just power handling since many car subwoofers are rated as ridiculously high wattage because the coil gap and overhang simply lower the efficiency of the speakers to almost useless - not the EVM though. With that modest amp I can just about keep up with my lead player who plays through a 50 watt Marshall with a 4-12 Celestion cabinet. Watt for watt the EVM 12 is the most efficient speaker I have ever used. I speak from experience because my other amp is an Ampeg Reverbrocket (push-pull 7591s) retrofitted with a JBL K140 and the EVM-equipped Magnatone puts out very nearly the same SPL with considerably fewer watts of input. The transient response and overall tonal clarity of the EVM 12 is unsurpassed. You wouldn't think a 12" speaker with a 2 1/2" voice coil would be able to compete efficiency-wise with a JBL 15" with a 4" voice coil but in fact is does so quite favorably. Your amp is only as good as your speaker and the EVM12L makes the best sound out of the signal that's fed into it. I also recommended the EVM 12 L as the ideal speaker for my freind to put in an old wedge-shaped corner cabinet which he uses with a vintage VM 20 watt hi-fi amp which he uses as a studio recording amp. He is equally impressed as I am with the tone and output SPL of the EVM12L. The old SRO 15s were good enough for Ted Nugent to install in his stacks of Fender Dual Showman amps during the Amboy Dukes era and Arlen Vicelli (lead guitarist with with Salem Witchcraft out of Detroit) also used two Ampeg V4 cabinets loaded with 4 EVM 12L each with an Ampeg V4 head (120 watts RMS) and could shut down any Marshall stack made at the time and this setup would no doubt favorably compare to anything on the market today. Feature: Heavy as sin (but still not bad for the output it produces. Alnico magnets have simply become prohibitively expensive to manufacture so virtually all manufacturers have switched over to ferrite nowadays. The old Alnico magner SRO 12 was a couple of pounds lighter for the same voice coil but hasn't been available new for many years now. Ease of Use: Plug and play - what you hear is what your amp is putting out. Quality: I've never known one to fail except in cases where an output transistor failure has placed rail DC voltage across the coil. Value: You can buy Eminence professional grade that will put out high quality sound somewhat cheaper but in the end you tend to get the level of quality you pay for. Manufacturer Support: I've has occasion to deal with EV before for microphone replacement parts. They seemed quite helpful. Overall: No reason to ever want to ugrade since there is nothing better I could upgrade to.
Style of Music: Easy listening and classic rock
30 of 30 people (100%) found this review helpful. Did you?
Thanks for your opinion!
close [x]

Thank you. Your vote has been counted. Could you briefly tell us why the review was or was not helpful?

"Original EVM 12L Speaker"
Overall: If this "Classic" EVM 12L is anything like the original there is no way you can go wrong. I have an Original 1956 Fender Tweed Deluxe that I am pretty sure is rated at a whopping 12 watts. The original speaker was trashed and I tried a few other speakers before finding a EVM 12L in the early 80's. The other speakers would blow or rattle due to extensive controlled feedback I used in the style of music I played. When I put the EVM 12L in it was like my amp came alive and like one reviewer has written on the "Classic".....my 12 watt Fender was holding its own with much more powerful amps and I have never needed anything else on stage.....PERIOD! I did do a little "tweaking" on my bias and stuff in the amp but the speaker made the difference. It is the most efficient speaker for the money out there and what goes in it comes out BETTER! After almost 30 years use I am suffering a slight rattle from certain notes but most speakers would have died long ago. I am searching for a re-cone or I am going to by one of these new "Classics" and hope they are like the original! Actually I can't help but think they actually would have improved over the years since I bought mine!
Style of Music: Blues, Rock, Classic Rock, Country, Bluegrass and some stuff that has no category!
