Elation Stagepack Dimmer System

No longer available at zZounds

Elation Stagepack Dimmer System, DP-DMX4B

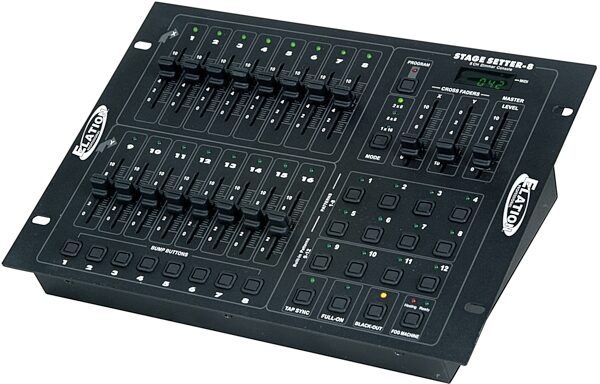

Elation Stagepack Dimmer System, Stage Setter 8

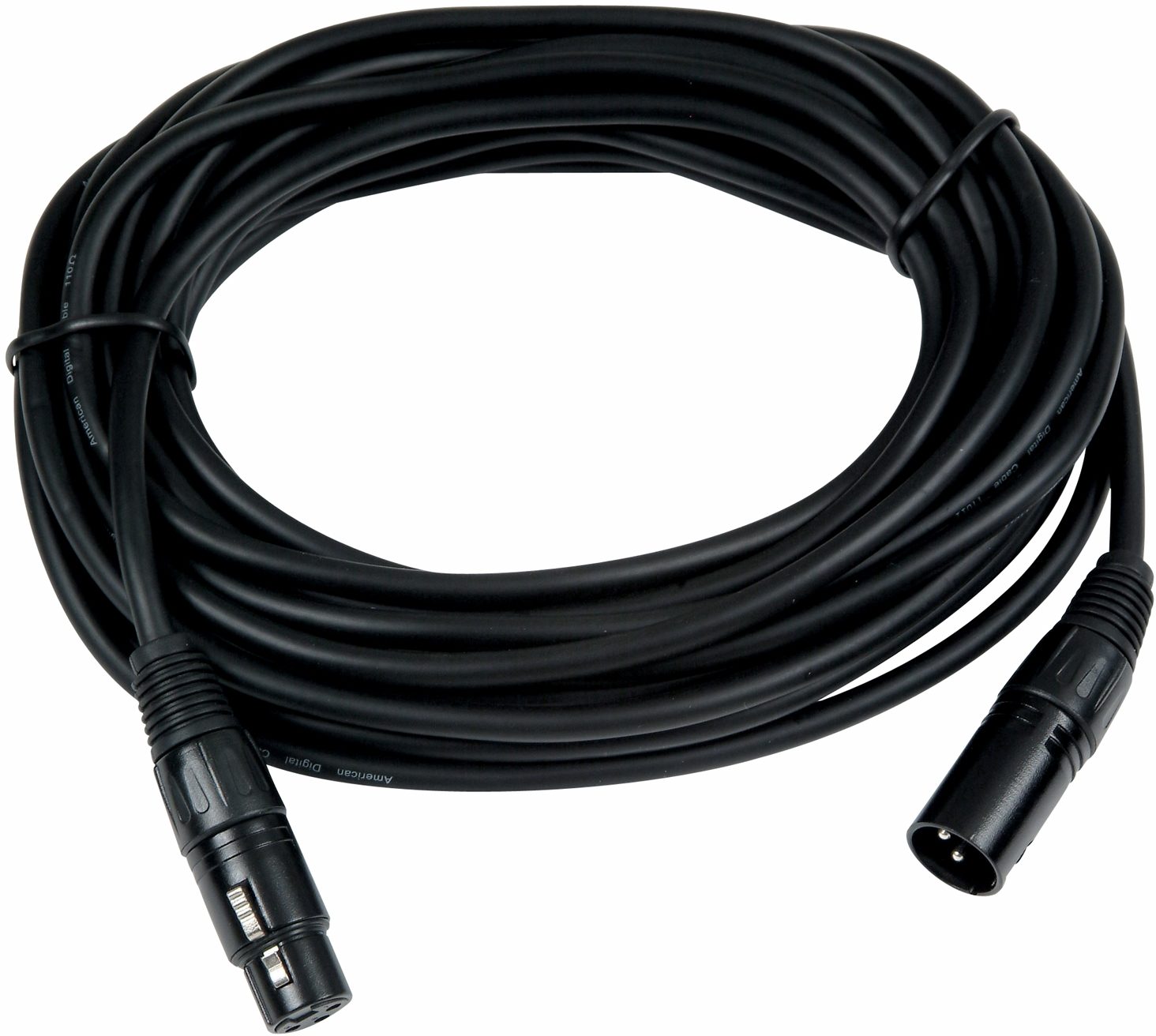

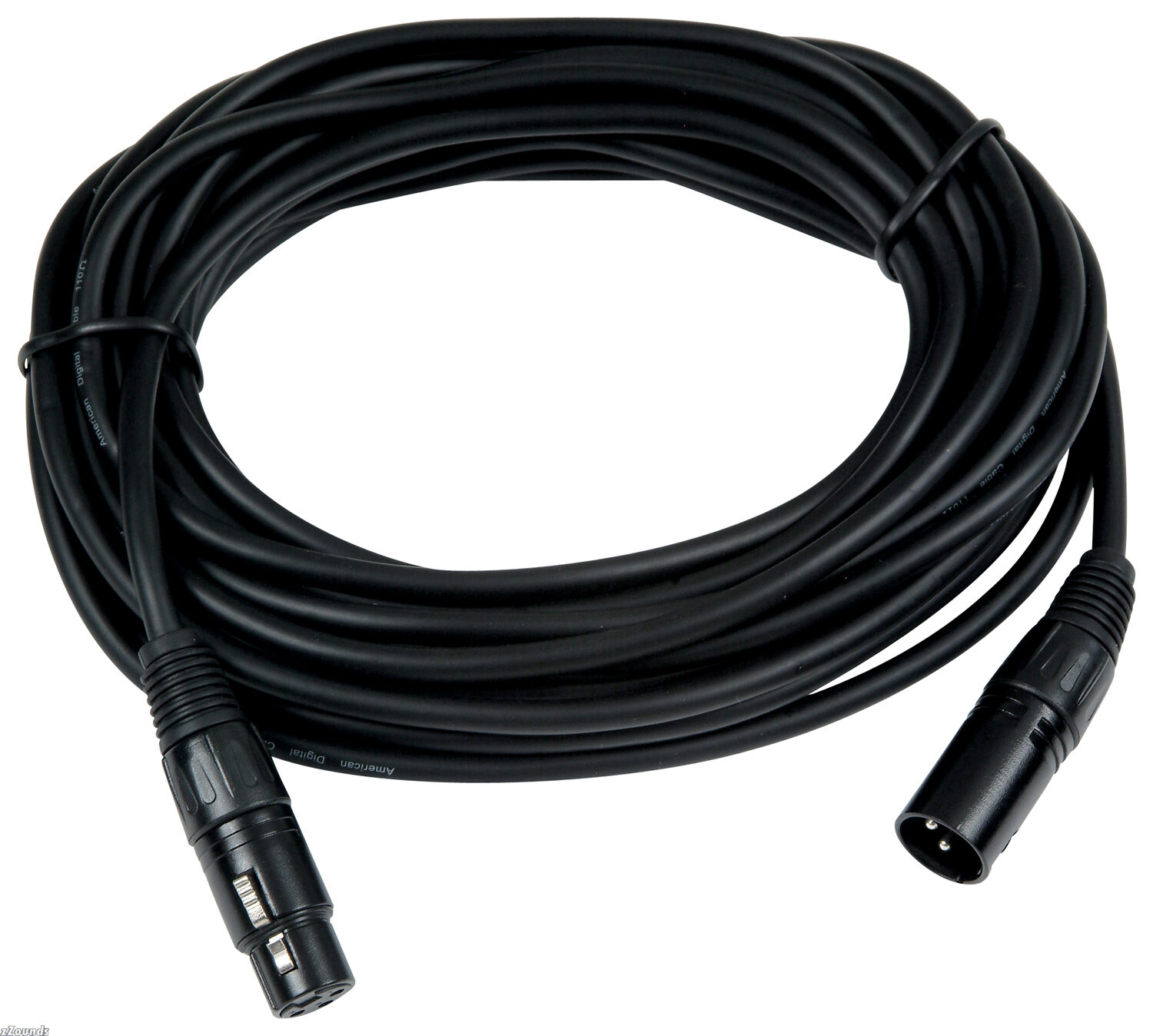

Elation Stagepack Dimmer System, XLR Cable

zZounds Gear Experts Say...

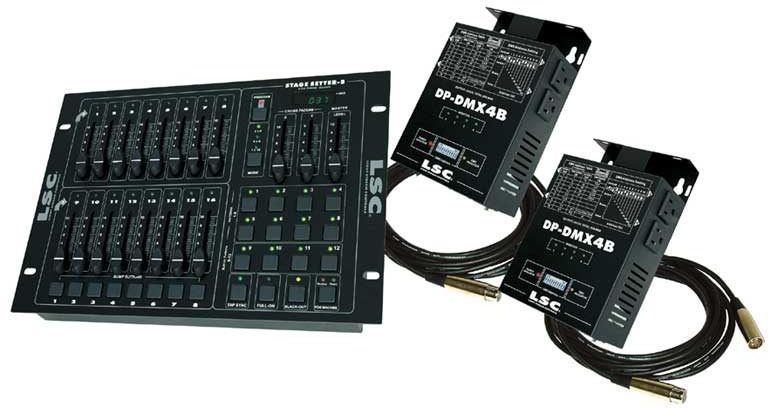

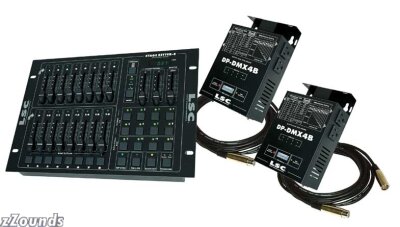

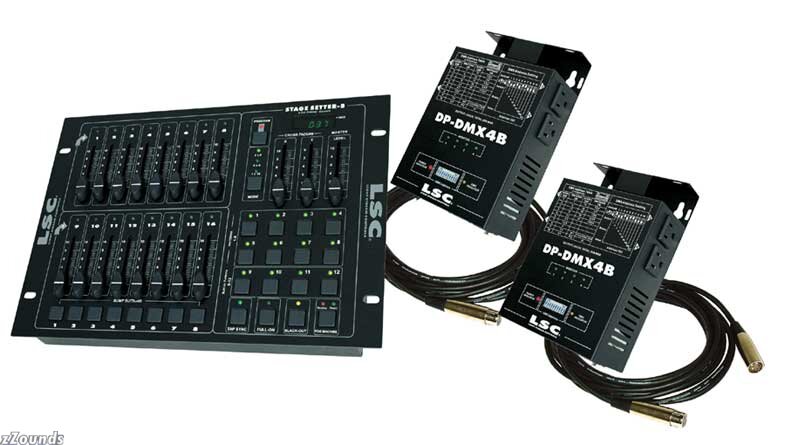

Includes 1 x Stage Setter 8, 2 x XLR cables, 2 x DP-DMX4B.

Overview

Get complete control over your light show with this full-featured controller.

Features
3-pin XLR in, out and thru DMX jacks

Three different operating modes: 2 x 8, 8 x 8, and 1 x 16.

12 pattern option: 4 built-in and 8 user-programmable

32 steps (scenes) per program

MIDI compatible

Fog machine output button

Scene crossfader

Tap sync button

8 bump buttons

Backup memory protection

Full-functional, 4-digit LCD display

Includes: 1 x Stage Setter 8, 2 x XLR cables, 2 x DP-DMX4B

Specs

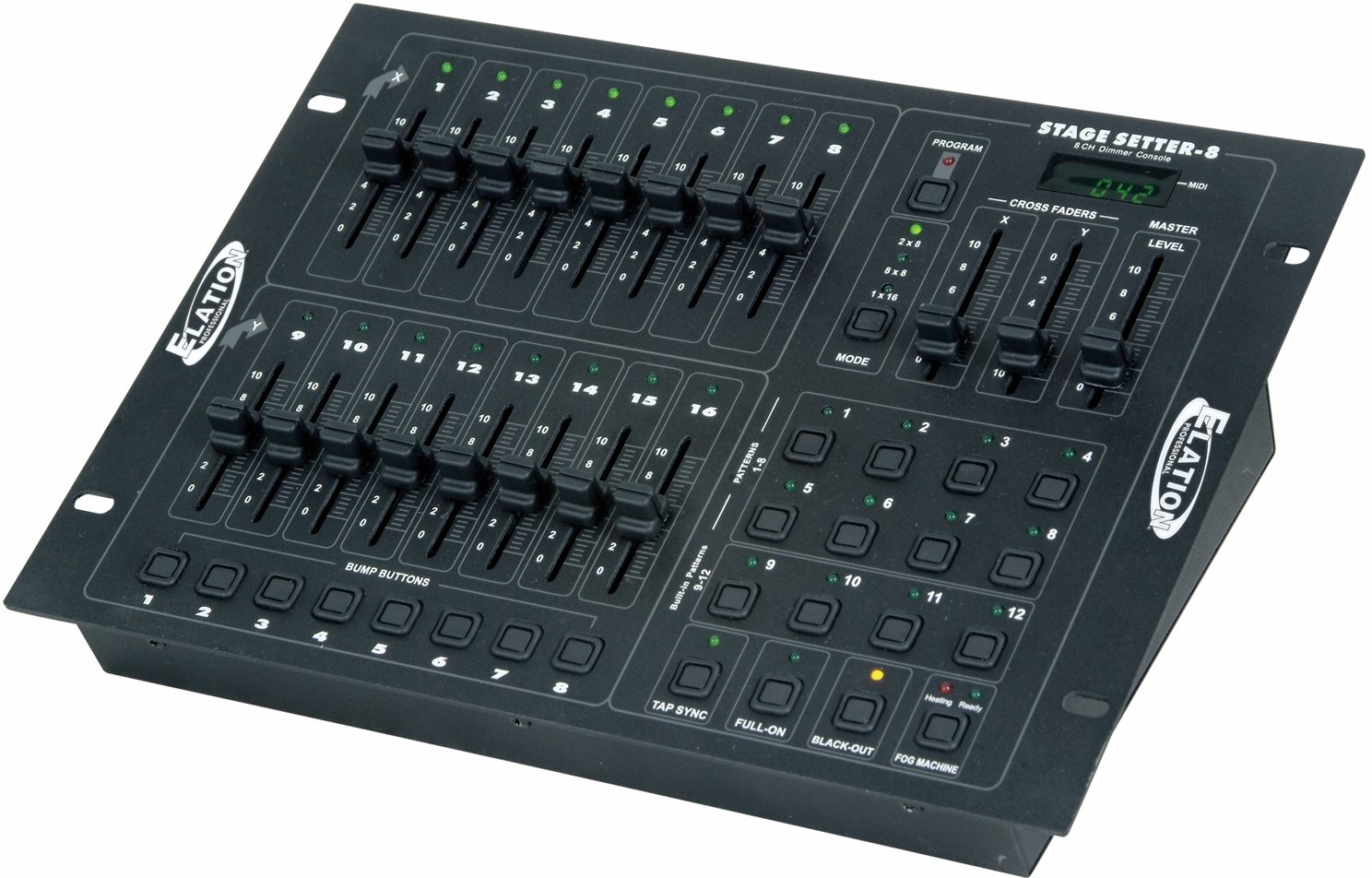

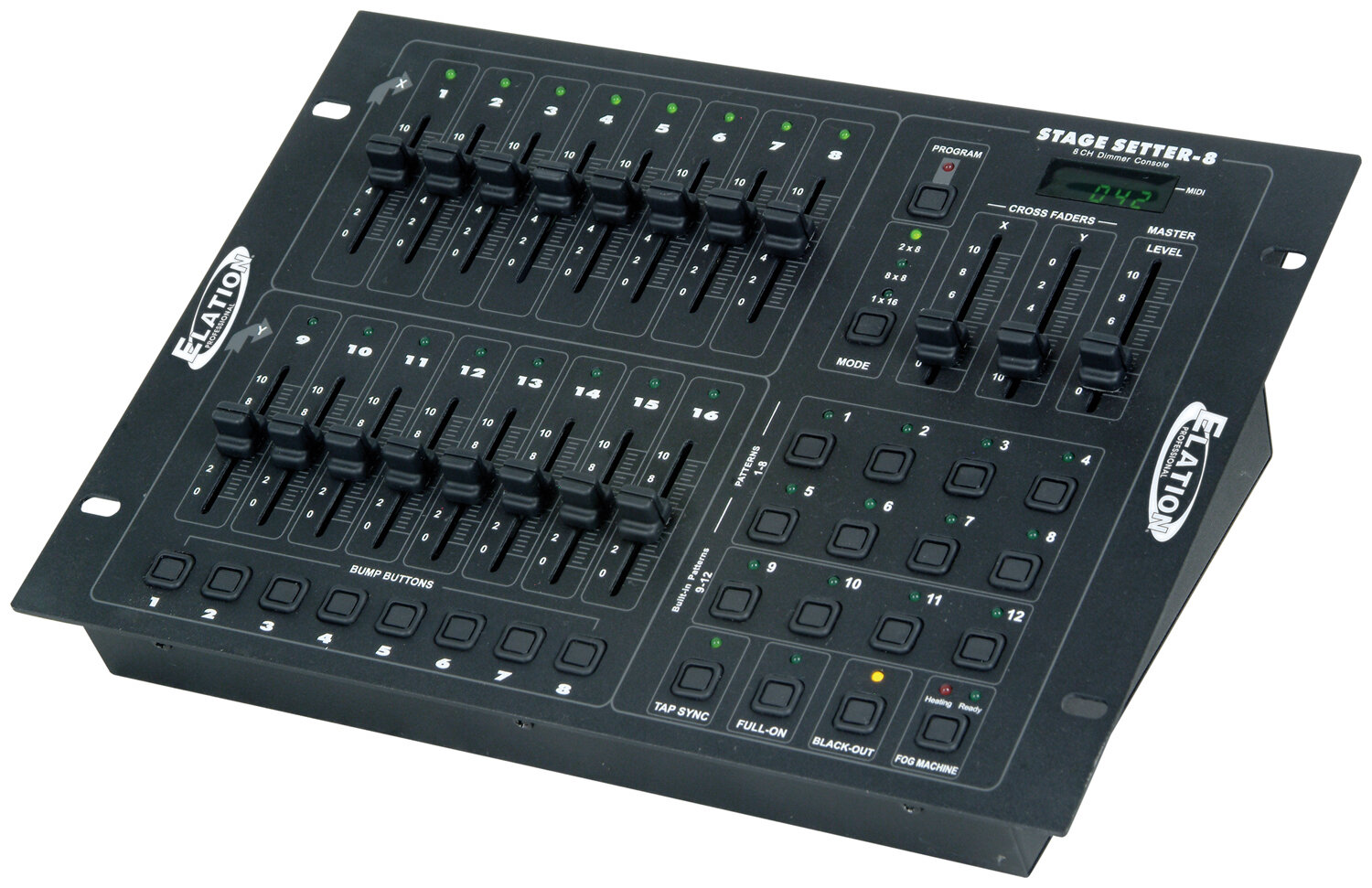

Stage Setter Controller
Steps: up to 32 steps for each pattern

DMX out: 3-pin XLR female

MIDI in/thru: 5-pin multiple socket

Patterns: 12 patterns, including 8 programmable patterns and 4 built-in patterns

Dimensions: 12.2 x 8.74 x 2.8 in (310 x 222 x 71 mm)

Power: DC 12~20V, 500 mA main

Weight: 5.51 lbs (2.4 kg)

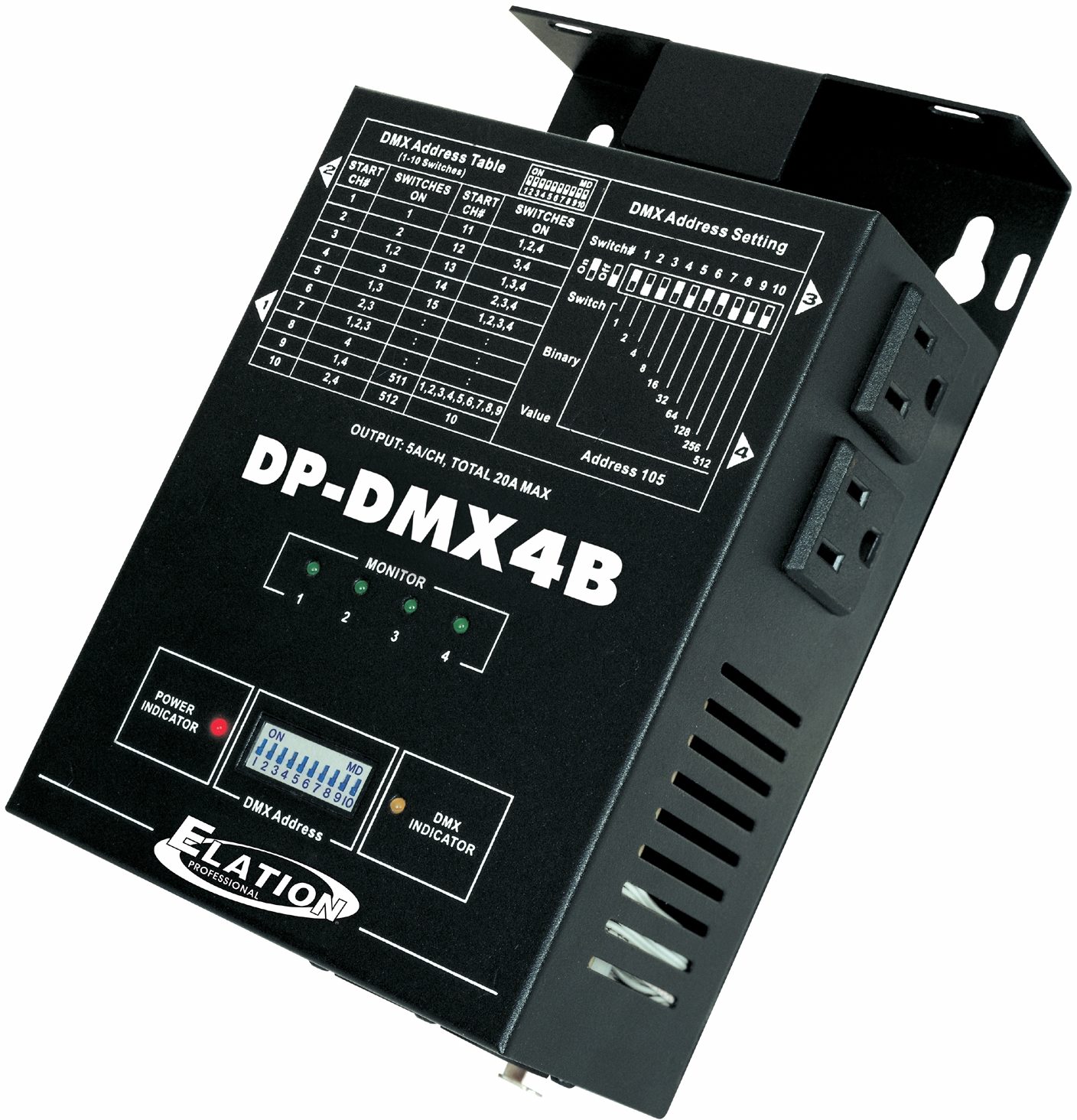

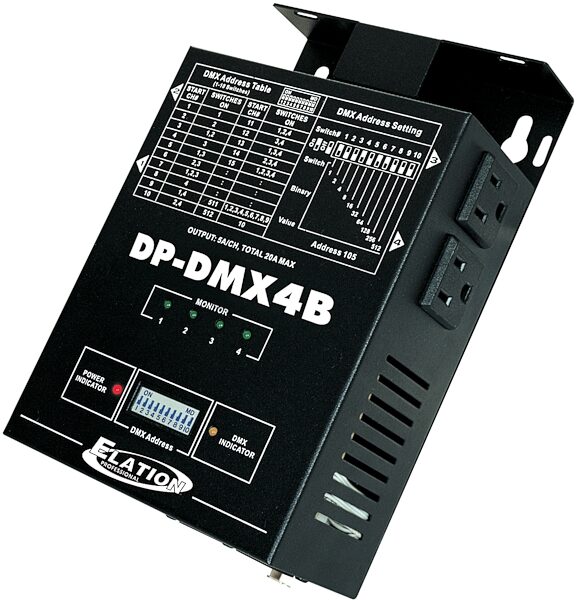

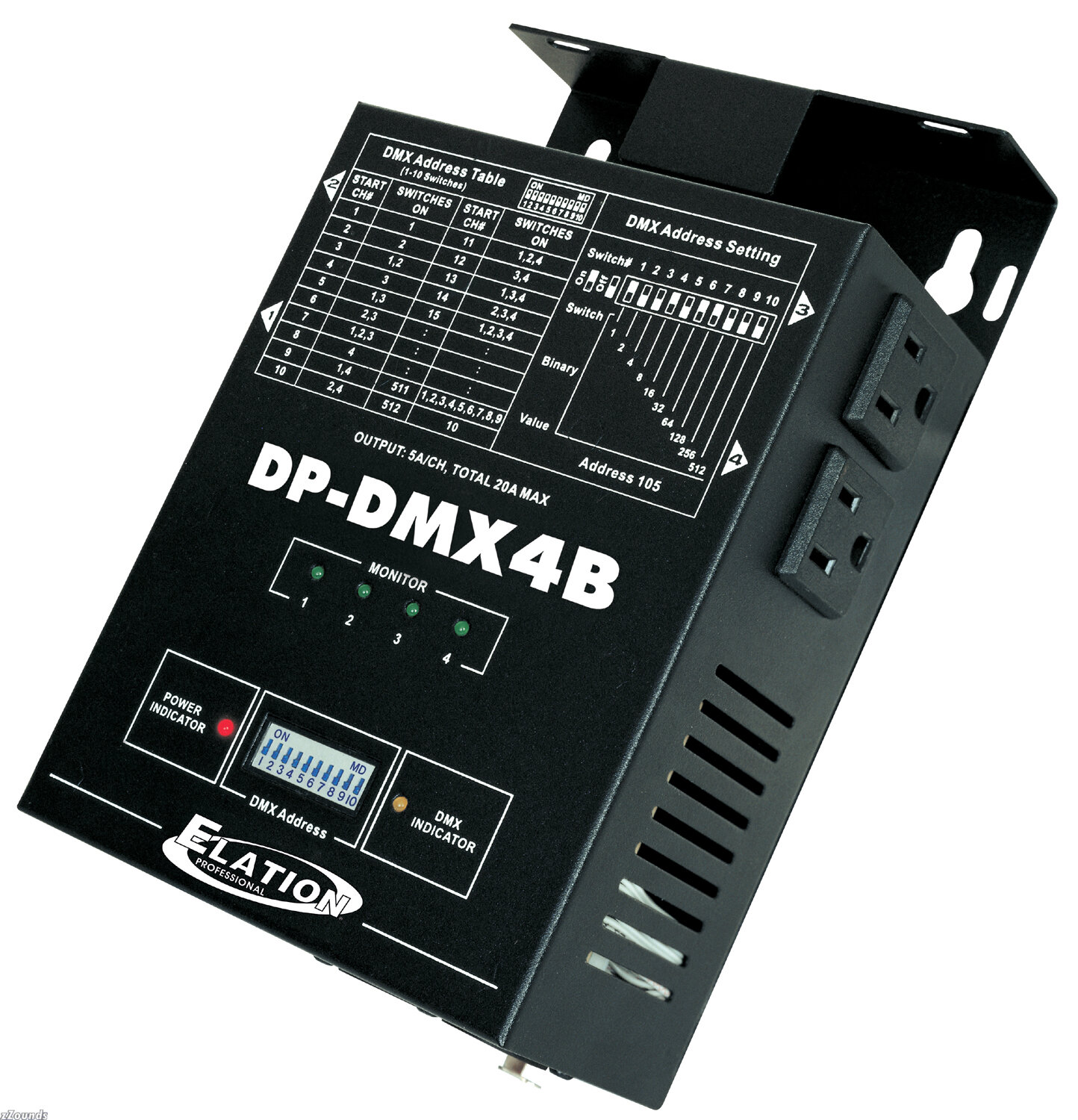

DP-DMX4B Dimmer Pack
Compact 4 Channel DMX Dimmer

1x 3-prong Edison plug per channel

On/off power switch

XLR In/Out

10 position dip switch setting

Hanging bracket to hang on truss

LED "ON" indicators

Max Power: 500W per channel

Dimensions (WxLxD): 5 x 7.75 x 2.5 in.

Weight: 3 lbs.
