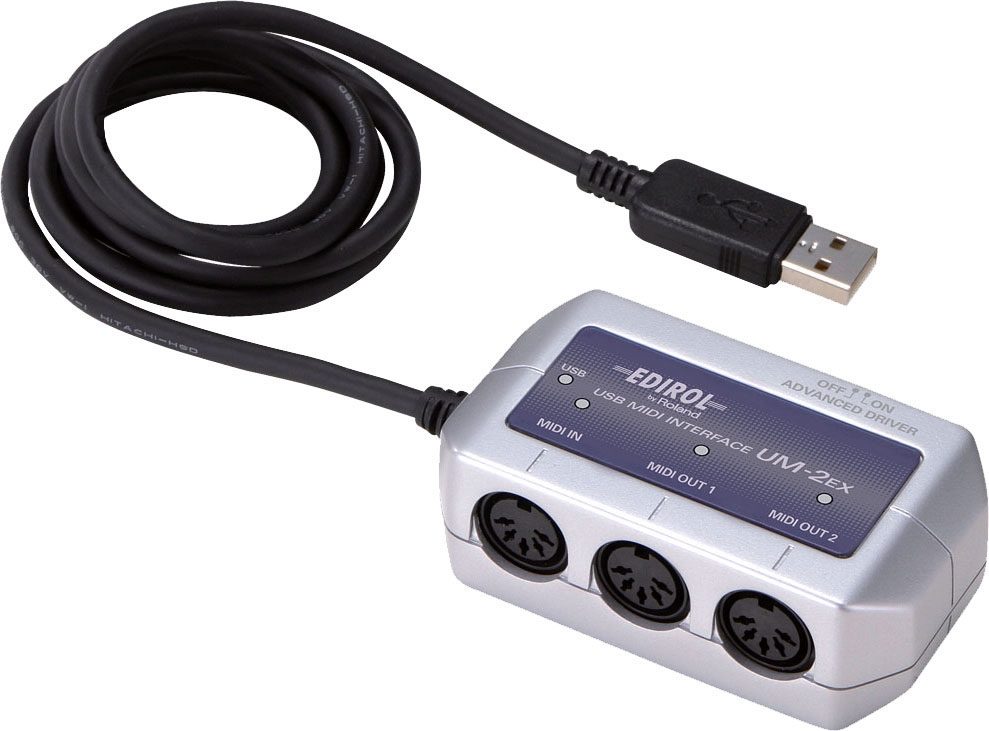

Edirol UM2EX 1x2 USB MIDI Interface

The UM2EX is a simple USB MIDI interface offering one MIDI input & two MIDI outputs. It offers a variety of features, including FPT (Fast Processing Technology of MIDI transmission), MIDI signal indicators, and support for OS-Standard drivers on the latest versions of Mac OS and Windows. The UM2EX is well suited for any small MIDI studio application or portable MIDI station. The female MIDI jacks allow for any length of MIDI cable to be used, and make the UM2EX ideal for MIDI devices placed a good distance form the computer.

Features
Fast and stable MIDI data transmission realized by FPT (Fast Processing Technology of MIDI transmission)

Supports both advanced and standard OS drivers

Female in and out MIDI connectors

USB cable attached

USB bus-powered, adapter free

Must have a compatible USB host controller.

EDIROL designs its USB devices in accordance with USB specifications and has passed all compatibility tests, which are continuously held and organized by USB Implementers Forum (USB-IF).

Technical Info

Connectors:
- MIDI IN x 1 (16 MIDI Channels)
- MIDI OUT x 2 (16 MIDI Channels)
- USB Connector - Cable length: 1.2 m / 47-1/4 inches

Switch: ADVANCED DRIVER switch

Compatible OS
Windows:
- Windows XP/2000/ME/98SE/98
- OS Native Driver Support

MacOS:
- Mac OS 9.0.4 or later
- Mac OS 10.2 or later
- OS Native Driver Support

Others
Power Supply: Supplied from the computer

Current Draw: 70 mA

Accessories Included: Owner's Manual

Dimensions (WxDxH): 81 mm 3-3/16 in. x 47 mm 1-7/8 in. x 28 mm 1-1/8 in.

Weight: 0.1 kg, 0 lbs. 4 oz.

Simple, reliable and cost-effective--When all you need is a MIDI to USB interface, the Edirol UM2EX delivers the goods, and outperforms your expectations. The single MIDI-In and two MIDI-Outs each sport their own MIDI signal indicator LED; matched with the robust Fast Processing Technology architecture, they make for worry free MIDI performance.
