Echo Gina 24-Bit Multi-Track Digital Recorder Card

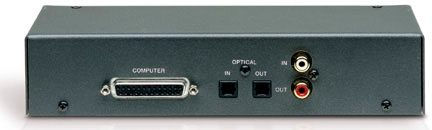

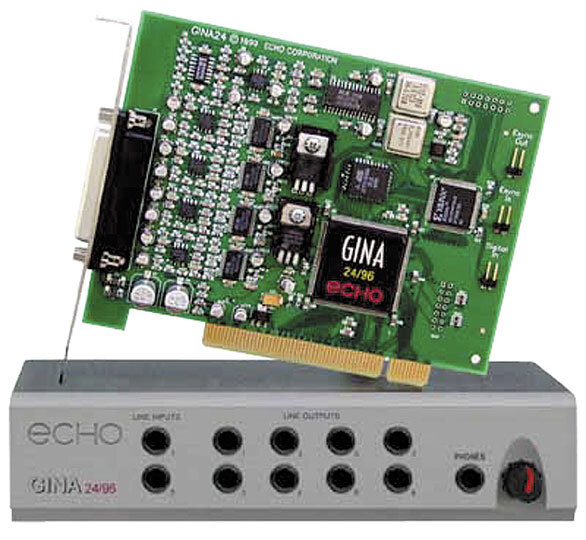

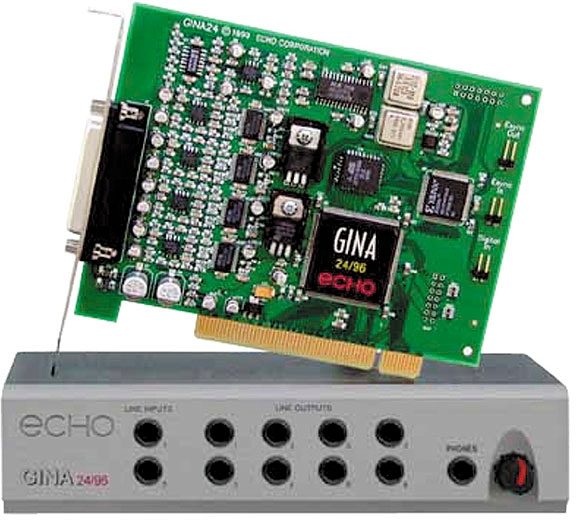

Gina 24 joins Layla, Mona, and Darla 24 as the latest in high quality recording products from Echo. Gina 24 offers 2 in 8 out balanced 1/4" connections, ADAT, S/PDIF Coaxile and S/PDIF optical. Using the latest generation of 24-bit 96kHz converters, Gina 24 offers a high dynamic range and low distortion. The new Gina 24 comes with a 6 ft. shielded host cable that connects the break out box to a PCI bus master interface card.

Features
PCI bus master interface

Dynamic Range of 108dB (A-weighted) on inputs and 110db (A-weighted) on outputs

2 Balanced +4dBu TRS inputs

8 Balanced +4dBu TRS outputs

Frequency Response: 10Hz - 22kHz, ±0.25dB

Headphone output with volume control

Both ADAT optical and S/PDIF digital inputs and output

Syncs to other Echo 24-bit products

Software Console for monitoring, metering, and setting levels

Gina24 is now shipping with drivers for Windows 95/98/2000/XP/Mac/WDM/ASIO/GSIF!

Compatible with all popular recording/editing software

Full duplex operation (simultaneously record 2 analog channels while playing back 8 analog channels)

Will record analog and digital inputs simultaneously

Includes mixer application for audio outputs, monitor assignments, volume, and metering

Technical Info

Audio Performance
Analog Inputs (x2 balanced TRS):
Frequency Response: 10Hz - 22kHz, ±0.25dB
Dynamic Range: 108dB A-weighted on inputs and 110db A-weighted on outputs
THD+n: <0.001%, 20Hz22kHz
Nominal Input Level: +4dBu
Maximum Input Level: +18dBu
Input Impedance: 10K
Analog Outputs (x8 balanced TRS):
THD+N: <0.002%, 20Hz22kHz
Nominal Output Level: +4dBu
Maximum Output Level: +18dBu
Compatible with all popular recording/editing software

Hardware
Host Interface: PCI busmaster card
2 balanced 1/4 in. analog inputs with precision 24-bit 128x oversampling analog-to-digital converters
8 balanced 1/4 in. analog outputs with high performance 24-bit 128x oversampling digital-to-analog converters
S/PDIF digital I/O with up to 24-bit resolution
ADAT optical digital I/O
Trim control and level meter for each input
Headphone output with volume control
Onboard 24-bit Motorola DSP
24-bit data resolution maintained throughout entire signal path
Multiple sample rates from 8kHz to 96kHz
Esync I/O

PC System Requirements
PCI 2.1 Pentium system running Windows 95/98/ME/2000/XP
Genuine Intel¬ CPU (Pentium class or better) or AMD Athlon
64 MB RAM (more highly recommended)
PCI 2.1 bus slot or CardBus

Mac System Requirements
Power Macs up through the G4
OS 8.6, 9, 9.1, or 9.2

We strongly recommend you have at least 128 MB of RAM; 256 MB is preferable.
