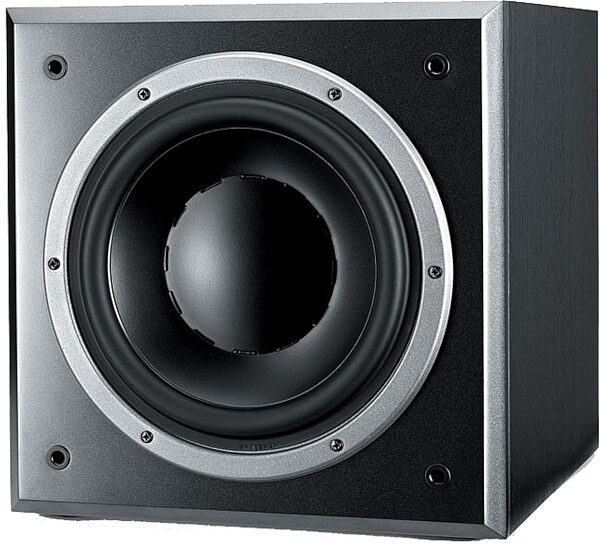

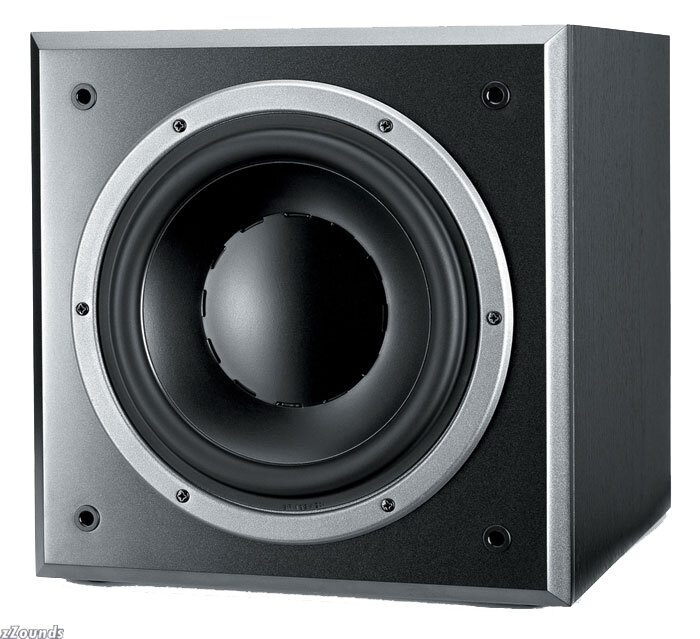

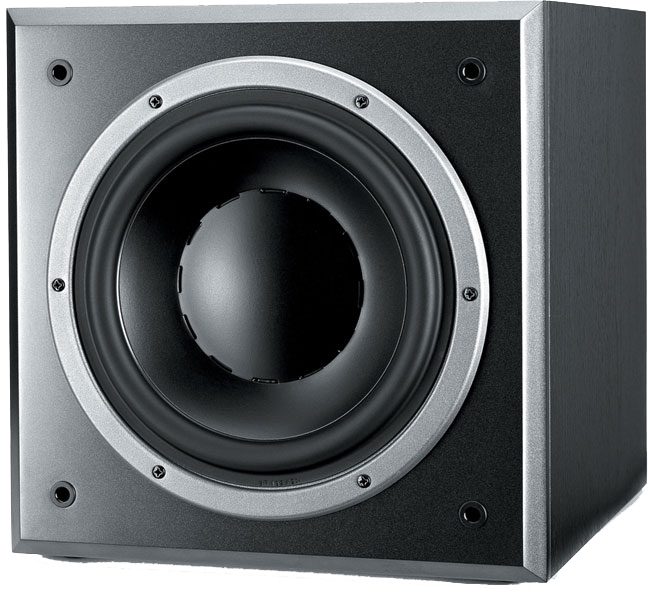

Dynaudio Acoustics BM9S Active Subwoofer

The BM9S subwoofer is intended to operate with the BM series monitors, more specifically, the BM5A monitor. It is extremely well-suited for that extra punch to the bottom in setups where space is limited. The BM9S delivers a clear, crispy and surprisingly powerful punch when you take its almost diminutive size into account. The BM9S will complement stereo and multichannel monitoring equally well and when daisy-chaining of subwoofers is needed, it sports a low level LFE input/output.

For significant control and enhancement of the general performance, the BM9S is a closed cabinet type. This creates an internal pressure by which the woofer gains a considerable amount of precision when it comes to the reproduction of low frequent signals. This precision is easily audible and it augments the feeling of reality that the listener experiences.

The BM9S is very suitable for the following production environments:

Post Production

Music Recording and Mixing

Film Editing (smaller rooms)

DVD authoring and Mastering

Multichannel Production (Audio or Audio for pictures)

Broadcast

Edit suites

OB vans

The BM9S is designed according to the strict BM series specifications. With a 10 in. woofer and 200 Watts of power, and virtually minute dimensions, this sub is tailor-made to take care of even the most comprehensive challenges where space is scarce. Being every bit as versatile as the rest of the BM series, BM9S is a very competent partner for smaller stereo and multichannel setups, giving a very powerful system for even the most demanding users across the globe.

The Auto On/Off function, provides a minimized idle energy usage by shutting off after minutes of no input signal. The auto sensing circuit enables BM9S to automatically come to life when input signal is detected.

The satellite filters that this sub sports, provides high-pass filtering of the monitor source signal allowing 60Hz or 80Hz corner frequencies. This is a huge advantage for the monitor performance, as the satellites do not need to deal with power consuming lower frequencies. This leaves all the satellite power to greatly accelerate performance and precision.

Technical Info

System: Active Subwoofer

Frequency Response (+/- 3 dB): 29 Hz - 250 Hz

Low Frequency Limit*: 29 Hz

High Frequency Limit*: 50 Hz - 250 Hz

Amplifier Power: 200 W @ 4 Ohm

Crossover Frequencies HP Sat: Flat / 60 Hz / 80 Hz

Low Pass Filter: 50 – 150 Hz

Crossover Slope: 2nd order Butterworth

Crossover Bypass: Yes (Flat)

Phase adjustment: 0° / 180°

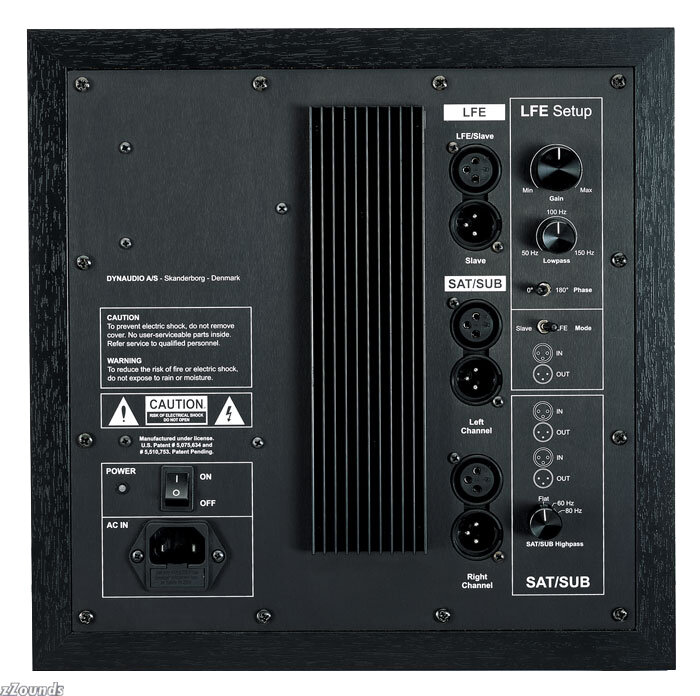

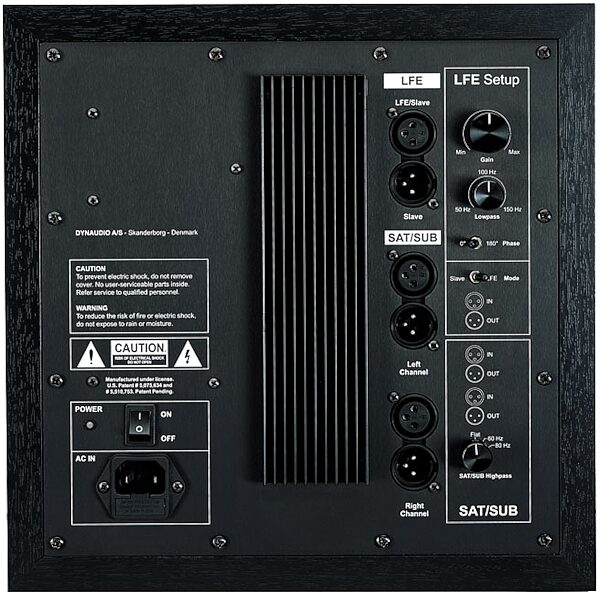

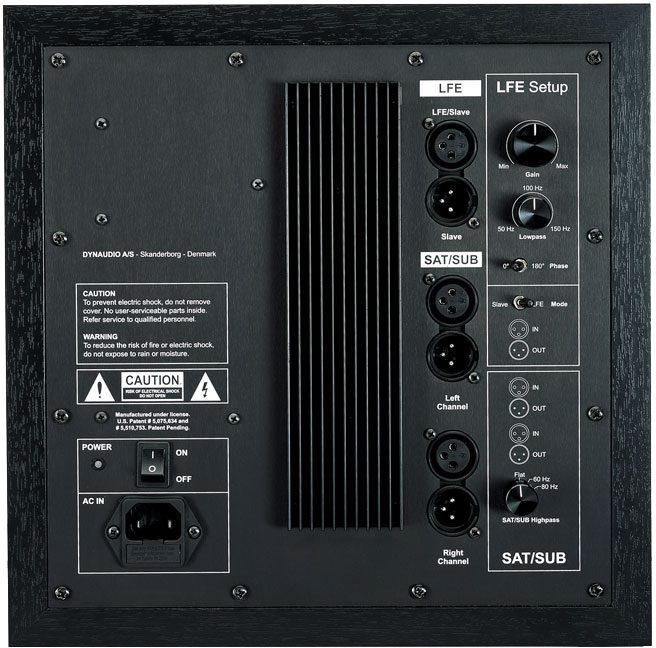

Inputs: Balanced/XLR

Input Sensitivity for Full Output*: 75mV - 5V

Maximum Input: 10Vrms

Input Impedance: 20 k (+ branch) 10k (- branch)

Output: Balanced/XLR

Master / Slave Link: Yes

Drive Unit: 10 in. (24 cm), long throw

Magnetic Shielding: Yes

Internal Cabinet Volume: 15,9 litres

Bass Principle: Closed

Power Consumption Max.: 325 W

Power Consumption Standby: 16 W

Mains Voltage**: 100-120V 50/60Hz or 220-240V 50/60Hz

Weight (net): 10 kg / 22 lbs

Dimensions (W x H x D): 294 x 289 x 318 mm / 11.6 x 11.4 x 12.5 in.

10" driver; 29Hz-250Hz response, 200 watts at 4 ohms.
