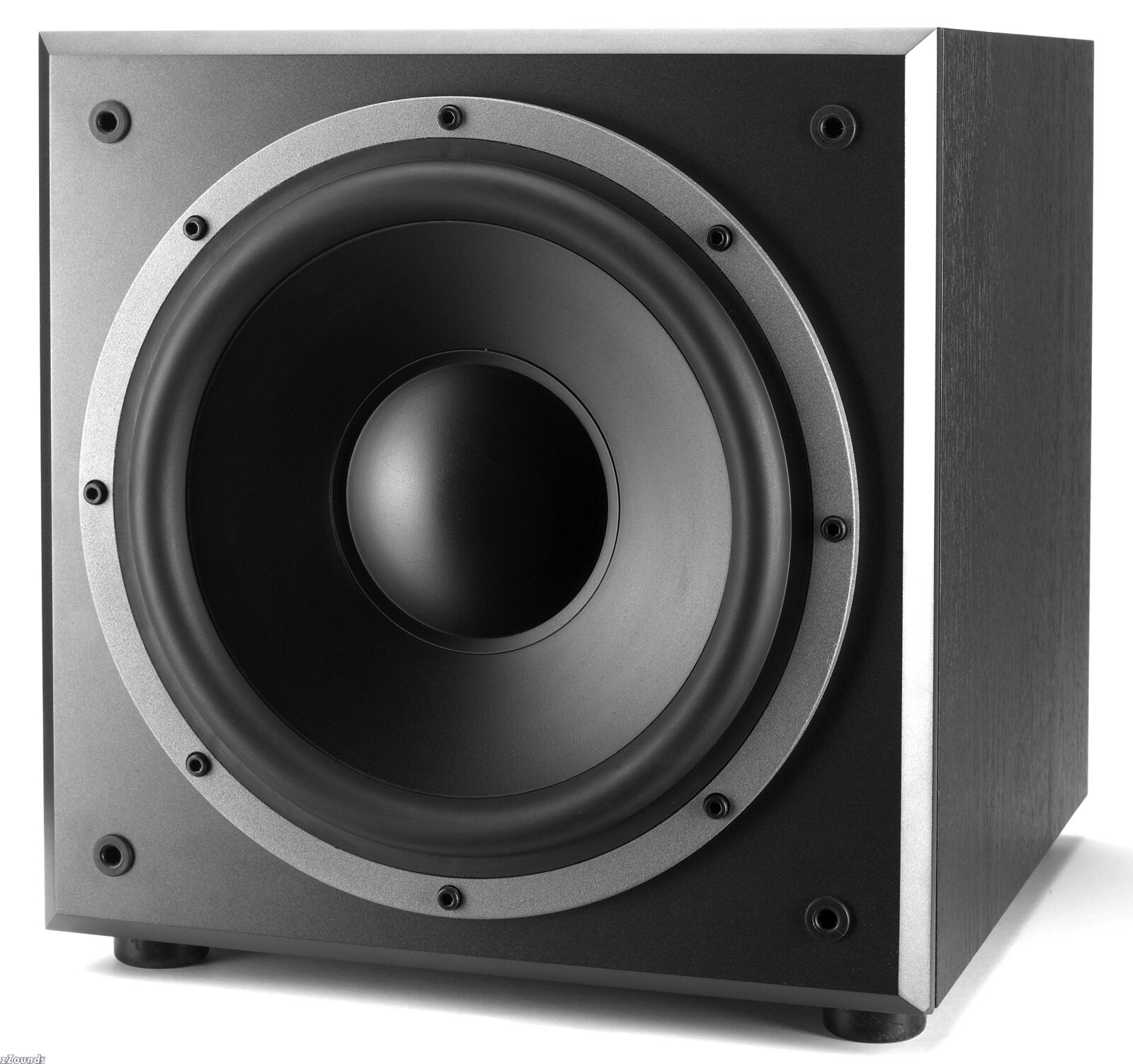

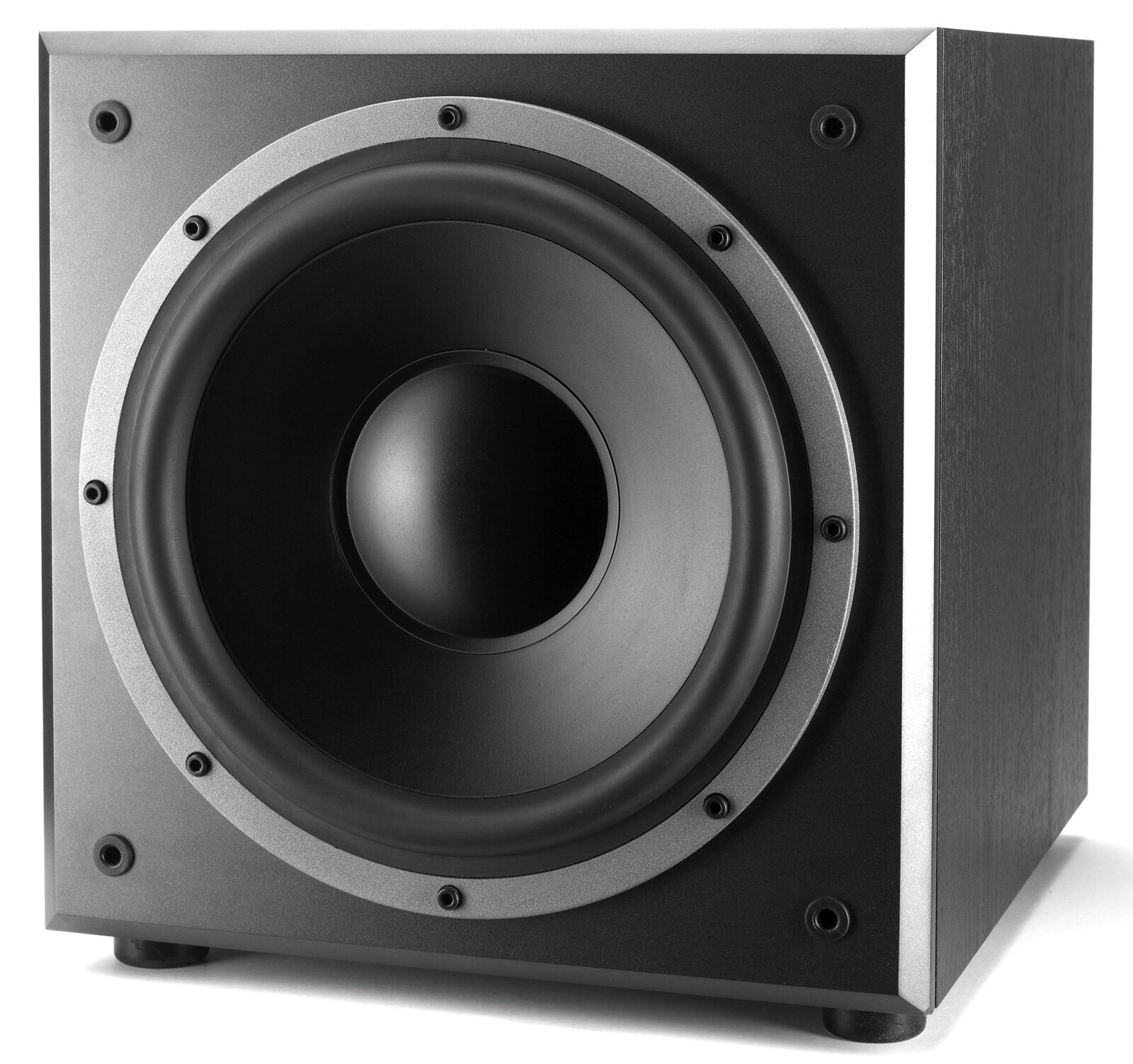

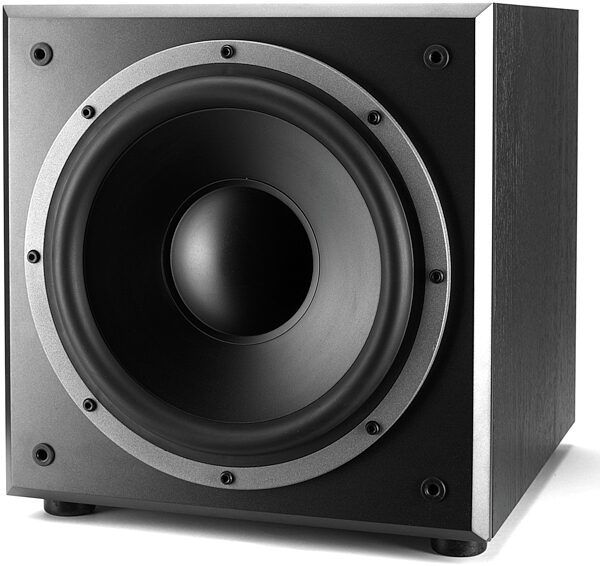

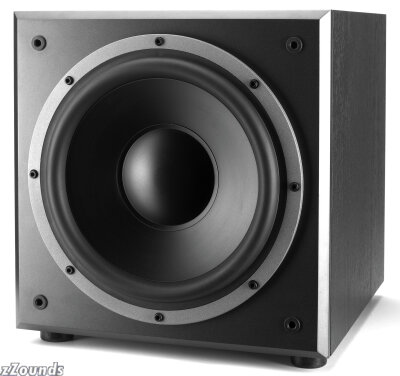

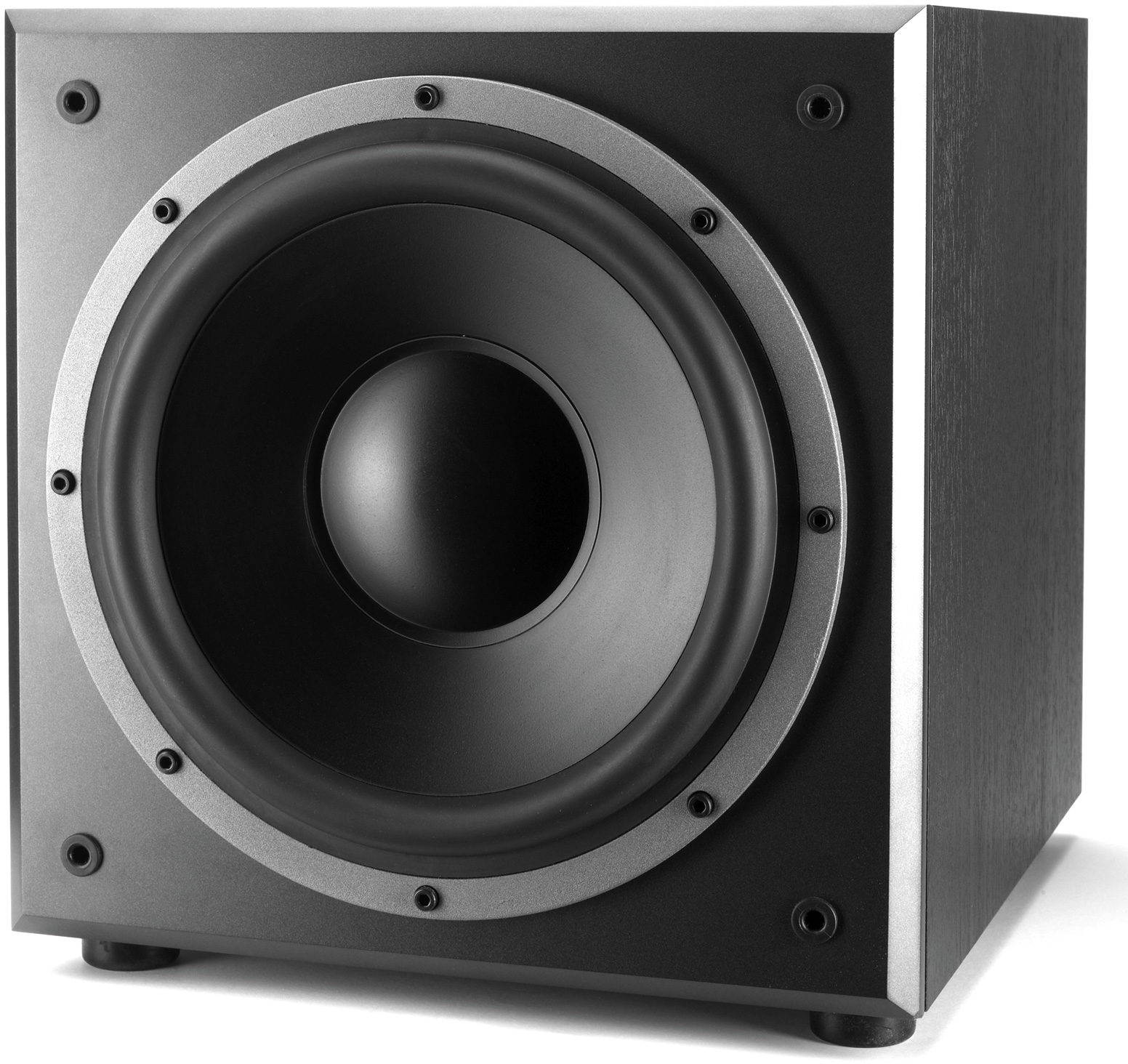

Dynaudio Acoustics BM14S Active Subwoofer

The Dynaudio BM14S subwoofer is perfectly aligned for operation with the BM and M series monitors. For larger multichannel setups with e.g. five M1.5's, multiple BM14S's will be a preferred choice. The BM14S is designed to take care of the most challenging requests and it will compliment larger stereo and multichannel setups in even the most demanding studios.

The BM14S has been designed as a closed cabinet type subwoofer. This type of cabinet design gives you significant control and enhancement of the general performance as the closed cabinet creates an internal pressure. This adds considerably to the amount of accurately reproduced low frequency signals. When audio reproduction is more accurate, it will add to the sense of reality, and the BM14S ensures exactly that.

The BM14S is very suitable for the following production environments:

Post Production

Music Recording and Mixing

Film Editing

DVD authoring and Mastering

Multichannel Production (Audio or Audio for pictures)

Broadcast

Edit suites

With a substantial 300 watts of power coming from the 12-inch woofer and an impressive low frequency limit of 18 Hz, this subwoofer is the perfect match for the BM and M series monitors. With an auto On/Off function, energy usage shuts off after minutes of no input signal, thereby saving energy when the subwoofer is idle. As soon as an input is detected, the auto sensing circuit enables the subwoofer to come back to life.

A satellite filter feature is provided by the BM 14S, enabling adjustment of low-pass corner frequencies from 50 to 150Hz of the monitor source signal. The subwoofer will thus take care of the lower and power consuming frequencies, and thereby adding to the performance and clarity of the monitors in the system. This is due to the high-pass filtering feature that the BM 14S comes with. If the need arises to daisy-chain more subwoofers to the same system, the low level LFE output gives you exactly that choice.

Technical Info

System: Active Subwoofer

Frequency Response (+/- 3 dB): 18 Hz - 250 Hz Sub input, 18 Hz - 250 Hz LFE input

Low Frequency Limit: 18 Hz

High Frequency Limit: 50 Hz - 250 Hz Sub input, 150 Hz LFE input

Amplifier Power: 300 W @ 4 Ohms

Crossover Frequencies HP Sat: Flat / 60 Hz / 80 Hz

Low Pass filter: 50 – 150 Hz

Crossover Slope: 2nd order Butterworth

Crossover Bypass: Yes (Flat)

Phase adjustment: 0° / 180°

Inputs: Balanced/XLR

Input Sensitivity for Full Output: 75 mV – 5 V

Maximum Input: 10 Vrms

Input Impedance: 10kohms

Output: Balanced / XLR

Master / Slave Link: Yes

Drive Unit: 12 in. (30 cm), long throw

Magnetic Shielding: Yes

Internal Cabinet Volume: 31 litres

Bass Principle: Closed

Power Consumption: Max. 325 W

Power Consumption Standby: < 3 W

Mains Voltage: 100-120 V @ 50 - 60Hz

Weight (net): 21 kg

Dimensions (W x H x D): 350 x 368 x 420 mm / 13.8 x 14.5 x 16.5 in.

12" driver; 18Hz-250Hz response, 300 watts at 4 ohms.
