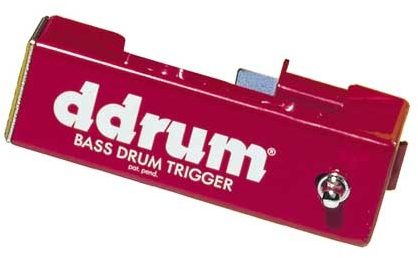

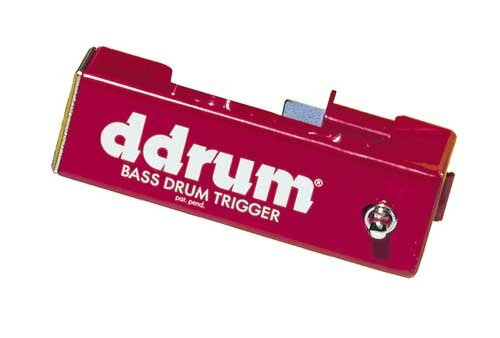

DDrum Electronic Percussion DDTTK Kick Drum Trigger

Existing drum sensors consisting of piezo elements applied to the head of an acoustic drum have not been perceived as giving a "natural response." After analyzing the waveform patterns from acoustic drums, Clavia has created a patented transducer solution using vectored amplitude measurements (VAM).

Other problems include double triggering (you strike the drum once and you hear additional unwanted strikes) and crosstalk (you strike Tom 1 and Tom 2 plays too).

Two other common problems with conventional triggers are: durability (when you hit them accidentally they can break) and unreliable mounting methods. Triggers mounted using adhesives can accidentally separate from the drumhead.

ddrum Trigger Features
Playing dynamics are recognized in a "natural way," allowing for a realistic dynamic response across the entire drumhead (from the center of the head to the rim).

Double triggering problem is reduced

The special design trigger reduces the crosstalk problem.

Together with ddrum sound modules - crosstalk and double triggering are totally eliminated. No muffling is needed.

Shock-mounted construction

XLR-Output for professional connection

Fits most types of moulded hoops

No adhesive is needed

Safely secured at the hoop with a standard tension rod

Sturdy construction

All parts interchangeable

ddrum Triggers Add a New Dimension to Drumming
In the studio, for example, hook up your drum Triggers to existing acoustic drums and connect them to your sound module. You can combine great drum sounds with MIDI information almost instantly. On the road, custom-tailor your acoustic sound with the digital studio sounds in your ddrum sound module. Whether in studio sessions or on the road, the ddrum Triggers are the perfect choice for the demanding drummer.

ddrumTriggers - a New Standard for Triggers
With their superb tracking ability, ddrum Triggers set a new standard for trigger microphones. With absolutely no adhesives required, the ddrum triggers clamp onto the sides of standard drum hoops. The specially designed transducer is softly pressed against the drumhead. The advantages are obvious: You can change drumheads over and over without damaging the transducer. The metal casing protects the trigger from accidental drum hits. The ultra-light pressure of the transducer against the head prevents any "damping" effect. The XLR output ensures a reliable connection.

3 Types of Triggers
The ddrum triggers come in 3 different models and fit standard drum rim/hoops: Tom Tom, Kick drum and a special ddrum Trigger for the Snare, with a separate sensor for the Rim.

Note: The snare trigger can also be used on tom toms.

Try out the ddrum triggers. They are perfect for the demanding musician. They are rugged, roadworthy, and very easily removable. When using ddrum triggers with a ddrum sound module it sounds like you're playing a perfectly miked drum kit.

The ddrum triggers are protected by US patent # 5 345:037. Other countries, patent pending.
