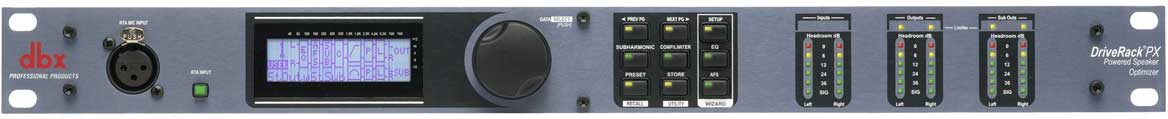

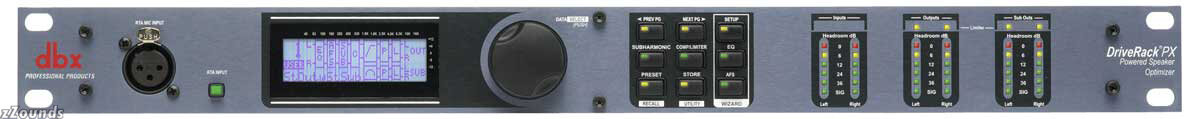

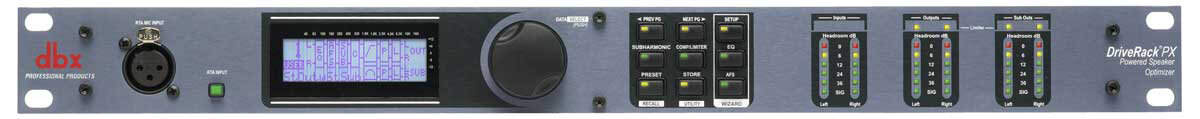

dbx DriveRack PX Powered Speaker Optimizer (With Measurement Microphone)

Auto-EQ your room with the measurement mic. Suppress feedback and limit peaks. Extend bass response with the subharmonic synth. The DriveRack PX does it all! (25) Read 12 reviews for this product | Rate and review this product
Ships to: Can ship to United States
close [x]
zZounds.com 800-ZZOUNDS (800-996-8637)

Sorry, this product is no longer available on zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer

Please shop our site for related products:

A DriveRack Specially-Designed to Optimize Powered Speakers

Ensure that your powered speakers enjoy peak performance with the dbx DriveRack PX Powered Speaker Optimizer. The DriveRack PX features Auto-EQ, Feedback Suppression, and a host of other useful tools that will improve sound quality and protect your powered speakers in any live sound application.

Improve Powered Speaker Performance

The DriveRack PX boasts much of the same renowned technology found in other DriveRacks, but tailored specifically for use with powered speakers. The emphasis is on cleaning up speakers' sound and helping them use power more efficiently, thereby allowing for higher volume levels. Included preset programs cover most major speaker brands.

All The Essential Ins and Outs

On the back of the DriveRack PX are two XLR inputs with a +4db/-10db attenuator switch to handle different input levels. There are also Stereo Main and Sub XLR Outputs. Finally, you can plug the included dbx M2 Measurement mic into an XLR input on the front of the PX.

Includes Vaunted dbx Processing and Controls

Perfect your powered speakers' sound with the DriveRack PX's Dual 28-band Graphic EQ. If you need to adjust a signal's dynamic range, you can utilize the on-board Classic dbx Compressor.

Auto-EQ Instantly Senses the Nuances of a Room

Using the included dbx M2 Measurement Mic, the DriveRack PX adjusts a signal's equalization settings to correct for deficiencies in a room. For instance, if your speakers are in spaces that tend to attenuate out higher frequencies, the DriveRack PX will automatically compensate for this by boosting the highs in the signal.

Subharmonic Synth Adds Low-End Oomph

Another piece of dbx proprietary technology included with the DriveRack PX is the Subharmonic Synthesizer, which adds additional bass response to your speakers. The Subharmonic Synth is great for enhancing subwoofer performance, and can also help compensate in set-ups that lack a subwoofer.

Protection from Feedback, Prevention of Noise

Thanks to the PX's patented Advanced Feedback Suppression (AFS) system, annoying feedback will never find its way to your powered speakers. And its PeakPlus limiting technology prevents sound levels from ever reaching speaker- or hearing-damaging levels.

Easy to Use, Instant Results

If you're running live sound, you can't afford to skimp on sound quality. The dbx DriveRack PX is easy to set up and will improve powered speaker performance immediately. It's as simple as using the Setup, Auto-EQ, and AFS Wizards to get going, and then choosing a preset that aligns to your speakers. After those few simple steps comes the best part: enjoying great sound!

Additional Features

- Stereo Multi-band Parametric EQ
- Pink Noise Generator
- Setup Wizard Includes presets for popular powered speaker brands
- 24-Bit ADC/24-Bit DAC, >110 dB Dynamic Range
- Full Graphic LCD Display

zZounds is an authorized dealer of DBX products.
Included powered speaker programs:
- dB Technologies: Opera Live 202, Opera Live 205, Opera Live 402, Opera Live 405, Sub 12
- HK Audio: Lucas Impact, Lucas Smart
- JBL: EON10 G2, EON15 G2, PRX515, EONSUB G2, JRX118SP, PRX518S
- Mackie: SRM350, SRM450, SWA1501
- Peavey: PR-15P
- QSC: HPR122i, HPR153i
- RCF: ART310-A, ART312-A, ART315-A, ART325-A
- Samson: dB500A
- Yamaha: MSR400
- Yorkville: NX55P, NX720S
If you have additional warranty questions, please contact the manufacturer at 801-568-7660

Product Description

The dbx DriveRack PX Powered Speaker Optimizer provides flexibility, sonic excellence and intuitive control for performance applications. Specifically, the PX is designed to enhance and optimize the performance of powered speakers, all in an intuitive package that requires no special skills to operate.

Designed for Powered Speakers

With its highly acclaimed DriveRack technology, the dbx DriveRack PX is the first processor that's specifically tailored for powered speakers. Although powered speakers by definition require no amplifier or external processor, the DriveRack PX is an indispensable addition to any powered speaker setup, as it provides a number of impressive features that offer louder, cleaner, better sound than had previously been possible from a powered speaker system.

Includes dbx M2 Measurement Mic for Auto-EQ

Included with the dbx DriveRack PX is the dbx M2 measurement mic, which uses Auto-EQ to correct for audible deficiencies in the room environment.

Feedback Suppression, Subharmonic Synth, and Peak Limiting

dbx's patented Advanced Feedback Suppression (AFS) kills harsh feedback, allowing problem-free operation at higher sound levels, and the patented Subharmonic Synthesizer extends bass response for enhanced bottom end. The graceful PeakPlus limiting protects the speakers without sacrificing overall sound quality.

Easy to Use with Any Powered PA System

Intuitive out-of-box support for a host of JBL and other popular powered speaker brands and models and support for either stereo or mono subwoofer models make the PX the turnkey processor solution for almost any possible powered speaker setup. The exclusive Setup, Auto-EQ and AFS Wizards make setup easy and fast, preserving the simplicity of the user's powered speaker system.
