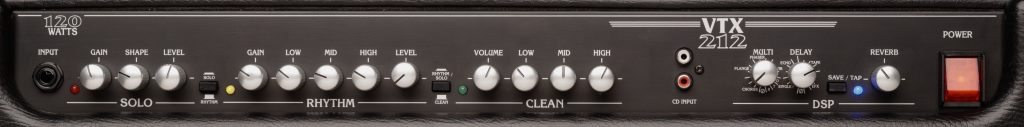

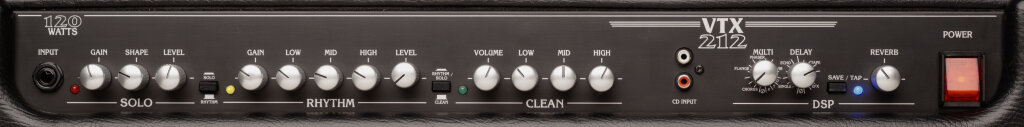

The VTX212B features full three-channel operation with independent gain, level and tone shaping circuits. The DSP section has 15 multi-effects including chorus, flange, phase shift, vibrato, octave down, touch-wah and reverse wah. Each of these can be set for depth, and then the Tap button on the front controls speed.
The VTX212B also has 15 delays with adjustments for single delay with 4 levels, echo delay with 4 levels, tape delay with 4 levels and echo/effects combo with 3 levels. Each of these effects can be set with the Tap button for speed as well.
Technical Info
Output power rating: 120W RMS @5% THD, 4, 120 VAC
Maximum input signal accepted: 7 volts peak-to-peak min. @ 1kHz
Total system gain:
-- Solo channel: 110dB, all controls @10
-- Rhythm channel: 88dB, all controls @10
-- Clean channel: 58dB, all controls @10
Solo/rhythm channels:
-- Low control: 20dB range @ 80Hz
-- Mid control: 15dB range @ 1kHz
-- High control: 20dB range @ 10kHz
Clean channel:
-- Low control: 36dB range @ 80Hz
-- Mid control: 15dB range @ 800Hz
-- High control: 40dB range @ 10kHz
Internal speaker:
-- 2x custom design 12 in., 8 ohms
-- Input impedance 470k
Power requirements: 120 VAC, 60Hz, 95VA
Size and weight: 21 in. H x 27-1/2 in. W x 11 1/4 in. D, 50 lbs.

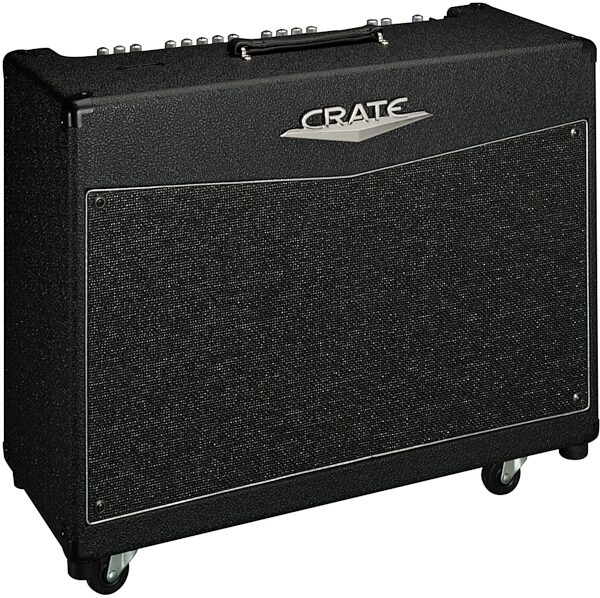

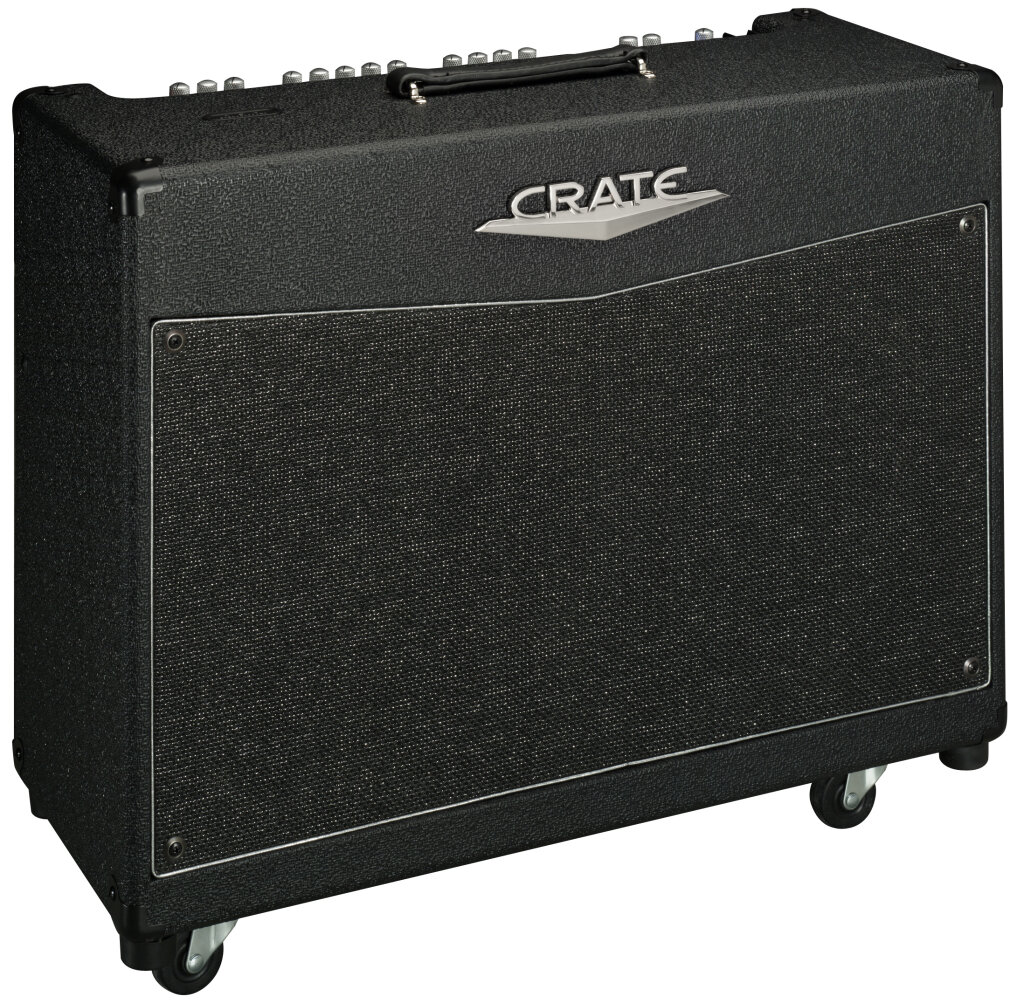

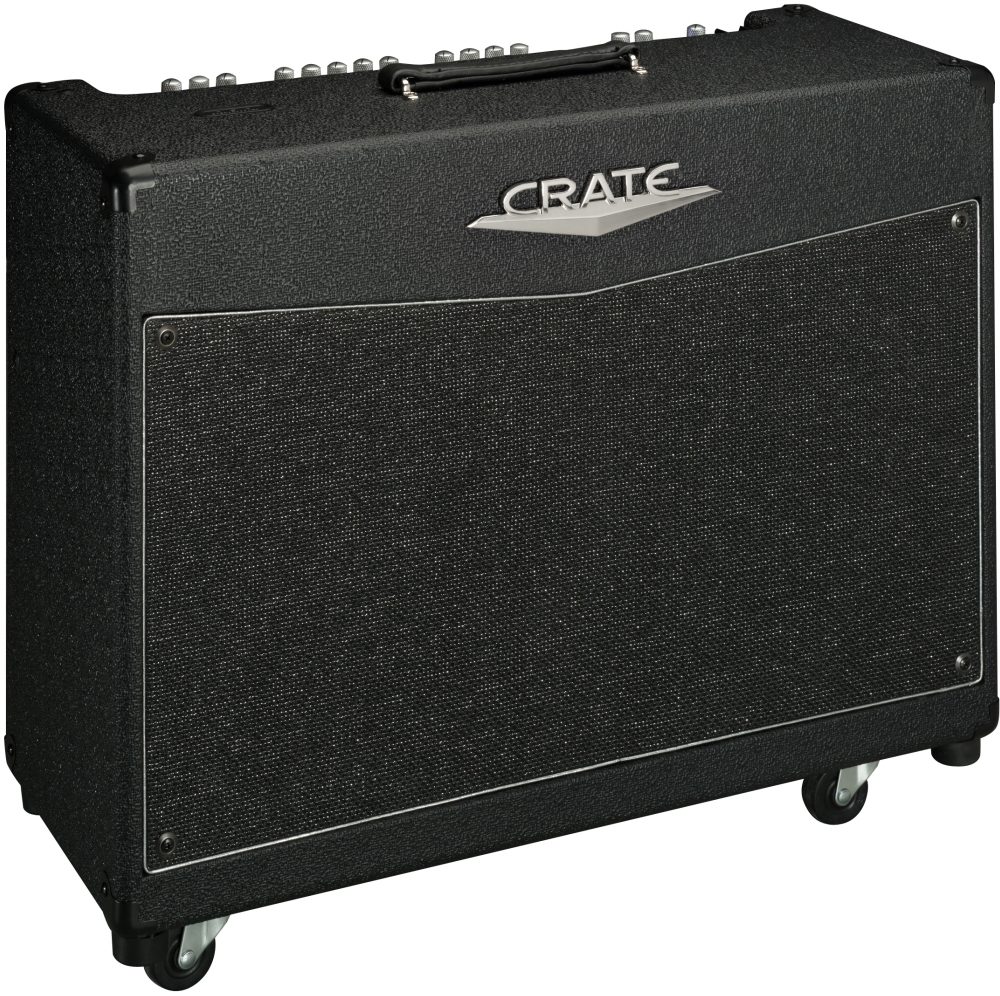

Three-channel amp with FlexWave preamp, mid-shape control on Solo channel, and onboard effects with tap tempo delay. Includes 2x12" Crate custom speakers, 120 watts RMS.
