This product is no longer available at zZounds.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

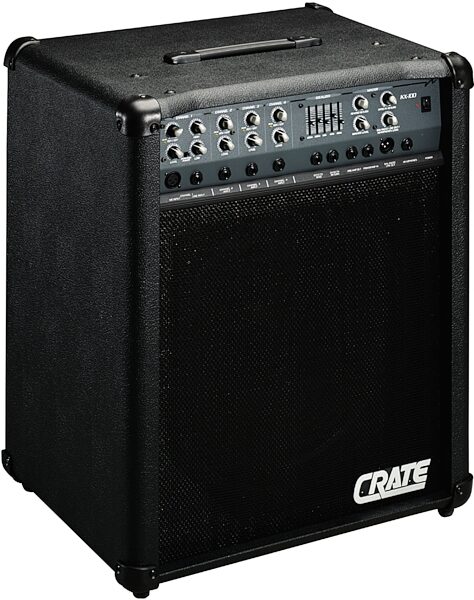

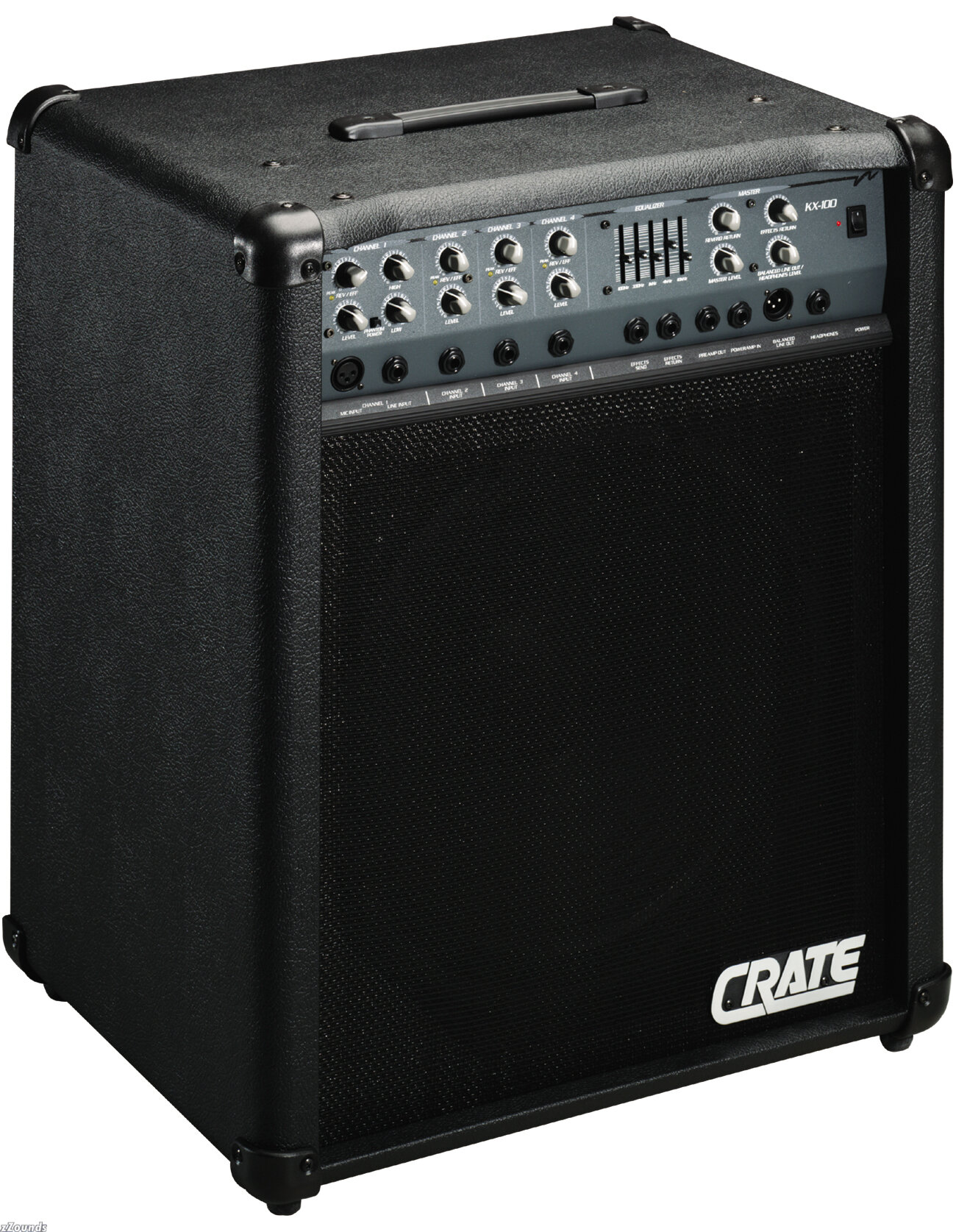

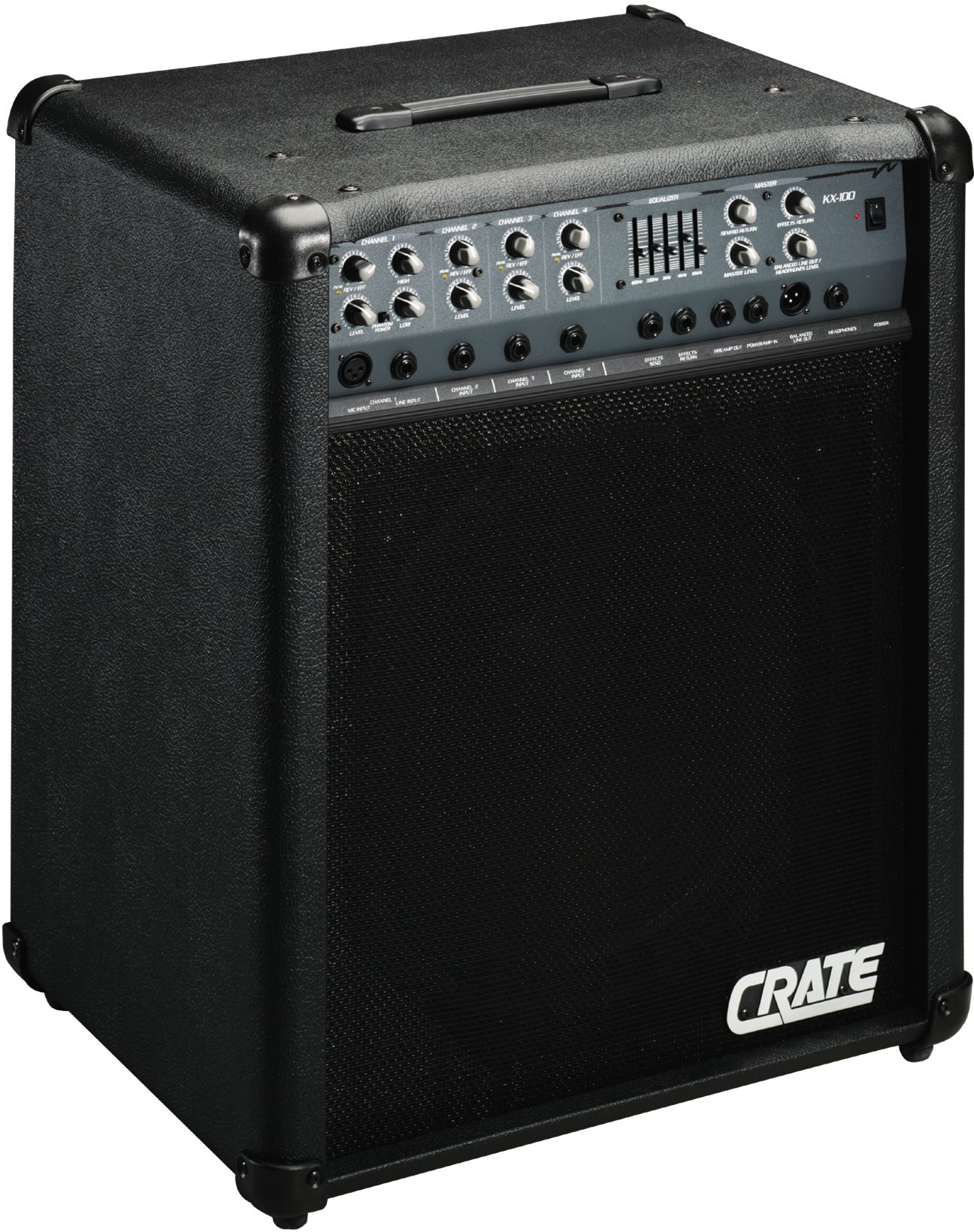

Crate KX100 Keyboard Amplifier
Crate 15 in. Speaker and Horn. 100 Watts RMS.
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
Description
Keyboard players require some special features on their amps. That's why models like the KX100, KX160, and new KX220 offer 4 plus channels with a channel configuration, speakers and horns, up to 160 watts RMS, and a lot more. FlexWave keyboard amps share the same technology of Crate's highly-acclaimed guitar amps. Crate Your Own Sound!
Features
Crate 15 in. Speaker and Horn
100 Watts RMS
4 Channels with Level and Reverb.
Graphic EQ
Limiter
Headphone Jack
Effects Loop
XLR in Channel One
XLR Out with Level
Phantom Power
Dimensions: 24.5 x 19.75 x 16 in.
100 watts RMS @ 5% THD, 4 ohms 120 VAC Channel 1, Channel 2
EQs
Low +/-10dB @ 50Hz;
High +/-10dB @ 10kHz
Graphic EQ +/-14dB @ 100Hz, 330Hz, 1kHz, 4kHz, 10kHz Nominal Input Impedance
Ch.1 High Z 10k ohms; Low Z 600 ohms; Ch.2,3,4 24k ohms
Gain Ch.1 High Z 64dB; Low Z 70dB; Ch.2,3,4 57dB
Maximum Signal Accepted Ch.1 High Z 10 volts peak to peak; Low Z 15 volts peak to peak; Ch.2,3,4 10 volts peak to peak Line In/Line Out 1 volt RMS Limiter Range 20dB, maximum distortion 1%
Speaker Size and Rating: (1) Crate Custom Design 152, 2.52 voice coil; (2) High Frequency drivers
Power Requirements: 120VAC, 60Hz, 110VA; 110/115VAC, 50/60Hz, 110VA; 230VAC, 50/60Hz, 110VA
Features
Crate 15 in. Speaker and Horn
100 Watts RMS
4 Channels with Level and Reverb.
Graphic EQ
Limiter
Headphone Jack
Effects Loop
XLR in Channel One
XLR Out with Level
Phantom Power
Dimensions: 24.5 x 19.75 x 16 in.
Technical Info
Output Power Rating:100 watts RMS @ 5% THD, 4 ohms 120 VAC Channel 1, Channel 2
EQs
Low +/-10dB @ 50Hz;
High +/-10dB @ 10kHz
Graphic EQ +/-14dB @ 100Hz, 330Hz, 1kHz, 4kHz, 10kHz Nominal Input Impedance
Ch.1 High Z 10k ohms; Low Z 600 ohms; Ch.2,3,4 24k ohms
Gain Ch.1 High Z 64dB; Low Z 70dB; Ch.2,3,4 57dB
Maximum Signal Accepted Ch.1 High Z 10 volts peak to peak; Low Z 15 volts peak to peak; Ch.2,3,4 10 volts peak to peak Line In/Line Out 1 volt RMS Limiter Range 20dB, maximum distortion 1%
Speaker Size and Rating: (1) Crate Custom Design 152, 2.52 voice coil; (2) High Frequency drivers
Power Requirements: 120VAC, 60Hz, 110VA; 110/115VAC, 50/60Hz, 110VA; 230VAC, 50/60Hz, 110VA
What Our Customers Say About zZounds
"Your products and customer service are elite - better than any other company I have dealt with." - customer on November 13, 2009
Crate KX100 Keyboard Amplifier Reviews
8 out of 10
"Plenty of power, plenty of inputs, supports all instruments."
Feature:
I love the 4 channels that give me plenty of options, the XLR I use for vocals, the built in DI for the sound board, and the pre-amp equalizer.
Quality:
I've had it almost 4 years now. Carried it everywhere. Dropped it more than once. It is heavy though so I put wheels on it. I would like to see it lighter. I would like to see it wedged a bit like a monitor amp, or make it tiltable.
Value:
Yes indeed.
Desirability:
Form follows function.
Sound:
It's been great for my needs. I use it for my acoustic playing, electric playing and bass guitar playing. I have effects boxes for each type of guitar so the flat response of this keyboard amp has worked well. It has not colored the sound. I use it for stage monitoring mostly although it has been used as sound reinforcement too. I also use it at home for practice.
Support:
No experience here except the user manual was friendly.
I love the 4 channels that give me plenty of options, the XLR I use for vocals, the built in DI for the sound board, and the pre-amp equalizer.
Quality:
I've had it almost 4 years now. Carried it everywhere. Dropped it more than once. It is heavy though so I put wheels on it. I would like to see it lighter. I would like to see it wedged a bit like a monitor amp, or make it tiltable.
Value:
Yes indeed.
Desirability:
Form follows function.
Sound:
It's been great for my needs. I use it for my acoustic playing, electric playing and bass guitar playing. I have effects boxes for each type of guitar so the flat response of this keyboard amp has worked well. It has not colored the sound. I use it for stage monitoring mostly although it has been used as sound reinforcement too. I also use it at home for practice.
Support:
No experience here except the user manual was friendly.
Submitted: 10/08/2003
Style of Music: Rock, Jazz, Popular, Contemporary Christian
8 out of 10
"Nice, flexible, clean amp/PA/Monitor."
Feature:
Love the built in DI box with attinuator! I use as an amp for electronic drums, but have also had three vocal mics as a practice PA, and it is clean!
Quality:
It's kinda large, and without casters is a real beast to carry.
Sound:
This amp sounds great. Clean, powerful.
Ease of Use:
Very easy interface.
Love the built in DI box with attinuator! I use as an amp for electronic drums, but have also had three vocal mics as a practice PA, and it is clean!
Quality:
It's kinda large, and without casters is a real beast to carry.
Sound:
This amp sounds great. Clean, powerful.
Ease of Use:
Very easy interface.
Submitted: 09/14/2009
Style of Music: Rock, Jazz, Funk, Bluegrass
