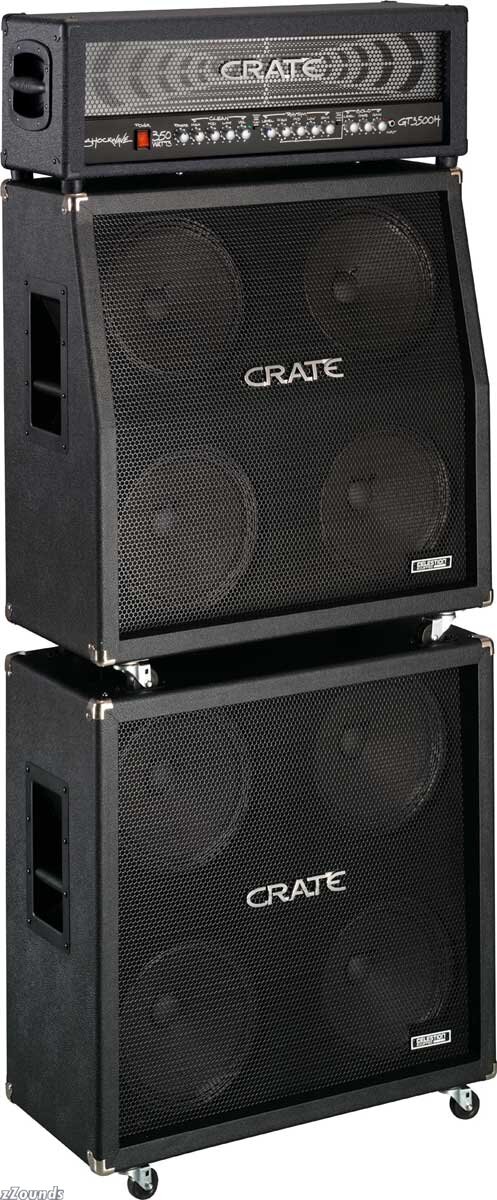

The GT3500H Shockwave head includes Crate exclusive FlexWave Evolution 5 tube simulating preamp, sequential cascading gains distortion circuit, low-damped power amp and individual gain, EQ, and level for each of the three channels. As the top-of-the line in the GT Series, it also features an effects loop and spring reverb. The cosmetics of the head include a illuminated power switch, new metal knurled knobs with blue jewel dots, dramatic grille treatment and a full size cabinet which is the same size as the new standard for the Blue Voodoo Series professional heads.
The GT412SL is a full-sized 4x12 in. speaker enclosure. Slant front. Celestion speakers. Plywood construction. Handles 300 watts RMS. Double-wall design, new style easylift handles, fixed casters.
The GT412ST is a full-sized 4x12 in. speaker enclosure. Straight front. Celestion speakers. Plywood construction. Handles 300 watts RMS. Double-wall design, new style easylift handles, fixed casters.
Technical Info
GT3500H Head
Output power rating: 350W RMS @5% THD, 2 ohms, 120 VAC
Input impedance: 470k
Total system gain:
Solo: 110dB, all controls @10
Rhythm: 88dB, all controls @10
Clean: 58dB, all controls @10
Maximum input signal accepted: 7 volts peak-to-peak
Power requirements
120 VAC, 60Hz, 95VA
100/115VAC, 50/60Hz, 95VA;
230VAC, 50/60Hz, 95V
Other:
Reverb footswitch control
Lighted power switch
True 3-channel operation
1/4 in. insert/effects loop
CFS3 footswitch included
Size: 30 in. x 10 in. x 10 3/8 in.
Weight: 41 lbs.
