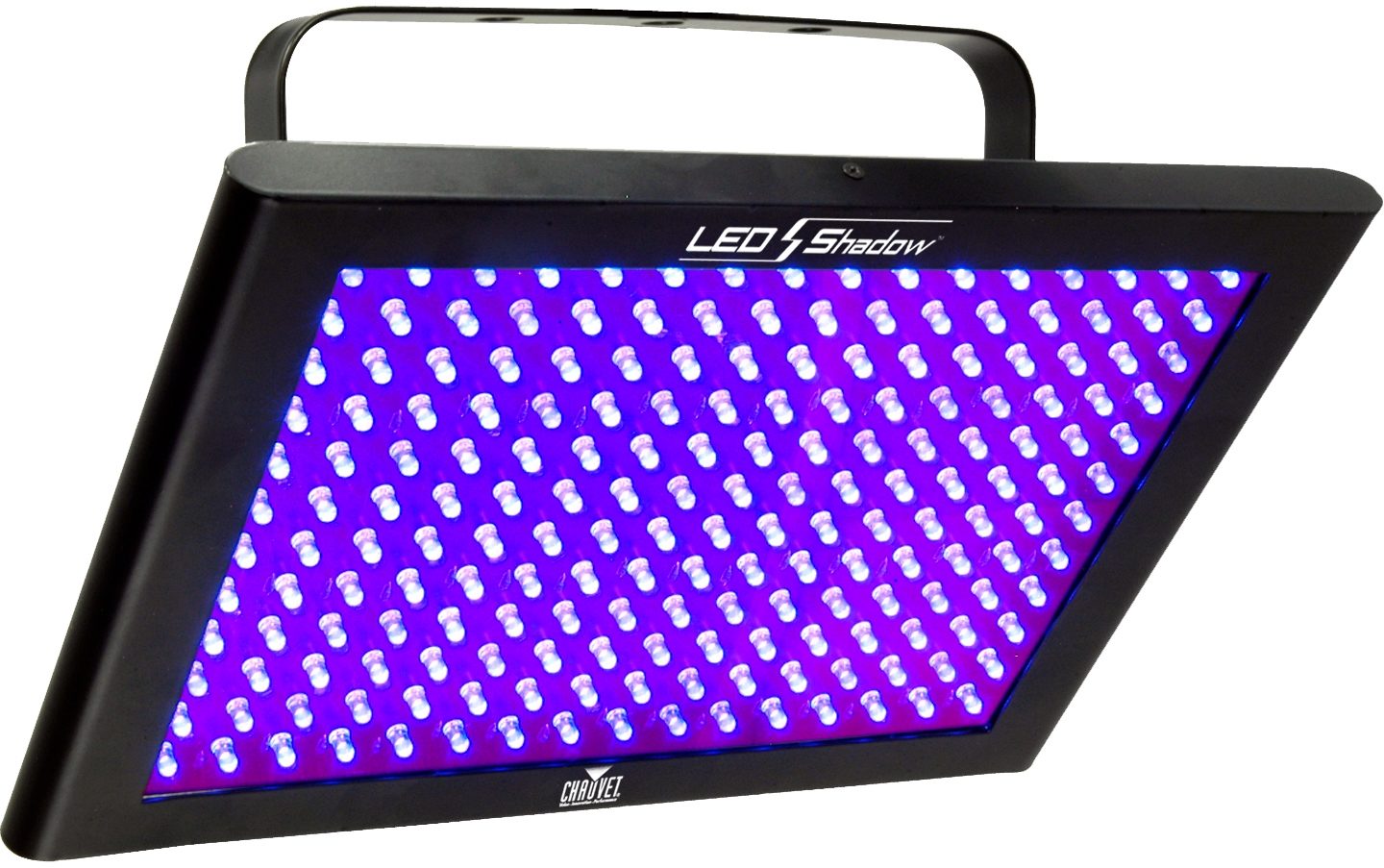

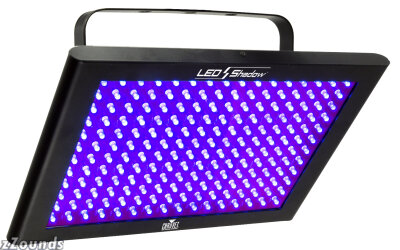

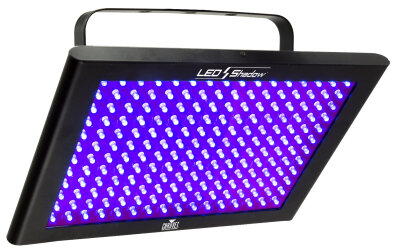

Chauvet TFXUVLED LED Shadow UV Blacklight
Three-channel DMX-512 LED blacklight with blackout, static, dimmer, and strobe modes.
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
About This Product!
Description
From Our Catalog
News
Three-channel DMX-512 LED blacklight with blackout, static, dimmer, and strobe modes.
Features
Adjustable flash rate, dimmer and static in stand-alone via dipswitches
Built-in automated programs via master/slave or DMX
Built-in sound activated programs via master/slave or DMX
Coverage up to 20ft x 20ft
Linkable with LED Techno StrobeTM, LED Techno Strobe TM RGB and COLORsplashTM 200B in stand-alone
Additional power output for daisy chaining units
Includes brackets for wall and truss mounting
Low power consumption
Light Source: 192 (UV) LEDs 100,000hrs
Current draw: (peak 12W @ 120V) (inrush 24W @ 120V)
Power: Autoswitching 100V - 240V 50/60Hz
Weight: 4.9lbs (2.2kgs)
Size: 14 in. x 9.8 in. x 6.5 in. (356mm x 248mm x 165mm)
2-year limited warranty
Features
Adjustable flash rate, dimmer and static in stand-alone via dipswitches
Built-in automated programs via master/slave or DMX
Built-in sound activated programs via master/slave or DMX
Coverage up to 20ft x 20ft
Linkable with LED Techno StrobeTM, LED Techno Strobe TM RGB and COLORsplashTM 200B in stand-alone
Additional power output for daisy chaining units
Includes brackets for wall and truss mounting
Low power consumption
Technical Info
Beam angle: 20°Light Source: 192 (UV) LEDs 100,000hrs
Current draw: (peak 12W @ 120V) (inrush 24W @ 120V)
Power: Autoswitching 100V - 240V 50/60Hz
Weight: 4.9lbs (2.2kgs)
Size: 14 in. x 9.8 in. x 6.5 in. (356mm x 248mm x 165mm)
2-year limited warranty
Three-channel DMX LED UV blacklight! Blackout, static, dimmer, and strobe modes. Low power consumption.
09/04
New lower price, New, was $149.95, now only $126.95.
What Our Customers Say About zZounds
"zZounds has been a great supplier for years!" - customer on November 6, 2009
Call
866.ZZOUNDS (996.8637)
and mention priority code: 782VBZN
Item: CHVTFXUVLED
Chauvet TFXUVLED LED Shadow UV Blacklight Reviews
9 out of 10
"Excellent product, reliable performance, low energy consumption, ease of use!"
Feature:
The Chauvet LED Shadow is an amazing product!! I spoke with a chauvet rep, and according to them each of the 192 LED's is only a 1/4 watt of power, so that's about 48Watts, the unit was able to be run off of a 90 Watt Inverter in my car off of the 12V Cigarette lighter adaptor. The dimming functions and the strobe rates are really clean and pack a hell of a punch. AMAZING JOB FROM CHAUVET!!
Quality:
The plastic cover is alittle thin, and I also have witnessed where some of the LED's in the panel lose "blocks" but a slight tap on the fixture fixes that. Could just be a ground or something.
Value:
For the price and functions, Chauvet Delivered using the TFXUVLED fixture! Where else can you find a UV LED strobe ?
Desirability:
I liked the first one so much, I scouted 5 different locations and plenty of phone calls until I found one!
Ease of Use:
Extremely easy to use, the dip switch settings on the back of the unit allow for you to set the strobe rates varying to about 9 different settings, the 10th setting allows for sound activated mode and has a few pre programed LED chase sequences. THe draw back to the chase sequences, it's only in the pre program, you cannot set it to automatically do the LED chases even in DMX mode. ( If there is, it's not listed in the manual and I haven't found it yet.
Support:
Chauvets support is pretty good, but I sometimes feel I'm not getting the correct information. I've sent countless emails to see if I'd get the same info over the phone as I would over the internet with no response.
Overall:
Hopefully a year or two at LEAST! I need about 2-4 more fixtures to really have some fun with them!
The Chauvet LED Shadow is an amazing product!! I spoke with a chauvet rep, and according to them each of the 192 LED's is only a 1/4 watt of power, so that's about 48Watts, the unit was able to be run off of a 90 Watt Inverter in my car off of the 12V Cigarette lighter adaptor. The dimming functions and the strobe rates are really clean and pack a hell of a punch. AMAZING JOB FROM CHAUVET!!
Quality:
The plastic cover is alittle thin, and I also have witnessed where some of the LED's in the panel lose "blocks" but a slight tap on the fixture fixes that. Could just be a ground or something.
Value:
For the price and functions, Chauvet Delivered using the TFXUVLED fixture! Where else can you find a UV LED strobe ?
Desirability:
I liked the first one so much, I scouted 5 different locations and plenty of phone calls until I found one!
Ease of Use:
Extremely easy to use, the dip switch settings on the back of the unit allow for you to set the strobe rates varying to about 9 different settings, the 10th setting allows for sound activated mode and has a few pre programed LED chase sequences. THe draw back to the chase sequences, it's only in the pre program, you cannot set it to automatically do the LED chases even in DMX mode. ( If there is, it's not listed in the manual and I haven't found it yet.
Support:
Chauvets support is pretty good, but I sometimes feel I'm not getting the correct information. I've sent countless emails to see if I'd get the same info over the phone as I would over the internet with no response.
Overall:
Hopefully a year or two at LEAST! I need about 2-4 more fixtures to really have some fun with them!
Submitted: 02/27/2007
Style of Music: Electronic Music, Psychedelic Trance
