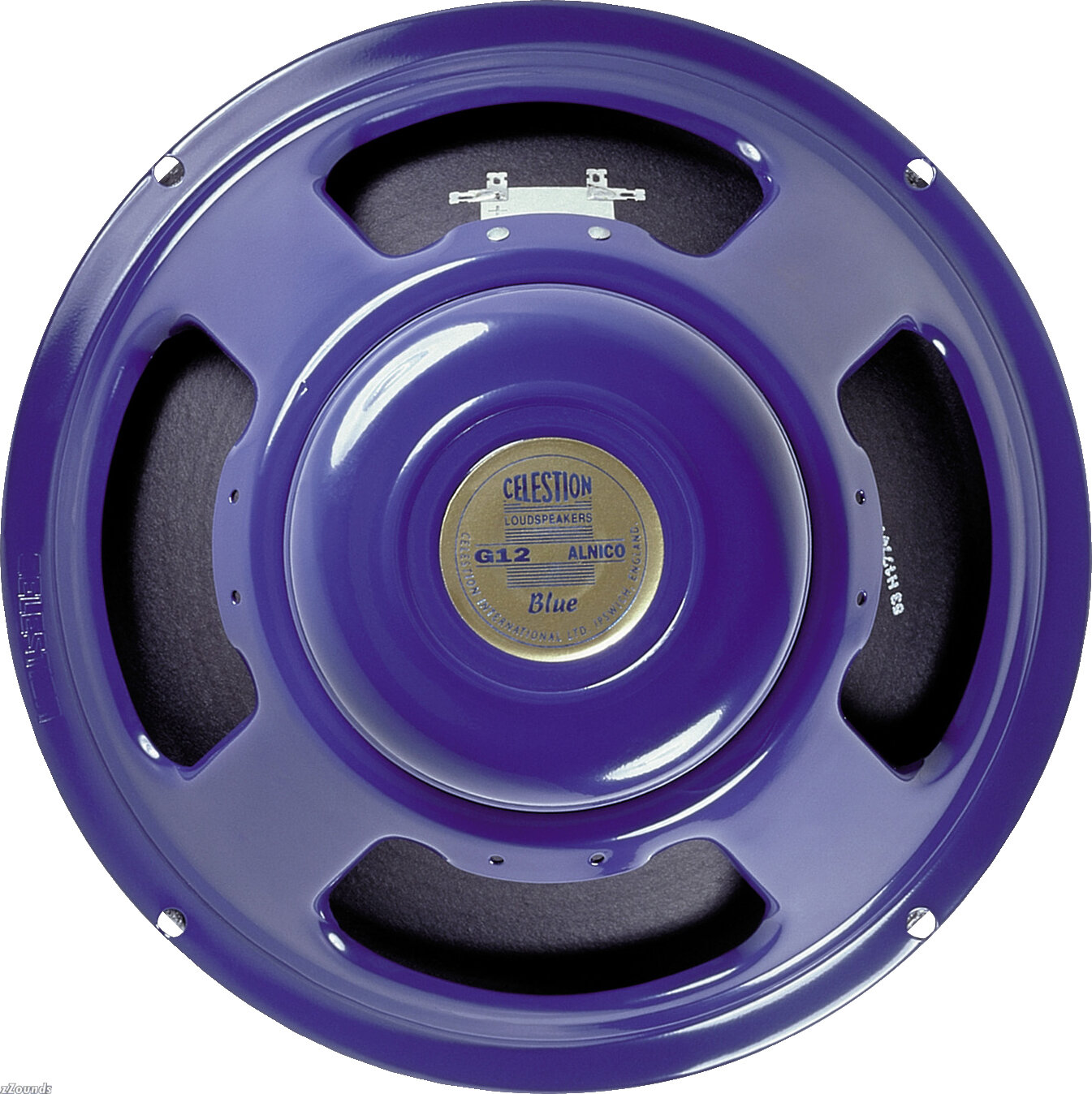

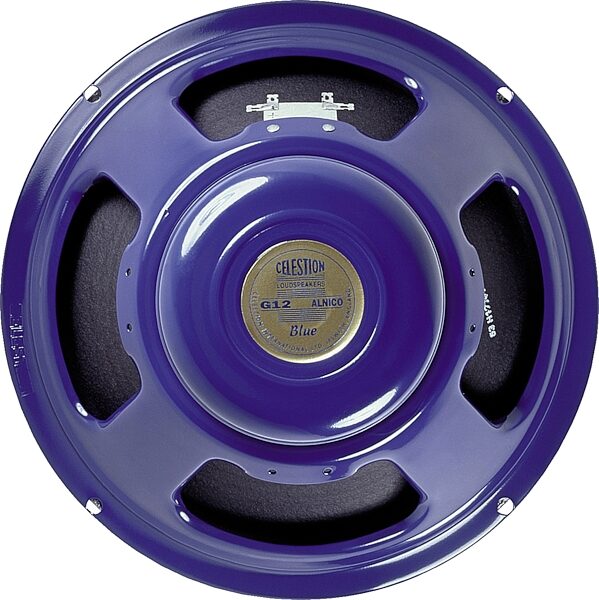

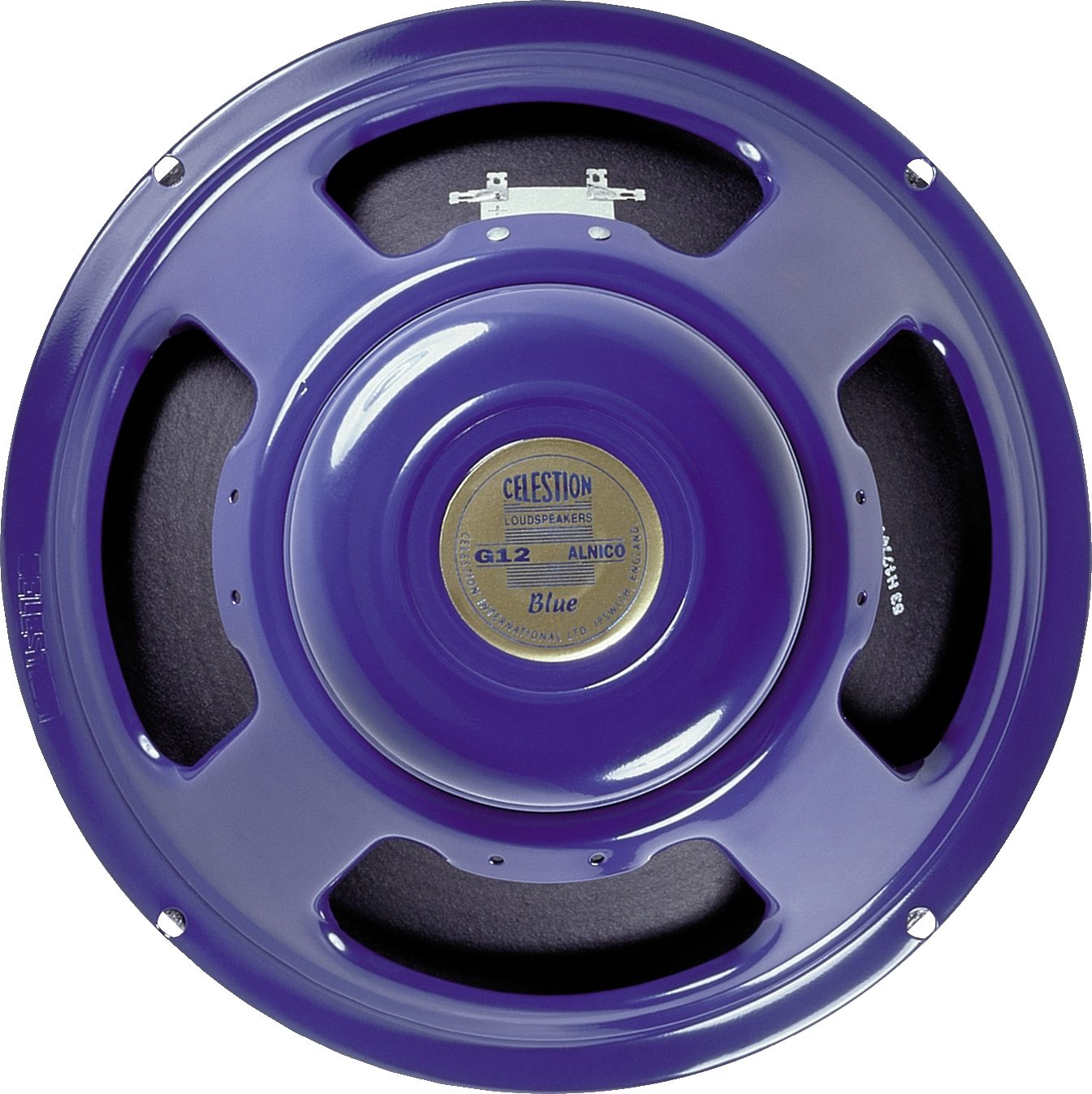

Celestion Alnico Blue Guitar Speaker (15 Watts, 12 in.)

The world's first dedicated guitar loudspeaker and a part of musical history. Back in the 1950s, Celestion witnessed the emergence of a new breed of musician -- the electric guitarist -- and responded to their needs for a rugged, reliable loudspeaker by modifying the G12 radio speaker. The unique tonal character of the Celestion Blue, combined with the valve amps of the time, helped to define the electric guitar as we know it today.

Variations of the Blue were actually released in several different liveries, including chrome, red and silver. Used by many classic amplifier manufacturers of the time, it was the speaker's adoption by Vox for their AC30 that ensured the Blue's place in history.

The Blue has a bright, lively character with a carefully controlled bottom end and shimmering highs which remains popular and distinctive to this day. Loaded into a single 12 in. or 2 x 12 in. cabinet, this legendary loudspeaker suits a wide range of playing styles.

Technical Info

General Specifications
Nominal Diameter: 12 in., 305mm

Power Rating: 15 watts

Nominal Impedance: 8 ohms or 16 ohms

Sensitivity: 100dB

Chassis Type: Pressed Steel

Voice Coil Diameter: 1.75 in., 44.5mm

Voice Coil Material: Round copper

Magnet Type: Alnico

Frequency Range: 75-5000Hz

Resonance Frequency, Fs: 75Hz

DC resistance, Re: 6.4 ohms or 11.8 ohms

Mounting Information
Diameter: 12.2 in.\ in., 309mm

Overall Depth: 6.5 in., 165mm

Magnet Structure Diameter: 5.0 in., 128mm

Cut-Out Diameter: 11.1 in., 283mm

Mounting Slot Dimensions: 0.31 in., 7.9mm diameter

Number of Mounting Slots: 4

Mounting slot PCD: 11.7 in., 297mm

Unit Weight: 9.3lb, 4.2kg

Bright and lively with tight bottom. 12", 15 watts.
