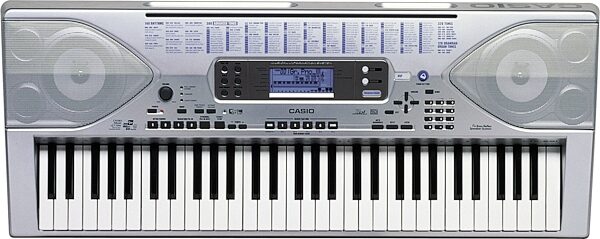

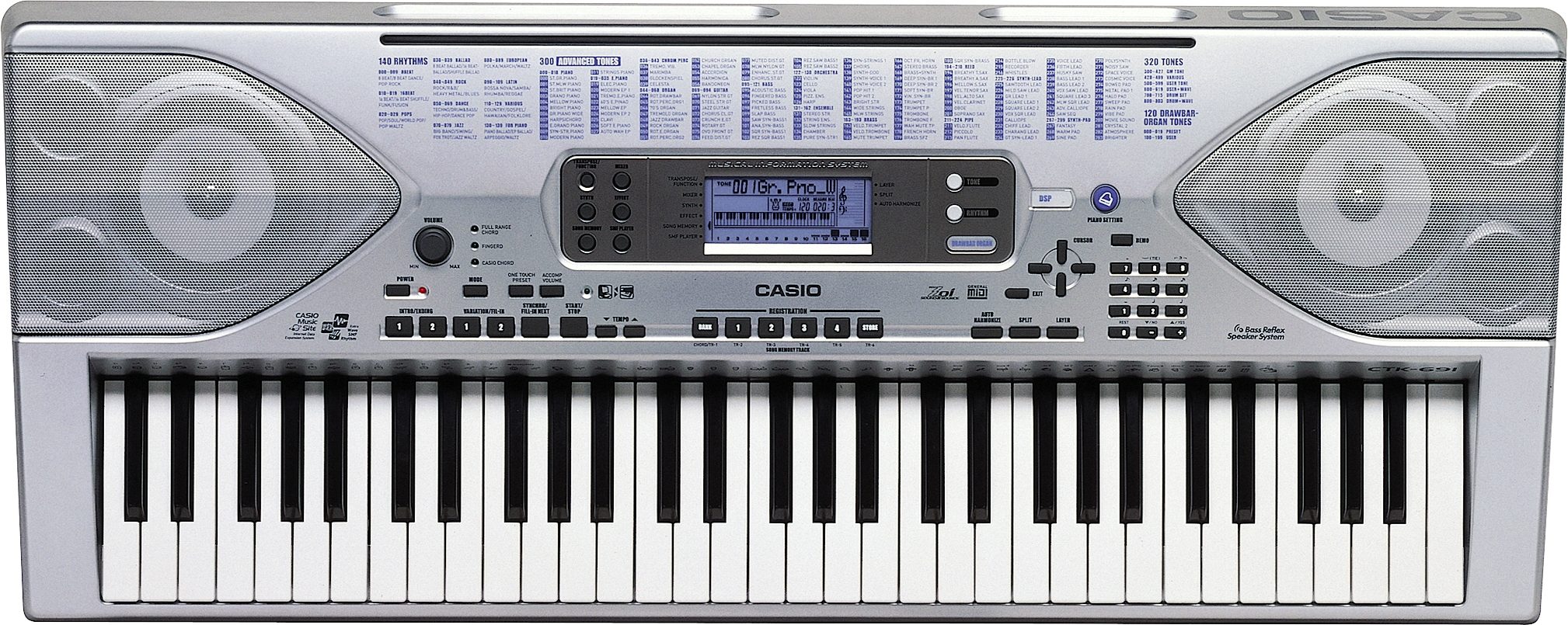

Casio CTK691 61-Key Touch Sensitive GM Keyboard
No longer available at zZounds
32-voice. Internet data expansion. NOT compatible with Yamaha sustain pedals.
Overview
The CTK691 also has 50 preset Drawbar Organ tones created using popular drawbar settings, to provide life-like reproduction of rich drawbar organ sounds. The digital drawbar also lets you create custom sounds. The user memory area has storage for up to 100 setups created using digital drawbars that control fade, percussion and more. With built-in DSP presets, you can reproduce a classic rotary speaker effect. The drawbar settings are easily adjusted with the dedicated drawbar buttons.
The CTK691 includes Casio's Internet Data Expansion System that allows you to download the latest tone, rhythm, DSP setting, and Registration Memory data. Songs can be downloaded from the Casio Website (music.casio.com). You can transfer data to the keyboard through the MIDI connection.
The CTK691 is even equipped with a Standard MIDI File Player to play the songs downloaded through the Internet. With the CTK-691's Flash ROM feature and Registration Memory (4 sets x 8 banks), you can expand libraries of sounds, rhythms and songs to customize later. The Synthesizer and Sequencer functions can be used for editing and creating tones. With the built-in mixer function, you get full control over each MIDI channel and accompaniment part.
The CTK-691 helps to create your own studio. This powerful keyboard with includes 790 Tones: 566 preset tones (300 Advanced tones, 128 GM tones, 72 Various, 16 Drum Sets, 50 Drawbar Organs) plus 224 user programmable tones, Stereo Piano Sound; Synthesize functions,… read more 232 Digital Effects, Digital Equalizer and 140 rhythm patterns, 156 One-Touch presets along with CASIO Chord auto-accompaniment systems and auto-harmonize feature. No other portable keyboard includes this much performance at this price.
Features
Musical Information System (Backlit LCD): Displays selections and status of Tone, Rhythm, Mixer and keyboard functions, and Tempo
On-screen keyboard and music staff icons display notes and chords played, and metronome icon indicates the beat
Mixer Function: Allows control over each MIDI channel and accompaniment part
6 tracks/5 songs Song Memory, Real Time or Editable Step recording
Assignable Pedal Jack (Sustain, Soft, Sostenuto, Rhythm Start/Stop
MIDI IN/OUT Jacks: 16 channel Multi-Timbral (GM Level 1 compatible)
Transpose and Tuning Control
2 Built-in Speakers: 3.0 Watts + 3.0 Watts Bass Reflex
1/4 in. lineout/headphone jackSpeaker System
Operates on D batteries or optional AD-5 AC Adapter
Internet Data Expansion System lets you download new sounds including sound wave, patterns, songs, and keyboard settings over MIDI from casiosongs.com
Flash ROM to expand sounds, rhythms, and to download songs from the internet.
SMF Player to play the songs downloaded through the internet.
Polyphony (maximum): 32-Note
Auto Rhythms: 140 Preset
Tones: 790
Keys: 61 Full Size
Keyboard 61 full-size keys
Touch sensitive (with On/Off)
32-note polyphonic
Stereo Piano
Sounds/Effects 790 Tones: 566 preset tones (300 Advanced tones, 128 General MIDI, 72 Various, 16 Drum sets, 50 Drawbar Organs) plus 224 User programmable tones (100 User tone, 20 User tone +wave, 4 Drum set + wave, 100User Drawbar)
Piano Setting Switch: For instant access to Stereo Piano Sound
Drawbar Organ: Lets you control simulated organ sounds easily.
Synthesizer Function: Lets you create and store your own sounds.
232 Digital Effects: 100 DSP, 100 User effects, 16 Reverb, 16 Chorus
Digital Equalizer
Spilt & Layer function
Advanced Tone: Panel sounds with increased playability featuring bigger wave memory, velocity split and strong DSP units.
Rhythms 140 Preset Rhythm including 20 piano patterns and 16 User Rhythms
156 One-Touch Presets
CASIO CHORD/ Fingered Chord/Full-Range Chord auto-accompaniment systems
Auto-Harmonize
Casio's newest portable keyboards utilize the high performance ZPI sound source to deliver the most realistic piano, organ, and synth sounds, plus a huge library of built-in tones, rhythms, and DSP settings.
The powerful CTK691 features an on-board sequencer and a mixer, for unmatched creative possibilities, plus powerful built-in speakers to take your performance to the next level. This keyboard is ideal for home/project studio use, open-mic performance, education/classroom applications, or simply for pure musical enjoyment.
Casio Music Website
Internet Data Expansion System-
For unlimited possiblities Casio has created a brand new keyboard program where wave files can be downloaded directly onto a keyboard via a PC. The full program is available at music.casio.com as a free download. Using this software, new tones, tones with wave data, drum sets with wave data, rhythms, standard MIDI files, songs registrations and DSP settings can be loaded onto a PC, edited and eventually loaded directly into the keyboard. All you need to get started is to visit music.casio.com, download the Data Management Software and you can begin transferring to the keyboard, onto a SmartMedia Card or Floppy Disk via a PC. Let your creativity run wild, visit music.casio.com. read less
The CTK691 includes Casio's Internet Data Expansion System that allows you to download the latest tone, rhythm, DSP setting, and Registration Memory data. Songs can be downloaded from the Casio Website (music.casio.com). You can transfer data to the keyboard through the MIDI connection.
The CTK691 is even equipped with a Standard MIDI File Player to play the songs downloaded through the Internet. With the CTK-691's Flash ROM feature and Registration Memory (4 sets x 8 banks), you can expand libraries of sounds, rhythms and songs to customize later. The Synthesizer and Sequencer functions can be used for editing and creating tones. With the built-in mixer function, you get full control over each MIDI channel and accompaniment part.
The CTK-691 helps to create your own studio. This powerful keyboard with includes 790 Tones: 566 preset tones (300 Advanced tones, 128 GM tones, 72 Various, 16 Drum Sets, 50 Drawbar Organs) plus 224 user programmable tones, Stereo Piano Sound; Synthesize functions,… read more 232 Digital Effects, Digital Equalizer and 140 rhythm patterns, 156 One-Touch presets along with CASIO Chord auto-accompaniment systems and auto-harmonize feature. No other portable keyboard includes this much performance at this price.
Features
Musical Information System (Backlit LCD): Displays selections and status of Tone, Rhythm, Mixer and keyboard functions, and Tempo
On-screen keyboard and music staff icons display notes and chords played, and metronome icon indicates the beat
Mixer Function: Allows control over each MIDI channel and accompaniment part
6 tracks/5 songs Song Memory, Real Time or Editable Step recording
Assignable Pedal Jack (Sustain, Soft, Sostenuto, Rhythm Start/Stop
MIDI IN/OUT Jacks: 16 channel Multi-Timbral (GM Level 1 compatible)
Transpose and Tuning Control
2 Built-in Speakers: 3.0 Watts + 3.0 Watts Bass Reflex
1/4 in. lineout/headphone jackSpeaker System
Operates on D batteries or optional AD-5 AC Adapter
Internet Data Expansion System lets you download new sounds including sound wave, patterns, songs, and keyboard settings over MIDI from casiosongs.com
Flash ROM to expand sounds, rhythms, and to download songs from the internet.
SMF Player to play the songs downloaded through the internet.
Polyphony (maximum): 32-Note
Auto Rhythms: 140 Preset
Tones: 790
Keys: 61 Full Size
Keyboard 61 full-size keys
Touch sensitive (with On/Off)
32-note polyphonic
Stereo Piano
Sounds/Effects 790 Tones: 566 preset tones (300 Advanced tones, 128 General MIDI, 72 Various, 16 Drum sets, 50 Drawbar Organs) plus 224 User programmable tones (100 User tone, 20 User tone +wave, 4 Drum set + wave, 100User Drawbar)
Piano Setting Switch: For instant access to Stereo Piano Sound
Drawbar Organ: Lets you control simulated organ sounds easily.
Synthesizer Function: Lets you create and store your own sounds.
232 Digital Effects: 100 DSP, 100 User effects, 16 Reverb, 16 Chorus
Digital Equalizer
Spilt & Layer function
Advanced Tone: Panel sounds with increased playability featuring bigger wave memory, velocity split and strong DSP units.
Rhythms 140 Preset Rhythm including 20 piano patterns and 16 User Rhythms
156 One-Touch Presets
CASIO CHORD/ Fingered Chord/Full-Range Chord auto-accompaniment systems
Auto-Harmonize
Casio's newest portable keyboards utilize the high performance ZPI sound source to deliver the most realistic piano, organ, and synth sounds, plus a huge library of built-in tones, rhythms, and DSP settings.
The powerful CTK691 features an on-board sequencer and a mixer, for unmatched creative possibilities, plus powerful built-in speakers to take your performance to the next level. This keyboard is ideal for home/project studio use, open-mic performance, education/classroom applications, or simply for pure musical enjoyment.
Casio Music Website
Internet Data Expansion System-
For unlimited possiblities Casio has created a brand new keyboard program where wave files can be downloaded directly onto a keyboard via a PC. The full program is available at music.casio.com as a free download. Using this software, new tones, tones with wave data, drum sets with wave data, rhythms, standard MIDI files, songs registrations and DSP settings can be loaded onto a PC, edited and eventually loaded directly into the keyboard. All you need to get started is to visit music.casio.com, download the Data Management Software and you can begin transferring to the keyboard, onto a SmartMedia Card or Floppy Disk via a PC. Let your creativity run wild, visit music.casio.com. read less
Specs
Keyboard: 61 standard-size keys, 5 octaves with touch response (Off / 1 / 2 / 3)
Tones: 300 Advanced Tones + 200 Preset Tones + 16 Drum Sets + 100 standard user tones + 20 user tones with waves* + 4 drum sets with waves* + 50 drawbar organ tones + 100 user drawbar organ tones (790 tones total); layer/split
Rhythm Instrument Tones: 61
Polyphony: 32 notes maximum (10 for certain tones)
Effects: DSP (200 types: internal, 100 user areas) + Reverb (16 types) + Chorus (16 types) + Equalizer (10 types, 4 bands)
Auto Accompaniment Rhythm Patterns: 156 (internal, 16 user areas*)
Tempo:Variable (226 steps, 1/4"-note = 30 to 255)
Chords: 3 fingering methods (CASIO CHORD, FINGERED, FULL RANGE CHORD)
Rhythm Controller: START/STOP, INTRO/ENDING 1 and 2, VARIATION/FILL-IN 1 and 2, SYNCHRO/FILL-IN NEXT
Accomp Volume: 0 to 127 (128 steps)
One-touch Presets: Recalls settings for tone, tempo, layer on/off, and harmonize on/off in accordance with rhythm.
Auto Harmonize: 10 types: Automatic addition of notes that harmonize with melody note in accordance with specified Auto Accompaniment chords.
Memory Function Songs: 5
Recording Tracks: 6 (2 through 6 are melody tracks)
Recording Methods: Real-time, step
Memory Capacity: Approximately 10,000 notes (total for 5 songs)
Edit Function: Equipped
Demo Tunes 3 Demo Tunes
-"Nora Park": Composed by Tech-Note International Ltd. (2:06)
-"Garage Flava": Composed by Steave Turner (2:15)
-"Strut With Beauty": Composed by Edward Alstrom (1:52)
Synthesizer Function Parameters: Attack time; release time; resonance; cutoff frequency; vibrato type; vibrato delay; vibrato depth; vibrato rate; octave shift; level; touch sense; reverb send; chorus send; DSP line; DSP type and DSP parameter, DSP level.
Registration Memory Number of Setups: 32 (4 setups x 8 banks)
Memory Contents: Tone, Rhythm, Tempo, Layer on/off, Split on/off, Split point, Harmonize on/off, Mixer settings (Channels 1 to 10), Effect settings, Touch Response settings, Assignable jack setting, Transpose, Tuning, Accompaniment volume setting, Auto Harmonize type, MODE button setting, Synchro standby state, Mixer Hold, DSP Hold, Synthesizer Mode parameters
Mixer Function Channels: 16
Parameters: Tone; part on/off; volume; pan pot; octave shift; coarse tune; fine tune; reverb send; chorus send; DSP line; DSP level; DSP pan; DSP system reverb send; DSP system chorus send
MIDI 16 multi-timbre receive, GM Level 1 standard
Other Functions Transpose: 49 steps (-24 semitones to +24 semitones)
Tuning: Variable (A4 = approximately 440Hz +/-100 cents)
LCD: Adjustable contrast
SMF Player Flash memory storage for up to 200 files*
Supported Format: SMF0
Flash Memory Capacity: 2MB
Shared Area: Approximately 1.5MB (waveform data, accompaniment data, SMF data)
Further storage of waveform, accompaniment, and SMF data becomes impossible after the total of such data reaches approximately 1.5MB.
Terminals MIDI Terminals: IN, OUT
Sustain/Assignable Terminal: Standard jack (sustain, sostenuto, soft, rhythm start/stop)
Headphone/Output Terminal:
-Stereo standard jack
-Output Impedance: 140 Ohms
-Output Voltage: 4.5V (RMS) MAX
-Power Supply Terminal: 9V DC
Power Supply Dual power supply system
Batteries: 6 D-size batteries
Battery Life: Approximately 4 hours continuous operation on manganese batteries
AC Adaptor: AD-5
Auto Power Off: Turns power off approximately six minutes after last key operation. Enabled under battery power only, can be disabled manually.
General Speaker Output: 3 Watts + 3 Watts
Power Consumption: 9V 7.7W
Dimensions: 37-13/16 x 14-3/4 x 5-3/4 in. (96.0 x 37.5 x 14.6 cm)
Weight: Approximately 12.3lbs (5.6 kg) (without batteries)
Tones: 300 Advanced Tones + 200 Preset Tones + 16 Drum Sets + 100 standard user tones + 20 user tones with waves* + 4 drum sets with waves* + 50 drawbar organ tones + 100 user drawbar organ tones (790 tones total); layer/split
Rhythm Instrument Tones: 61
Polyphony: 32 notes maximum (10 for certain tones)
Effects: DSP (200 types: internal, 100 user areas) + Reverb (16 types) + Chorus (16 types) + Equalizer (10 types, 4 bands)
Auto Accompaniment Rhythm Patterns: 156 (internal, 16 user areas*)
Tempo:Variable (226 steps, 1/4"-note = 30 to 255)
Chords: 3 fingering methods (CASIO CHORD, FINGERED, FULL RANGE CHORD)
Rhythm Controller: START/STOP, INTRO/ENDING 1 and 2, VARIATION/FILL-IN 1 and 2, SYNCHRO/FILL-IN NEXT
Accomp Volume: 0 to 127 (128 steps)
One-touch Presets: Recalls settings for tone, tempo, layer on/off, and harmonize on/off in accordance with rhythm.
Auto Harmonize: 10 types: Automatic addition of notes that harmonize with melody note in accordance with specified Auto Accompaniment chords.
Memory Function Songs: 5
Recording Tracks: 6 (2 through 6 are melody tracks)
Recording Methods: Real-time, step
Memory Capacity: Approximately 10,000 notes (total for 5 songs)
Edit Function: Equipped
Demo Tunes 3 Demo Tunes
-"Nora Park": Composed by Tech-Note International Ltd. (2:06)
-"Garage Flava": Composed by Steave Turner (2:15)
-"Strut With Beauty": Composed by Edward Alstrom (1:52)
Synthesizer Function Parameters: Attack time; release time; resonance; cutoff frequency; vibrato type; vibrato delay; vibrato depth; vibrato rate; octave shift; level; touch sense; reverb send; chorus send; DSP line; DSP type and DSP parameter, DSP level.
Registration Memory Number of Setups: 32 (4 setups x 8 banks)
Memory Contents: Tone, Rhythm, Tempo, Layer on/off, Split on/off, Split point, Harmonize on/off, Mixer settings (Channels 1 to 10), Effect settings, Touch Response settings, Assignable jack setting, Transpose, Tuning, Accompaniment volume setting, Auto Harmonize type, MODE button setting, Synchro standby state, Mixer Hold, DSP Hold, Synthesizer Mode parameters
Mixer Function Channels: 16
Parameters: Tone; part on/off; volume; pan pot; octave shift; coarse tune; fine tune; reverb send; chorus send; DSP line; DSP level; DSP pan; DSP system reverb send; DSP system chorus send
MIDI 16 multi-timbre receive, GM Level 1 standard
Other Functions Transpose: 49 steps (-24 semitones to +24 semitones)
Tuning: Variable (A4 = approximately 440Hz +/-100 cents)
LCD: Adjustable contrast
SMF Player Flash memory storage for up to 200 files*
Supported Format: SMF0
Flash Memory Capacity: 2MB
Shared Area: Approximately 1.5MB (waveform data, accompaniment data, SMF data)
Further storage of waveform, accompaniment, and SMF data becomes impossible after the total of such data reaches approximately 1.5MB.
Terminals MIDI Terminals: IN, OUT
Sustain/Assignable Terminal: Standard jack (sustain, sostenuto, soft, rhythm start/stop)
Headphone/Output Terminal:
-Stereo standard jack
-Output Impedance: 140 Ohms
-Output Voltage: 4.5V (RMS) MAX
-Power Supply Terminal: 9V DC
Power Supply Dual power supply system
Batteries: 6 D-size batteries
Battery Life: Approximately 4 hours continuous operation on manganese batteries
AC Adaptor: AD-5
Auto Power Off: Turns power off approximately six minutes after last key operation. Enabled under battery power only, can be disabled manually.
General Speaker Output: 3 Watts + 3 Watts
Power Consumption: 9V 7.7W
Dimensions: 37-13/16 x 14-3/4 x 5-3/4 in. (96.0 x 37.5 x 14.6 cm)
Weight: Approximately 12.3lbs (5.6 kg) (without batteries)
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 800-435-7732
Web: https://world.casio.com/support/
Phone: 800-435-7732
Web: https://world.casio.com/support/
Reviews
Reviewers gave this product an overall rating of 4.5 out of 5 stars.
(52 ratings)
Submitted March 1, 2004 by a customer from sc.rr.com
"The Casio CTK691: A Very Good Value For The Money!"
Overall a great sounding keyboard! If lost or stolen I'll buy another one. For the cost of this keyboard it does what I expect of it. Probaly later I will buy a full fledge keyboard workstation. But for now I have the ctk691 for which I'm very satisfied with.
Sound
The sounds in the ctk691 are very good. Lots of pianos and organs to mess around with. With the pianos there isn't much variation between them. But what I did was pull some of the pianos to the user area and used the synth function to change them up a little. I also used some of the effects,which are very good,to spice them up. No other keyboard in this price range can do this. Casio has made some good advances here.
Features
As stated before the effects are very good. There are alot of effects to add some zest to the sounds. The synth function, though not well equipped, is functional; hey what do you expect from a keyboard under $250.00? The sequencer seems ok. It's a scratch pad sequencer. Something to get your ideas down quick. Select a beat and start playing.
Quality
Well it's made of plastic. I dare not to drop it or smack those keys so hard when I'm playing; fear I might break the keys. But it seems well put together.
Value
I'll tell ya the ctk691 is full of good sounds, and effects, plus expandability! And the keyboard looks great. A good value for the money. I checked out the Yamaha psr292,… read more and the only things the psr292 has over the casio ctk691 is its ep. sounds and the education suite feature, which I really don't need.
Manufacturer Support
Haven't dealt with Casio support center yet. I guess time will tell. The Casio Music Site seems well maintained. They promised an update in March; we'll see.
The Wow Factor
Like I stated before the ctk691 looks great! The blue screen is very cool. And surprisingly the keys feels great to play; for me at least. You have to go and check it out for yourself.
Musical Style:
jazz, r&b, gospel, whatever. read less
Sound
The sounds in the ctk691 are very good. Lots of pianos and organs to mess around with. With the pianos there isn't much variation between them. But what I did was pull some of the pianos to the user area and used the synth function to change them up a little. I also used some of the effects,which are very good,to spice them up. No other keyboard in this price range can do this. Casio has made some good advances here.
Features
As stated before the effects are very good. There are alot of effects to add some zest to the sounds. The synth function, though not well equipped, is functional; hey what do you expect from a keyboard under $250.00? The sequencer seems ok. It's a scratch pad sequencer. Something to get your ideas down quick. Select a beat and start playing.
Quality
Well it's made of plastic. I dare not to drop it or smack those keys so hard when I'm playing; fear I might break the keys. But it seems well put together.
Value
I'll tell ya the ctk691 is full of good sounds, and effects, plus expandability! And the keyboard looks great. A good value for the money. I checked out the Yamaha psr292,… read more and the only things the psr292 has over the casio ctk691 is its ep. sounds and the education suite feature, which I really don't need.
Manufacturer Support
Haven't dealt with Casio support center yet. I guess time will tell. The Casio Music Site seems well maintained. They promised an update in March; we'll see.
The Wow Factor
Like I stated before the ctk691 looks great! The blue screen is very cool. And surprisingly the keys feels great to play; for me at least. You have to go and check it out for yourself.
Musical Style:
jazz, r&b, gospel, whatever. read less
20 of 20 people (100%) people found this review helpful. Did you?
Thanks for your opinion!
No longer available at zZounds
In most cases, a product is unavailable because it has been discontinued by the manufacturer
This is a carousel with product cards. Use the previous and next buttons to navigate.
People who bought this item also bought
Charvel Pro-Mod San Dimas JJ V Electric Bass, 5-String
$1,099.99
- 12 x$91.67
- 8 x$137.50
- No Credit Check6 x$183.33
- No Credit Check4 x$275.00
Electro-Voice EVOLVE 30M Powered Column PA System with 8-Channel Mixer
$1,399.00
- 18 x$77.72
- 12 x$116.58
- 8 x$174.88
Ibanez ICTB721 Iron Label Iceman Electric Guitar (with Gig Bag)
$1,299.99
- 18 x
- 12 x$108.33
- 8 x$162.50
ESP LTD EC-256FM Electric Guitar
$499.00
- 8 x$62.38
- No Credit Check6 x$83.17
- No Credit Check4 x$124.75
Alesis Nitro Max Electronic Drum Set, 8-Piece
$399.00
- 8 x$49.88
- No Credit Check6 x$66.50
- No Credit Check4 x$99.75
Gemini ES-210MXBLU-ST Portable PA System with Speaker Stands
$349.95
- 8 x$43.74
- No Credit Check6 x$58.32
- No Credit Check4 x$87.49
Ampeg Portaflex PF-50T Bass Amplifier Head
$999.99
- 18 x
- 12 x$83.33
- 8 x$125.00
- No Credit Check6 x$166.66
- No Credit Check4 x$250.00
