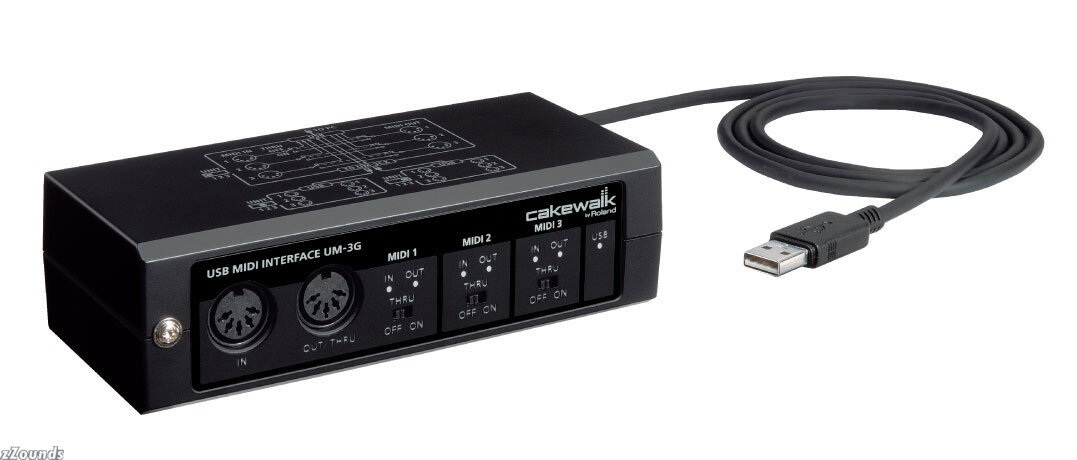

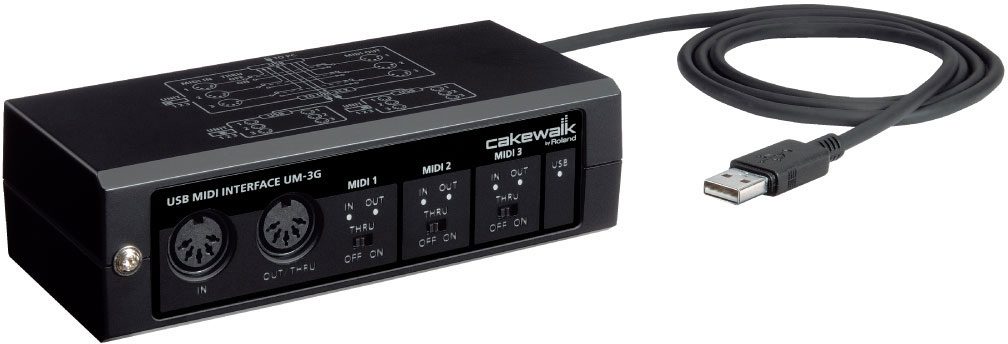

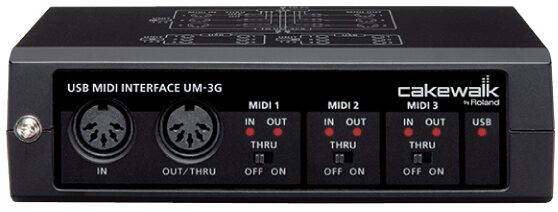

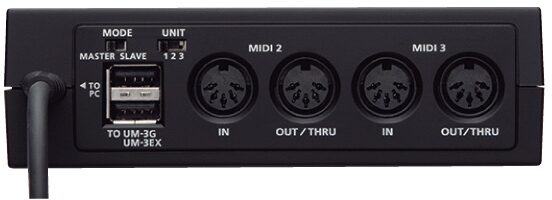

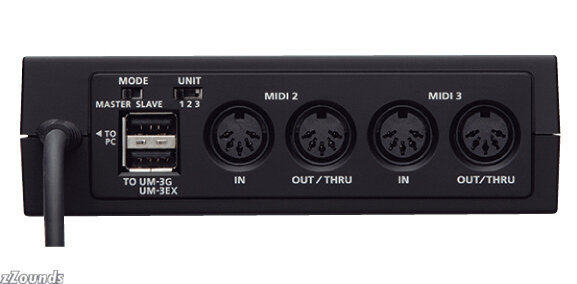

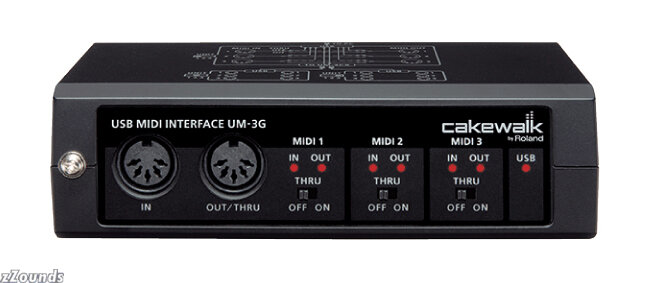

Cakewalk UM-3G 3x3 USB MIDI Interface

The UM-3G is portable, affordable and expandable, 3-In/3-Out USB MIDI Interface designed for easy connection of a computer to multiple MIDI devices. With the capability to connect three UM-3G interfaces with only one USB port, and independent MIDI Out/Thru Switches for each MIDI port, the UM-3G represents a perfect MIDI solution that can grow with you as your studio or live needs expand.

Features
- 3-In/3-Out MIDI Ports (female)

- Controls up to 48 channels of MIDI equipment

- Expandable design allows you to daisy-chain up to three UM-3G interfaces providing nine total MIDI inputs and outputs without the need for additional USB Ports

- Advanced Driver mode uses FPT (Fast Processing Technology) to ensure low-latency, even with three UM-3G interfaces daisy-chained together

- Up to 3 units can be rack mounted via Roland RAF-70 kit, available separately

- Ideal MIDI interface for the mid- to larger-sized studio

- Out or Thru selectable switches built-in; select between MIDI Out and MIDI Thru for each output port

- Great for live settings using multiple MIDI applications, including traditional instruments, synths, sequencers and live sound, lighting, and special effects

Technical Info

Specifications
Controllers:
- MIDI THRU switch x 3
- MODE select switch
- UNIT number select switch

Connectors:
- MIDI IN x 3 (16 MIDI Channel x 3)
- MIDI OUT x 3 (16 MIDI Channel x 3)
- USB Cable
- UM-3 Connector x 2

Power Supply: Supplied from the computer via USB

Current Draw: 90 mA

Dimensions:
- 138 (W) x 67 (D) x 42 (H) mm
- 5-7/16 (W) x 2-11/16 (D) x 1-11/16 (H) inches

Weight: 210 g / 8 oz

Accessories:
- Owner's Manual
- CD-ROM

Options: Rack Mount Adaptor - RAF-70

* In the interest of product improvement, the specifications,
appearance, and/or contents of this unit are subject to change
without prior notice.

Windows System Requirements
OS: Microsoft(R) Windows Vista(R) x32 or x64, Windows(R) XP Home x32, XP Professional x32 SP2 or later**

Computer: Windows compatible PC equipped with a USB port.

CPU: Pentium(R),Celeron(R) or compatible processor/800 MHz or faster

Memory (RAM): 256 MB or more

**Windows XP Media Center Edition not supported.

Macintosh System Requirements
OS Mac OS X v10.3.9 or later

Computer: Apple(R) Macintosh(R) series with on-board USB port.

CPU: Intel Processor or Power PC/400MHz or faster

Memory (RAM): 256 MB or more

Compatible with USB 2.0 port. Works as a USB 1.1 device without changing the specifications and performance.

The use of this product under Boot Camp is not supported.

This product will not operate in the Mac OS X Classic environment.

This product has been tested on representative computers that meet the system requirements, but we cannot guarantee that it will operate on any computer that meets these requirements. Please be aware that even under the same conditions, differences in the operating environment may produce differences in processing capability.
