AD conversion: 24 bit

DA conversion: 24 bit

Sampling frequency: 44.1kHz

Program memories: 99

Nominal input level:
-- INST: -10 dBu

-- MIC: -50 dBu

-- AUX: -16 dBu

Input impedance:
-- INST: 1 M ohms

-- MIC: 1 kilohm

-- AUX: 100 kilohms

Nominal output level:
-- MAIN OUTPUT: -10 dBu

-- SUB OUTPUT: -10 dBu

Output impedance:
-- MAIN OUTPUT: 2 kilohms

-- SUB OUTPUT: 2 kilohms

-- PHONES: 47 ohms

Available recording time*:
-- STEREO: Approx. 24 minutes

-- MONO: Approx. 49 minutes

Control

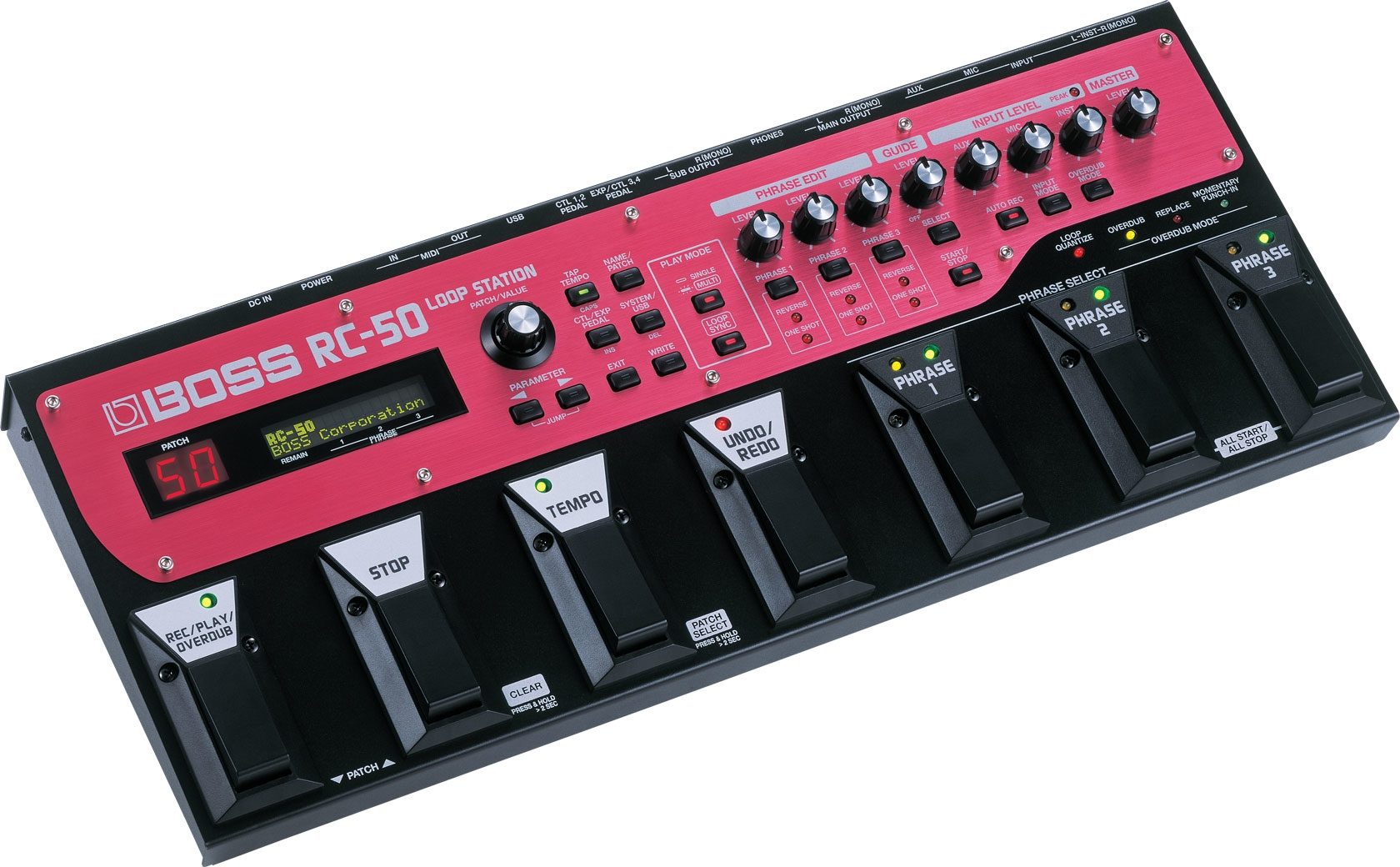

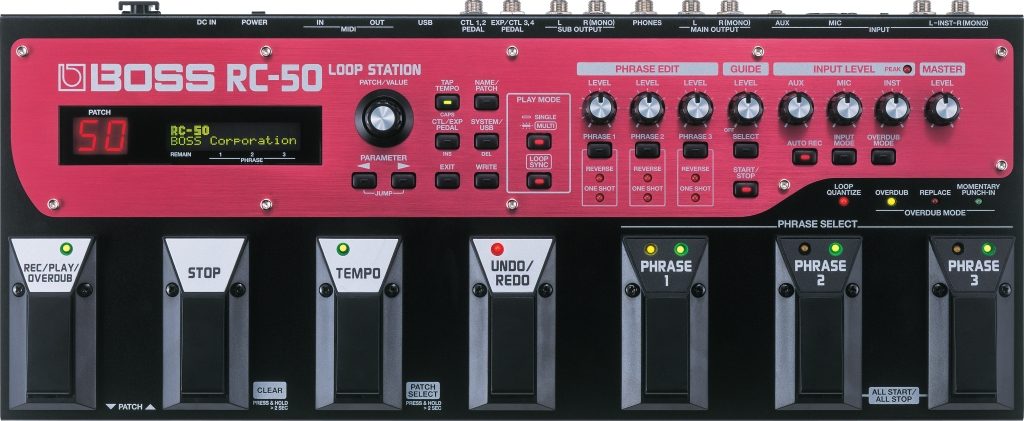

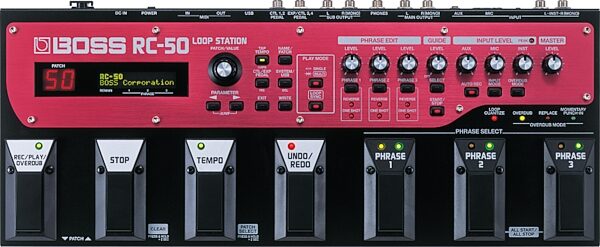

Front panel:
-- REC/PLAY/OVERDUB pedal

-- STOP pedal

-- TEMPO pedal

-- UNDO/REDO pedal

-- PHRASE 1 pedal

-- PHRASE 2 pedal

-- PHRASE 3 pedal

-- PATCH/VALUE dial

-- PARAMETER buttons

-- TAP TEMPO button

-- NAME/PATCH button

-- CTL/EXP PEDAL button

-- SYSTEM/USB button

-- EXIT button

-- WRITE button

-- PLAY MODE button

-- LOOP SYNC button

-- AUTO REC button

-- INPUT MODE button

-- OVERDUB MODE button

-- LOOP QUANTIZE indicator

-- OVERDUB MODE indicators (OVERDUB, REPLACE, MOMENTARY PUNCH-IN)

Phrase edit:
-- PHRASE LEVEL knobs (PHRASE 1, 2, 3)

-- PHRASE buttons (PHRASE 1, 2, 3)

-- REVERSE indicators (PHRASE 1, 2, 3)

-- ONE SHOT indicators (PHRASE 1, 2, 3)

Guide:
-- LEVEL knob

-- SELECT button

-- START/STOP button

Input level:
-- AUX knob

-- MIC knob

-- INST knob

-- PEAK indicator

MASTER: LEVEL knob

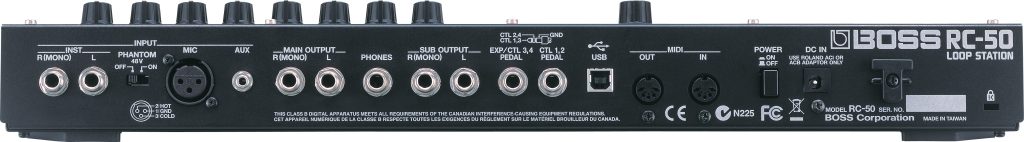

Rear Panel:
-- PHANTOM switch

-- POWER switch

Others
Display:
-- 16 characters, 2 lines (backlit LCD)

-- 2 characters, 7 segment LED

Connectors:
-- INST jacks R (MONO)/L (1/4 inch phone type)

-- MIC connector (XLR type; supports use of phantom power)

-- AUX jack (Stereo miniature phone type)

-- MAIN OUTPUT jacks R (MONO)/L (1/4 inch phone type)

-- PHONES jack (Stereo 1/4 inch phone type)

-- SUB OUTPUT jacks R (MONO)/L (1/4 inch phone type)

-- EXP/CTL 3, 4 PEDAL jack (TRS 1/4 inch phone type)

-- CTL 1, 2 PEDAL jack (TRS 1/4 inch phone type)

-- USB connector

-- MIDI connectors (IN/OUT)

-- DC IN (AC adapter) jack

Power supply;
-- DC 9 V: supply AC adapter (Roland ACI or ACB series)

Current draw:
-- 450 mA

Accessories:
-- AC adapter (Roland ACI or ACB series)

-- USB cable

-- Owner's manual

-- Roland service (information sheet)

-- Sound library for RC-50 (sample phrase CD)

Options:
-- Foot switch: FS-5U

-- Dual foot switch: FS-6

-- Expression pedal: EV-5 (Roland), FV-500L/H (Roland)

-- Foot switch cable: PCS-31 (Roland) (Stereo 1/4 inch phone plug-1/4 inch phone plug x 2)

Size and Weight
Width: 472 mm; 18-5/8 in.

Depth: 198 mm; 7-13/16 in.

Height: 64 mm; 2-9/16 in.

Weight: 2.9 kg; 6 lbs. 7 oz. (excluding AC adapter)

* The times listed above take into account the amount of memory needed for the actual recording combined with the memory required for the RC-50's operations (e.g., Undo/Redo).* 0 dBu = 0.775 Vrms
