Product Description

BOSS celebrates the 10th anniversary of the LoopStation with an exciting lineup of RC-series loopers! First out of the gate is the RC-30, a Twin Pedal multitrack looper with two synchronized stereo tracks and built-in loop effects. Plug in your instrument of choice, or even a microphone; an XLR input is provided, complete with phantom power. Record for up to three hours direct to internal memory, adding effects as you go. The USB 2.0 port lets you save your loops externally, and import/export WAV files.

See the RC-30 in action with this video from Boss:

Twin Stereo Loops

Create and stack multi-layered loops with twin stereo tracks -- each track being independently controllable with dedicated volume faders and track-select buttons. Creating loops is convenient with the Auto Recording feature, which starts recording the moment you begin playing your guitar, bass, keyboard, or singing, or as soon as you start a connected audio player. Count-In mode gives you one-bar of rhythm before recording starts. You can Undo/Redo as you go. The sky's the limit, with three hours of recording time!

Onboard Effects

Fans of BOSS's world-famous effects will be pleased to find a lineup of creative effects onboard the RC-30. Bend Down provides a dramatic pitch-bend effect. Step Phaser changes phase in incremental steps. Sweep Filter alters frequency in sync with the current tempo. Tempo Delay produces a tempo-synced delay effect. Lo-Fi intentionally degrades the sound to create a distinctive character. Dunk your loops in cool effects without the cost and hassle of adding external gear.

Mic Input

Vocalists can plug a microphone of their choice directly into the RC-30's XLR microphone input, complete with phantom power if you wish to use a condenser mic. Sing, overdub, and make multi-layered loops of your voice, create vocal sound-effects patterns, or point the microphone at your acoustic musical instruments, or anything that makes noise and turn it into a cool loop. You don't have to be a musician to get in on the LoopStation action!

Rhythm Guide

To keep your loops tight and in time, play along with one of the basic rhythm patterns in the RC-30's onboard library as you record. Ten types of rhythm types are provided, including Rock, Pop, Funk, Shuffle, R&B, and Latin. A dedicated knob lets you adjust the volume of the rhythm, and you can set the tempo incrementally or via tap tempo. You can also specify the time signature. When you save a phrase, the rhythm type and time signature will also be saved.

USB Connectivity

You can connect the RC-30 to your computer via a standard USB cable, and back up your RC-30 phrases to your computer for safekeeping. You can also load WAV files from your computer directly into the RC-30. The RC-30 accepts 16-bit/44.1 kHz WAV files of up to 1.7 GB in size.

AUX Input

In addition to recording your instrument performances and turning them into playable loops, you can record other external stereo audio sources via the AUX IN. Sound from a digital-audio player or other device connected to the AUX input can easily be recorded and added to your loop.

Features:

- Twin Pedal multi-track looper with true stereo I/O
- Two synchronized stereo tracks with dedicated volume faders and track-select buttons
- Massive internal memory with up to three hours of stereo recording time
- 99 onboard memory phrases for storing loops
- Built-in effects for processing loops
- Multiple inputs: 1/4" A and B input jacks, stereo 1/8" mini AUX input jack, XLR input jack with phantom power
- USB 2.0 port allows you to connect to a PC and import/export WAV audio
- Rhythm guide with real drums
- Runs on batteries or optional AC power supply zZounds is an authorized dealer of Boss products.

Specifications

- Nominal Input Level:

- MIC IN: -40 dBu (variable)

- INST IN: -20 dBu

- AUX IN: -10 dBu

- Input Impedance:

- MIC IN: 4 kOHM

- INST IN: 1 MOHM

- AUX IN: 22 kOHM

- Nominal Output Level: -20 dBu

- Output Impedance: 1 kOHM

- Recommended Load Impedance: 10 kOHM or larger

- Recording/Playback:

- Maximum Recording Time: Approximately 3 hours

- Maximum Phrase Memory: 99 phrases

- Number of tracks: 2

- Data Format: WAV (44.1 kHz, 16-bit linear, stereo)

- Rhythm Type:

- Hi-Hat

- Kick & Hi-Hat

- Rock 1

- Rock 2

- Pop

- Funk

- Shuffle

- R & B

- Latin

- Percussion

- Effect Type:

- BEND DOWN

- STEP PHASER

- SWEEP

- FILTER

- TEMPO DELAY

- Lo-Fi

- USB Interface: Hi-Speed USB mass storage device class

- Controls:

- REC/PLAY/OVERDUB pedal switch

- STOP/TAP TEMPO pedal switch

- MIC INPUT LEVEL knob

- MEMORY DOWN button

- MEMORY UP button

- MEMORY WRITE button

- MEMORY DELETE button

- RHYTHM OUTPUT LEVEL knob

- RHYTHM ON/OFF button

- RHYTHM TYPE button

- RHYTHM TAP TEMPO button

- TRACK 1 slider

- TRACK 1 SELECT button

- TRACK 2 slider

- TRACK 2 SELECT button

- LOOP FX ON/OFF

- LOOP FX TYPE button

- PHANTOM switch

- Indicators :

- POWER indicator

- REC/PLAY (DUB) indicator

- PEAK indicator

- TRACK 1 STATUS indicator

- TRACK 2 STATUS indicator

- BEND DOWN indicator

- STEP PHASER indicator

- SWEEP FILTER indicator

- TEMPO DELAY indicator

- Lo-Fi indicator

- Display: 7 segments, 2 characters (LED)

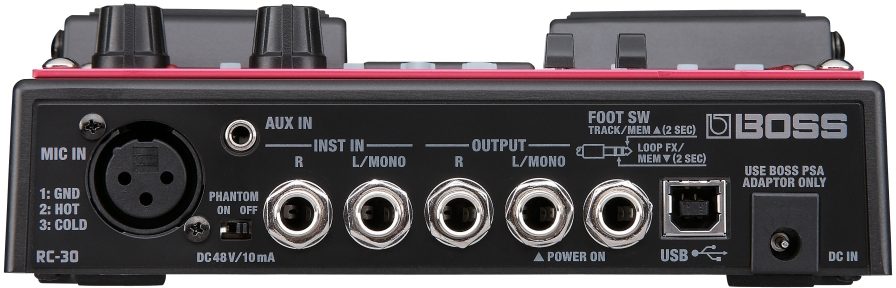

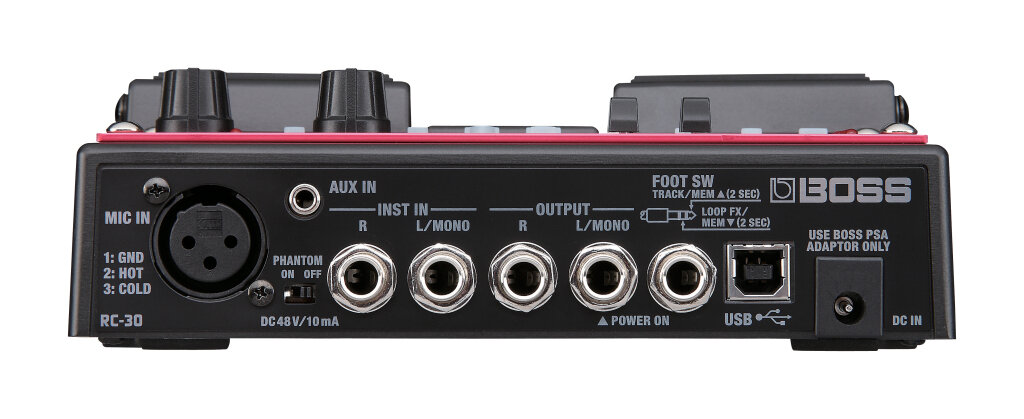

- Connectors:

- MIC IN Jack: XLR type (balanced/phantom power: DC 48 V, 10 mA)

- INST IN Jack (L/MONO, R) : 1/4 inch phone type

- AUX IN Jack: Stereo miniature phone type

- OUTPUT Jack (L/MONO, R) : 1/4 inch phone type

- FOOT SW Jack: 1/4 inch TRS phone type

- USB Connector

- DC IN Jack (DC 9 V)

- Dimensions: 173 (W) x 158 (D) x 57 (H) mm / 6-13/16 (W) x 6-1/4 (D) x 2-1/4 (H) inches

- Weight: 1.2 kg / 2 lbs 11 oz (including batteries)

Dimensions and Weight in Packaging

Shipping Weight: 4 lbs

Shipping Dimensions: 9 x 8 x 4 in
