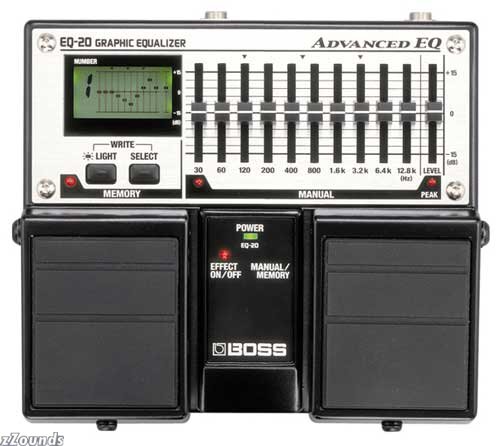

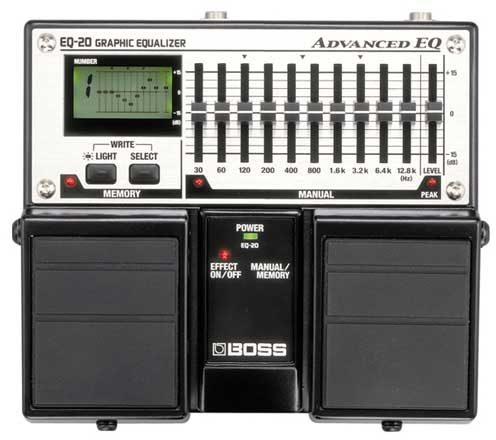

The EQ-20 Advanced EQ gives guitarists, bassists, and other live performers 10 bands of programmable EQ with stellar sound quality. Physical sliders make instant EQ tweaks easy, and a straightforward Write function permits instant storage of EQ settings into 9 memory locations.
Features:
World's first programmable 10-band graphic equalizer pedal for guitarists, bassists, and other live performers
9 internal memories for storing user-created EQ settings
Level switch for connection before amp or in effects loop (+4dB)
Professional sound quality using superb A/D-D/A converters
Single purpose design; simple user interface
Technical Info
Memories: 9
Nominal Input Level: -20 dBu (GUITAR/BASS), +4 dBu (GUITAR AMP SEND/RETURN)
Input Impedance: 1 M � l Nominal Output Level -20 dBu (GUI-TAR/BASS), +4 dBu (GUITAR AMP SEND/RETURN)
Output Impedance: 1 k �
Recommended Load Impedance: 10 k �
Residual Noise Level: -100 dBu or less (IHF-A typ.), (All Sliders max.)
Variable Range: Equalizer Control: -/+15 dB, Level Control: -/+15 dB
Display: Custom LCD (backlit LCD)
Controls: EFFECT ON/OFF Pedal, MANUAL/MEMORY Pedal, Equalizer Sliders (30 Hz, 60 Hz, 120 Hz, 200 Hz, 400 Hz, 800 Hz, 1.6 kHz, 3.2 kHz, 6.4 kHz, 12.8 kHz), LEVEL Slider, SELECT Button, WRITE Button, LEVEL Switch
Indicators: POWER Indicator (serves also as battery check indicator), EFFECT ON/OFF Indicator, MANUAL Indicator, MEMORY Indicator, PEAK Indicator

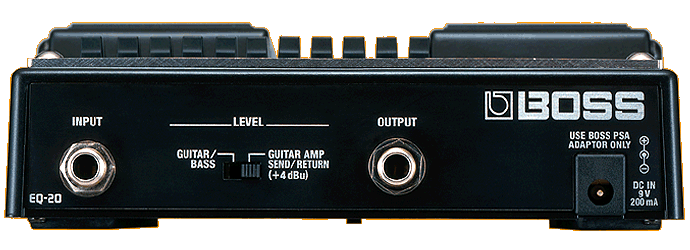

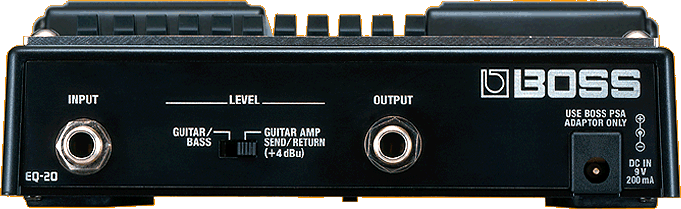

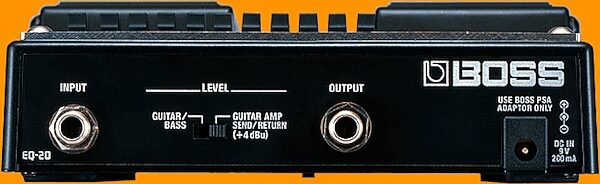

Connectors: INPUT Jack, OUTPUT Jack, AC Adapter Jack
Power: DC 9V: Dry battery (AA type) x 6, AC Adapter
Power Consumption: 120 mA (9 V) * Expected battery life under continuous use: Carbon: 3.5 hours, Alkaline: 12 hours, These figures will vary depending on the actual conditions of use.
Dimensions (H x W x D): 55 x 173 x 160mm (2-3/16 x 6-13/16 x 6-5/16 in.)
Weight (including batteries): 1.1 kg (2 lbs., 7 oz)
