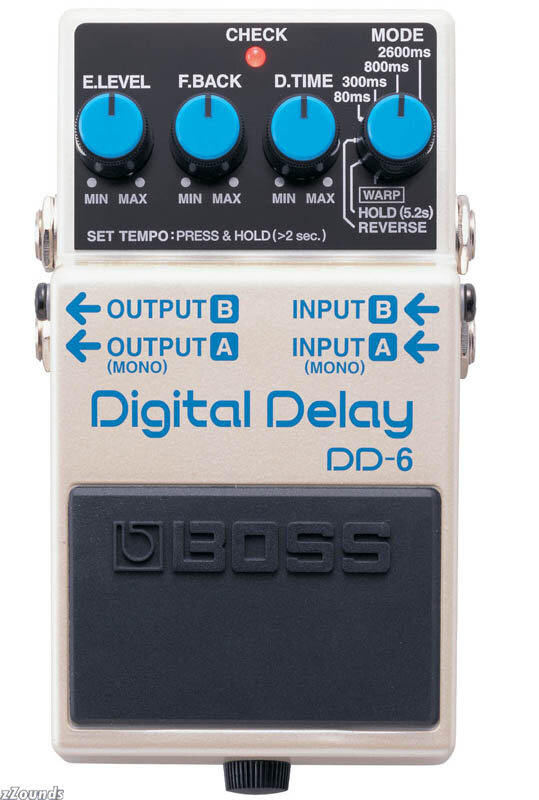

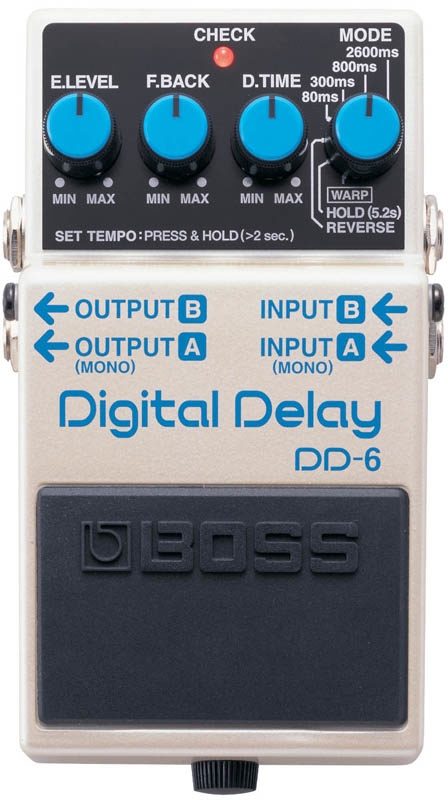

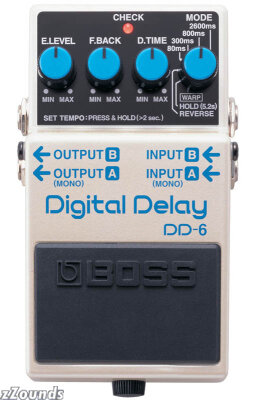

The DD-6's stereo input makes it possible to achieve true stereo delay and panning effects. It also lets guitarists and bassists connect the stereo output of Boss's BF-3 Flanger right into the DD-6 - keeping a true stereo signal path. Enhancements include built-in tap tempo capability and a delay/hold time of up to 5,200ms with sound-on-sound recording. A new Reverse mode makes it easy to get trippy 60's and 70's-style effects, while the newly designed Warp mode creates radical delay effects on the fly.
Features
Stereo input/output for true stereo delay and panning effects
Over 5 seconds of delay time (5,200ms)
Hold function records phrases up to 5,200ms with sound-on-sound overdubbing
Tempo mode permits tap tempo without external footswitch
First-of-its-kind Warp mode generates radical delay effects instantly
Reverse mode creates cool backwards effects
Technical Info
Nominal Input Level: -20 dBu
Input Impedance: 1 M ohms
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohms
Connectors:
Input A (mono) Jack
Input B Jack
Output A (MONO) Jack
Output B Jack
AC Adaptor Jack (DC 9V)
Power Supply: DC 9V: Dry Battery [S-006P/9V (6F22/9V) or 6AM6/9V (alkaline)], AC Adapter (PSA Series)
Dimensions (W x D x H): 2-7/8 x 5-1/8 x 2-3/8 in. (73 x 129 x 59 mm)
Weight: 0.42 kg (0 lbs., 15 oz.)
Note: The specifications are subject to change without notice.
Gives you up to 5.2 seconds of delay with stereo I/O, tap tempo, reverse, and a hold mode for sound-on-sound playing.
