The moogerfooger Ring Modulator multiplies an audio input and a carrier oscillator to produce sum and difference frequencies. The unit has a wide-range carrier oscillator (2 Hz to 4 kHz in 2 ranges) and a dual-waveform LFO (0.1 Hz to 25 Hz, sine and square waveforms). The control parameters are signal mix, carrier frequency, LFO rate, and LFO amount, all of which may be voltage-controlled as well as panel-knob-controlled. Panel switches select carrier oscillator range and LFO waveform. Moog provides 1/4 in. TRS jacks for pedal/control inputs, auxiliary audio input, and LFO and carrier oscillator outputs.

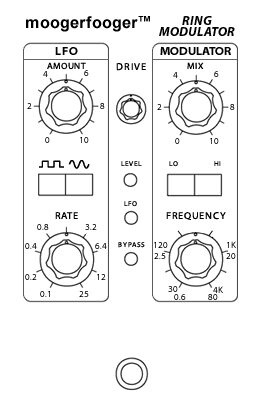

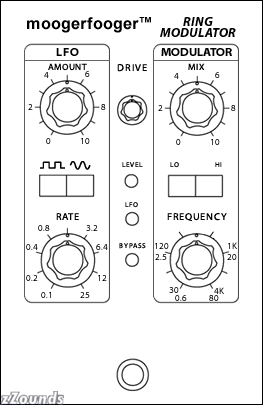

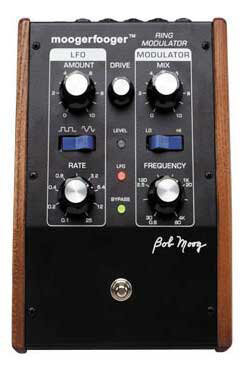

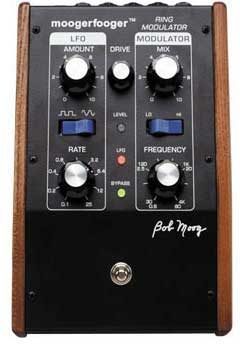

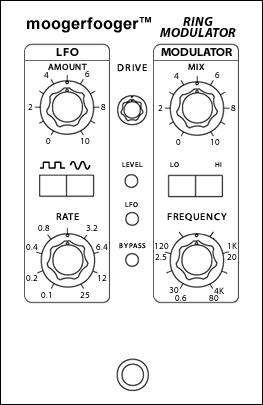

Front Panel Features:
- Frequency rotary control, which varies the carrier frequency over a 6-octave range
- Rate rotary control, which varies the LFO's frequency from 0.1 Hz to 25 Hz.
- LFO Amount rotary control, which adjusts the amount that the LFO output sweeps the carrier oscillator
- Mix rotary control, which crossfades continuously from unmodulated to modulated audio
- Drive rotary control, which adjusts the gain of the audio input
- Square-Sine rocker switch, which chooses the LFO waveform
- Lo-Hi rocker switch, which chooses between the low frequency carrier range (2 Hz to 130 Hz) and the high frequency carrier range (60 Hz to 4,000 Hz)
- Level, a 3-color LED that is used to set the Drive control
- LFO, a LED that indicates the LFO rate
- Bypass, a 2-color indicator LED that tells whether the filter is on or bypassed
- On/Bypass, a rugged, smooth-acting 'stomp switch'
Jack Panel FeaturesL
- Audio In 1/4 in. phone jack: accepts any instrument-level or line-level audio signal from -16 dBm to +4 dbm
- Audio Out 1/4 in. phone jack: -4 dBm nominal output level
- Frequency, Rate, LFO Amount, Mix, all of which are stereo 1/4 in. jacks that accept moogerfooger EP1 (or equivalent) expression pedals, or control voltages from 2-circuit or 3-circuit 1/4 in. jacks.
- Aux Audio In: provides a means of applying an external signal to the ring mdulator, in place of the carrier oscillator
- LFO Out jack: delivers the LFO voltage for use by other voltage-controlled devices.
- Carrier Out jack: delivers the carrier signal for use by other devices
- +9V Power Input jack: accepts standard 9 volt power adapters (power adapter included)
