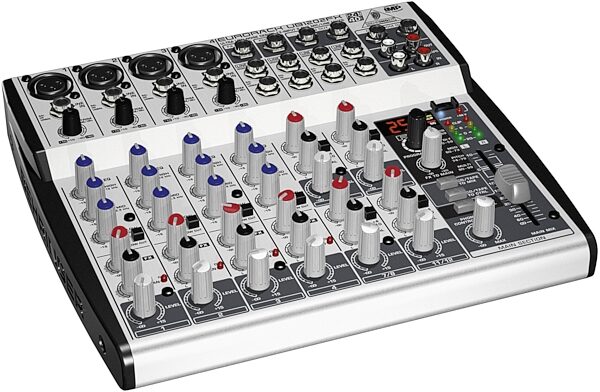

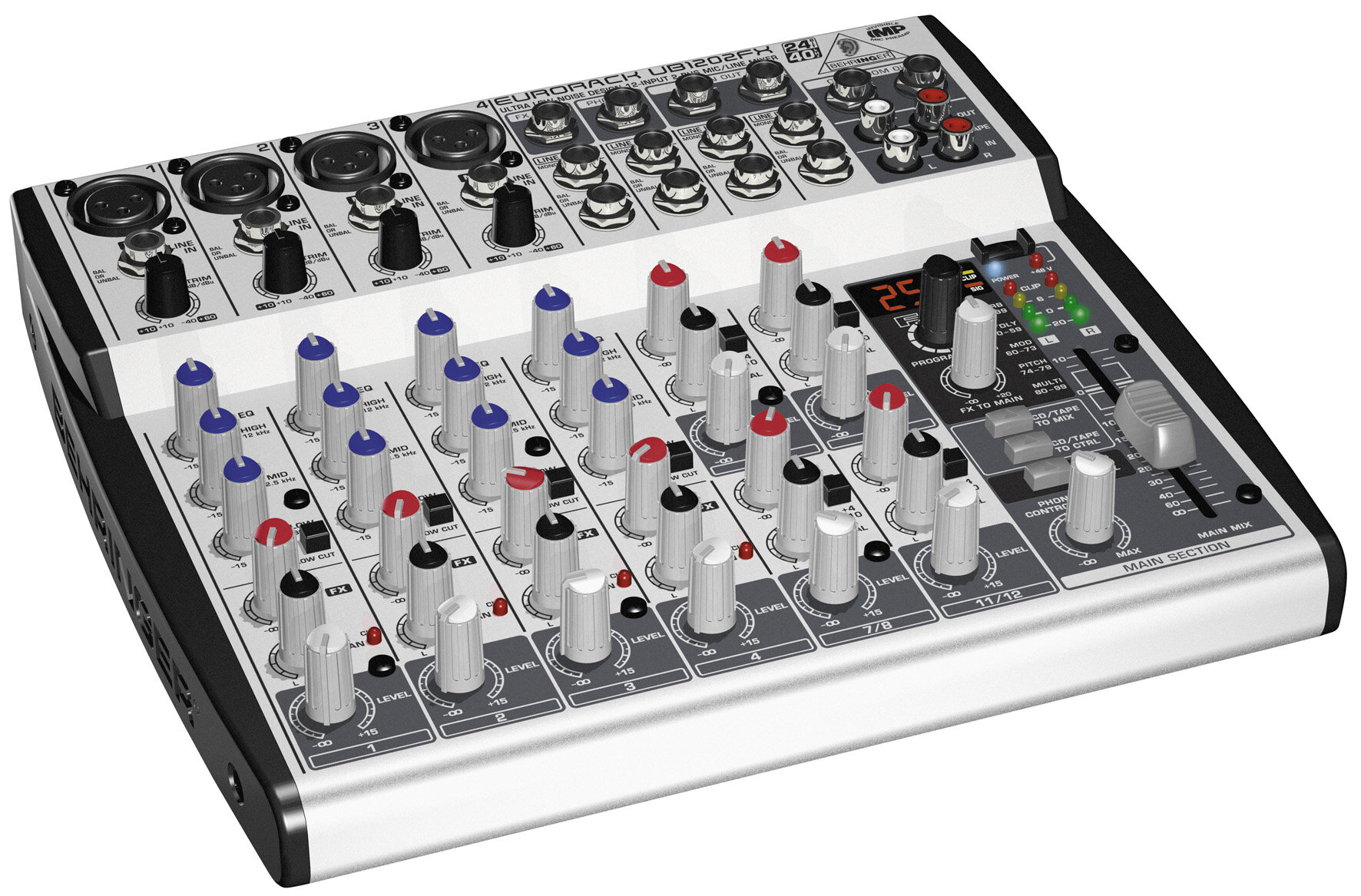

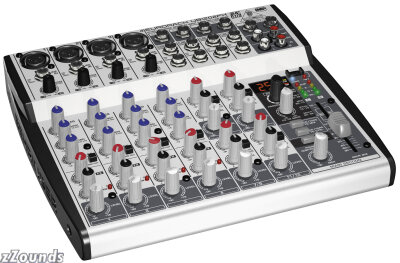

They say, "Never change a winning horse", but we just couldn't resist. Already an absolute best-seller, our UB1202 12-input, 2-bus mic/line mixer now also features a stellar 24-bit/40 kHz multi-FX processor with 100 great-sounding presets including reverb, chorus, flanger, delay, pitch shifter and more. Also packed into this compact mixer are the same state-of-the-art Invisible Mic Preamps, ultra low-noise design circuitry and a 3-band EQ plus switchable low-cut filter on all mono channels'the features that have made the entire UB series so successful. The UB1202FX is a versatile mixer with possible applications ranging from connecting a DAT recorder and monitor speakers to running permanent video and audio installations.
Features
Ultra low-noise ULN design, highest possible headroom, ultra-transparent audio
4 new state-of-the-art, studio-grade IMP 'Invisible' Mic Preamps with:
- 130 dB dynamic range for 24-bit, 192 kHz sampling rate inputs
- Ultra-wide 60 dB gain range
- Lowest possible distortion 0.0007% (20 Hz - 20 kHz)
Integrated 24-bit digital stereo FX processor with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
Effective, ultra-musical 3-band EQ plus switchable low-cut filter on all mono channels
State-of-the-art 4580 operational amplifiers provide lowest noise and distortion, better than 4560 op amps
Clip LEDs on all mono channels
12 balanced high-headroom line inputs with +4/-10 level selection on all stereo channels
FX send control per channel for internal FX processor and/or as external send
Main mix outputs plus separate control room, phones and stereo CD/tape outputs
CD/tape inputs assignable to main mix or control room/phones outputs
Switchable +48 V phantom power for condenser microphones
Long-wearing 60-mm logarithmic-taper Alps(R) fader and sealed rotary controls
External power supply for noise-free audio and superior transient response
High-quality components and exceptionally rugged construction ensure long life
Conceived and designed by Behringer Germany
Technical Info
Mono Inputs
Microphone inputs
(IMP "Invisible Mic Preamp)
Type: XLR, electronically balanced, discrete input circuit
Mic EIN (20Hz - 20kHz):
- @ 0 Ohms Source Resistance: -134dB/135.7dB A-weighted
- @ 50 Ohms Source Resistance: -131dB/133.3dB A-weighted
- @ 150 Ohms Source Resistance: -129dB/130.5dB A-weighted
Frequency Response:
-1dB: <10Hz - 150kHz
Gain Range: +10 to +60dB
Maximum Input Level: +12dBu @ 10dB gain
Impedance (approx.): 2.6 kOhms balanced
Signal-to-Noise Ratio: 107dB/111dB A-weighted (0dBu In @ +22dB gain)
Distortion (THD+N): 0.005%/0.003% A-weighted
Line Input
Type: 1/4 in. TRS connector electronically balanced
Impedance (approx.):
- Balanced: 20kOhms
- Unbalanced: 10kOhms
Gain Range: -10 to +40dB
Maximum Input Level: +20dBu @ 0dB Gain
Fade Out Attenuation (Crosstalk Attenuation)
Main Fader Closed: 85dB
Channel Fader Closed: 88dB
Frequency Response
Microphone Input to Main Out
<10Hz - 80kHz: +0dB/-1dB
<10Hz - 137kHz: +0dB/-3dB
Stereo Inputs
Type: 1/4 in. TRS connector, electronically balanced
Impedance:
- Balanced: 20kOhms
- Unbalanced: 10kOhms
(+4dBu operating level)
-Balanced: approx. 20kOhms
-Unbalanced: 5kOhms
(-10dBV)
Maximum Input Level: +22dBu
EQ Mono Channels
Low: 80Hz, +/-15dB
Mid: 2.5 KHz, +/-15dB
High: 12kHz, +/-15dB
Audio Outputs
FX Sends
Type: 1/4 in. TS connector, unbalanced
Impedance: Approx. 120 Ohms
Maximum Output Level: +22dBu
Main Outputs
Type: 1/4 in. TRS connector, unbalanced
Impedance: Approx 120 Ohm
Maximum Output Level: +22dBu
Control Room Outputs
Type: 1/4 in. TS connector, unbalanced
Impedance: Approx. 120 Ohms
Maximum Output Level: +22dBu
Power
Mains Voltage: 120 V~, 60Hz, MXUL6 adapter
Physical
Dimensions: 1-5/6 x 9-1/2 x 8-2/3 in. (47 x 242 x 220 mm)
Weight (approx.): 2.97 lbs (1.35 kg)
