The Tube Ultragain is the best preamplifier that Behringer has ever produced. Not only did they choose the highest components available; in the input section circuitry they've bordered on breaking the laws of physics. With impressive results: absolutely pure audio quality and unbelievable detail resolution. Input gain is adjustable from +10 to +60 dB. Phantom power is switchable per channel, with a "soft mute" function to ensure noise-free switching.
Features:
Versatile and useful "Tube" 2-Channel mic preamp, line drive, and DI box
Original ULTRAGAIN is a staple in studios because it gives you the extra clarity and punch missing from your mics
Unique mic preamp provides unmatched sound quality with an incredible dynamic range of 130 dB!
Gain is adjustable from +15 to +55 dB
"Ultra-Tube" circuitry adds more warmth without distortion or noise.
Add in as much tube enhancement as you can handle with the independent "Warmth" control

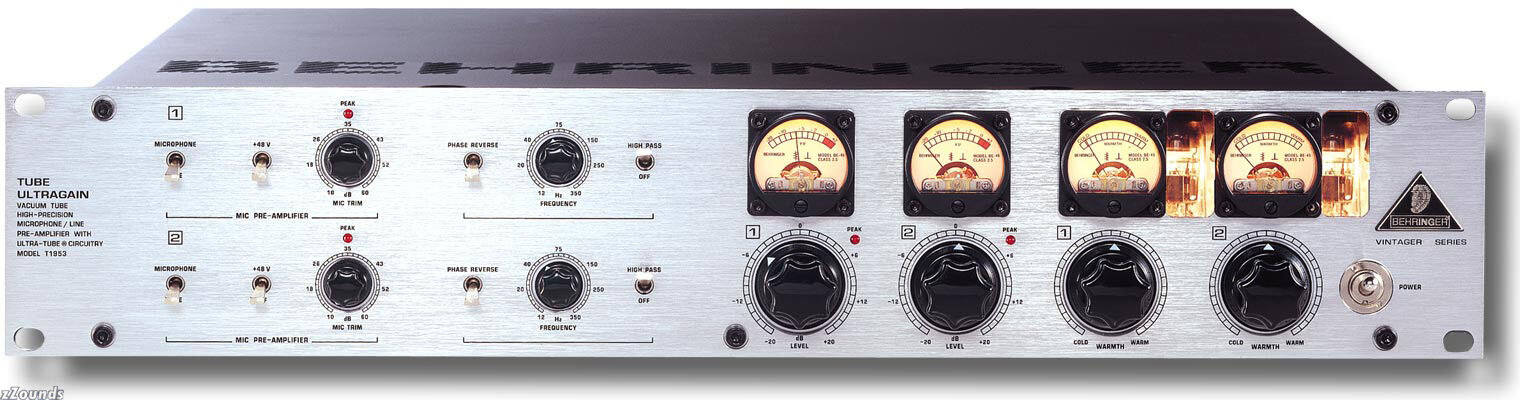

Legendary Sovtek tubes; huge, backlit analog VU meters and a slick chrome "Retro" front panel design and vintage style knobs that take you back to the future round out this package
Phantom power is available on each channel
"Soft Mute" feature ensures that there's no "thump" when unit is enabled
Mic/Line switch lets you choose Line input or Mic input
12 dB per octave switchable Low Cut filter can be swept from 15 Hz to 350 Hz to eliminate stage "rumble" and tighten up tape tracks in the Line Mode
Phase Reverse function minimizes anti-phase effects and is also essential when decoding MS (Middle/Side) miking effects
Converts between the semi-professional standard of -10 dBV up to the professional +4 dBu professional standard or vice versa
Servo-balanced XLR and TRS inputs and outputs on gold-plated connectors
Technical Info
Microphone Inputs
Connections: XLR and 1/4 in. jack
Type: transformerless, DC-decoupled input
Impedance: 3 kOhm balanced
Max. input level: +10 dBu balanced and unbalanced
CMRR typical 40 dB, >55 dB @ 1 kHz
Line inputs
Connections: XLR and 1/4 in. jack
Type: transformerless, DC-decoupled input
Impedance: 50 kOhm balanced, 25 kOhm unbalanced
Max. Input leve:l +23 dBu balanced and unbalanced
CMRR: typical 40 dB, >55 dB @ 1 kHz
Audio outputs
Connections: XLR and 1/4 in. jack
Type: electronic, servo-balanced output stage
Impedance: 60 Ohm balanced, 30 Ohm unbalanced
Max. output level: +21 dBu balanced and unbalanced
System Specifications
Bandwidth 18 Hz to 30 kHz, +/- 3 dB
Signal-to-noise ratio > 108 dBu, unweighted, 22´Hz to 22 kHz
Controls
Mic Trim: variable (+10 to +60 dB)
Frequency (High Pass): variable (12 to 350 Hz)
Level: variable (-20 dB to +20 dB)
Warmth: variable (Cold to Warm)
Function Switches
+48 V: engages the Phantom Power
Mic/Line: switches from Line to Microphone pre-amp
Phase Reverse: phase reversal (180Á)
High Pass: engages the high pass filter
Options
Output transformer Behringer OT-1 retrofittable
Power Supply
Mains voltage: USA/Canada ~ 120 V AC, 60 Hz
Power consumption: 25 Watts
Fuse: 100-120 V AC: 1,0 A (slow-blow)
Mains connection: standard IEC receptacle
Physical
Dimension (H x W x D): 3-1/2 x 19 x 8-1/2 in. (89.5 x 482.6 x 217mm)
Net weight: 8.0 kg, approximately
Shipping weight: 10.0 kg, approximately
